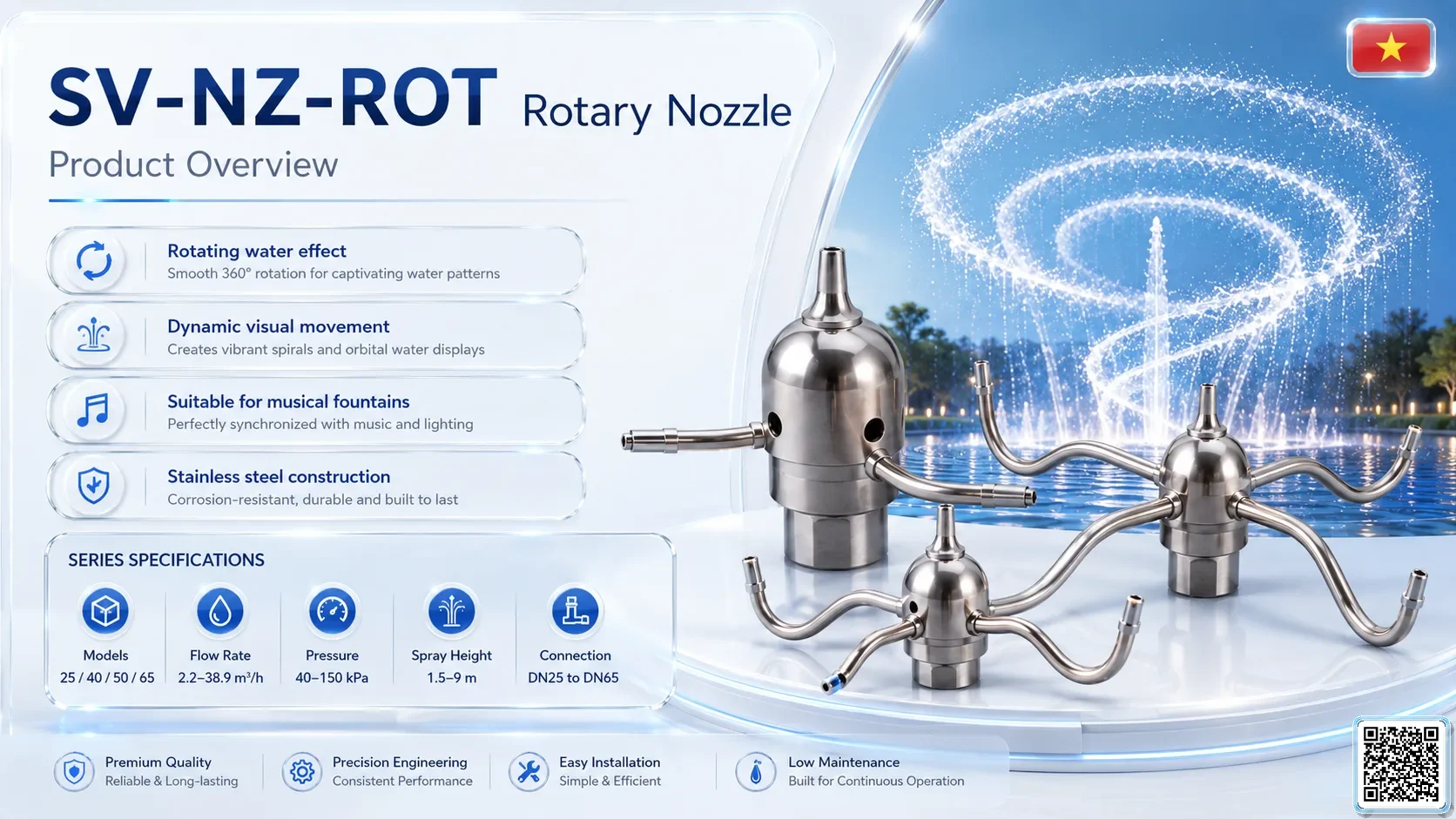

SV-NZ-ROTRotary Nozzle

Name: SV-NZ-ROT Rotary Nozzle
Brand: SmartVision

Rotary Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.

nozzlesSV-NZ-ROTRequest quotation

Choose nozzle configuration

Size / Connection Connection Spray height Flow rate Pressure / Head Dimensions A/B/C/D Quantity

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

DOCUMENTS AVAILABLE

Preview images are being updated, but the technical document files can be downloaded now.

Installation Type	Threaded / fixed mounting
Catalogue Page	5
Nozzle Type	SV-NZ-ROT Rotary Nozzle
Material	SS304
Available Sizes	DN25 / 1 inch / DN40 / 1.5 inch / DN50 / 2 inch / DN65 / 2.5 inch
Variant Models	SV-NZ-ROT-25 / SV-NZ-ROT-40 / SV-NZ-ROT-50 / SV-NZ-ROT-65
Spray Height	1.5–5 m / 1.5–7 m / 1.5–9 m
Flow Rate	2.2–4.2 m³/h / 3.4–8.5 m³/h / 14.5–27.4 m³/h / 19.8–38.9 m³/h
Pressure Head	40–80 kPa / 40–120 kPa / 40–150 kPa
Spray Diameter	0.5-1 / 1.0-1.5 / 1.5-2.0 / 2.0-3.0
Dimension A	122 mm / 136 mm / 153 mm / 195 mm
Dimension B	55.8 mm / 67.9 mm / 84 mm / 110 mm
Dimension C	426 mm / 441 mm / 460 mm / 890 mm
Dimension D	6 mm / 8 mm / 12 mm

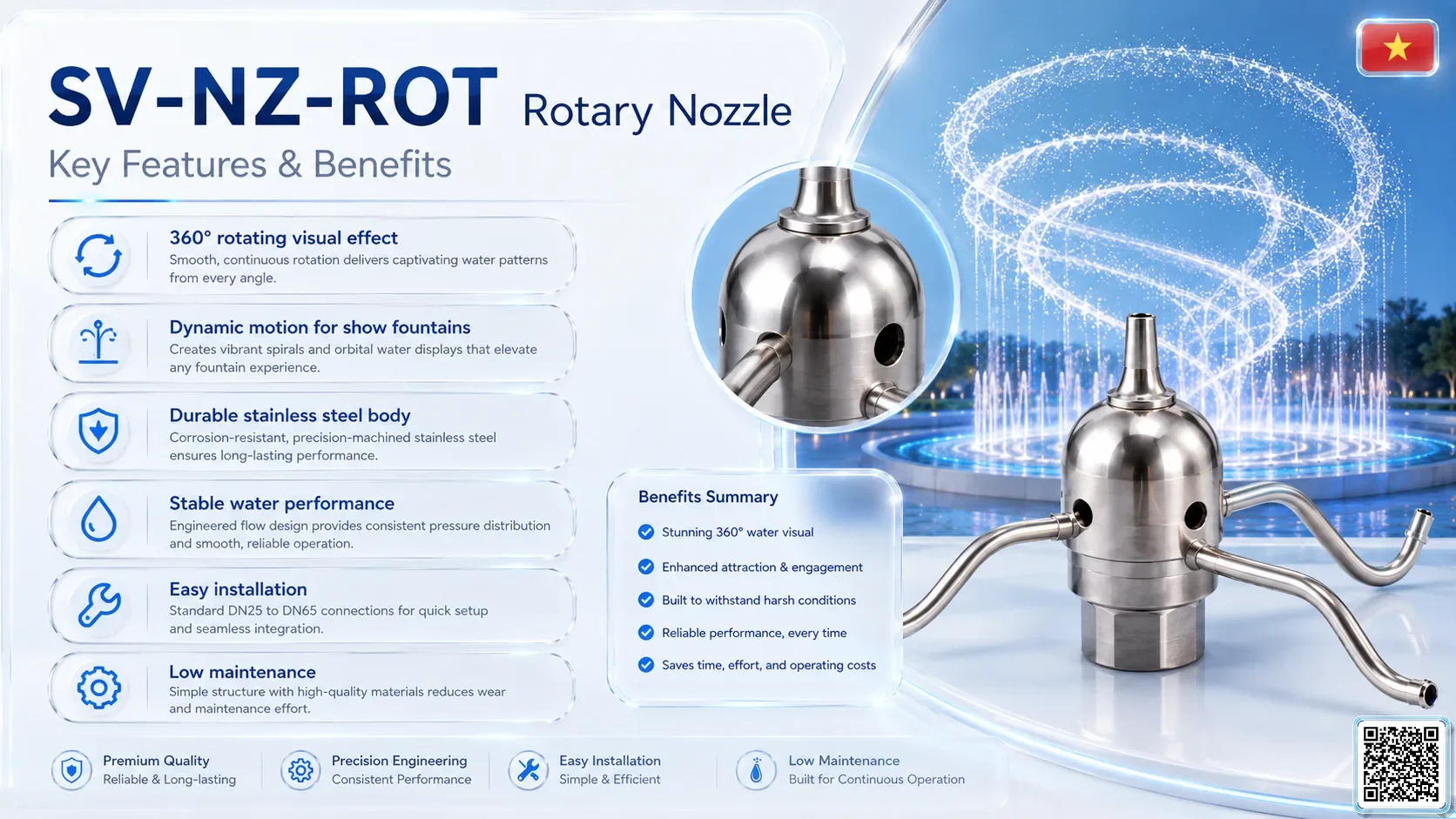

Professional rotary nozzle for SmartVision musical fountain and architectural water-show projects.

Suitable for CAD layout, nozzle spacing and site coordination.

Designed for long-term fountain and outdoor water-feature use.

Project-ready:

Water effectspiral twisting rotating water lines.
Best fordynamic plaza fountains, resort water features and movement-based music scenes.
InstallationThreaded / fixed mounting
ConstructionSS304 stainless steel / project-grade metal body
Integrationhydraulic rotation, pump pressure matching and colored lighting choreography.
Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.

✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

PRODUCT CONFIGURATIONS

Total nozzle sizes: 4

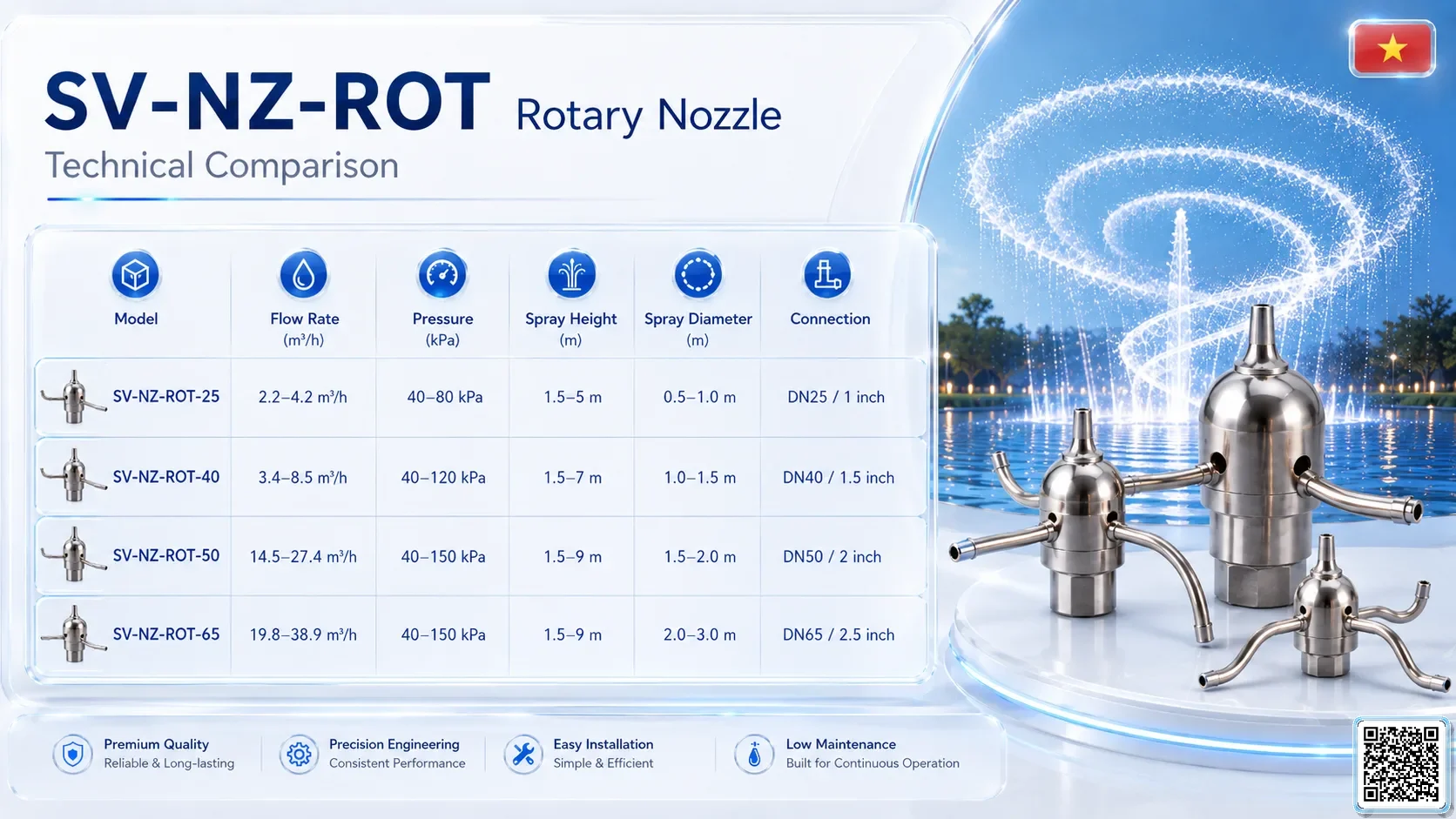

Variant	Connection	Spray height	Flow rate	Pressure / Head	Diameter	A / B / C / D
SV-NZ-ROT-25 SV-NZ-ROT-25	DN25 / 1 inch	1.5–5 m	2.2–4.2 m³/h	40–80 kPa	0.5-1	122 mm / 55.8 mm / 426 mm / 6 mm
SV-NZ-ROT-40 SV-NZ-ROT-40	DN40 / 1.5 inch	1.5–7 m	3.4–8.5 m³/h	40–120 kPa	1.0-1.5	136 mm / 67.9 mm / 441 mm / 8 mm
SV-NZ-ROT-50 SV-NZ-ROT-50	DN50 / 2 inch	1.5–9 m	14.5–27.4 m³/h	40–150 kPa	1.5-2.0	153 mm / 84 mm / 460 mm / 8 mm
SV-NZ-ROT-65 SV-NZ-ROT-65	DN65 / 2.5 inch	1.5–9 m	19.8–38.9 m³/h	40–150 kPa	2.0-3.0	195 mm / 110 mm / 890 mm / 12 mm
