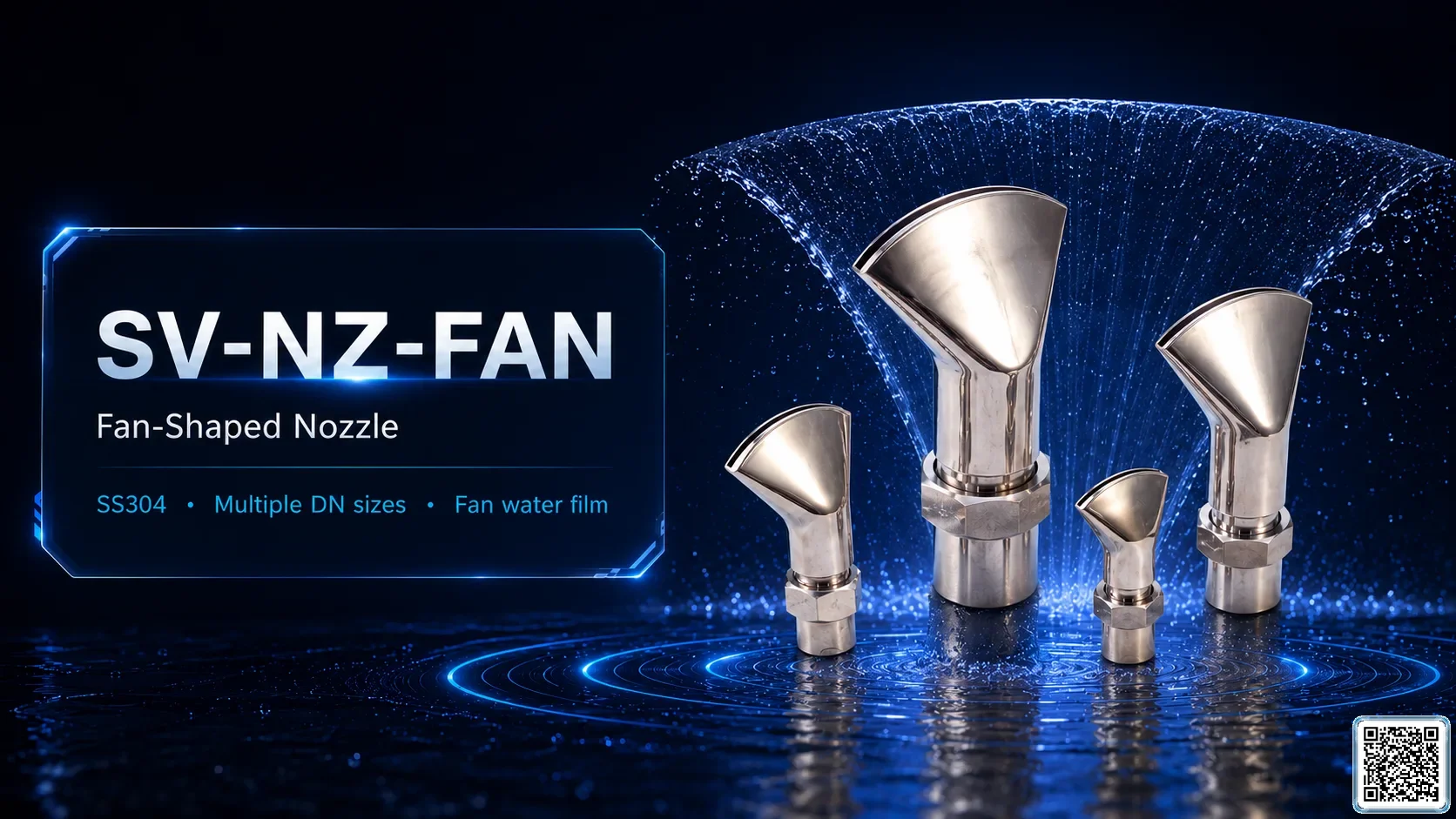

SV-NZ-FANFan-Shaped Nozzle
Fan-Shaped Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / adjustable joint |
|---|---|
| Catalogue Page | 6 |
| Nozzle Type | SV-NZ-FAN Fan-Shaped Nozzle |
| Material | SS304 |
| Available Sizes | DN20 / 3/4 inch / DN25 / 1 inch / DN40 / 1.5 inch / DN50 / 2 inch |
| Variant Models | SV-NZ-FAN-20 / SV-NZ-FAN-25 / SV-NZ-FAN-40 / SV-NZ-FAN-50 / SV-NZ-FAN-20-8116 / SV-NZ-FAN-25-8117 / SV-NZ-FAN-40-8118 / SV-NZ-FAN-50-8119 / SV-NZ-FAN-20-8020 / SV-NZ-FAN-25-8021 / SV-NZ-FAN-40-8022 |
| Spray Height | Refer to parameter table / 0.2–0.6 m / 0.2–0.8 m / 0.2–1.3 m |
| Flow Rate | Refer to parameter table / 2.4–6 m³/h / 6.8–21.9 m³/h / 10–27.9 m³/h / 12.6–41 m³/h |
| Pressure Head | Refer to parameter table / 20–50 kPa / 20–80 kPa / 20–150 kPa |
| Spray Diameter | Fan covering diameter / 0.4-0.8 / 0.6-1.2 / 0.8-1.5 / 1.0-2.2 / Upright fan-shaped water film |
| Dimension A | 83 mm / 110 mm / 157 mm / 167 mm |
| Dimension B | 78.4 mm / 100.4 mm / 143.5 mm / 160 mm |
| Dimension C | 3 mm / 3.5 mm / 4 mm / 6.5 mm |
| Dimension D | 73.5 mm / 94 mm / 140 mm / 154 mm |
Project Integration
Professional fan-shaped nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectwide fan-shaped water film.
- Best forbackground water curtains, linear edges, stage-like layers and landscape screens.
- InstallationThreaded / adjustable joint
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationangle setting, row spacing, pump zoning and front/back lighting.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

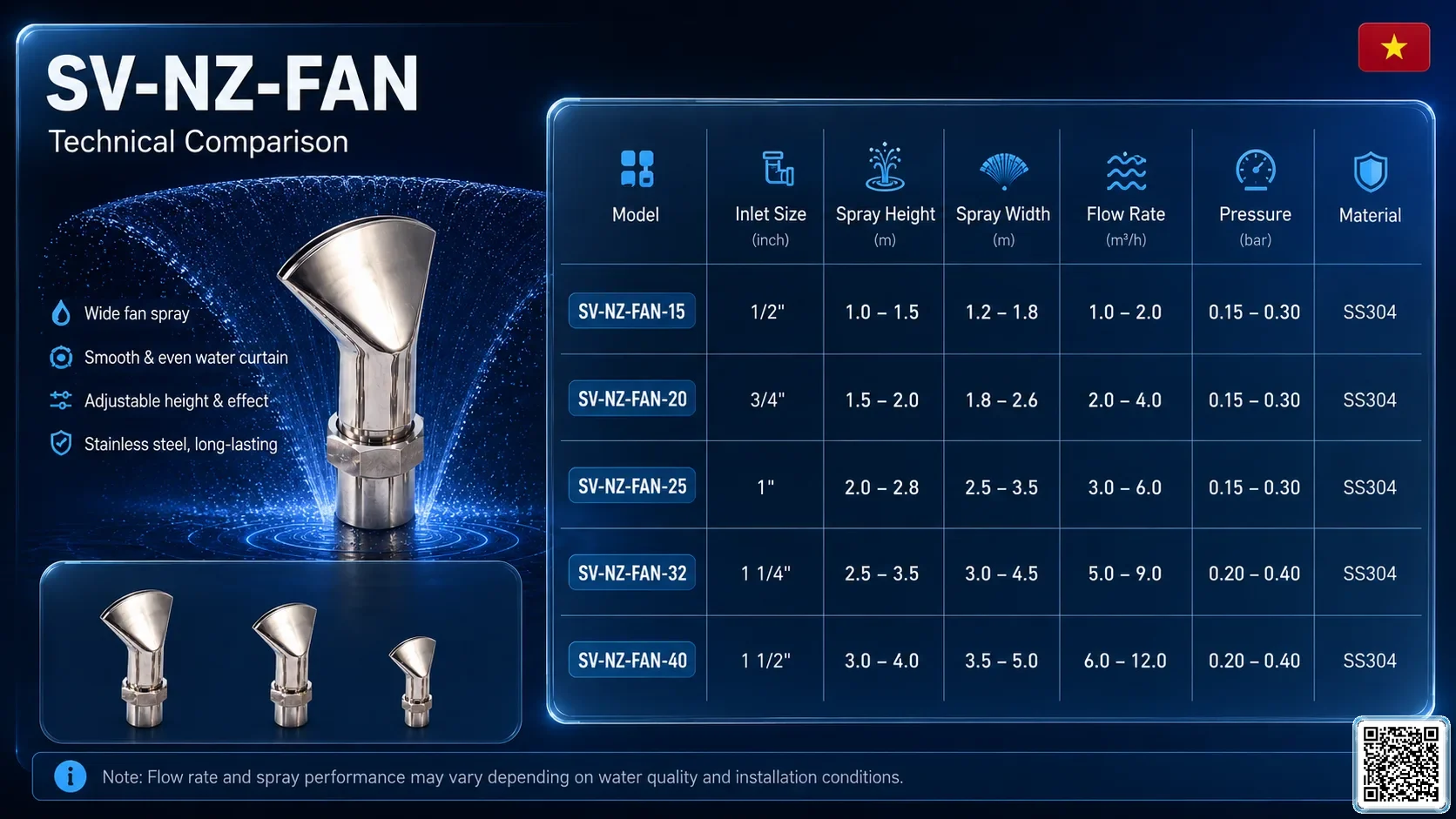

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-FAN-20 SV-NZ-FAN-20 | DN20 / 3/4 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Fan covering diameter | |
| SV-NZ-FAN-25 SV-NZ-FAN-25 | DN25 / 1 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Fan covering diameter | |
| SV-NZ-FAN-40 SV-NZ-FAN-40 | DN40 / 1.5 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Fan covering diameter | |
| SV-NZ-FAN-50 SV-NZ-FAN-50 | DN50 / 2 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Fan covering diameter | |
| SV-NZ-FAN-20-8116 SV-NZ-FAN-20-8116 | DN20 / 3/4 inch | 0.2–0.6 m | 2.4–6 m³/h | 20–50 kPa | 0.4-0.8 | 83 mm / 78.4 mm / 3 mm / 73.5 mm |
| SV-NZ-FAN-25-8117 SV-NZ-FAN-25-8117 | DN25 / 1 inch | 0.2–0.8 m | 6.8–21.9 m³/h | 20–80 kPa | 0.6-1.2 | 110 mm / 100.4 mm / 3.5 mm / 94 mm |
| SV-NZ-FAN-40-8118 SV-NZ-FAN-40-8118 | DN40 / 1.5 inch | 0.2–0.8 m | 10–27.9 m³/h | 20–80 kPa | 0.8-1.5 | 157 mm / 143.5 mm / 4 mm / 140 mm |
| SV-NZ-FAN-50-8119 SV-NZ-FAN-50-8119 | DN50 / 2 inch | 0.2–1.3 m | 12.6–41 m³/h | 20–150 kPa | 1.0-2.2 | 167 mm / 160 mm / 6.5 mm / 154 mm |
| SV-NZ-FAN-20-8020 SV-NZ-FAN-20-8020 | DN20 / 3/4 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Upright fan-shaped water film | |
| SV-NZ-FAN-25-8021 SV-NZ-FAN-25-8021 | DN25 / 1 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Upright fan-shaped water film | |
| SV-NZ-FAN-40-8022 SV-NZ-FAN-40-8022 | DN40 / 1.5 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Upright fan-shaped water film |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.2 | 2.4 | 20 |
| 0.3 | 3.6 | 30 |
| 0.5 | 4.8 | 40 |
| 0.6 | 6 | 50 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.2 | 6.8 | 20 |
| 0.3 | 7.9 | 30 |
| 0.5 | 10.5 | 40 |
| 0.6 | 14.1 | 50 |
| 0.8 | 21.9 | 80 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.2 | 10 | 20 |
| 0.3 | 12 | 30 |
| 0.5 | 15.9 | 40 |
| 0.6 | 21.1 | 50 |
| 0.8 | 27.9 | 80 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.2 | 12.6 | 20 |
| 0.3 | 16.8 | 30 |
| 0.5 | 22.2 | 40 |
| 0.6 | 29.4 | 50 |
| 0.8 | 33 | 80 |
| 1 | 36.3 | 100 |
| 1.3 | 41 | 150 |
Applications & Key Features

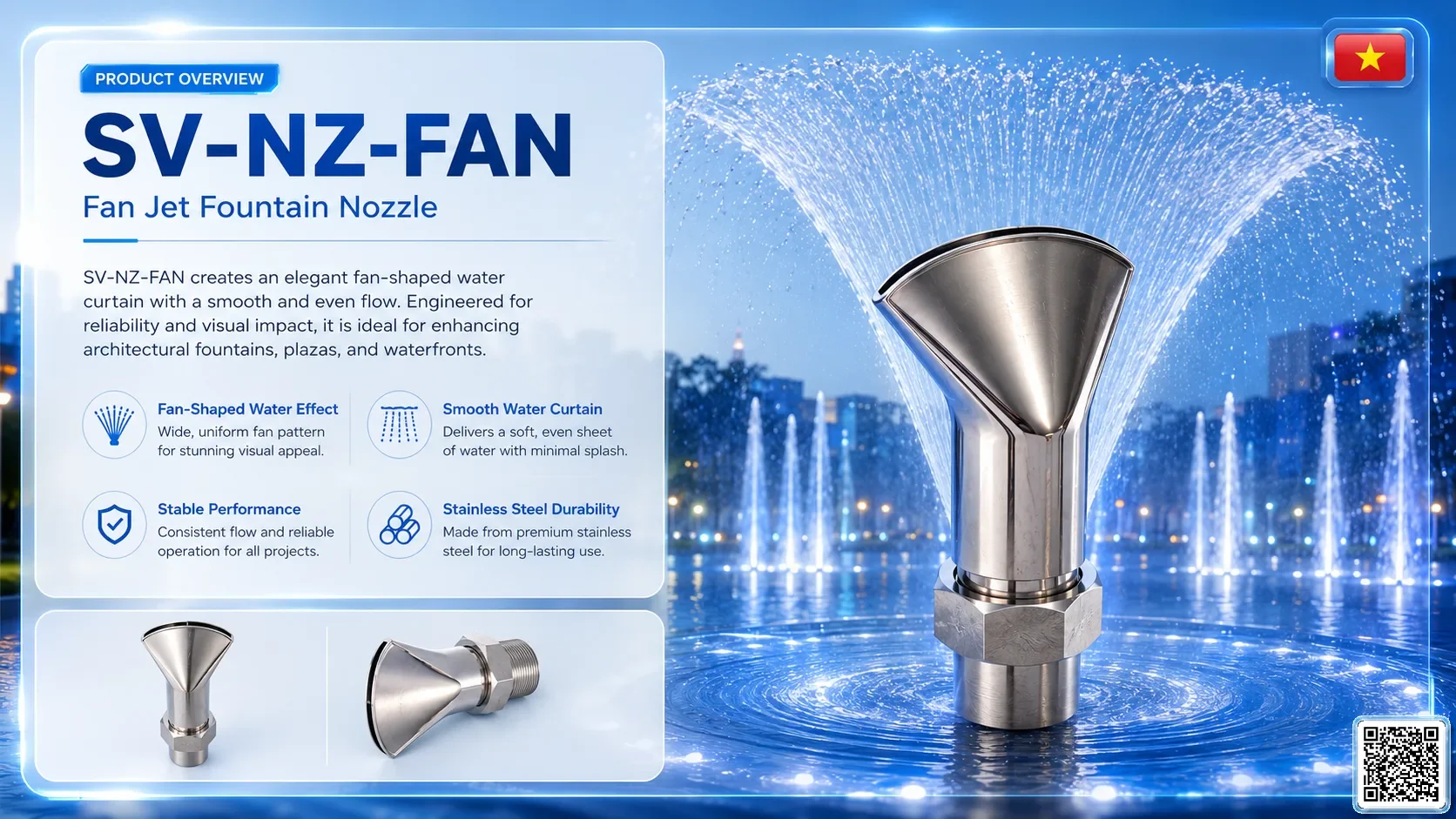

Overview
Sprays a fan-shaped water film, suitable for single or combined layouts.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Fan-shaped water film; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
