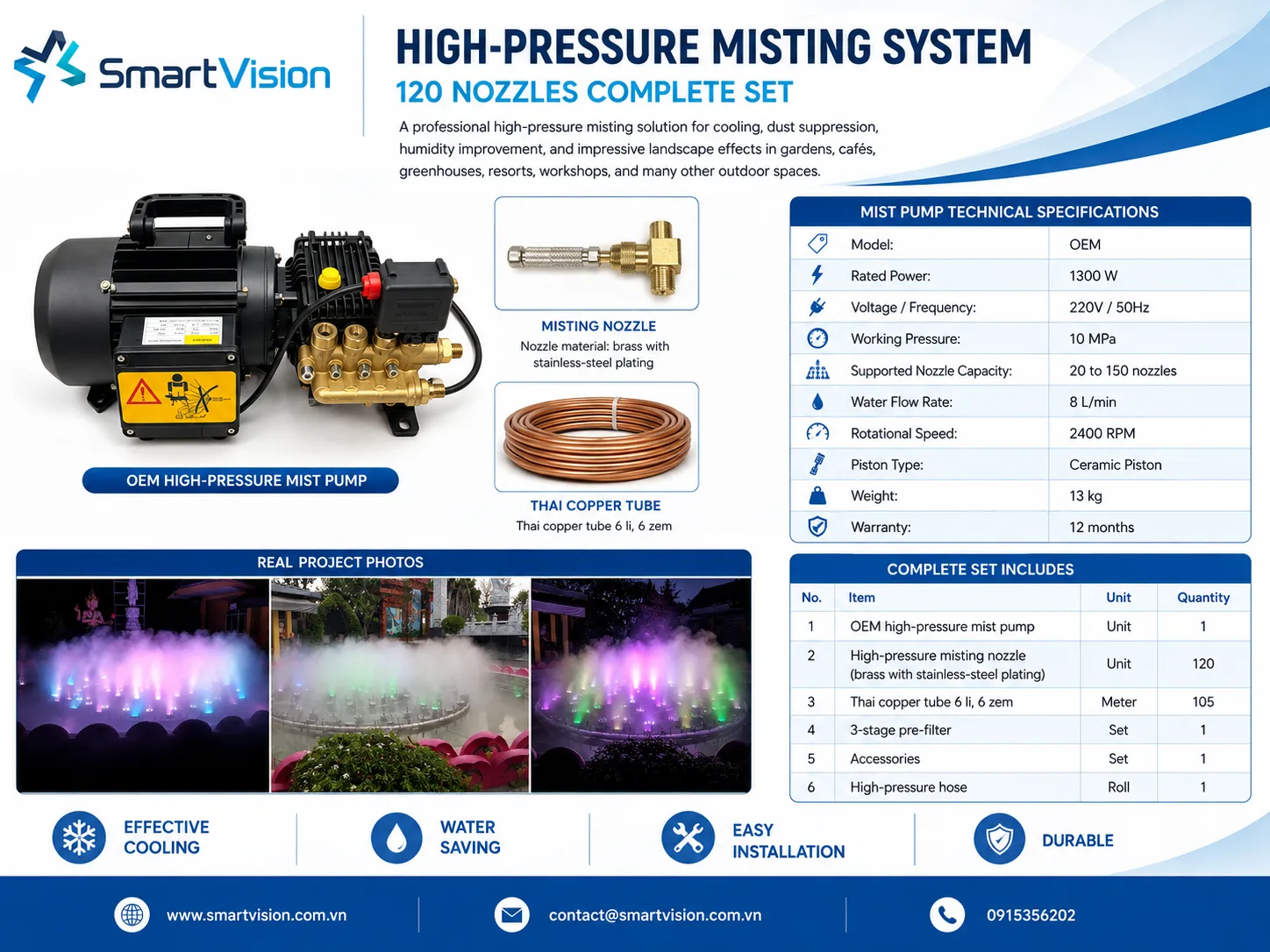

SV-NZ-FOG-KITHigh-Pressure Misting System

Name: SV-NZ-FOG-KIT High-Pressure Misting System
Brand: SmartVision

Complete 120-nozzle high-pressure misting system with a clearly defined package BOM for accurate ordering.

nozzlesSV-NZ-FOG-KITRequest quotation

Choose nozzle configuration

Size / Connection Connection Spray height Flow rate Pressure / Head Dimensions A/B/C/D Quantity

Add to Project BOM

👁 46

Featured product demonstration

View more product videos ↓

Technical Specifications

Series	SV-NZ-FOG-KIT High-Pressure Misting System
Order Configuration	Complete 120-nozzle set
Pump Model	OEM
Rated Power	1,300 W
Voltage / Frequency	220 VAC / 50 Hz
Maximum Pressure	10 MPa (100 bar)
Pump Flow Rate	8 L/min
Motor Speed	2,400 RPM
Piston	Ceramic
Pump Net Weight	13 kg
Supported Nozzles	20–150
Included Nozzles	120
Nozzle Material	Brass with stainless-steel plating
Warranty	12 months
Installation Type	Surface-mounted pump / Ø6 mm high-pressure line / threaded nozzles
Rated Voltage	220 VAC
Material	Nozzle: brass with stainless-steel plating; Thai copper tubing Ø6 × 0.6 mm
Spray Height	Application-dependent
Nozzle Type	High-pressure misting nozzle
Water Effect	Fine mist
Water Effect VI	Refer to SmartVision technical datasheet / project configuration
Water Effect EN	Fine mist for cooling and humidification
Connection Size	Ø6 mm high-pressure line
Spray Diameter	Fine mist coverage; layout-dependent
Flow Rate	Pump: 8 L/min
Pressure Head	Maximum: 10 MPa (100 bar)
Water Level Dependency	Direct clean-water supply through three-stage coarse filtration
Pump Suggestion	Included OEM high-pressure misting pump; supports 20–150 nozzles
Thread Or Flange	Threaded nozzle connections
Accessory Role	Complete system bundle
Compatible Category	High-pressure misting nozzles
Compatible Models	20–150 nozzles
Required per Unit	1 complete set
Recommended Spare Rate	Optional; not included in standard set
BOM Group	SV-NZ-FOG-KIT-120
Power Supply	220 VAC / 50 Hz
Power Consumption	1,300 W
Net Weight	13 kg (pump)
Available Sizes	Ø6 mm high-pressure line
Variant Models	SV-NZ-FOG-KIT-120

Project Integration

Configured as one orderable package for outdoor cooling, humidification and dust suppression. Tubing length and accessories are supplied according to the actual line configuration.

PRODUCT CONFIGURATIONS

Technical Specifications by Model / Size

Total nozzle sizes: 1

Variant	Connection	Spray height	Flow rate	Pressure / Head	Diameter	A / B / C / D
Complete 120-Nozzle Set / Trọn bộ 120 béc SV-NZ-FOG-KIT-120	Ø6 mm high-pressure line	Application-dependent	Pump: 8 L/min	Maximum: 10 MPa (100 bar)	Fine mist coverage; layout-dependent
