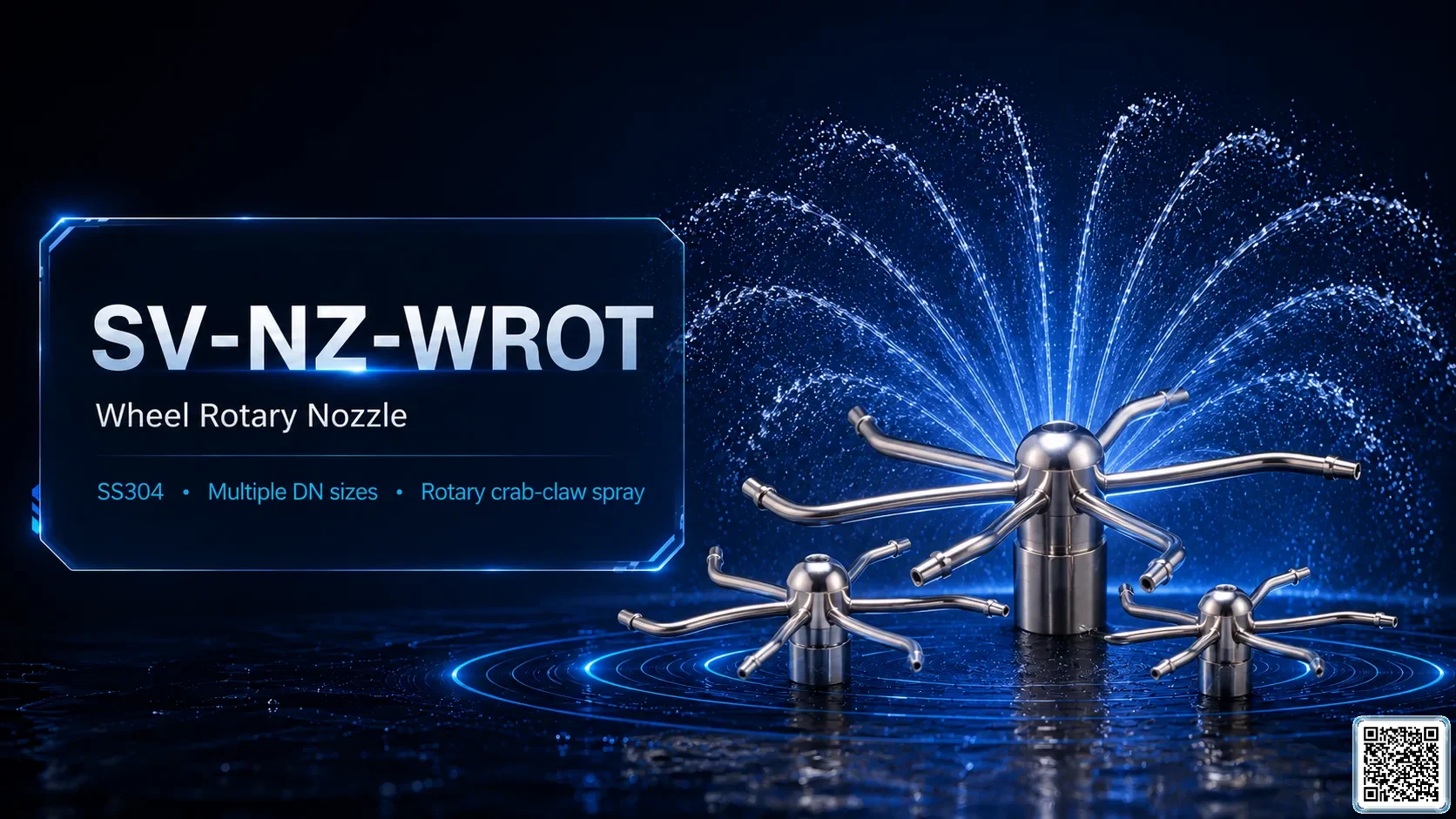

SV-NZ-WROTWheel Rotary Nozzle
Wheel Rotary Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 4 |
| Nozzle Type | SV-NZ-WROT Wheel Rotary Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch / DN40 / 1.5 inch / DN50 / 2 inch |
| Variant Models | SV-NZ-WROT-25 / SV-NZ-WROT-40 / SV-NZ-WROT-50 |
| Spray Height | 1–3.5 m / 1–2 m / 1–5 m |
| Flow Rate | 4–7 m³/h / 3.5–5 m³/h / 4.5–16.1 m³/h |
| Pressure Head | 30–65 kPa / 30–40 kPa / 30–70 kPa |
| Spray Diameter | Rotary crab-claw pattern |
| Dimension A | 102 mm / 99 mm / 108 mm |
| Dimension B | 68 mm / 56 mm / 85 mm |
| Dimension C | 445 mm / 450 mm / 467 mm |
| Dimension D | 8 mm / 6 mm |
Project Integration
Professional wheel rotary nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectrotating crab-claw / wheel water pattern.
- Best fordynamic centerpieces, interactive plazas, parks and show scenes requiring movement.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationstable pump pressure, motor-free hydraulic rotation and lighting zones.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size

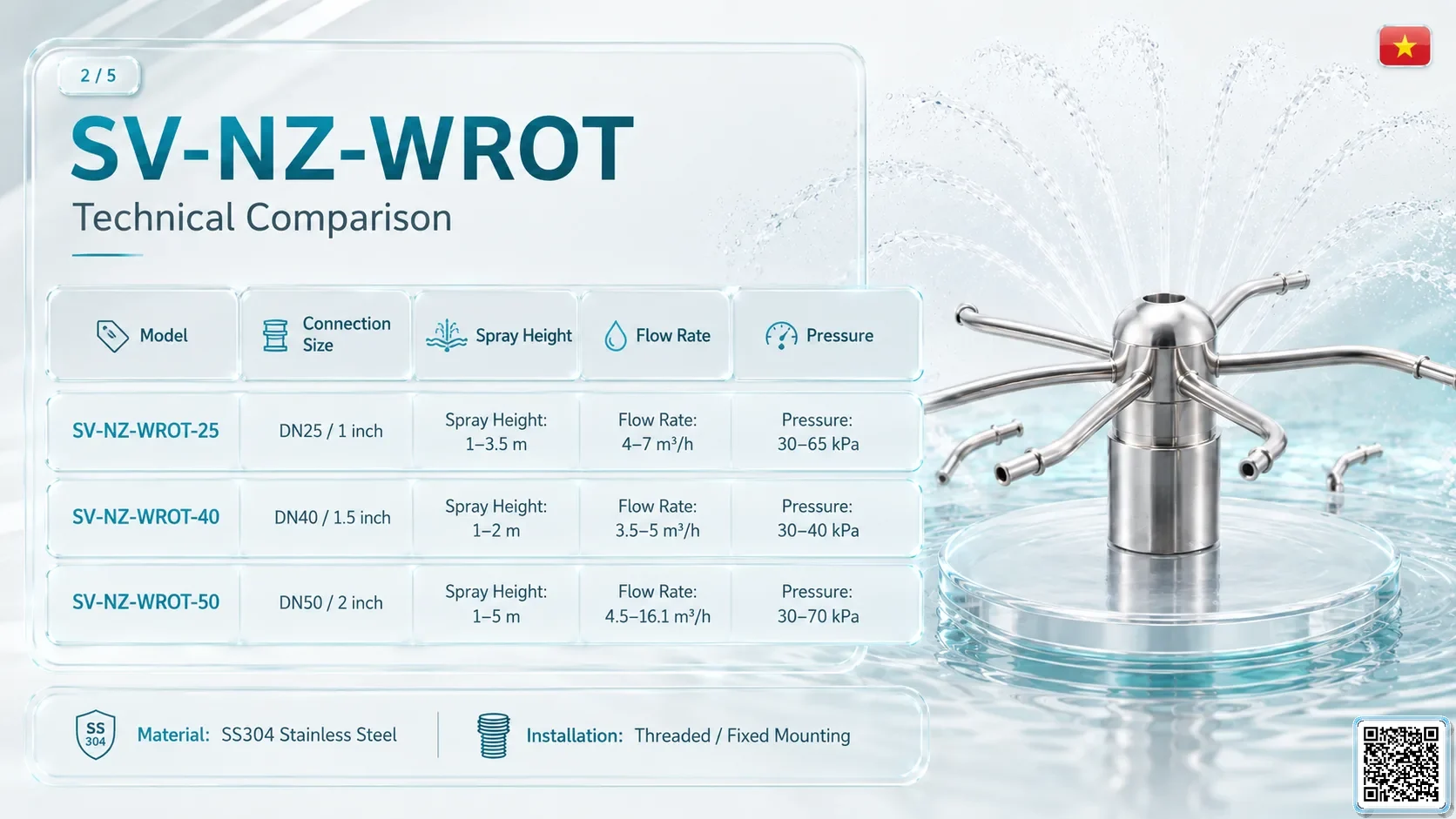

| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-WROT-25 SV-NZ-WROT-25 | DN25 / 1 inch | 1–3.5 m | 4–7 m³/h | 30–65 kPa | Rotary crab-claw pattern | 102 mm / 68 mm / 445 mm / 8 mm |
| SV-NZ-WROT-40 SV-NZ-WROT-40 | DN40 / 1.5 inch | 1–2 m | 3.5–5 m³/h | 30–40 kPa | Rotary crab-claw pattern | 99 mm / 56 mm / 450 mm / 6 mm |
| SV-NZ-WROT-50 SV-NZ-WROT-50 | DN50 / 2 inch | 1–5 m | 4.5–16.1 m³/h | 30–70 kPa | Rotary crab-claw pattern | 108 mm / 85 mm / 467 mm / 8 mm |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1 | 4 | 30 |
| 1.5 | 4.8 | 35 |
| 2 | 5.2 | 40 |
| 2.5 | 5.8 | 45 |
| 3 | 6.3 | 50 |
| 3.5 | 7 | 65 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1 | 3.5 | 30 |
| 1.5 | 4.1 | 35 |
| 2 | 5 | 40 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1 | 4.5 | 30 |
| 1.5 | 4.9 | 35 |
| 2 | 5.5 | 40 |
| 2.5 | 6.6 | 45 |
| 3 | 7.9 | 50 |
| 3.5 | 9.4 | 55 |
| 4 | 11.4 | 60 |
| 4.5 | 13.8 | 65 |
| 5 | 16.1 | 70 |
Applications & Key Features
Overview
Driven by jet force to form a rotating crab-claw water pattern.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Rotating crab-claw water pattern; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
