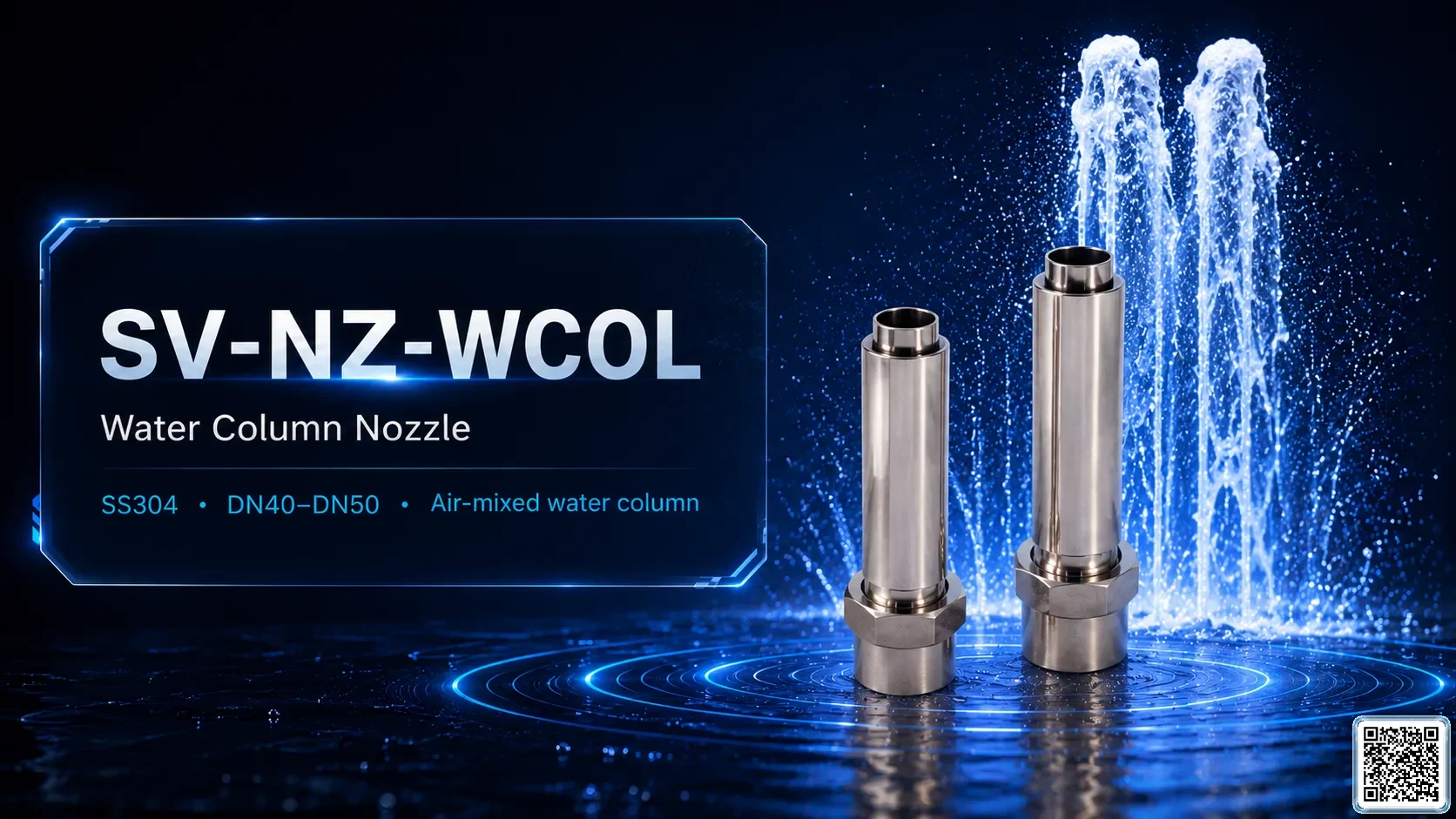

SV-NZ-WCOLWater Column Nozzle
Water Column Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 9 |
| Nozzle Type | SV-NZ-WCOL Water Column Nozzle |
| Material | SS304 |
| Available Sizes | DN40 / 1.5 inch / DN50 / 2 inch |
| Variant Models | SV-NZ-WCOL-40 / SV-NZ-WCOL-50 |
| Spray Height | 1.2–7 m / 1.2–8 m |
| Flow Rate | 5–15 m³/h / 5.9–24.7 m³/h |
| Pressure Head | 50–200 kPa / 50–250 kPa |
| Spray Diameter | Water column |
| Dimension A | 210 mm / 230 mm |
| Dimension B | 64 mm / 72 mm |
| Dimension C | 31 mm / 39 mm |
| Dimension D | 45 mm / 54 mm |
Project Integration
Professional water column nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectbright jade-like water column.
- Best forvertical column groups, reflecting pools, commercial plazas and calm-water scenes.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationpump zoning, nozzle spacing and underwater-light matching.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

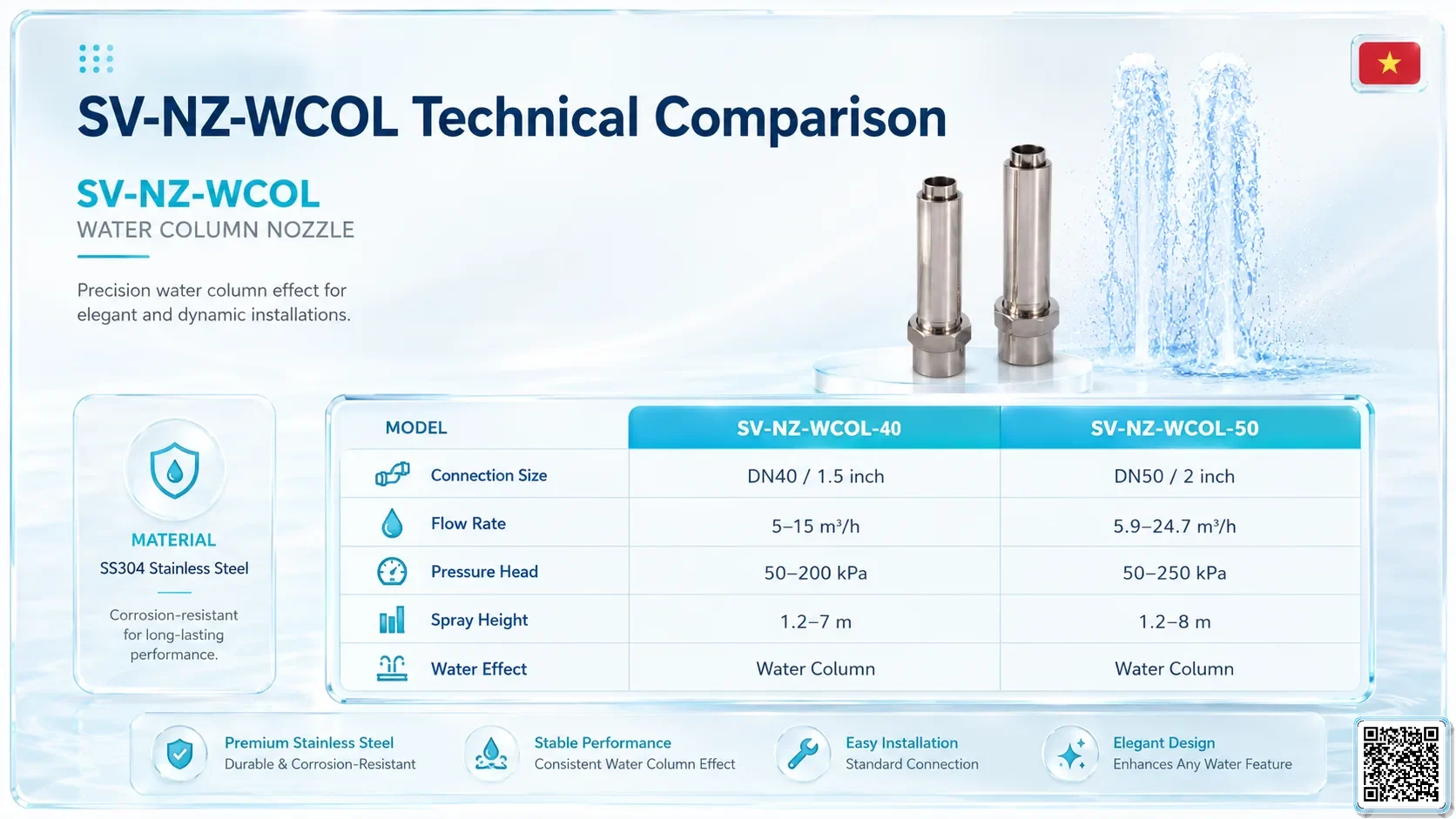

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-WCOL-40 SV-NZ-WCOL-40 | DN40 / 1.5 inch | 1.2–7 m | 5–15 m³/h | 50–200 kPa | Water column | 210 mm / 64 mm / 31 mm / 45 mm |
| SV-NZ-WCOL-50 SV-NZ-WCOL-50 | DN50 / 2 inch | 1.2–8 m | 5.9–24.7 m³/h | 50–250 kPa | Water column | 230 mm / 72 mm / 39 mm / 54 mm |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1.2 | 5 | 50 |
| 2 | 6.1 | 60 |
| 2.5 | 7.2 | 70 |
| 3 | 8.2 | 80 |
| 4 | 9.9 | 90 |
| 5 | 11.1 | 100 |
| 6 | 12.3 | 150 |
| 6.5 | 13.8 | 180 |
| 7 | 15 | 200 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1.2 | 5.9 | 50 |
| 2 | 6.9 | 60 |
| 2.5 | 8.1 | 70 |
| 3 | 9.5 | 80 |
| 4 | 11.1 | 90 |
| 5 | 13 | 100 |
| 6 | 15.2 | 150 |
| 6.5 | 17.9 | 180 |
| 7 | 21 | 200 |
| 8 | 24.7 | 250 |
Applications & Key Features
Overview
Produces an aerated water column with bright refraction under lighting.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Bright jade-like water column; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
