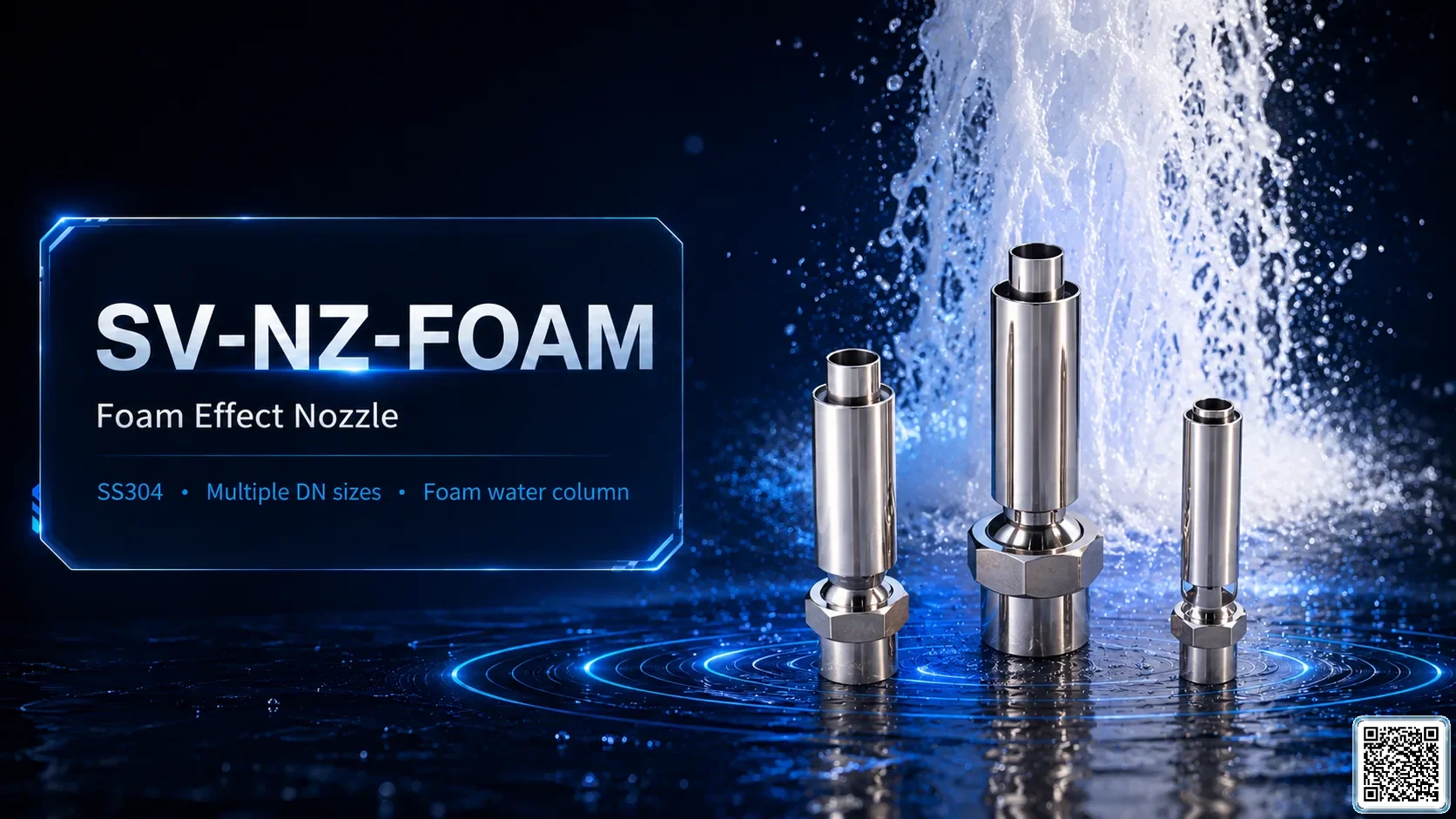

SV-NZ-FOAMFoam Effect Nozzle
Foam Effect Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 4 |
| Nozzle Type | SV-NZ-FOAM Foam Effect Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch / DN40 / 1.5 inch / DN50 / 2 inch |
| Variant Models | SV-NZ-FOAM-25 / SV-NZ-FOAM-40 / SV-NZ-FOAM-50 |
| Spray Height | 1–6 m / 1–8 m / 1–10 m |
| Flow Rate | 3–5.8 m³/h / 5–11.5 m³/h / 6.3–25.6 m³/h |
| Pressure Head | 50–180 kPa / 50–200 kPa / 50–250 kPa |
| Spray Diameter | Single jet |
| Dimension A | 163 mm / 212 mm / 220 mm |
| Dimension B | 45 mm / 64 mm / 77 mm |
| Dimension C | 19.5 mm / 30 mm |
| Dimension D | 32 mm / 52 mm |
Project Integration
Professional foam-effect nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectaerated white foam columns with strong visual volume.
- Best forlandscape fountains, shallow pools, resorts, public plazas and daylight-visible effects.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationpump zoning, water-level planning and warm/cool white or RGB/DMX lighting.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-FOAM-25 SV-NZ-FOAM-25 | DN25 / 1 inch | 1–6 m | 3–5.8 m³/h | 50–180 kPa | Single jet | 163 mm / 45 mm / 19.5 mm / 32 mm |
| SV-NZ-FOAM-40 SV-NZ-FOAM-40 | DN40 / 1.5 inch | 1–8 m | 5–11.5 m³/h | 50–200 kPa | Single jet | 212 mm / 64 mm / 30 mm / 52 mm |
| SV-NZ-FOAM-50 SV-NZ-FOAM-50 | DN50 / 2 inch | 1–10 m | 6.3–25.6 m³/h | 50–250 kPa | Single jet | 220 mm / 77 mm / 30 mm / 52 mm |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1 | 3 | 50 |
| 1.5 | 3.4 | 60 |
| 2 | 3.9 | 70 |
| 2.5 | 4.2 | 80 |
| 3.5 | 4.4 | 90 |
| 4 | 4.6 | 100 |
| 5 | 5.2 | 150 |
| 6 | 5.8 | 180 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1 | 5 | 50 |
| 1.5 | 5.9 | 60 |
| 2 | 6.6 | 70 |
| 2.5 | 7 | 80 |
| 3.5 | 7.4 | 90 |
| 4 | 7.8 | 100 |
| 5 | 8.8 | 150 |
| 6 | 9.7 | 180 |
| 8 | 11.5 | 200 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1 | 6.3 | 50 |
| 1.5 | 7.7 | 60 |
| 2 | 9.1 | 70 |
| 2.5 | 10 | 80 |
| 3.5 | 10.8 | 90 |
| 4 | 11.6 | 100 |
| 5 | 14.1 | 150 |
| 6 | 16.1 | 180 |
| 8 | 21.8 | 200 |
| 10 | 25.6 | 250 |
Applications & Key Features
Overview
Uses high-speed water flow to inhale air and produce a white foam column.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Aerated white foam water column; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
