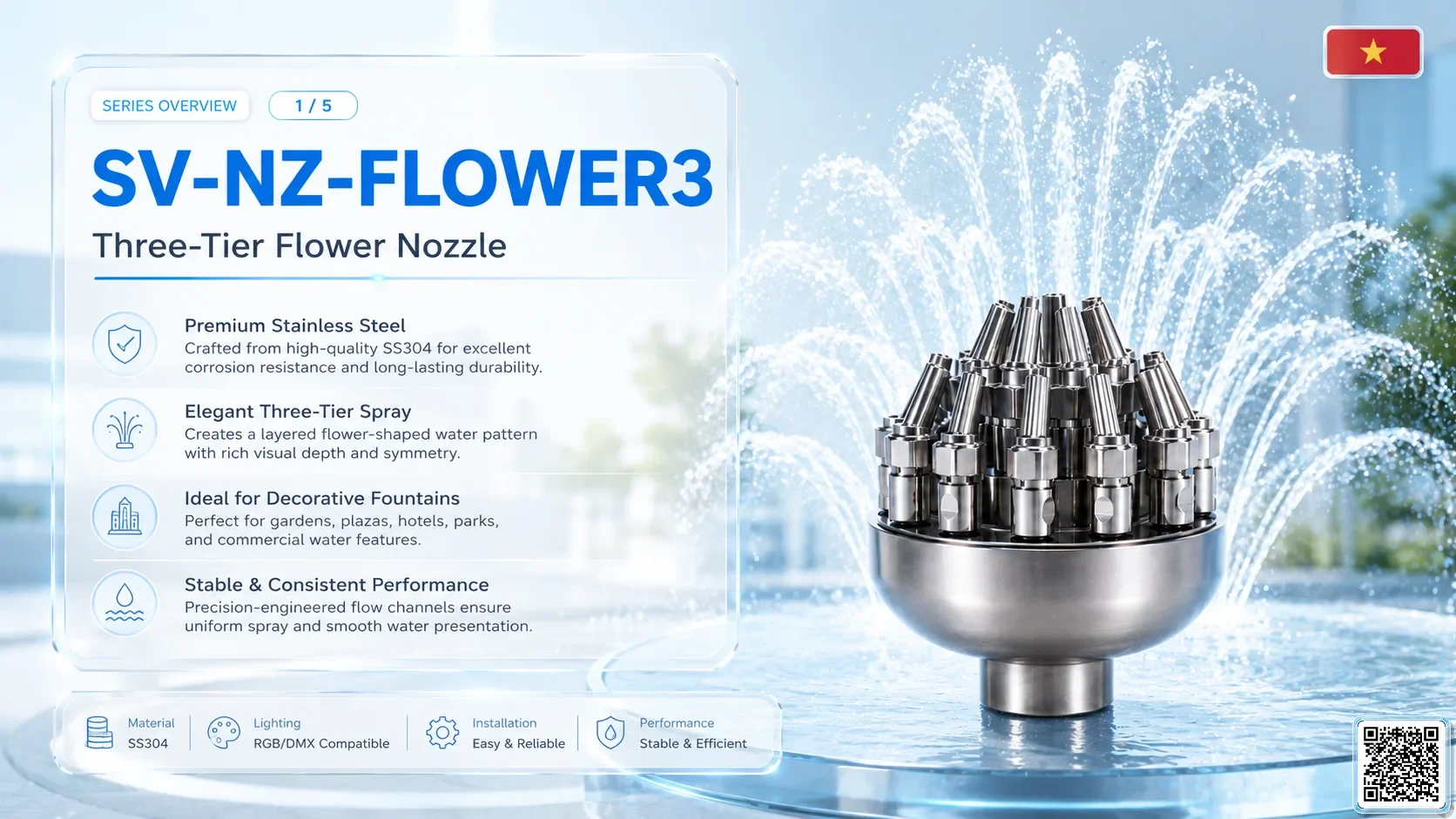

SV-NZ-FLOWER3Three-Layer Flower Nozzle
Three-Layer Flower Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / adjustable joint |
|---|---|
| Catalogue Page | 8 |
| Nozzle Type | SV-NZ-FLOWER3 Three-Layer Flower Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch / DN40 / 1.5 inch |
| Variant Models | SV-NZ-FLOWER3-25 / SV-NZ-FLOWER3-40 |
| Spray Height | 1–4 m / 1–6 m |
| Flow Rate | 2.1–4.3 m³/h / 5.1–12.7 m³/h |
| Pressure Head | 25–60 kPa / 25–85 kPa |
| Spray Diameter | 0.8-1.5 / 1.9-3.5 |
| Dimension A | 143 mm |
| Dimension B | 114 mm |
| Dimension C | 4 mm |
Project Integration
Professional three-layer flower nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectcentral column with two outward parabolic rings.
- Best forflower compositions, circular pools, hotel entrances and musical fountain layers.
- InstallationThreaded / adjustable joint
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationring zoning, pump balancing and RGB/DMX color separation.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-FLOWER3-25 SV-NZ-FLOWER3-25 | DN25 / 1 inch | 1–4 m | 2.1–4.3 m³/h | 25–60 kPa | 0.8-1.5 | 143 mm / 114 mm / 4 mm |
| SV-NZ-FLOWER3-40 SV-NZ-FLOWER3-40 | DN40 / 1.5 inch | 1–6 m | 5.1–12.7 m³/h | 25–85 kPa | 1.9-3.5 | 143 mm / 114 mm / 4 mm |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1 | 2.1 | 25 |
| 1.5 | 2.5 | 30 |
| 2 | 3 | 35 |
| 3 | 3.6 | 45 |
| 4 | 4.3 | 60 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 1 | 5.1 | 25 |
| 1.5 | 5.6 | 30 |
| 2 | 6.2 | 35 |
| 3 | 7.8 | 45 |
| 4 | 9.3 | 60 |
| 5 | 10.9 | 70 |
| 6 | 12.7 | 85 |
Applications & Key Features
Overview
Combines a central vertical jet with two rings of adjustable pure jets.
Applications

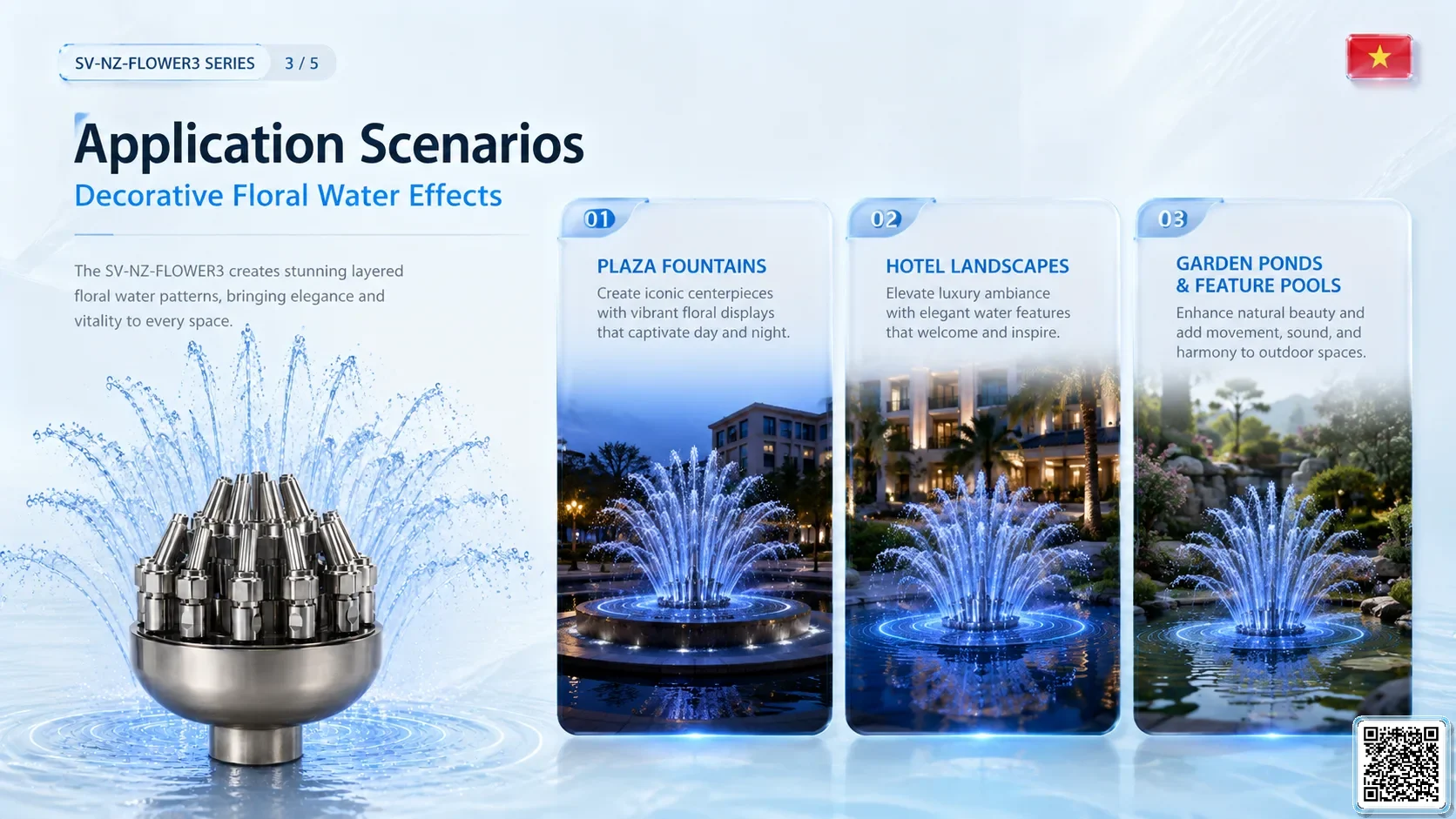

Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features

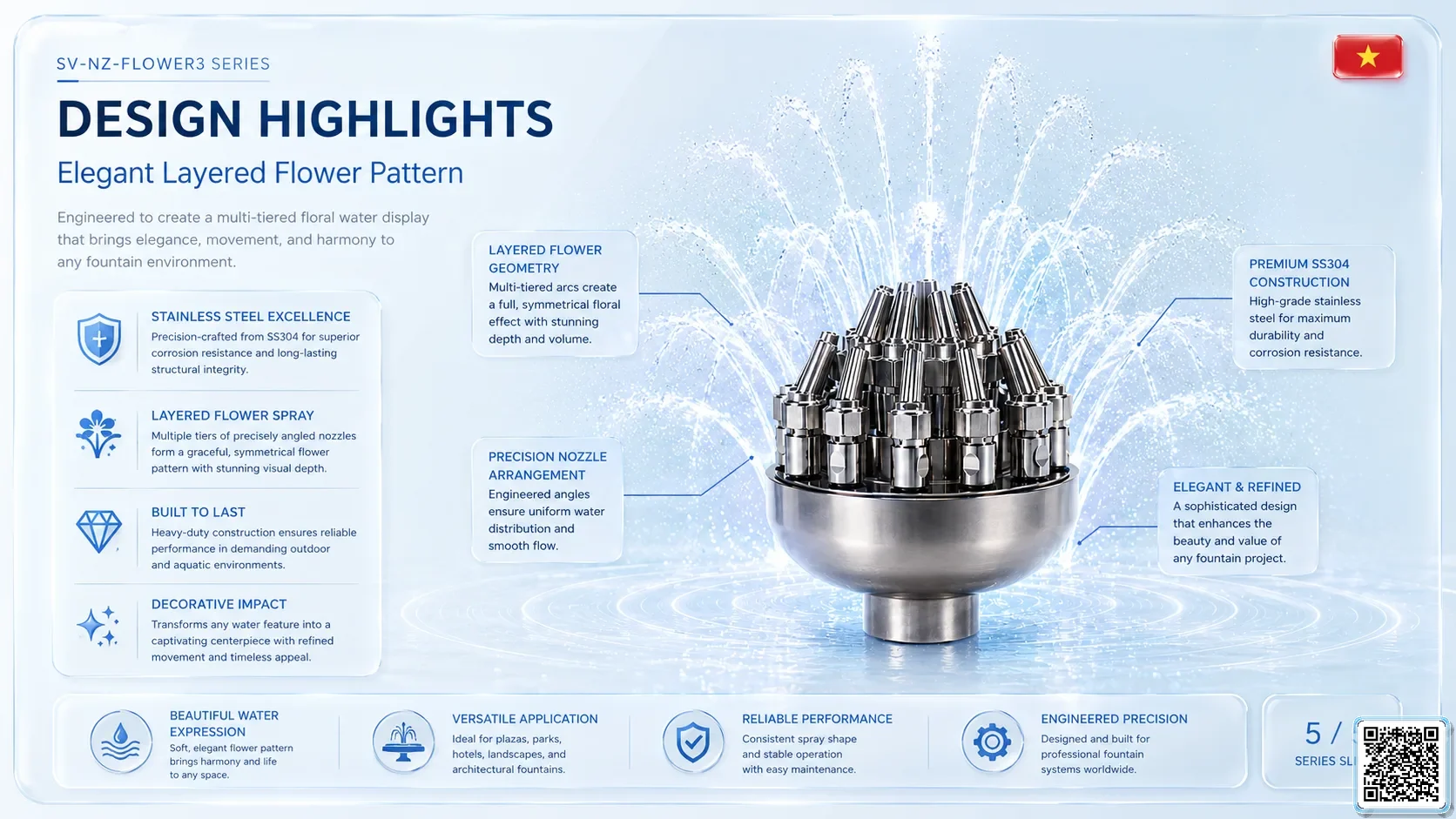

Central column with two outward parabolic rings; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
