● SMARTVISION EQUIPMENT

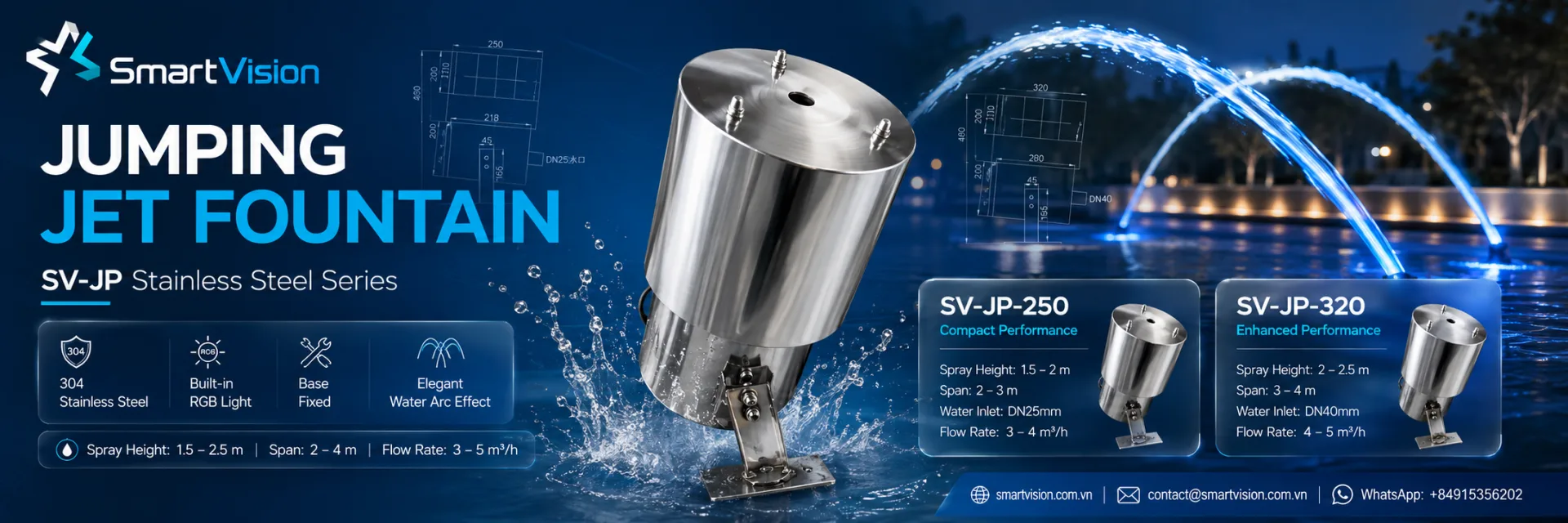

SV-JPJumping Jet Fountain Nozzle

Name: SV-JP Jumping Jet Fountain Nozzle
Brand: Smart Vision

Smart Vision stainless-steel Jumping Jet fountain nozzle with adjustable water arc and built-in RGB LED lighting.

nozzlesSV-JPRequest quotation

Choose nozzle configuration

Size / Connection Connection Spray height Flow rate Pressure / Head Dimensions A/B/C/D Quantity

Featured product demonstration

PRODUCT MEDIA

DOCUMENTS AVAILABLE

Preview images are being updated, but the technical document files can be downloaded now.

Series	SV-JP Jumping Jet Fountain Nozzle
Installation Type	Base fixed
Housing Material	304 stainless steel
Material	304 stainless steel
LED Light Source	RGB LED
Intelligent Control	Compatible with Smart Vision fountain control systems
Nozzle Type	Jumping Jet fountain nozzle
Water Effect	Jumping / arcing jet
Water Effect VI	Refer to SmartVision technical datasheet / project configuration
Water Effect EN	Jumping / arcing jet
Water Level Dependency	Pump-fed; install according to project water level and nozzle position
Input Voltage	12V / 24V
Power Consumption	3 W
Available Sizes	DN25 / DN40
Variant Models	SV-JP-250 / SV-JP-320
Spray Height	1.5–2 m / 2–2.5 m
Flow Rate	3–4 m³/h / 4–5 m³/h
Spray Diameter	2–3 m / 3–4 m
Dimension A	250 mm / 320 mm
Dimension B	218 mm / 280 mm
Dimension C	450 mm / 460 mm
Dimension D	165 mm

Integrates with circulation pumps, Smart Vision control cabinets, 12/24V RGB lighting and water-show systems.

PRODUCT CONFIGURATIONS

Total nozzle sizes: 2

Variant	Connection	Spray height	Flow rate	Pressure / Head	Diameter	A / B / C / D
SV-JP-250 SV-JP-250	DN25	1.5–2 m	3–4 m³/h		2–3 m	250 mm / 218 mm / 450 mm / 165 mm
SV-JP-320 SV-JP-320	DN40	2–2.5 m	4–5 m³/h		3–4 m	320 mm / 280 mm / 460 mm / 165 mm
