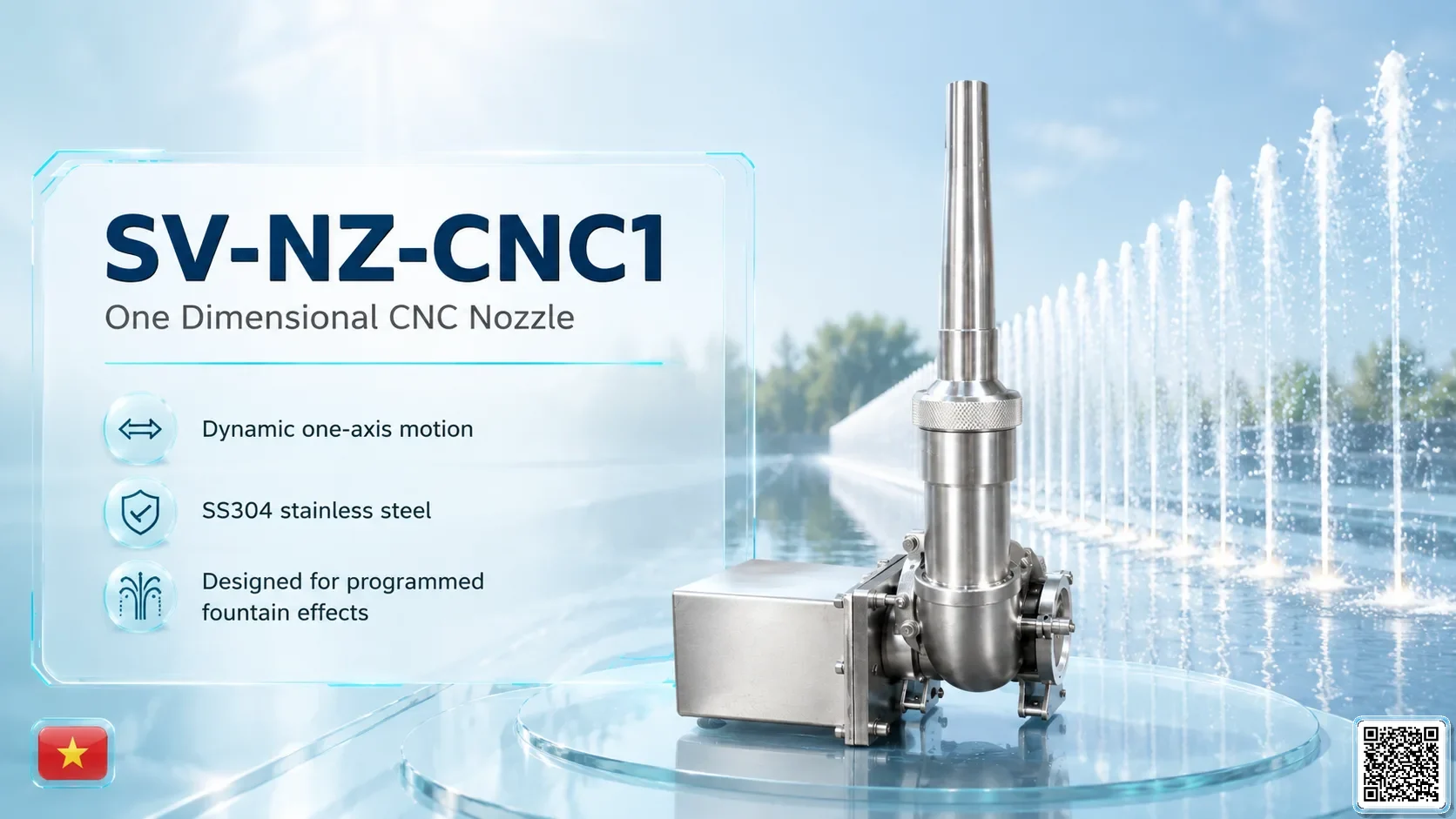

SV-NZ-CNC1One Dimensional CNC Nozzle

Name: SV-NZ-CNC1 One Dimensional CNC Nozzle
Brand: Smart Vision
SKU: SV-NZ-CNC1
Price: 750 USD
Availability: InStock

One Dimensional CNC Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.

nozzlesSV-NZ-CNC1Request quotation

Choose nozzle configuration

Size / Connection Connection Spray height Flow rate Pressure / Head Dimensions A/B/C/D Quantity

Featured product demonstration

PRODUCT MEDIA

DOCUMENTS AVAILABLE

Preview images are being updated, but the technical document files can be downloaded now.

Installation Type	CNC reducer + motor flange
Catalogue Page	24
Nozzle Type	SV-NZ-CNC1 One Dimensional CNC Nozzle
Material	SS304
Available Sizes	DN40 inlet / DN40 outlet / DN50 inlet / DN50 outlet
Variant Models	SV-NZ-CNC1-40 / SV-NZ-CNC1-50 / SV-NZ-CNC1-40-140A / SV-NZ-CNC1-50-150A / SV-NZ-CNC1-50-50SY
Spray Height	12 m max / 18 m max
Flow Rate	By pump/system design
Pressure Head	By pump/system design
Spray Diameter	One-axis dynamic jet / Three-axis 1D CNC dynamic jet
Dimension A	300 mm / 330 mm / 340 mm / 370 mm
Dimension B	210 mm / 240 mm / 170 mm / 330 mm
Dimension C	150 mm / 160 mm / 250 mm / 270 mm / 220 mm
Dimension D	120 mm / 140 mm

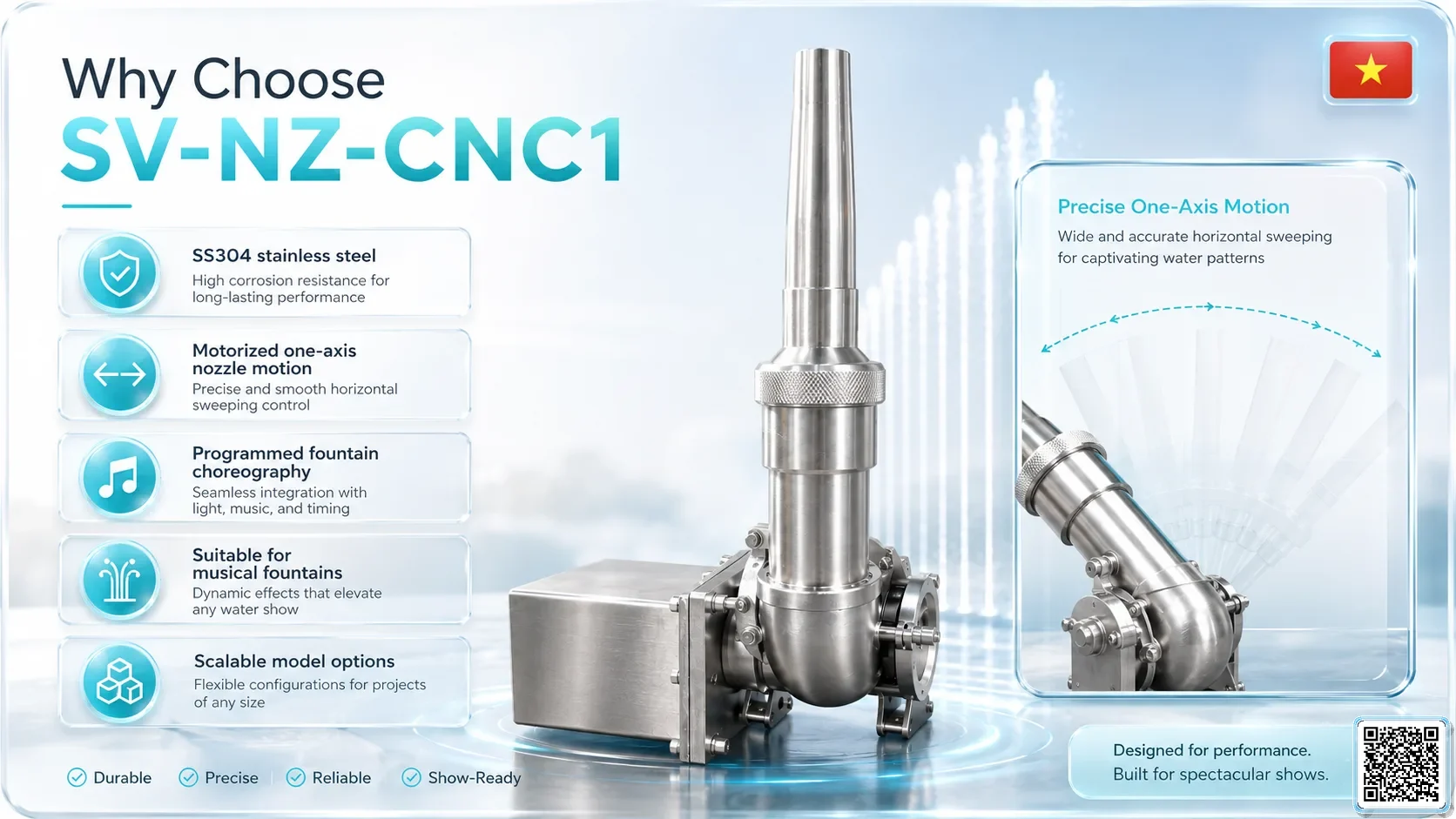

Professional one-dimensional CNC nozzle for SmartVision musical fountain and architectural water-show projects.

Suitable for CAD layout, nozzle spacing and site coordination.

Designed for long-term fountain and outdoor water-feature use.

Project-ready:

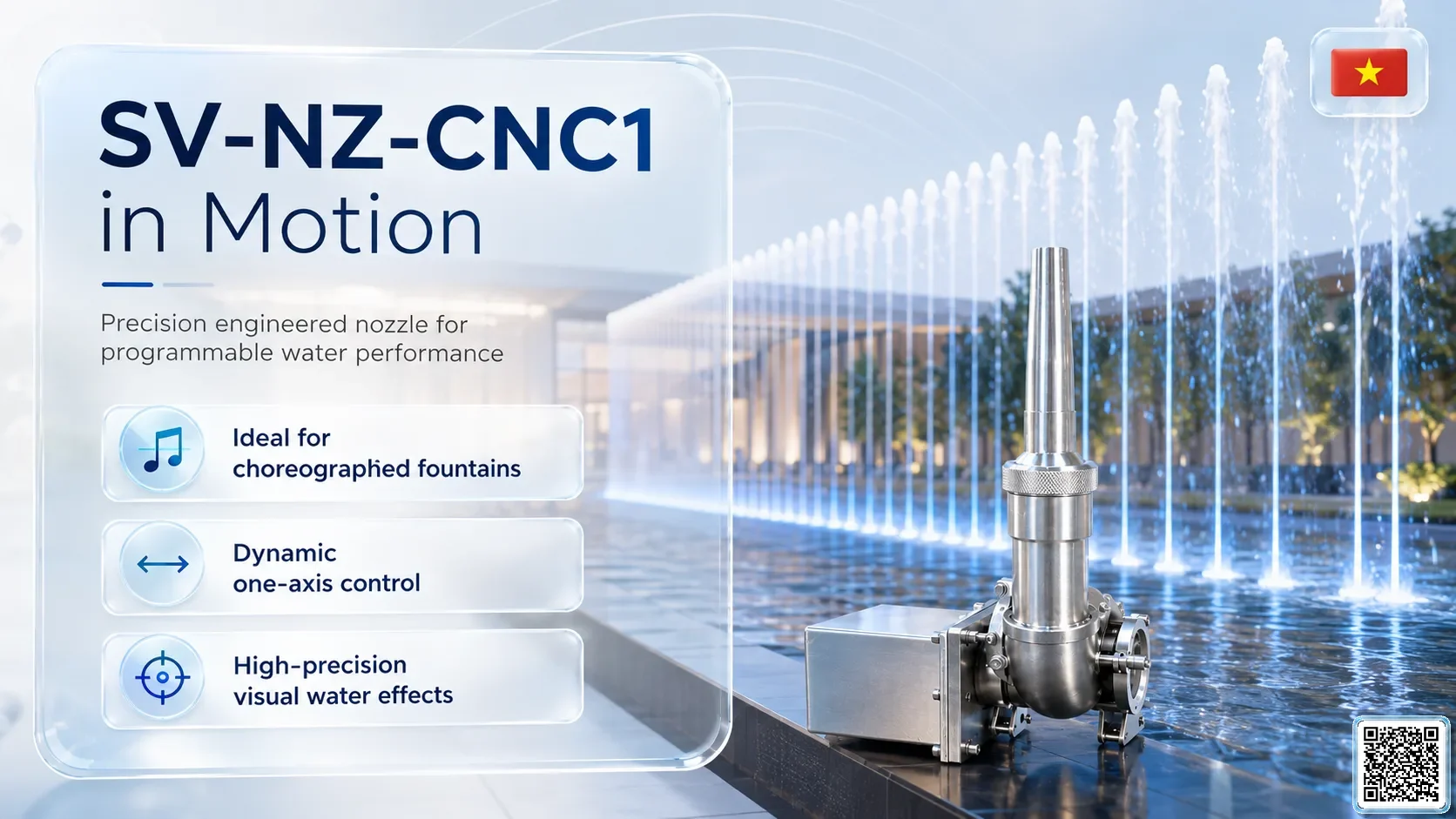

Water effectprogrammable one-axis moving jet.
Best forcomputer-controlled musical fountains, dynamic arcs, swing jets and show choreography.
InstallationCNC reducer + motor flange
ConstructionSS304 stainless steel / project-grade metal body
IntegrationDMX/PLC control, servo/motor drive, pump zoning and SmartVision show programming.
Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.

✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

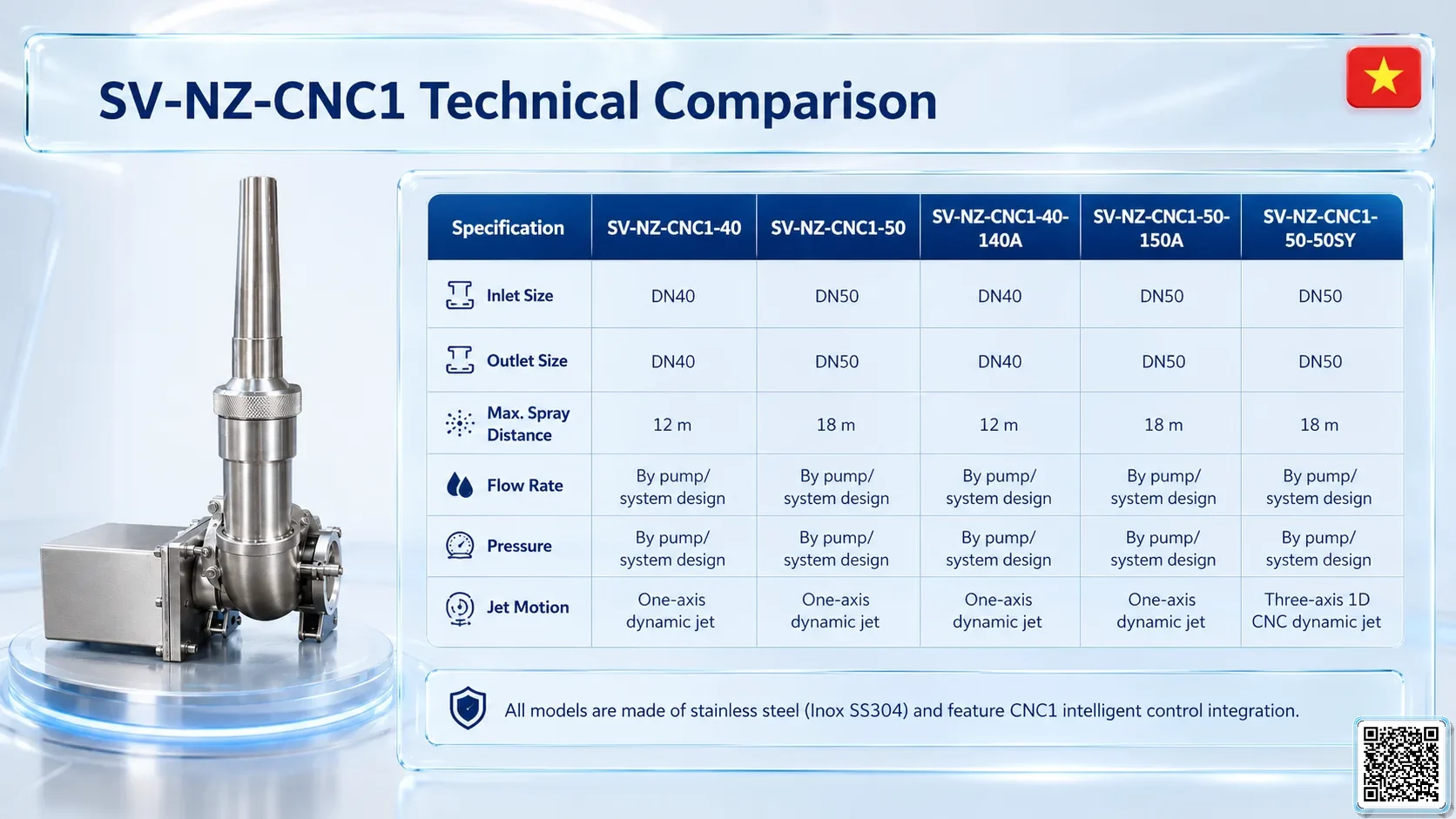

PRODUCT CONFIGURATIONS

Total nozzle sizes: 5

Variant	Connection	Spray height	Flow rate	Pressure / Head	Diameter	A / B / C / D
SV-NZ-CNC1-40 SV-NZ-CNC1-40	DN40 inlet / DN40 outlet	12 m max	By pump/system design	By pump/system design	One-axis dynamic jet	300 mm / 210 mm / 150 mm / 120 mm
SV-NZ-CNC1-50 SV-NZ-CNC1-50	DN50 inlet / DN50 outlet	18 m max	By pump/system design	By pump/system design	One-axis dynamic jet	330 mm / 240 mm / 160 mm / 140 mm
SV-NZ-CNC1-40-140A SV-NZ-CNC1-40-140A	DN40 inlet / DN40 outlet	12 m max	By pump/system design	By pump/system design	One-axis dynamic jet	340 mm / 170 mm / 250 mm
SV-NZ-CNC1-50-150A SV-NZ-CNC1-50-150A	DN50 inlet / DN50 outlet	18 m max	By pump/system design	By pump/system design	One-axis dynamic jet	370 mm / 170 mm / 270 mm
SV-NZ-CNC1-50-50SY SV-NZ-CNC1-50-50SY	DN50 inlet / DN50 outlet	18 m max	By pump/system design	By pump/system design	Three-axis 1D CNC dynamic jet	370 mm / 330 mm / 220 mm
