SV-NZ-BWC-PROPrecision Dynamic Bird Wing

Name: SV-NZ-BWC-PRO Precision Dynamic Bird Wing
Brand: Smart Vision
SKU: SV-NZ-BWC-PRO
Price: 2750 USD
Availability: InStock

Precision dynamic bird-wing fountain module with 20 jet outlets, stepper motor drive and position sensor; overall size 2000 × 550 × 400 mm, DN50 female-thread water inlet, net weight 69 kg.

nozzlesSV-NZ-BWC-PRORequest quotation

Choose nozzle configuration

Size / Connection Connection Spray height Flow rate Pressure / Head Dimensions A/B/C/D Quantity

Add to Project BOM

👁 249

Featured product demonstration

View more product videos ↓

Technical Specifications

Series	SV-NZ-BWC-PRO
Installation Type	Integrated kinetic fountain module; installation plane 1300 × 300 mm; Ø16 mounting holes
Cut Out Size	Civil/deck opening is project-specific; do not use the 1300 × 300 mm installation plane as a deck cut-out without approved shop drawing.
Height	400 mm
Housing Material	Stainless steel frame and manifolds; nozzle/valve material project-specific
Intelligent Control	Stepper positioning with pulse controller and reset/home sensor
Weight	69 kg
Material	Stainless steel frame and manifolds; nozzle/valve material project-specific
Nozzle Type	SV-NZ-BWC-PRO Precision Dynamic Bird Wing
Available Sizes	DN50 female-thread water inlet; 20 × Ø7 mm jet outlets
Variant Models	SV-NZ-BWC-PRO-20

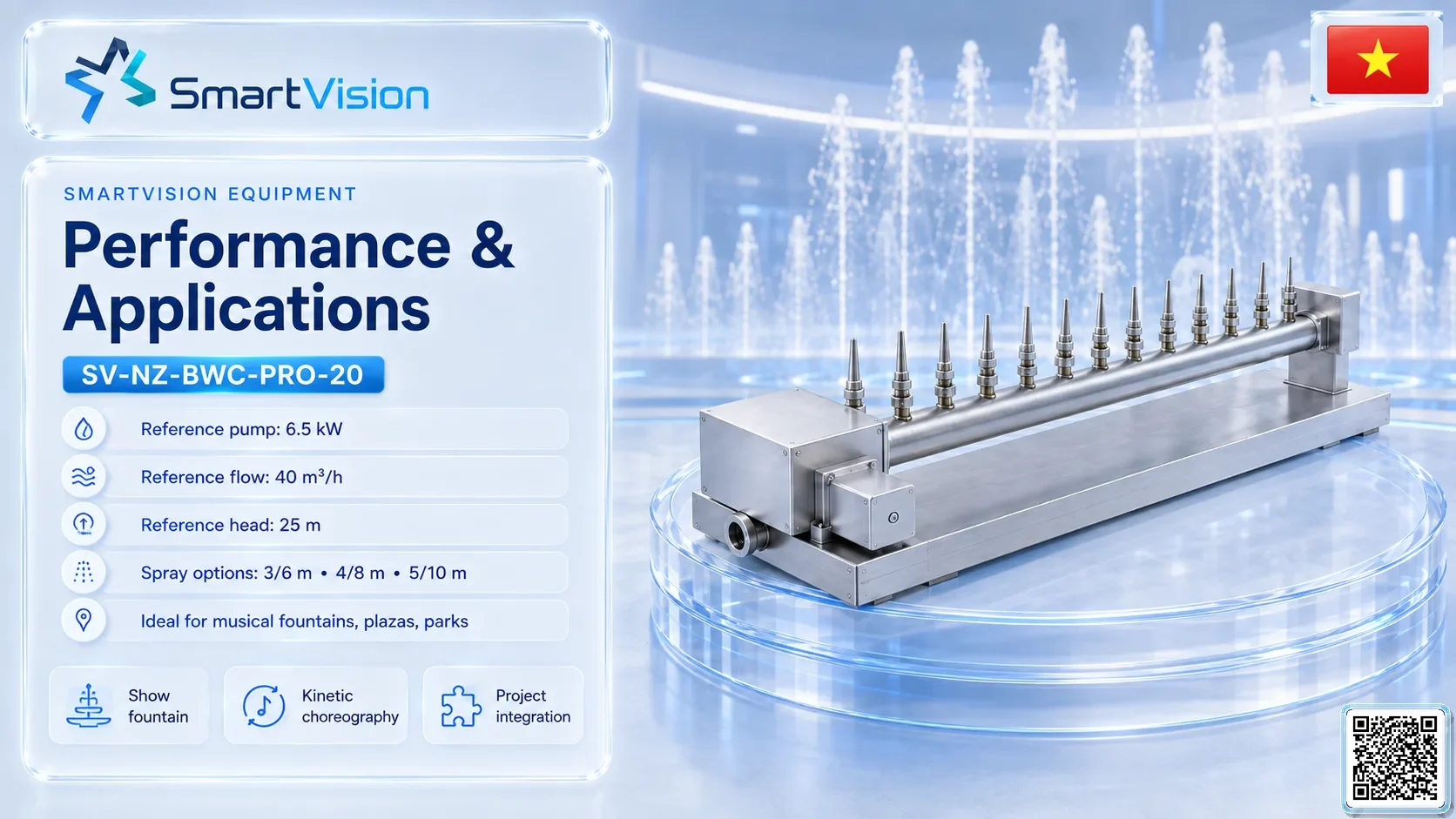

Spray Height	Reference: 3 m / 4 m / 5 m
Flow Rate	40 m³/h reference
Pressure Head	25 m reference
Spray Diameter	Reference spray width: 6 m / 8 m / 10 m

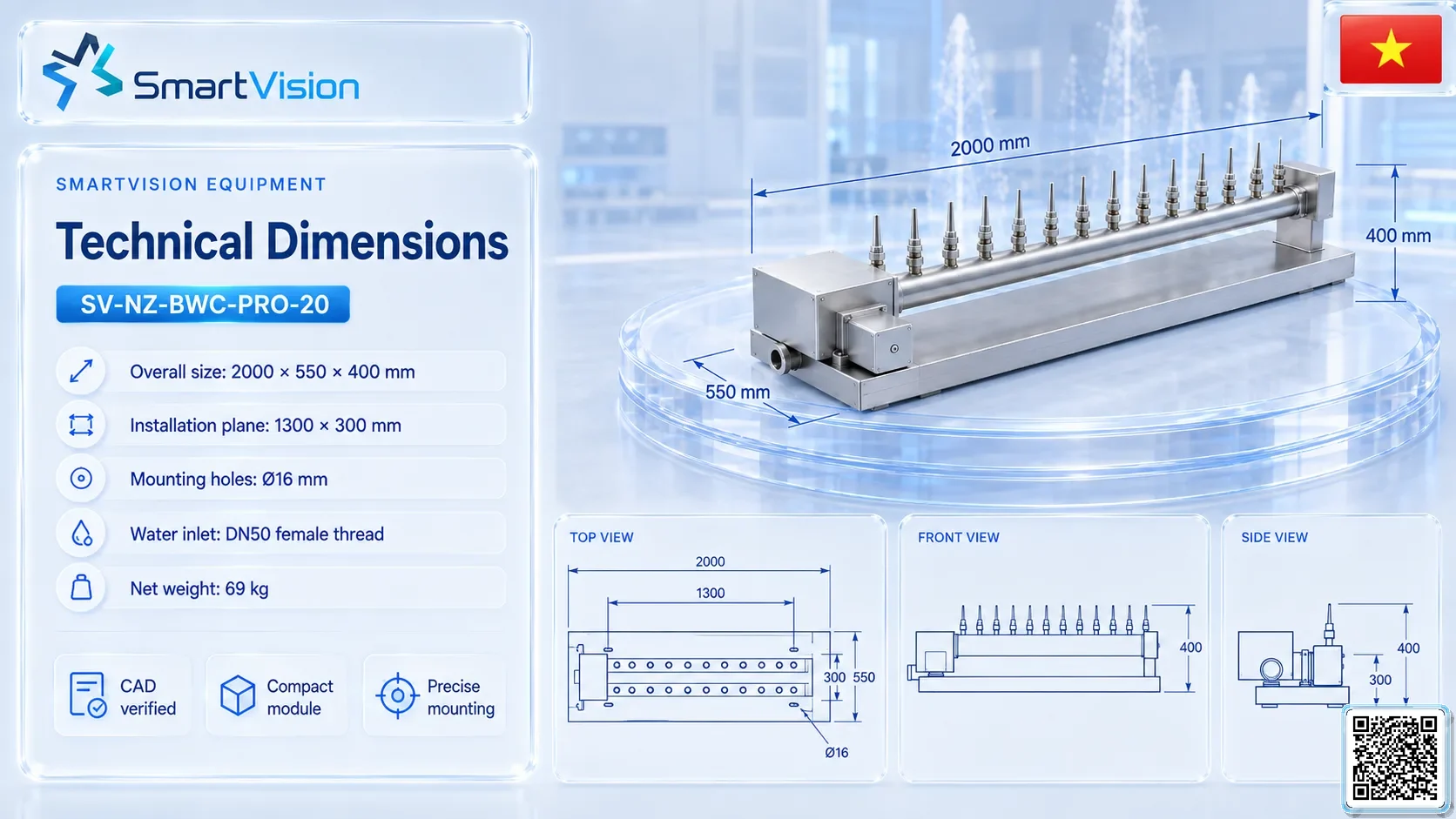

Dimension A	2000 mm overall length
Dimension B	550 mm overall width
Dimension C	400 mm overall height
Dimension D	Installation plane 1300 × 300 mm; mounting hole Ø16 mm

Project Integration

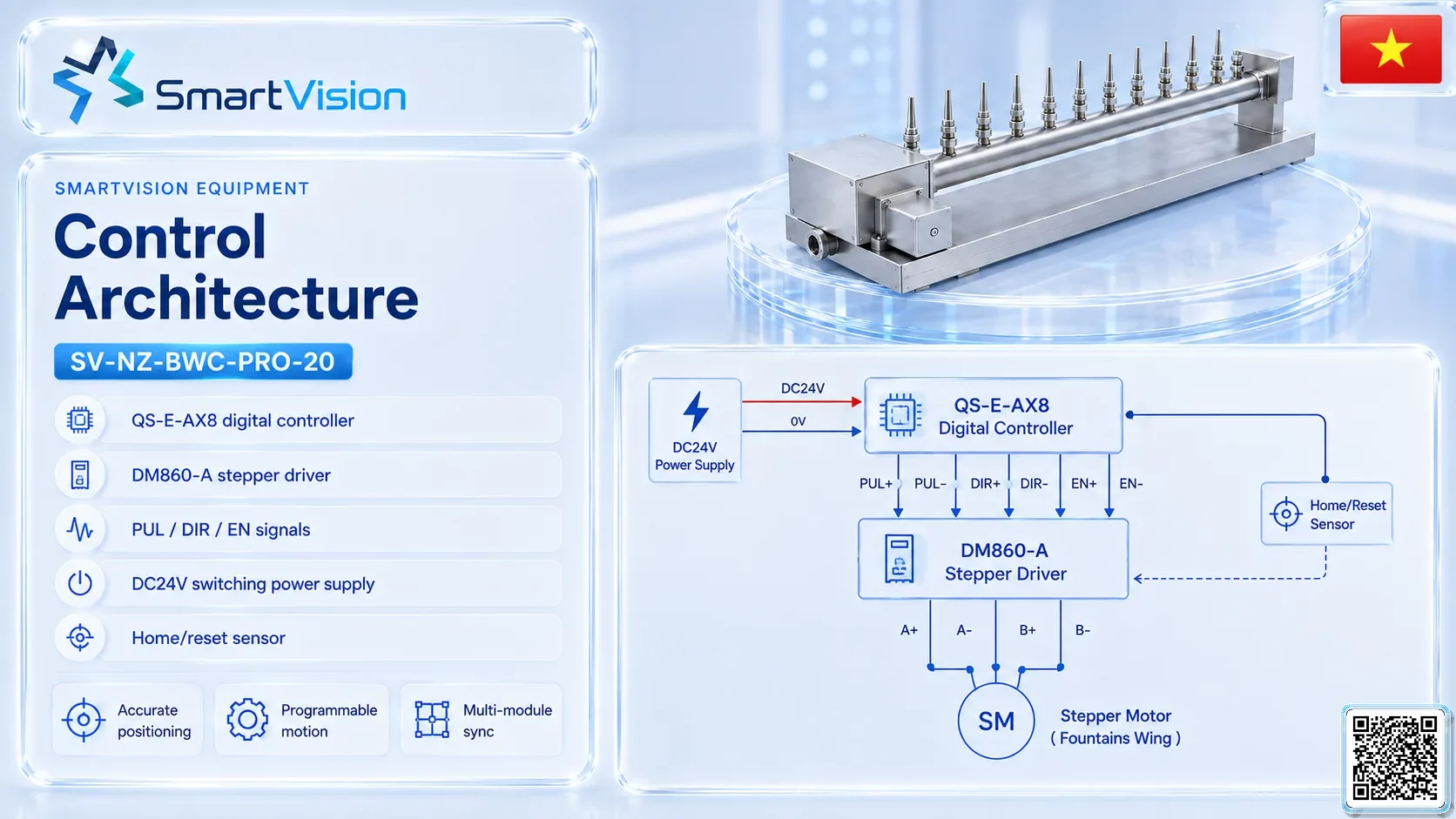

Integrates through a motion controller/PLC providing PUL/DIR/EN signals. Multiple modules can be synchronized by a SmartVision master controller

DMX/Art-Net should be used at show-controller level rather than directly on the stepper driver.

PRODUCT CONFIGURATIONS

Technical Specifications by Model / Size

Total nozzle sizes: 1

Variant	Connection	Spray height	Flow rate	Pressure / Head	Diameter	A / B / C / D
SV-NZ-BWC-PRO-20 SV-NZ-BWC-PRO-20	DN50 female-thread water inlet; 20 × Ø7 mm jet outlets	Reference: 3 m / 4 m / 5 m	40 m³/h reference	25 m reference	Reference spray width: 6 m / 8 m / 10 m	2000 mm overall length / 550 mm overall width / 400 mm overall height / Installation plane 1300 × 300 mm; mounting hole Ø16 mm

PRODUCT VIDEO

Product Videos & Live Demonstrations

Watch real operation, testing and project applications of Smart Vision equipment.

Product video

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

PRO version using stepper-motor positioning and a home/reset sensor, suitable for kinetic bird-wing effects requiring position control, variable motion speed and synchronization of multiple modules.

Applications

Musical fountains; plazas; parks; entrance features; water shows

Key features

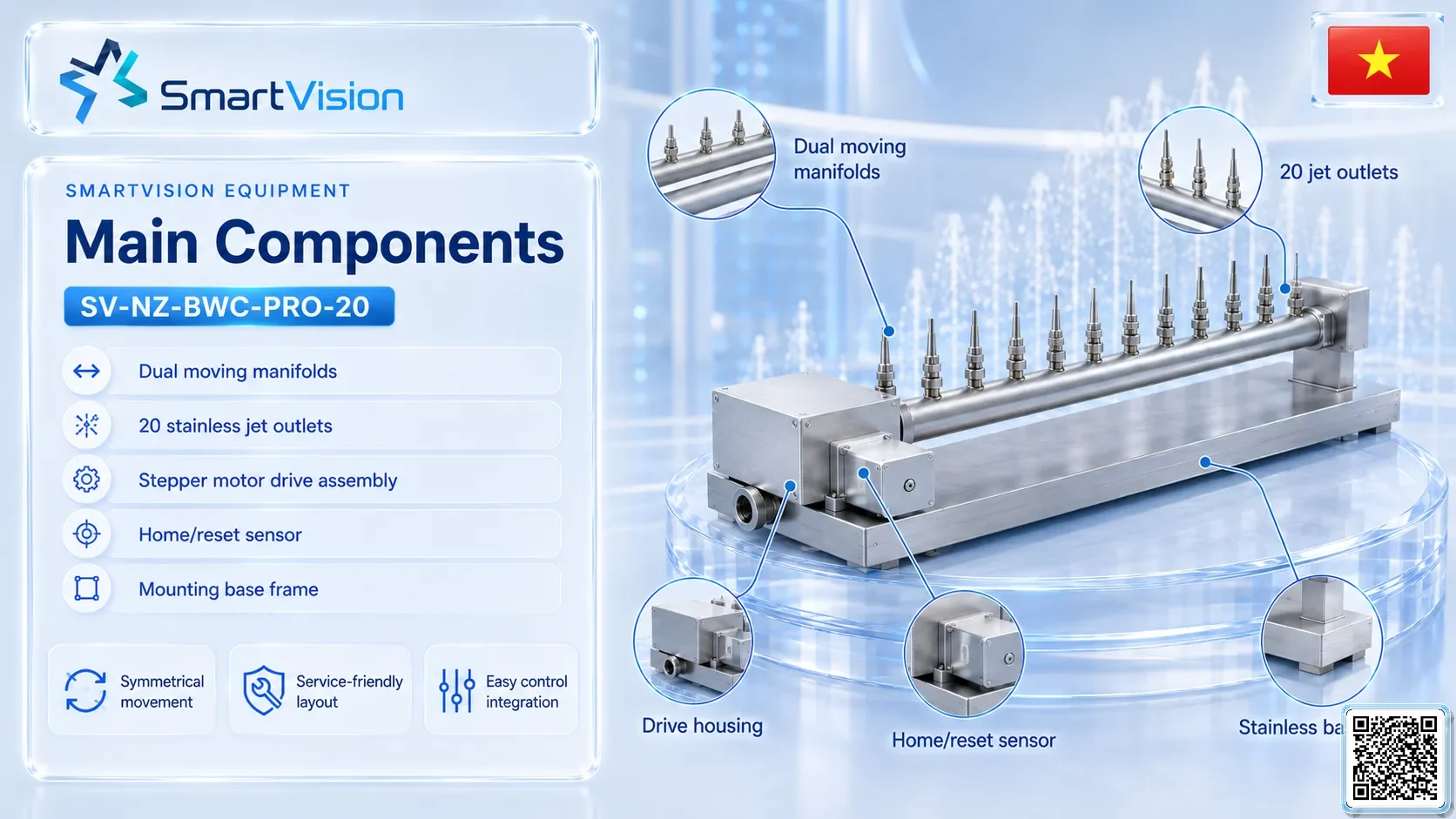

20 jet outlets; 2 symmetrical moving manifolds; 2000×550×400 mm overall size; 1300×300 mm installation plane; Ø16 mounting holes; DN50 female-thread inlet; 69 kg; reference pump 6.5 kW / 40 m³/h / 25 m; AC60–80 V / 300 W stepper driver; reset/home sensor; PUL/DIR/EN control.
