SV-NZ-BUBBubbling Nozzle
Bubbling Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 12 |
| Nozzle Type | SV-NZ-BUB Bubbling Nozzle |
| Material | SS304 |
| Available Sizes | DN20 / 3/4 inch / DN25 / 1 inch / DN40 / 1.5 inch / DN50 / 2 inch |
| Variant Models | SV-NZ-BUB-20 / SV-NZ-BUB-25 / SV-NZ-BUB-40 / SV-NZ-BUB-50 |
| Spray Height | 0.15–0.4 m / 0.15–0.5 m / 0.15–0.7 m / 0.15–0.9 m |
| Flow Rate | 1.7–6.5 m³/h / 2.7–8.9 m³/h / 4.6–18.2 m³/h / 8.6–21.4 m³/h |
| Pressure Head | 40–110 kPa / 30–100 kPa / 20–120 kPa |
| Spray Diameter | Bubbling column |
| Dimension A | 205 mm / 232 mm / 290 mm / 310 mm |
| Dimension B | 92 mm / 119 mm / 114.5 mm / 160 mm |
| Dimension C | 25.2 mm / 30.5 mm / 44.8 mm / 51.4 mm |
Project Integration
Professional bubbling nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectrough straight bubbling water body.
- Best forshallow pools, children-friendly landscapes, resort pools and calm visual effects.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationlow-to-medium height pump circuits, water-level planning and soft lighting.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size

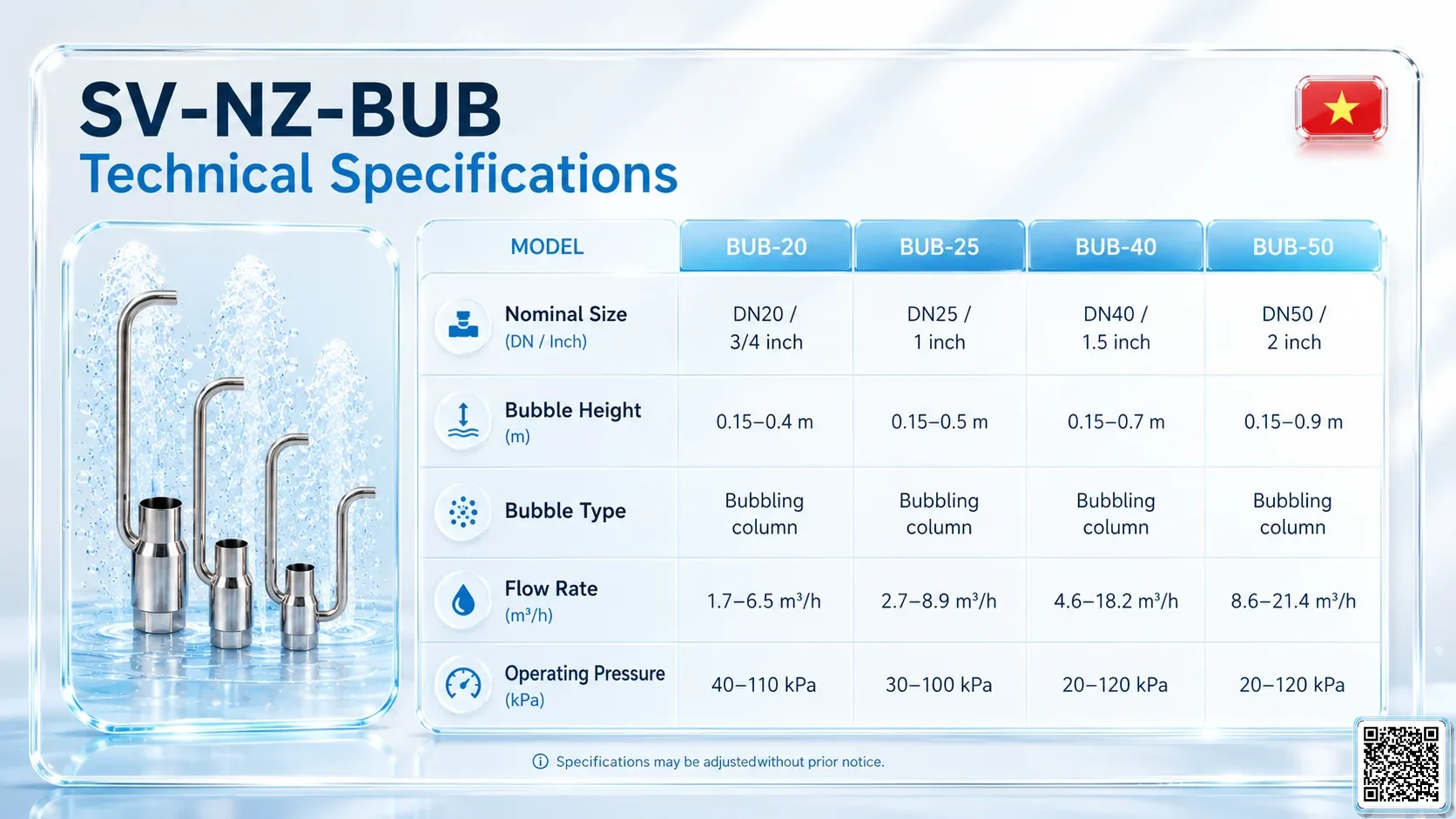

| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-BUB-20 SV-NZ-BUB-20 | DN20 / 3/4 inch | 0.15–0.4 m | 1.7–6.5 m³/h | 40–110 kPa | Bubbling column | 205 mm / 92 mm / 25.2 mm |
| SV-NZ-BUB-25 SV-NZ-BUB-25 | DN25 / 1 inch | 0.15–0.5 m | 2.7–8.9 m³/h | 30–100 kPa | Bubbling column | 232 mm / 119 mm / 30.5 mm |
| SV-NZ-BUB-40 SV-NZ-BUB-40 | DN40 / 1.5 inch | 0.15–0.7 m | 4.6–18.2 m³/h | 20–120 kPa | Bubbling column | 290 mm / 114.5 mm / 44.8 mm |
| SV-NZ-BUB-50 SV-NZ-BUB-50 | DN50 / 2 inch | 0.15–0.9 m | 8.6–21.4 m³/h | 20–120 kPa | Bubbling column | 310 mm / 160 mm / 51.4 mm |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.15 | 1.7 | 40 |
| 0.2 | 2.3 | 50 |
| 0.25 | 3.4 | 65 |
| 0.3 | 4.5 | 80 |
| 0.35 | 5.4 | 100 |
| 0.4 | 6.5 | 110 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.15 | 2.7 | 30 |
| 0.2 | 3.2 | 35 |
| 0.25 | 3.6 | 40 |
| 0.3 | 3.9 | 50 |
| 0.35 | 5.7 | 65 |
| 0.4 | 7.2 | 80 |
| 0.5 | 8.9 | 100 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.15 | 4.6 | 20 |
| 0.2 | 5.7 | 25 |
| 0.25 | 6.7 | 30 |
| 0.3 | 7.7 | 35 |
| 0.35 | 8.9 | 40 |
| 0.4 | 10.1 | 50 |
| 0.5 | 12.1 | 75 |
| 0.6 | 14.1 | 100 |
| 0.7 | 18.2 | 120 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.15 | 8.6 | 20 |
| 0.2 | 9.3 | 25 |
| 0.25 | 9.9 | 30 |
| 0.3 | 10.8 | 40 |
| 0.35 | 11.7 | 50 |
| 0.4 | 13.2 | 60 |
| 0.5 | 14.9 | 70 |
| 0.6 | 16.5 | 80 |
| 0.7 | 18.2 | 90 |
| 0.8 | 19.9 | 100 |
| 0.9 | 21.4 | 120 |
Applications & Key Features
Overview
Inhales air to form a white swollen water body.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Rough straight bubbling water body; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
