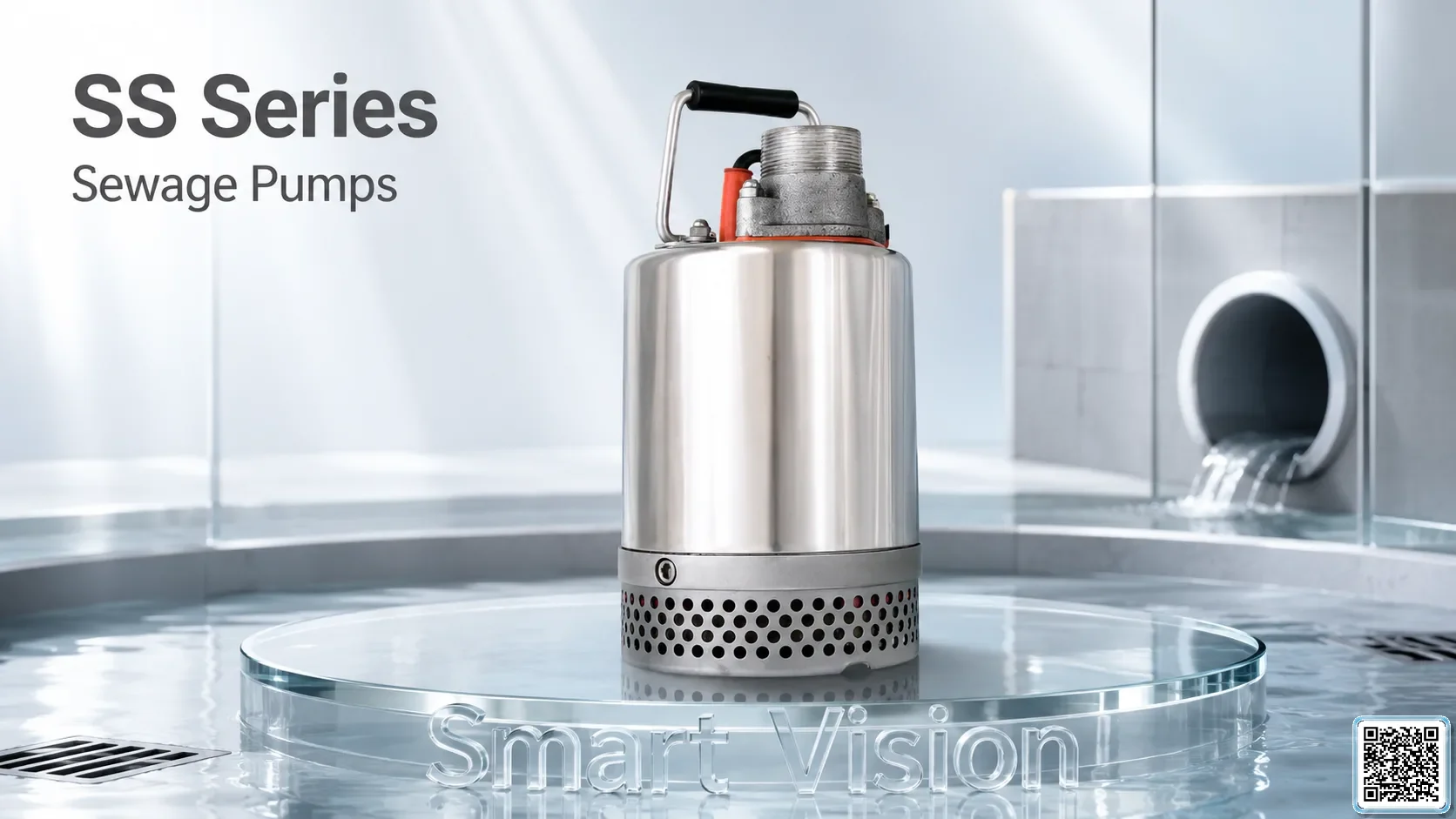

SS Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

SSSeries Stainless Steel Industrial Pumps

Name: SS Series Stainless Steel Industrial Pumps
Brand: APP

APP SS Series Industrial / Chemical Pump from Taiwan.

pumpsSSRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 88

Technical Specifications

source	APP catalogue
section	Industry / Gardening
series	SS
family	Industrial / Chemical Pump
catalogue_page	49-50 / 25-26 Gardening
features	Stainless material for light acid/alkali; VITON waterproof material; SUS316 shaft.
Series	SS Series
Pump Series	SS
Pump Type	Industrial / Chemical Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	5~9
Pump construction	IP68
Material	Stainless steel / SUS316 shaft / VITON
Variant Dimensions	181 x 181 x 340 mm / 181 x 181 x 343 mm
Pump length / size	181 x 181 x 340 mm / 181 x 181 x 343 mm
Variant Max Flow	220 LPM / 240 LPM / 300 LPM
Variant Max Head	9 m / 11 m / 15 m
Variant Pass Solid	7 mm
Variant Weight	12 kg / 15 kg

Project Integration

SS Series Stainless Steel Industrial Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

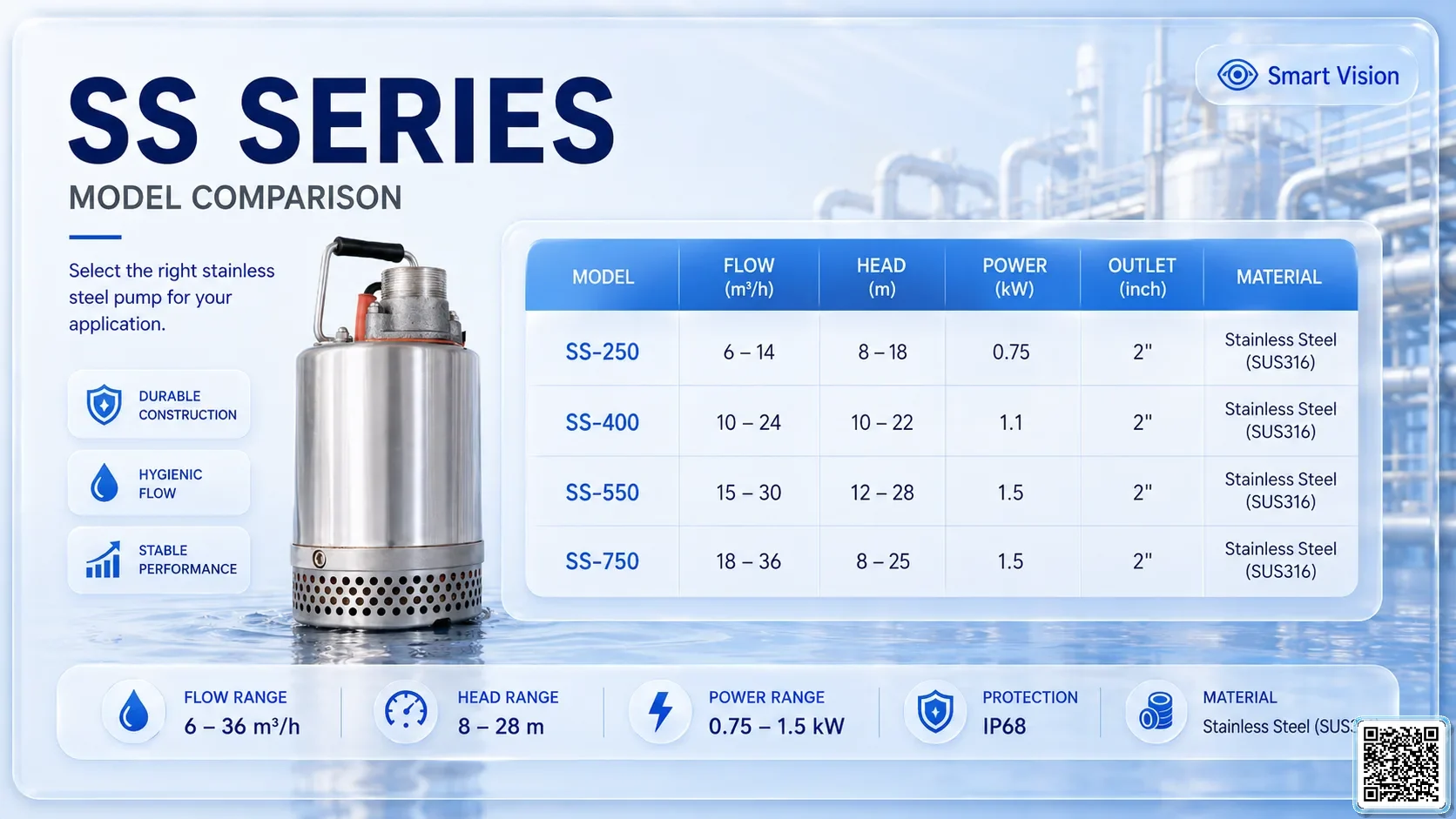

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
SS-250 SS-250	1/3 HP / 250 W	—	50 mm / 2"	220 LPM	9 m	7 mm	181	12 kg	—
SS-400 SS-400	1/2 HP / 400 W	—	50 mm / 2"	240 LPM	11 m	7 mm	181	12 kg	—
SS-750 SS-750	1 HP / 750 W	—	50 mm / 2"	300 LPM	15 m	7 mm	181	15 kg	—
