● FOUNTAIN PUMP / VFD

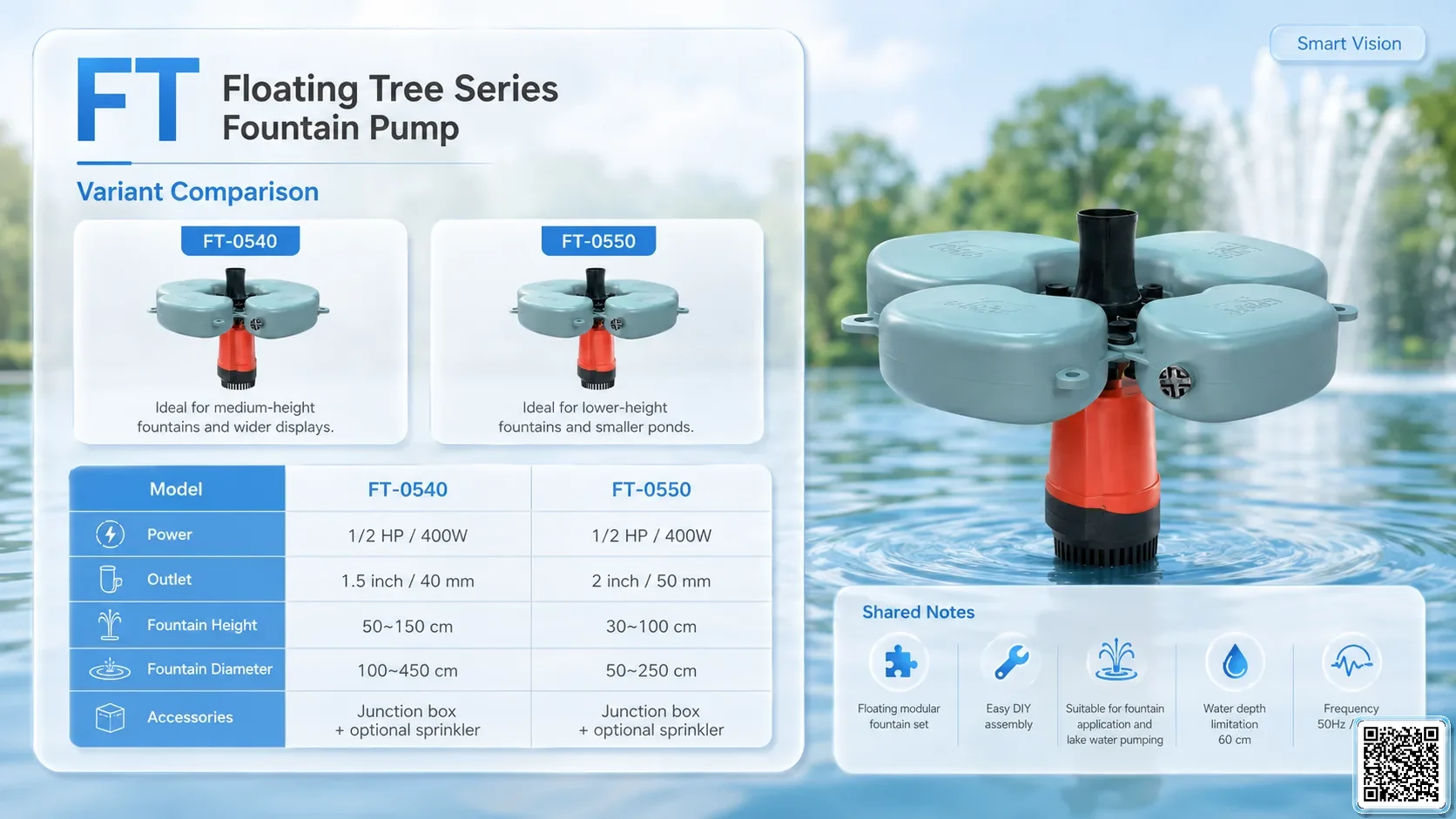

FTFloating Tree Series Fountain Pump

Name: FT Floating Tree Series Fountain Pump
Brand: APP

APP FT Series pump for fountain application; lake water pumping.

pumpsFTRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 185

Technical Specifications

Series	FT Series
Pump Series	FT
Pump Type	Fountain Pump / Floating Tree
Motor Type	Submersible motor
Cooling Type	Water cooled
Flow / head	Fountain height 30~150 cm by model (≈0.3~1.5 m)
Outlet	40 mm / 1-1/2"; 50 mm / 2"
Max Diving Depth	Water depth limitation 60 cm
Water Temperature	0~40°C / 32~104°F
pH Range	6~8
Pump construction	IP68
Connection Size	40 mm / 1-1/2"; 50 mm / 2"

Project Integration

FT Floating Tree Series Fountain Pump is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
FT-0550 FT-0550	1/2 HP / 400 W	—	50 mm / 2"	—	Fountain height 30~100 cm; diameter 50~250 cm	—	Not specified in catalogue	—	Junction box; optional sprinkler
FT-0540 FT-0540	1/2 HP / 400 W	—	40 mm / 1-1/2"	—	Fountain height 50~150 cm; diameter 100~450 cm	—	Not specified in catalogue	—	Junction box; optional sprinkler

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP Taiwan FT Floating Tree Series Fountain Pump designed for fountain application; lake water pumping. Suitable for SmartVision projects that require reliable auxiliary pump options.
