MAS Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

MASSeries Gardening Pump

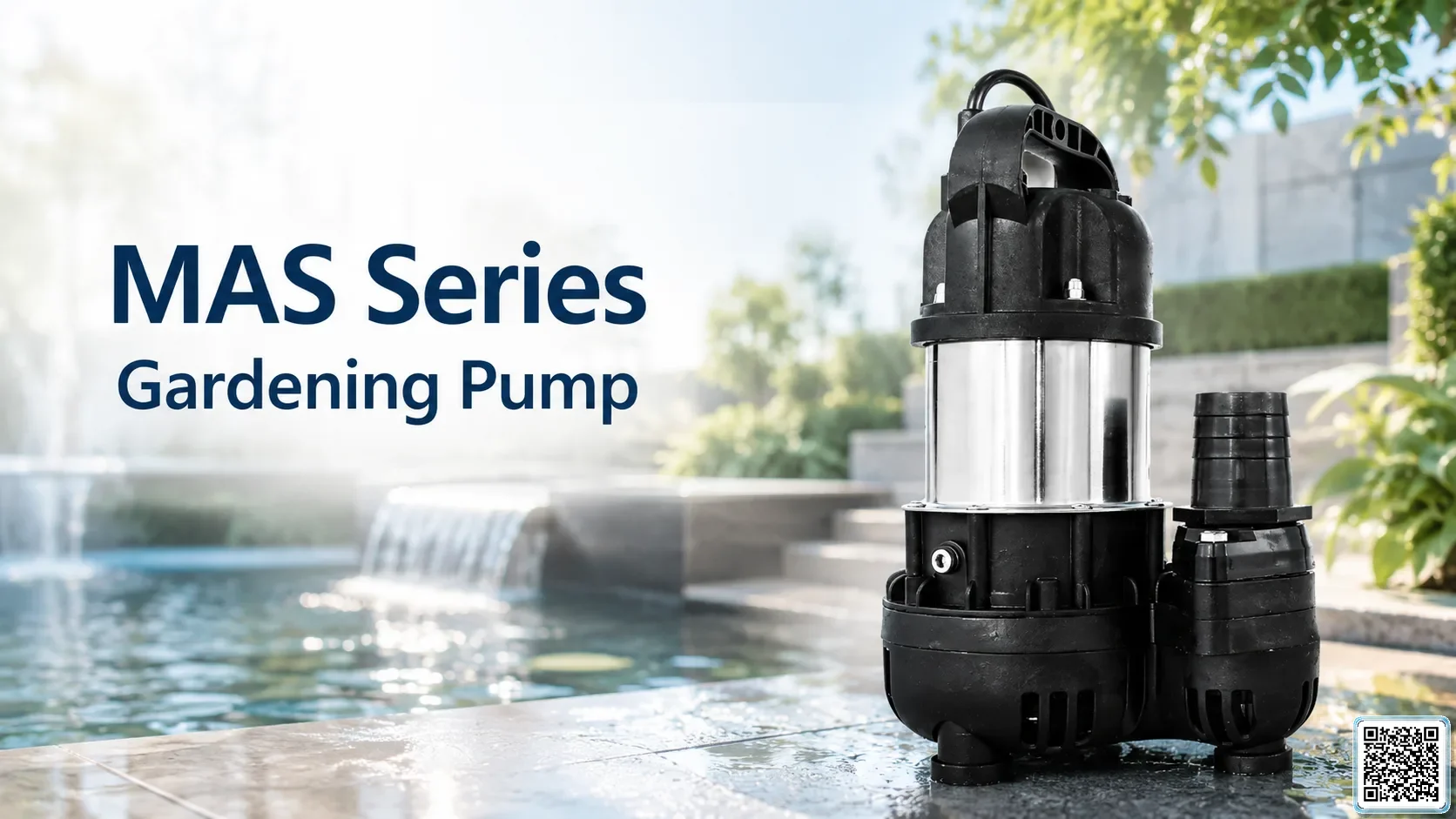

Name: MAS Series Gardening Pump
Brand: APP

APP MAS Series pump for garden fountain; aquaculture circulating water; filtration system.

pumpsMASRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 121

Technical Specifications

Series	MAS Series
Pump Series	MAS
Pump Type	Gardening Pump / Fountain Circulation Pump
Motor Type	Submersible motor
Cooling Type	Water cooled
Flow / head	6.5~13 m by model
Outlet	40 mm / 1-1/2"; 50 mm / 2"
Max Diving Depth	8 m
Water Temperature	0~40°C / 32~104°F
pH Range	6~8
Max Particle Size	19 mm
Pump construction	IP68
Connection Size	40 mm / 1-1/2"; 50 mm / 2"

Project Integration

MAS Series Gardening Pump is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

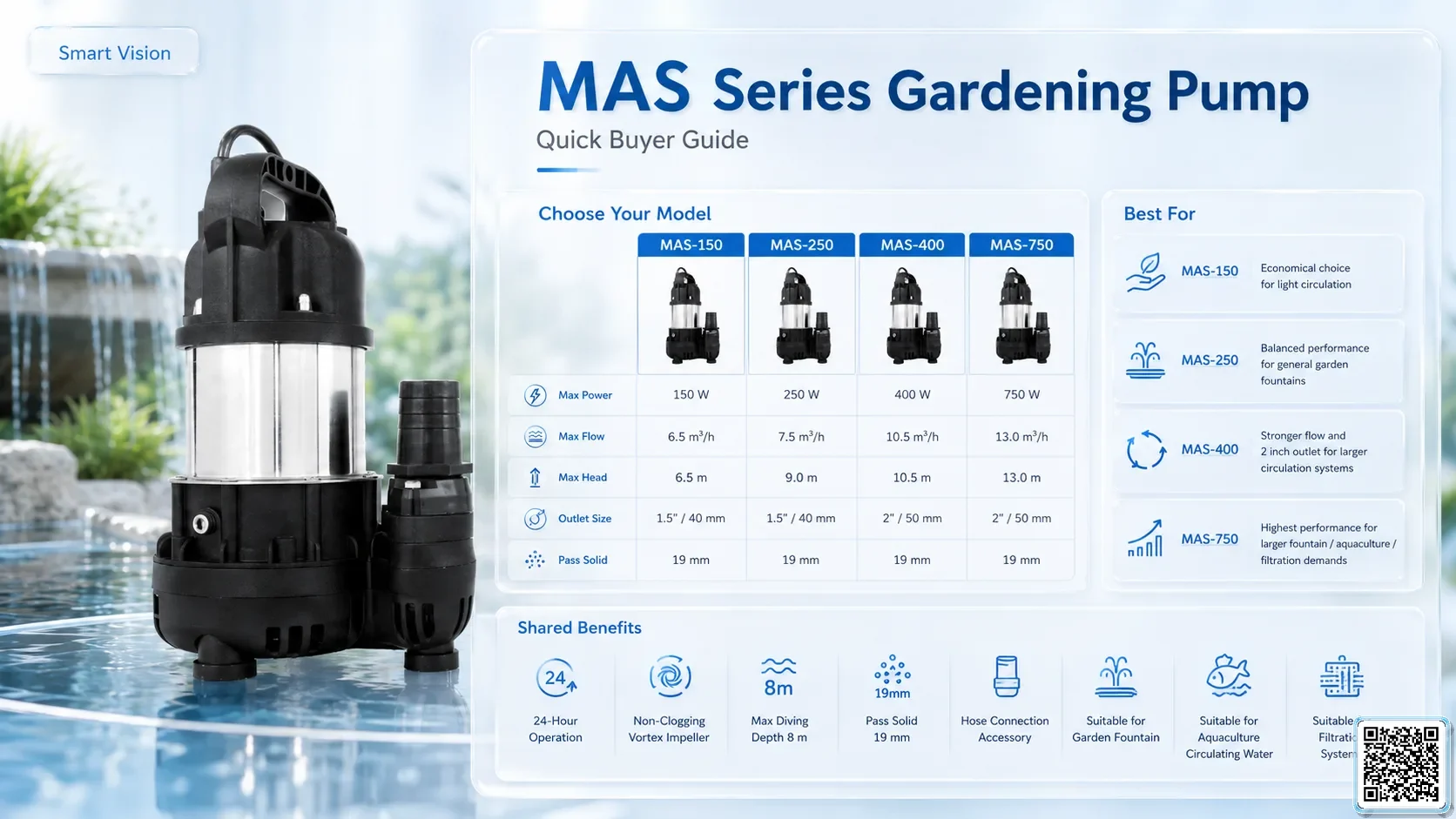

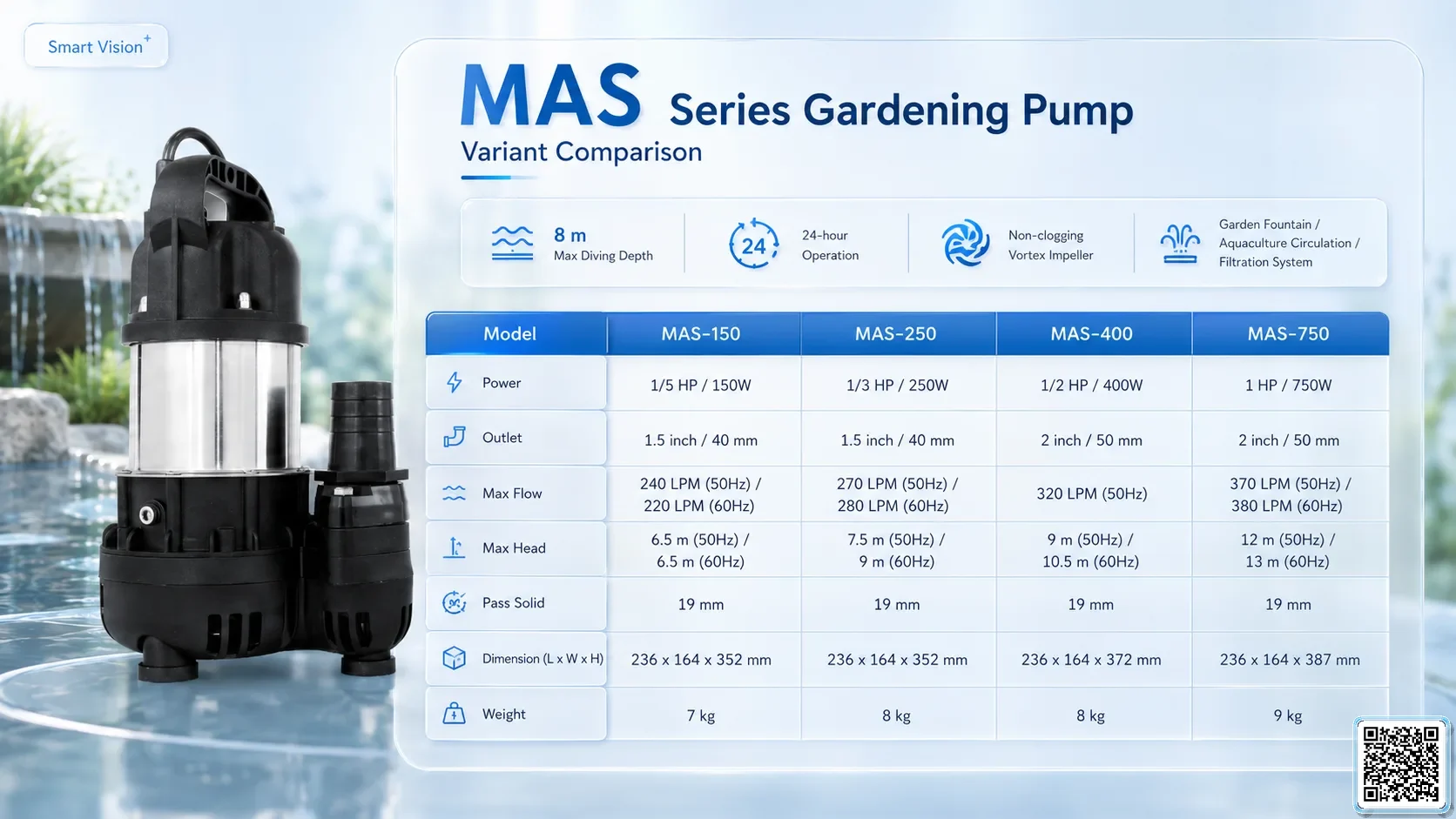

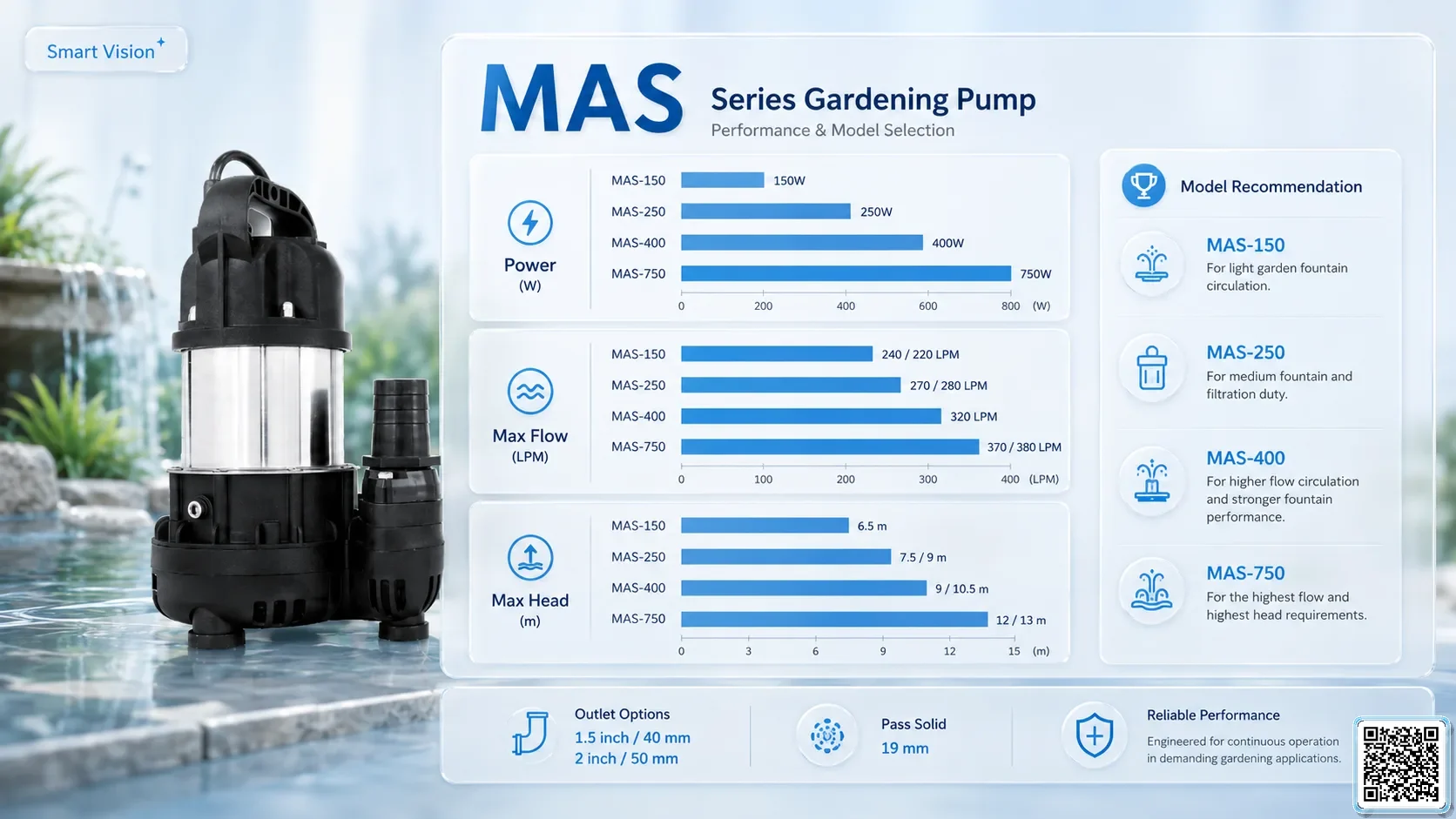

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
MAS-150 MAS-150	1/5 HP / 150 W	—	40 mm / 1-1/2"	240 LPM (50Hz) / 220 LPM (60Hz)	6.5 m (50Hz) / 6.5 m (60Hz)	19 mm	236	7 kg	Hose connection
MAS-250 MAS-250	1/3 HP / 250 W	—	40 mm / 1-1/2"	270 LPM (50Hz) / 280 LPM (60Hz)	7.5 m (50Hz) / 9 m (60Hz)	19 mm	236	8 kg	Hose connection
MAS-400 MAS-400	1/2 HP / 400 W	—	50 mm / 2"	320 LPM (50Hz) / 320 LPM (60Hz)	9 m (50Hz) / 10.5 m (60Hz)	19 mm	236	8 kg	Hose connection
MAS-750 MAS-750	1 HP / 750 W	—	50 mm / 2"	370 LPM (50Hz) / 380 LPM (60Hz)	12 m (50Hz) / 13 m (60Hz)	19 mm	236	9 kg	Hose connection

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP Taiwan MAS Series Gardening Pump designed for garden fountain; aquaculture circulating water; filtration system. Suitable for SmartVision projects that require reliable auxiliary pump options.
