TPV Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

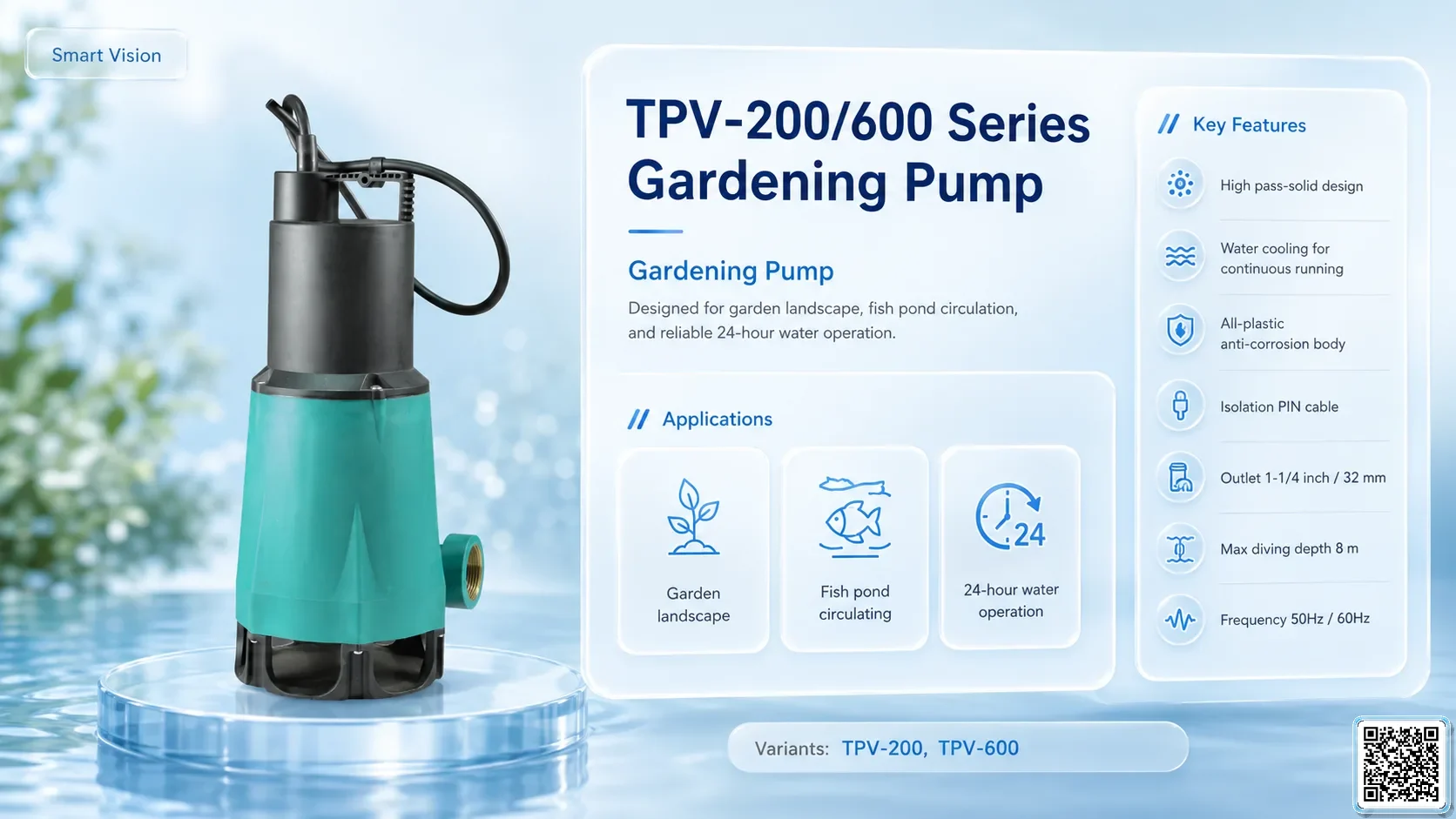

TPV-200/600 Series Gardening Pump

Name: TPV-200/600 Series Gardening Pump
Brand: APP

APP TPV Series pump for garden landscape; fish pond circulating; 24-hour water operation.

pumpsTPVRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 94

Technical Specifications

Series	TPV Series
Pump Series	TPV
Pump Type	Gardening Pump
Motor Type	Submersible motor
Cooling Type	Water cooled
Flow / head	6.5~7 m
Outlet	32 mm / 1-1/4"
Max Diving Depth	8 m
Water Temperature	0~40°C / 32~104°F
pH Range	6~8
Max Particle Size	19~32 mm
Pump construction	IP68
Connection Size	32 mm / 1-1/4"

Project Integration

TPV-200/600 Series Gardening Pump is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

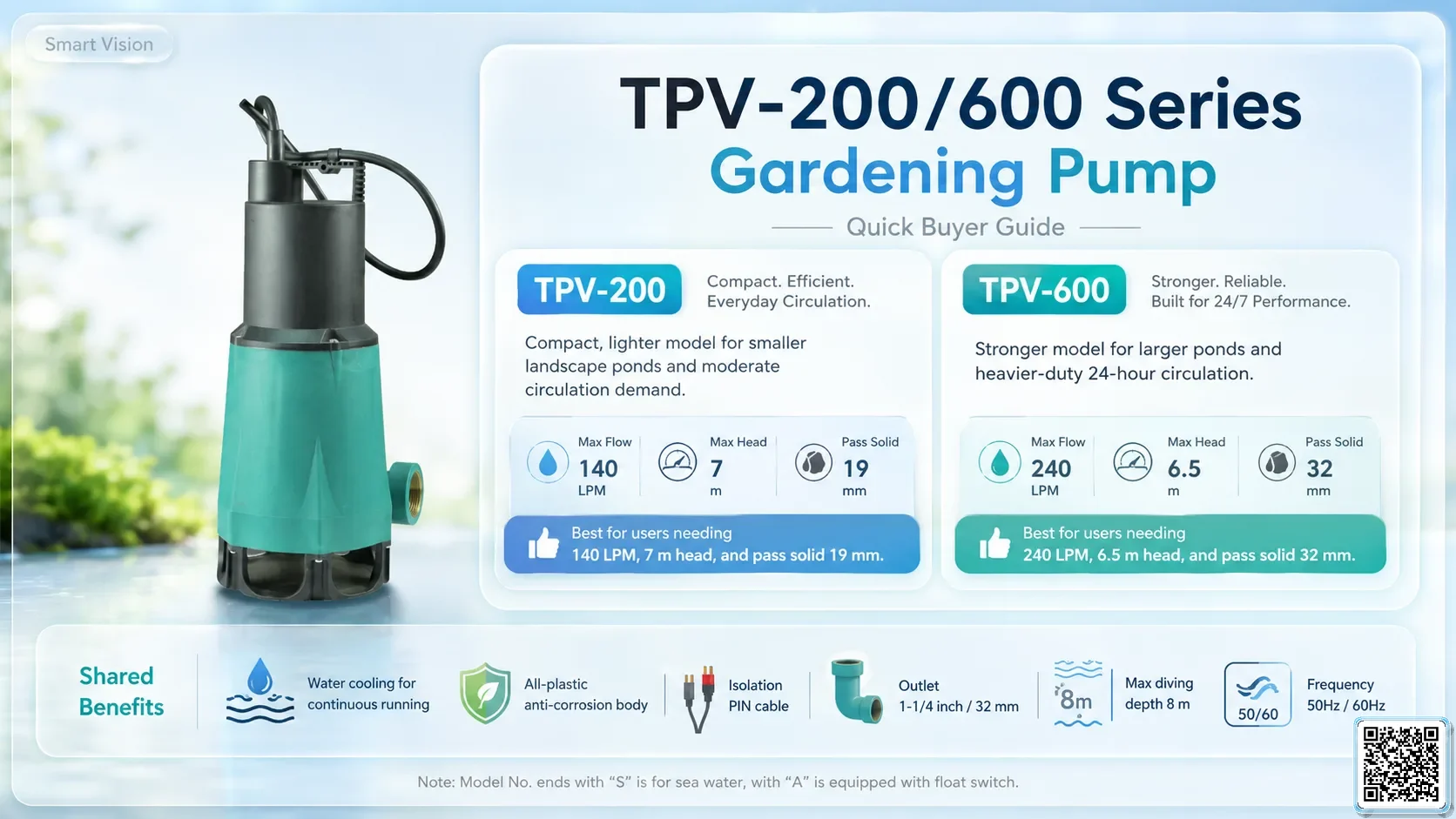

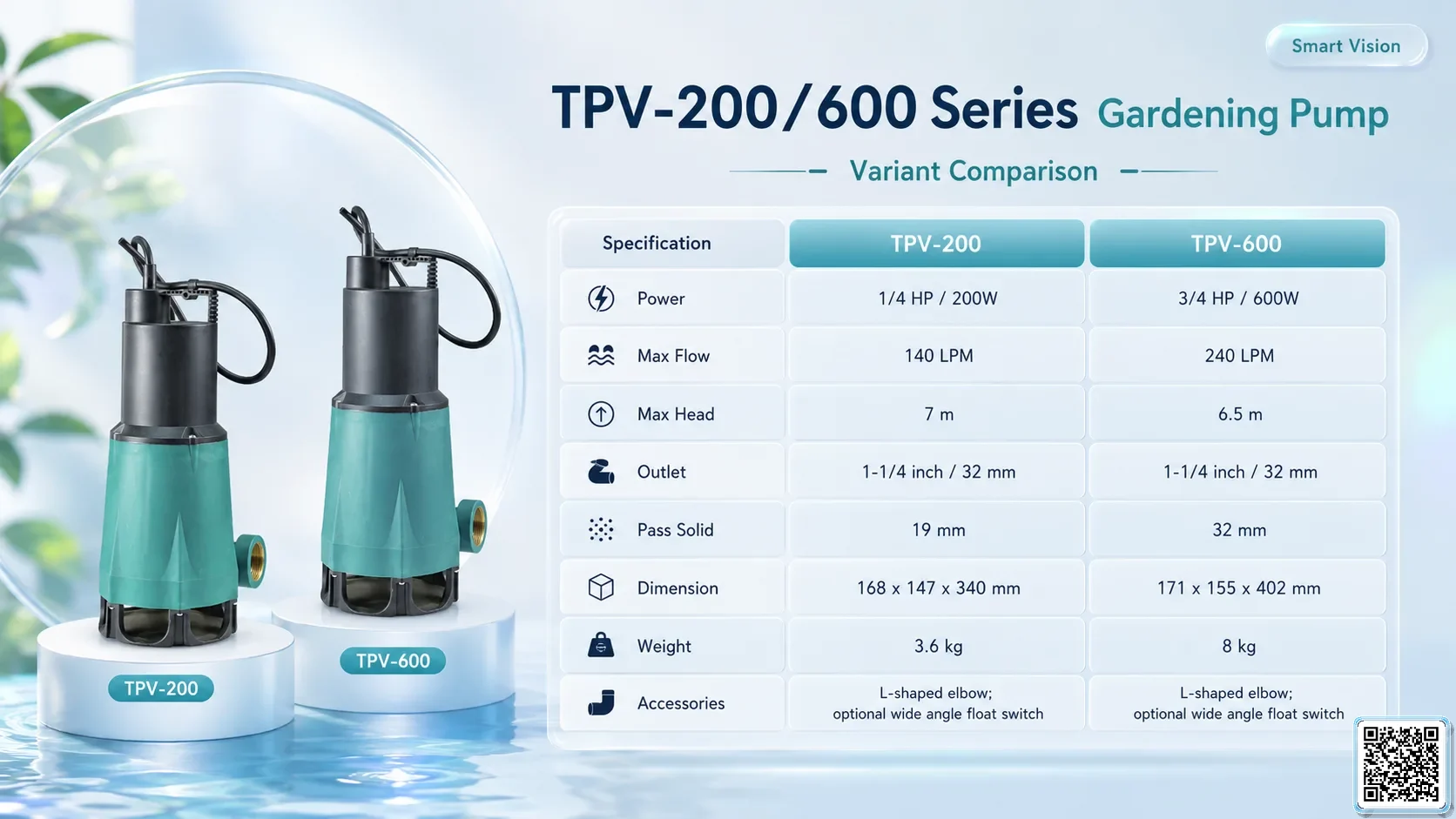

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
TPV-200 TPV-200	1/4 HP / 200 W	—	32 mm / 1-1/4"	140 LPM	7 m	19 mm	168	3.6 kg	L-shaped elbow; optional wide angle float switch
TPV-600 TPV-600	3/4 HP / 600 W	—	32 mm / 1-1/4"	240 LPM	6.5 m	32 mm	171	8 kg	L-shaped elbow; optional wide angle float switch

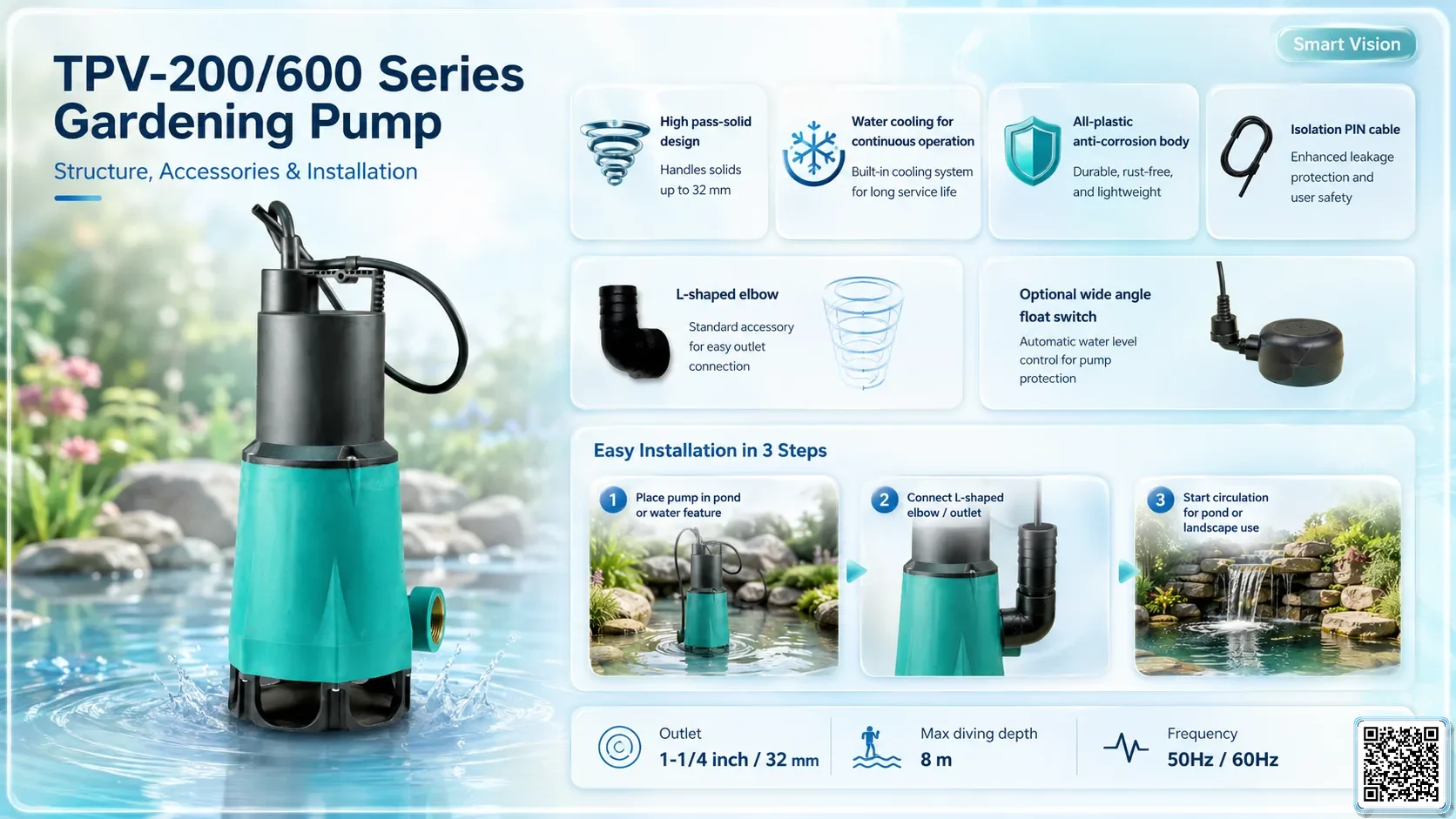

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP Taiwan TPV-200/600 Series Gardening Pump designed for garden landscape; fish pond circulating; 24-hour water operation. Suitable for SmartVision projects that require reliable auxiliary pump options.
