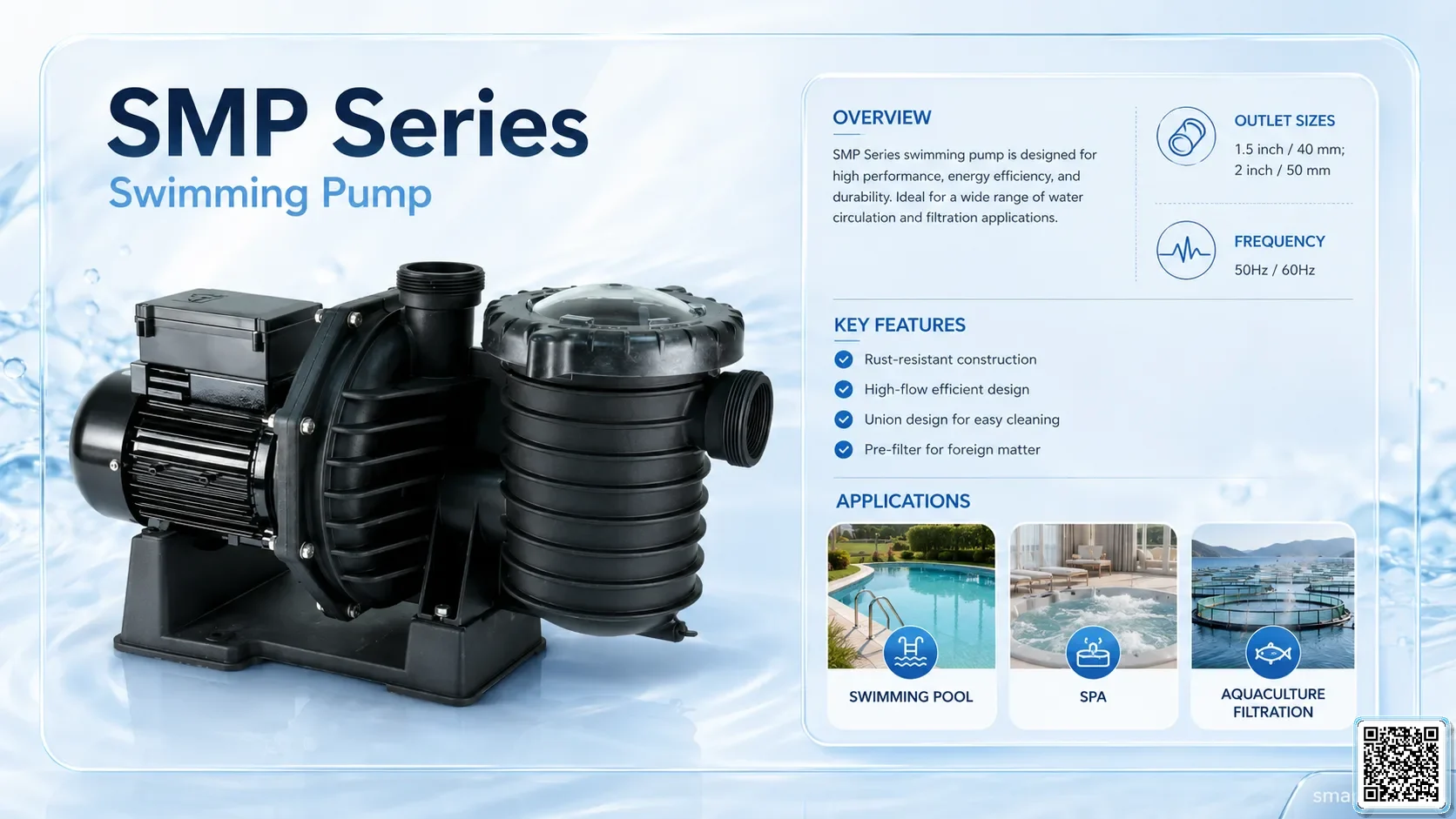

SMPSeries Swimming Pump
APP SMP Series pump for pool and spa system; aquaculture circulating water filtration.
Technical Specifications
| Series | SMP Series |
|---|---|
| Pump Series | SMP |
| Pump Type | Swimming Pool Pump |
| Motor Type | Dry-installed centrifugal motor |
| Cooling Type | Air cooled |

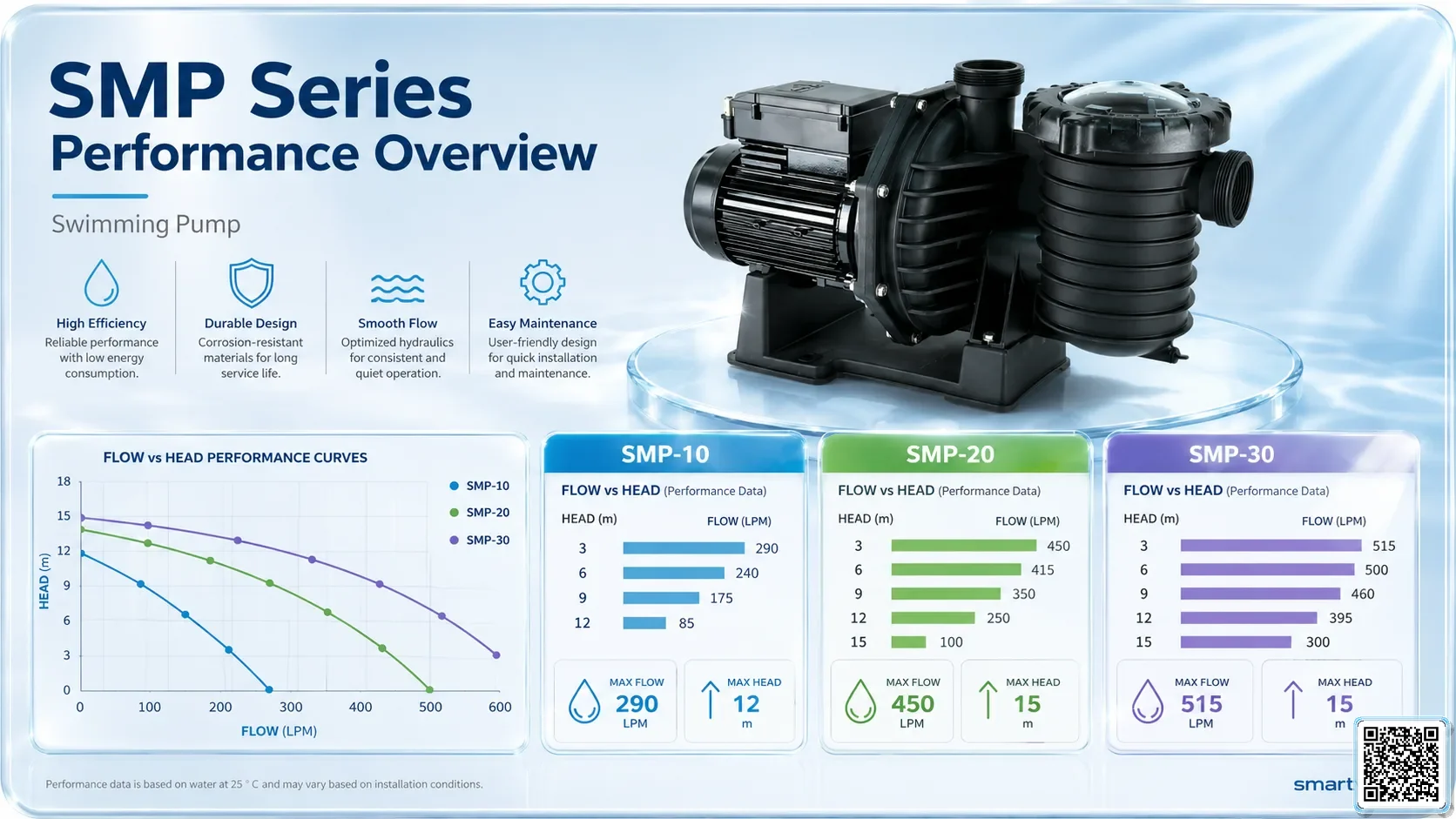

| Flow / head | 14~20 m |
| Outlet | 40 mm / 1-1/2"; 50 mm / 2" |
| Water Temperature | 5~50°C / 41~122°F |
| pH Range | 6~8 |
| Pump construction | IP55 |
| Connection Size | 40 mm / 1-1/2"; 50 mm / 2" |
Project Integration
SMP Series Swimming Pump is suitable for swimming pool, SPA, landscape pond and filtration circulation systems that require stable operation. Pump selection should verify circulation flow, pipeline head loss, outlet size and continuous-duty requirements.

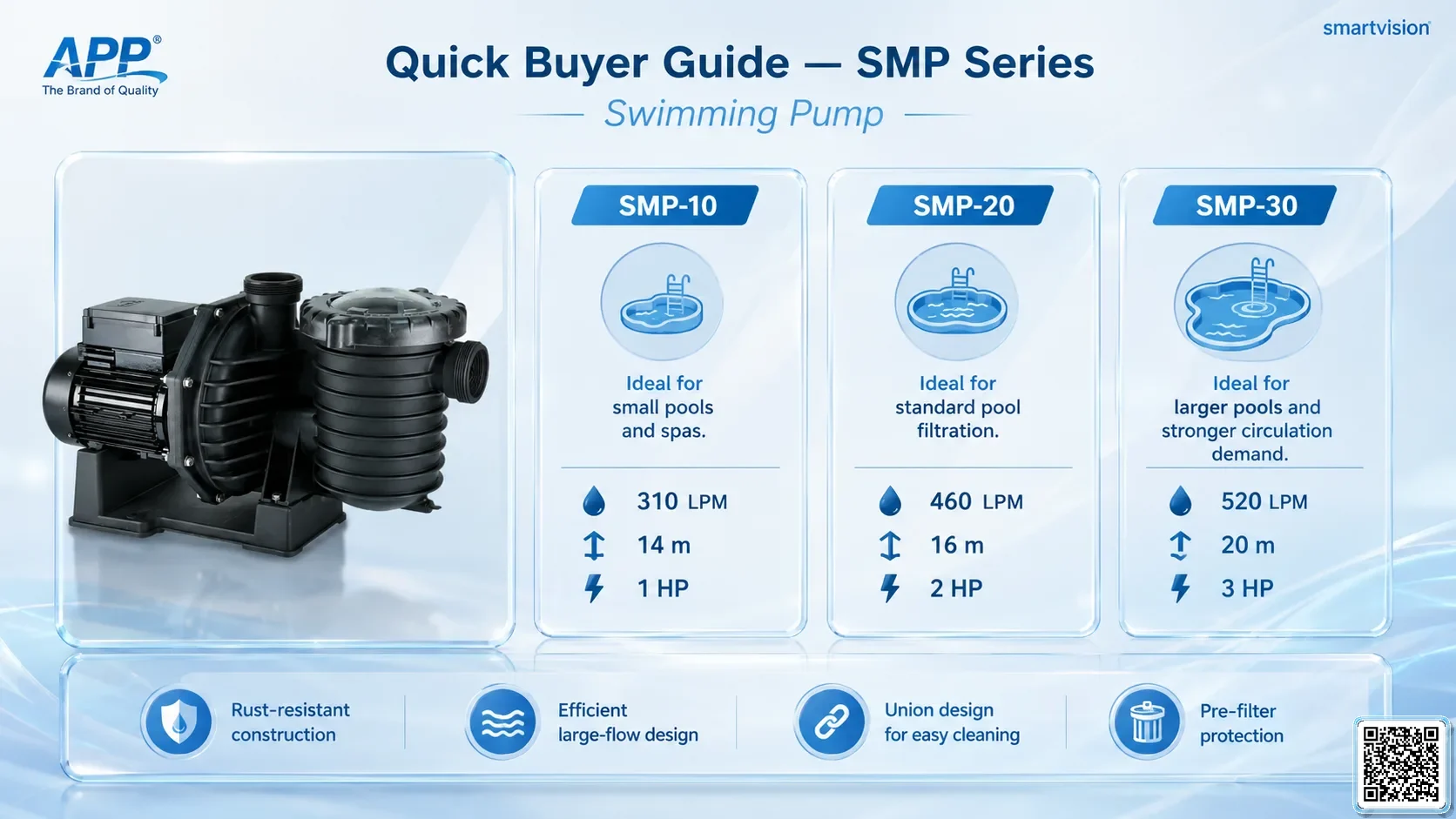

- Select the model by project flow and working head
- Check power, voltage/frequency, outlet size, material and installation dimensions
- Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
- Support configuration comparison and quotation by actual project quantity

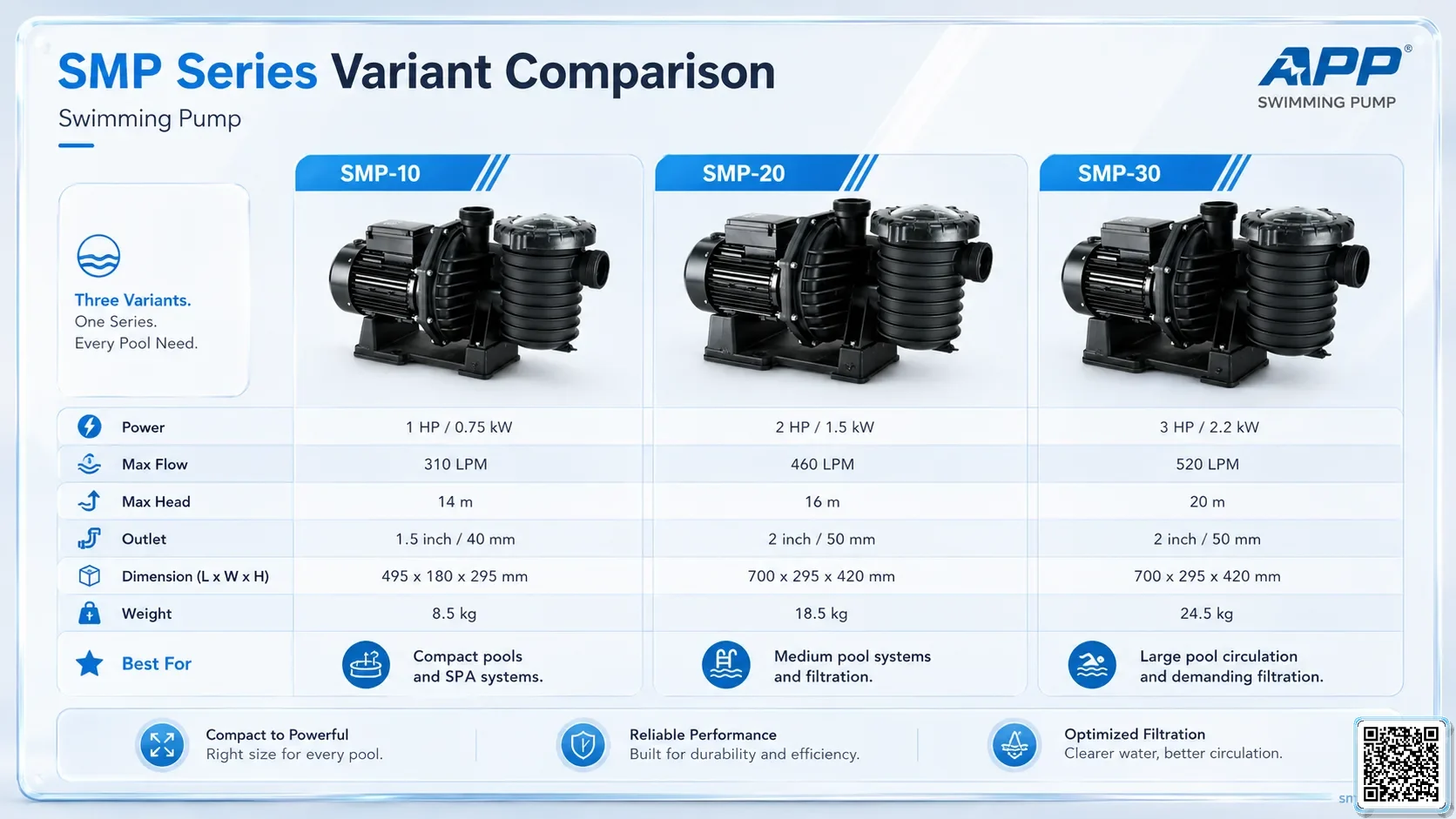

Pump Selection Table by Model
| Model | Motor Power (HP/kW/W) | Voltage / Phase | Outlet (inch/mm) | Max Flow (LPM) | Max Head (m) | Pass Solid (mm) | Dimension (L×W×H mm) | Weight (kg) | Accessories |
|---|---|---|---|---|---|---|---|---|---|
| SMP-10 SMP-10 | 1 HP / 0.75 kW | 220V / 1P | 40 mm / 1-1/2" | 310 LPM | 14 m | N/A mm | 495 | 8.5 kg | Hose connection |
| SMP-20 SMP-20 | 2 HP / 1.5 kW | 220V / 1P | 50 mm / 2" | 460 LPM | 16 m | N/A mm | 700 | 18.5 kg | Hose connection |
| SMP-30 SMP-30 | 3 HP / 2.2 kW | 220V / 1P | 50 mm / 2" | 520 LPM | 20 m | N/A mm | 700 | 24.5 kg | Hose connection |
Applications & Key Features
Overview
APP Taiwan SMP Series Swimming Pump designed for pool and spa system; aquaculture circulating water filtration. Suitable for SmartVision projects that require reliable auxiliary pump options.
Applications
Pool and SPA system; aquaculture circulating water filtration
Key features
Rust-resistant construction; high-flow efficient design; union design for easy cleaning; pre-filter for foreign matter
