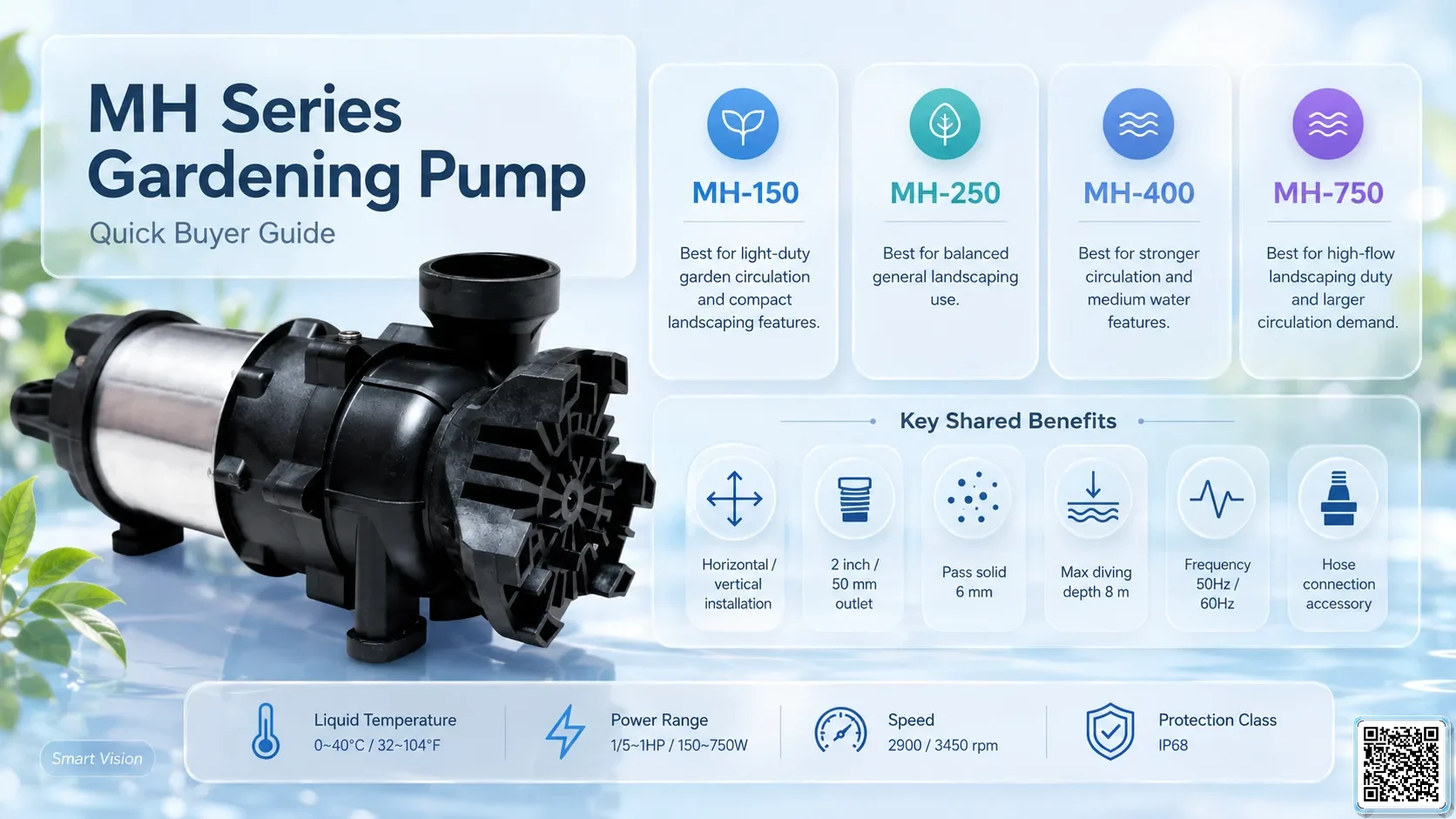

MHSeries Gardening Pump
APP MH Series pump for garden landscaping design.
Technical Specifications
| Series | MH Series |
|---|---|
| Pump Series | MH |
| Pump Type | Horizontal / Vertical Gardening Pump |
| Motor Type | Submersible motor |
| Cooling Type | Water cooled |
| Flow / head | 6~12.5 m by model |
| Outlet | 50 mm / 2" |
| Max Diving Depth | 8 m |
| Water Temperature | 0~40°C / 32~104°F |
| pH Range | 6~8 |
| Max Particle Size | 6 mm |
| Pump construction | IP68 |
| Connection Size | 50 mm / 2" |
Project Integration
MH Series Gardening Pump is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.
- Select the model by project flow and working head
- Check power, voltage/frequency, outlet size, material and installation dimensions
- Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
- Support configuration comparison and quotation by actual project quantity
Pump Selection Table by Model
| Model | Motor Power (HP/kW/W) | Voltage / Phase | Outlet (inch/mm) | Max Flow (LPM) | Max Head (m) | Pass Solid (mm) | Dimension (L×W×H mm) | Weight (kg) | Accessories |
|---|---|---|---|---|---|---|---|---|---|
| MH-150 MH-150 | 1/5 HP / 150 W | — | 50 mm / 2" | 240 LPM | 6.5 m | 6 mm | 177 | 6.5 kg | Hose connection |
| MH-250 MH-250 | 1/3 HP / 250 W | 220V / 1P | 50 mm / 2" | 280 LPM | 7 m | 6 mm | 177 | 7 kg | Hose connection |
| MH-400 MH-400 | 1/2 HP / 400 W | 220V / 1P | 50 mm / 2" | 320 LPM | 8.5 m | 6 mm | 177 | 8 kg | Hose connection |
| MH-750 MH-750 | 1 HP / 750 W | 220V / 1P | 50 mm / 2" | 380 LPM | 10 m | 6 mm | 177 | 11 kg | Hose connection |
Applications & Key Features
Overview
APP Taiwan MH Series Gardening Pump designed for garden landscaping design. Suitable for SmartVision projects that require reliable auxiliary pump options.
Applications
Garden landscaping design
Key features

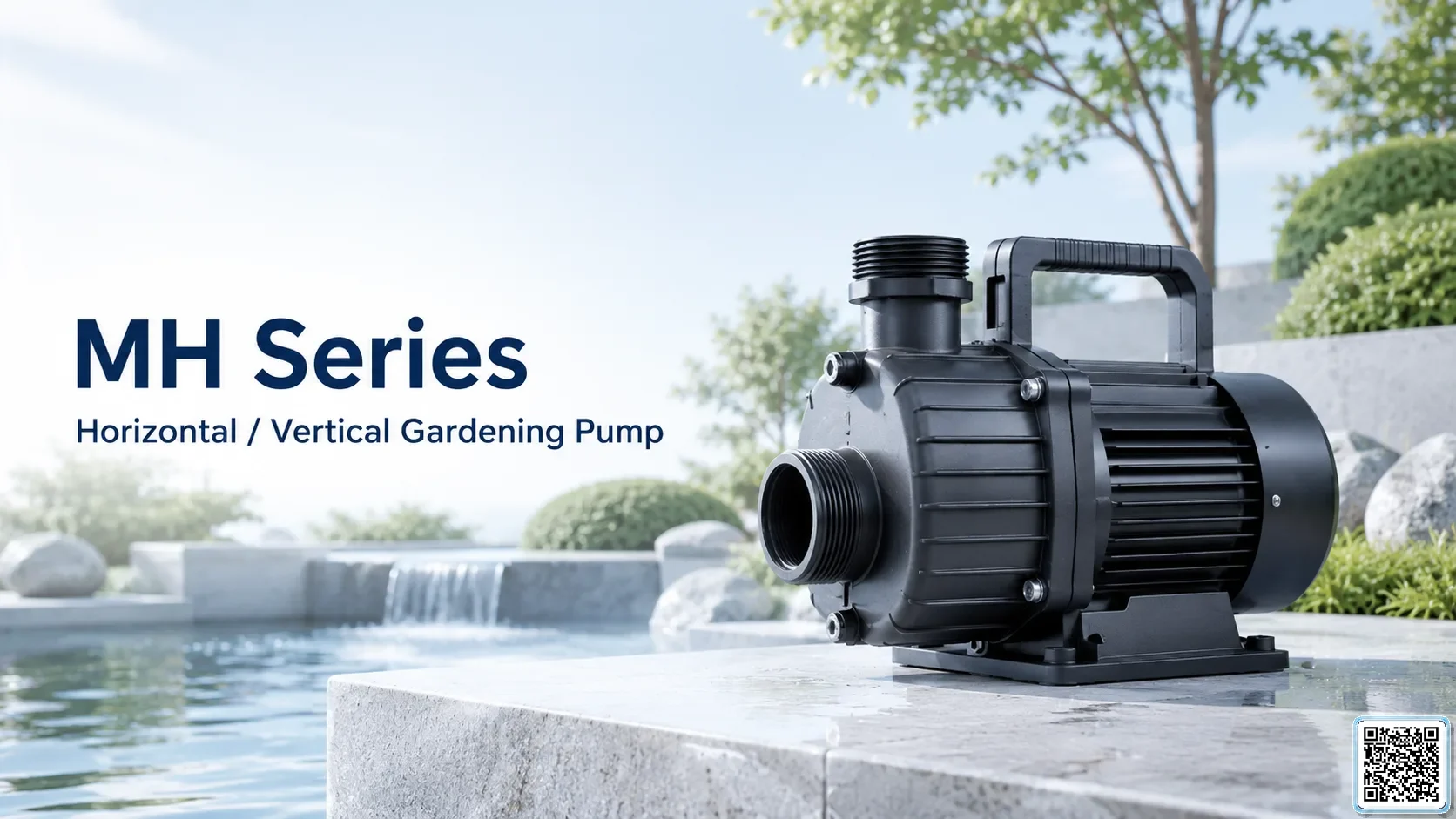

Horizontal and vertical installation; hermetic PIN cable design; non-clogging vortex impeller
