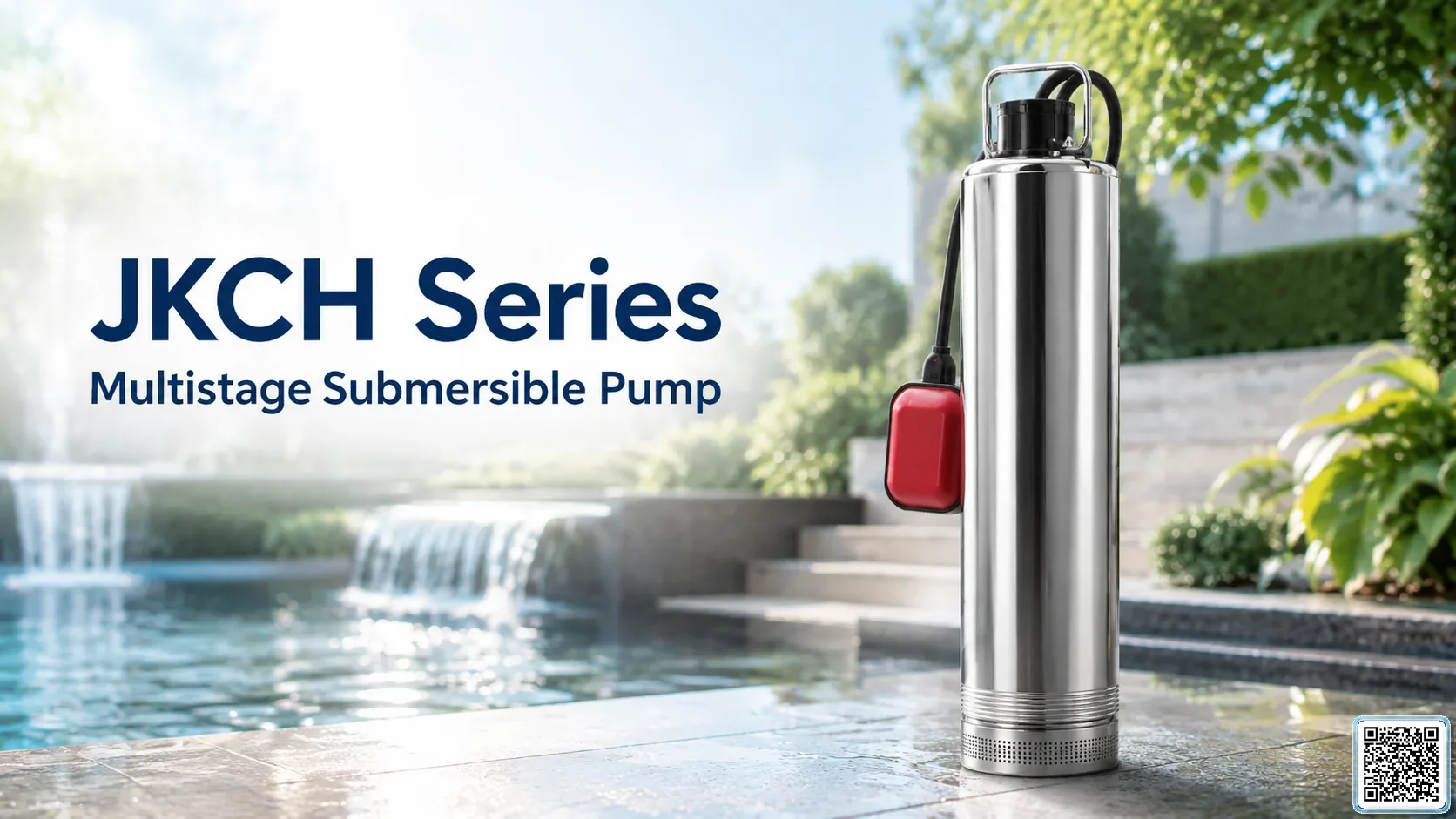

JKCH Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

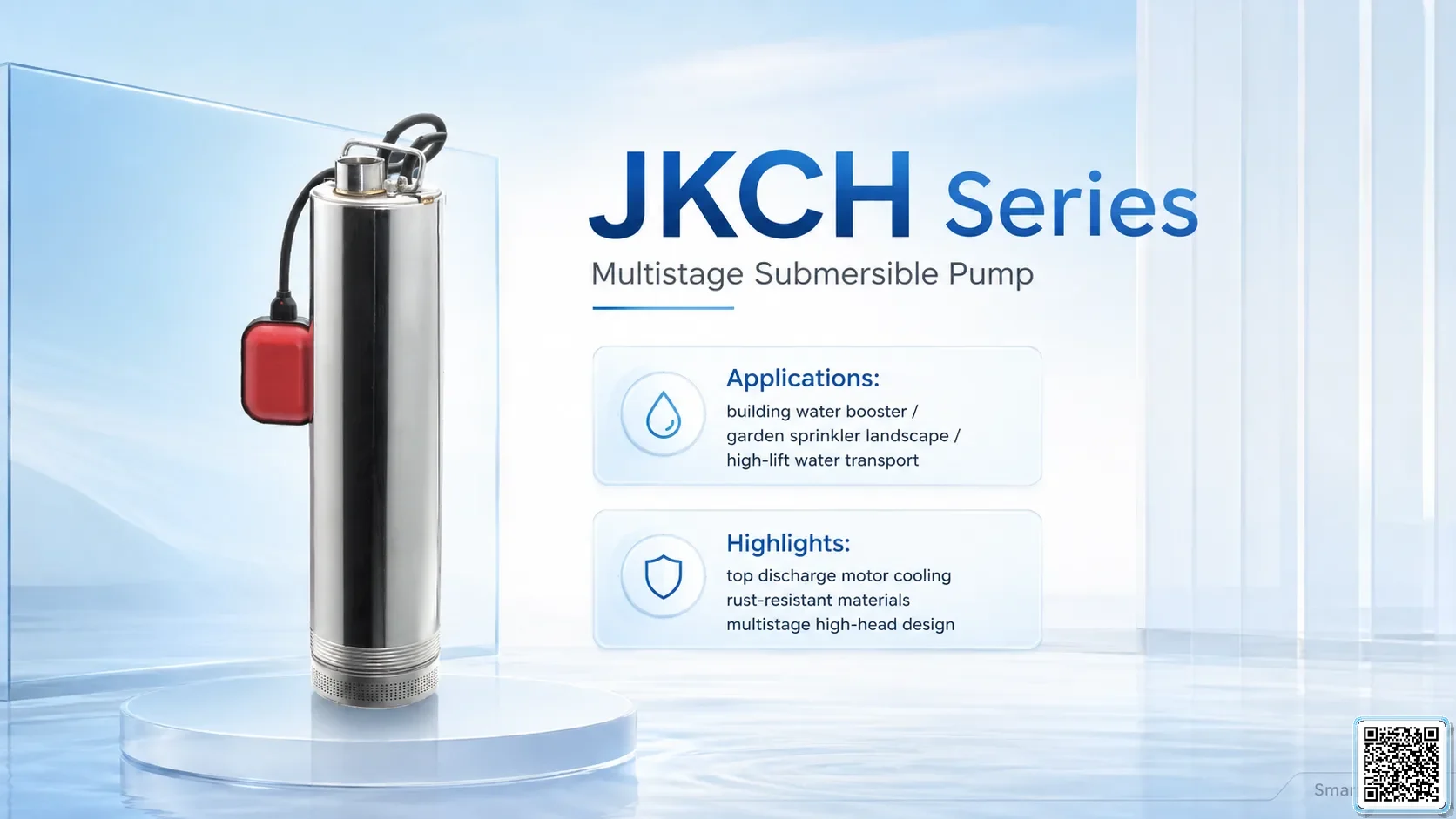

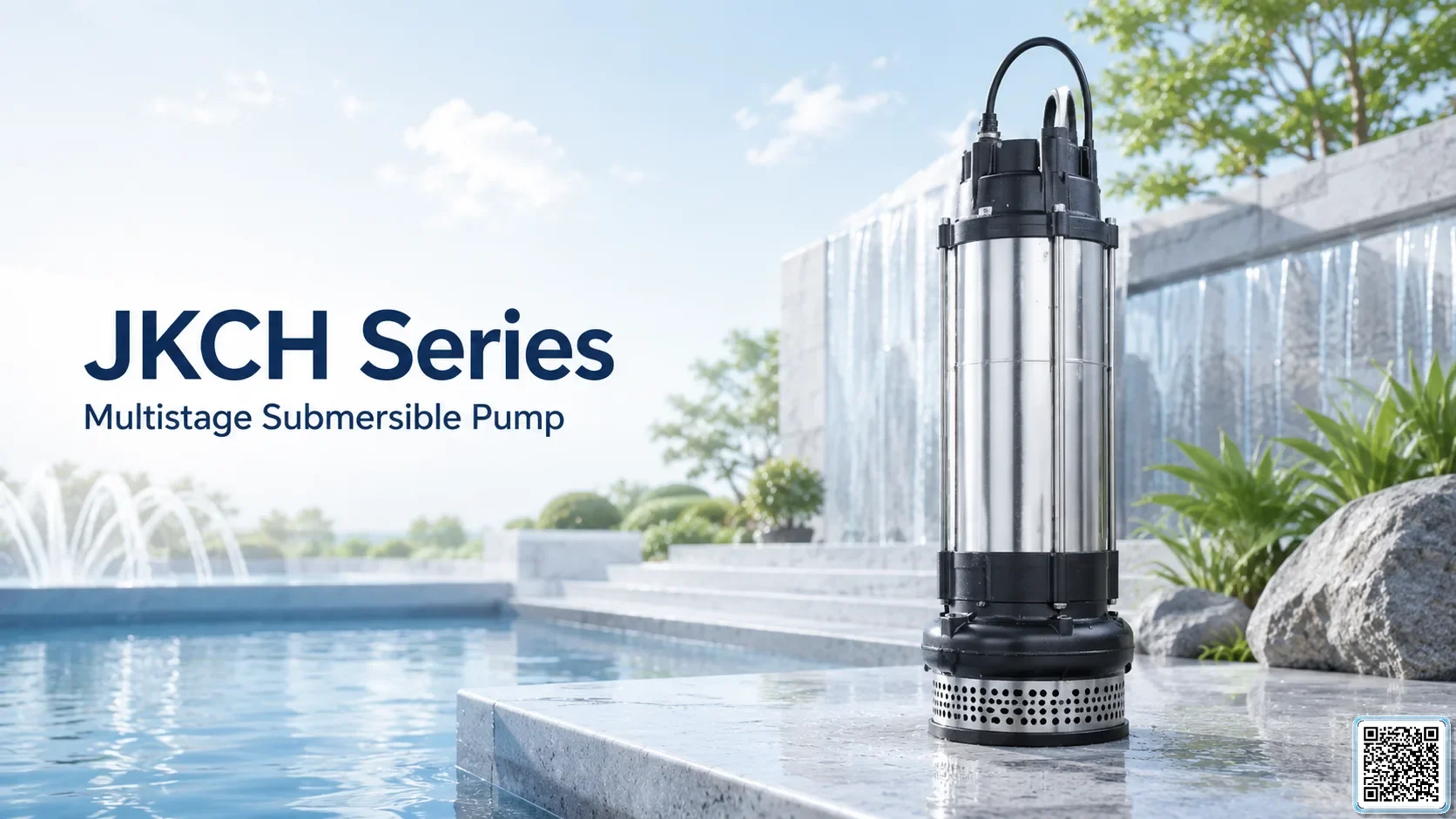

JKCHSeries Multistage Submersible Pump

Name: JKCH Series Multistage Submersible Pump
Brand: APP

APP JKCH Series pump for building water booster; garden sprinkler landscape; high-lift water transport.

pumpsJKCHRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 86

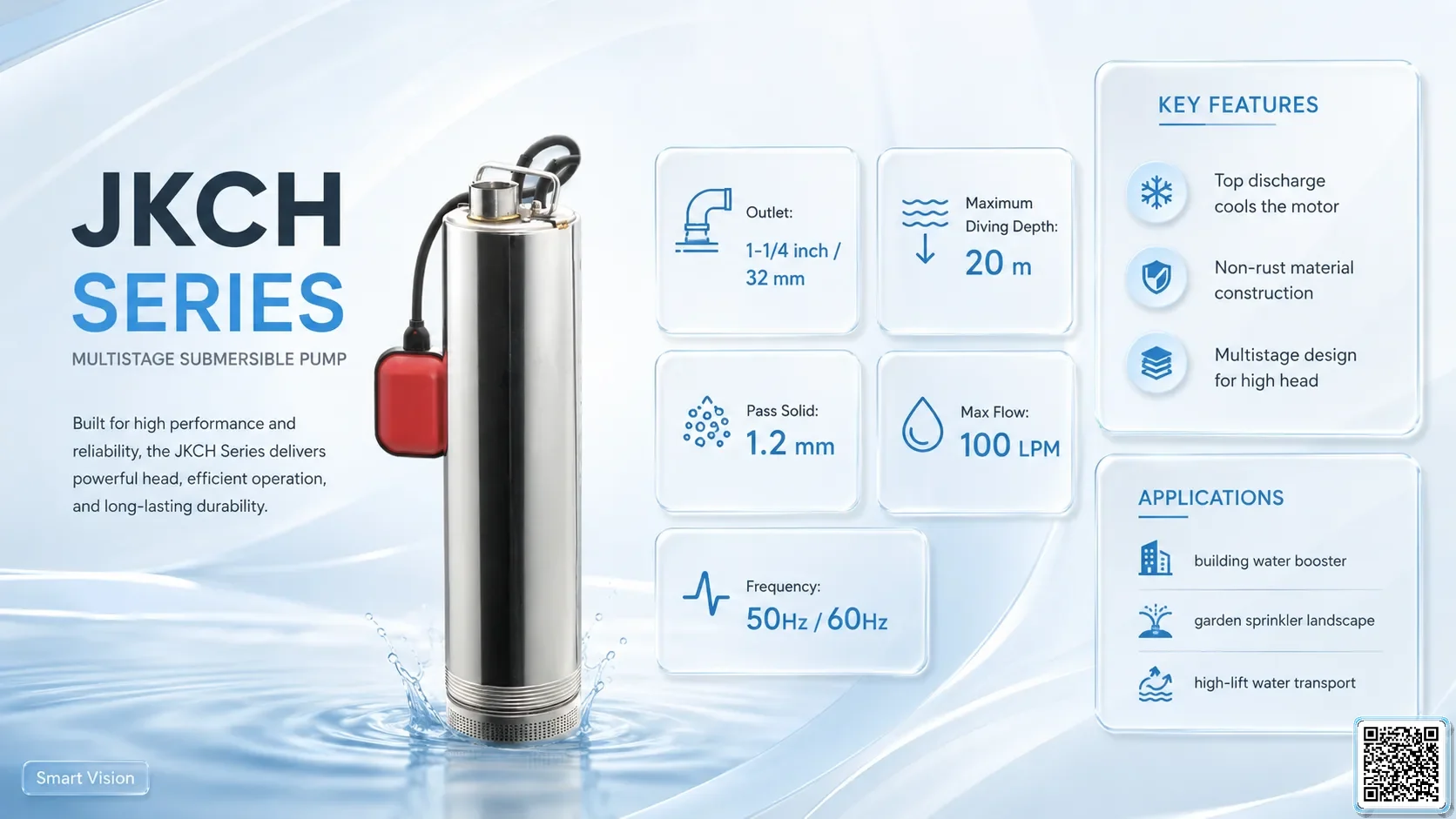

Technical Specifications

Series	JKCH Series
Pump Series	JKCH
Pump Type	Multistage Submersible Pump
Motor Type	Multistage submersible motor
Cooling Type	Water cooled
Flow / head	20~60 m
Outlet	32 mm / 1-1/4"
Max Diving Depth	20 m
Water Temperature	0~40°C / 32~104°F
pH Range	6~8
Max Particle Size	1.2 mm
Pump construction	IP68
Connection Size	32 mm / 1-1/4"

Project Integration

JKCH Series Multistage Submersible Pump is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

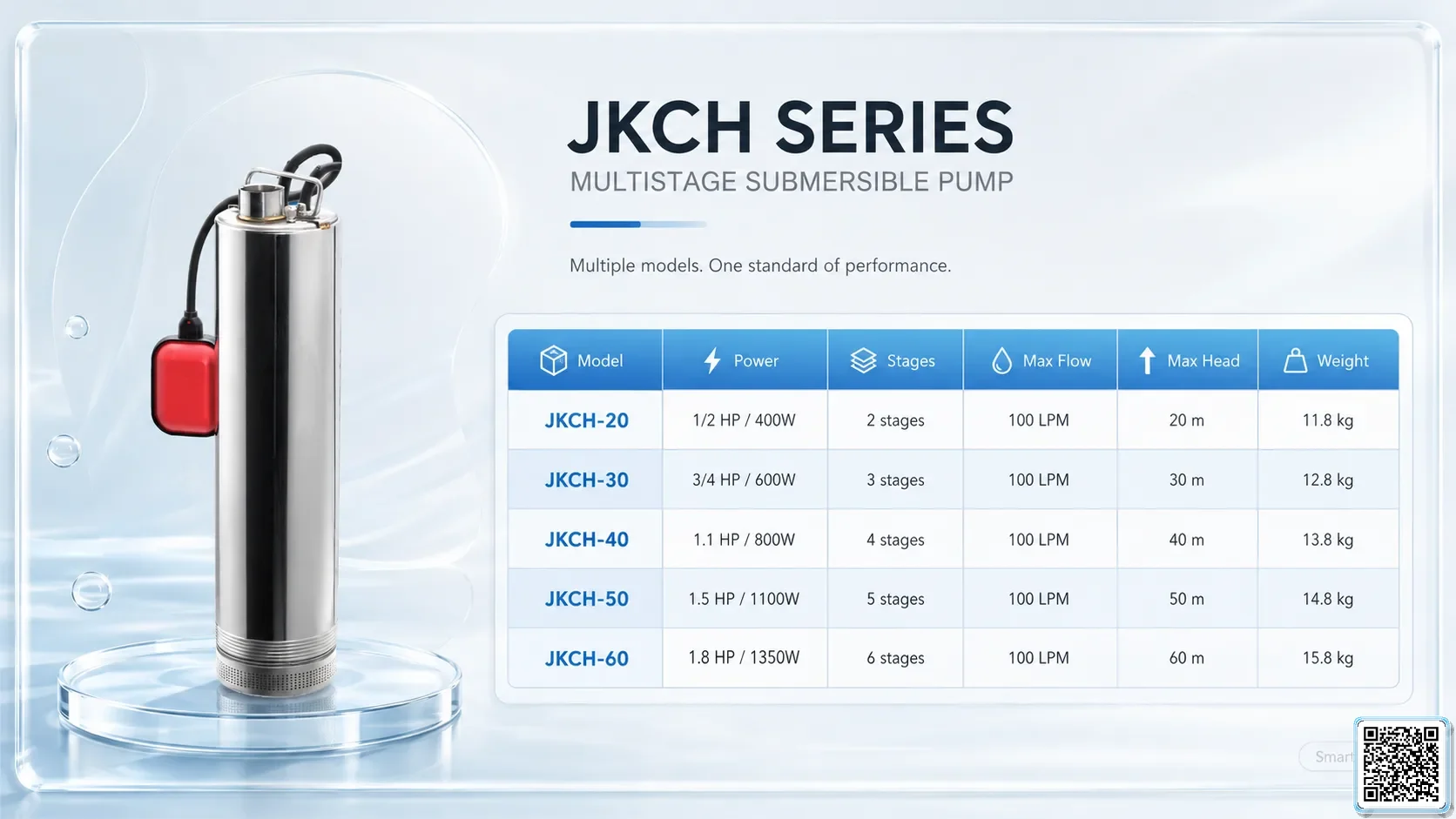

Pump Selection Table by Model

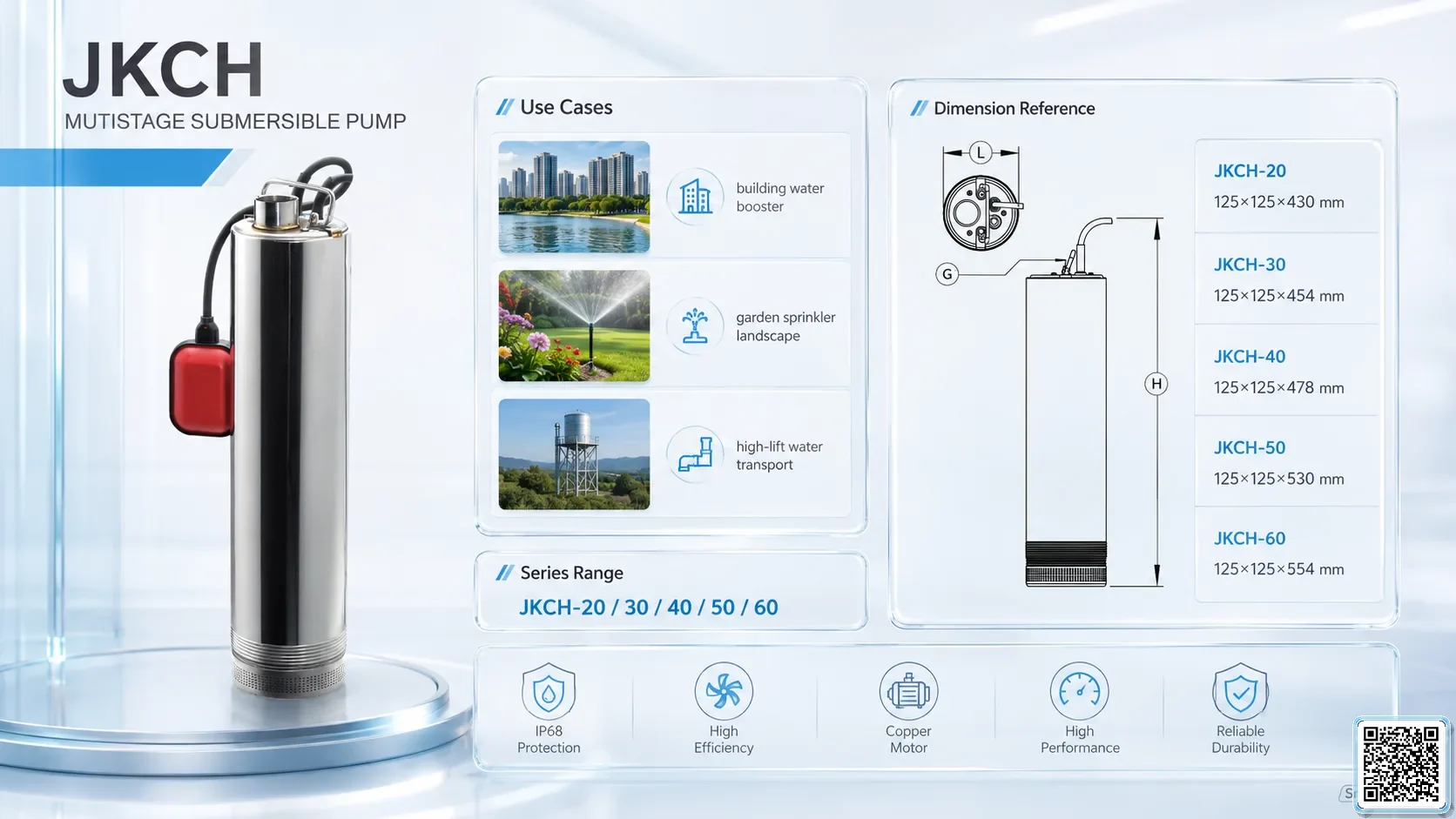

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
JKCH-20 JKCH-20	1/2 HP / 400 W	—	32 mm / 1-1/4"	1.2 LPM	20 m	1.2 mm	125	11.8 kg	—
JKCH-40 JKCH-40	1.1 HP / 800 W	220V / 1P \| 380V / 3P	32 mm / 1-1/4"	1.2 LPM	40 m	1.2 mm	125	13.8 kg	—
JKCH-50 JKCH-50	1.5 HP / 1100 W	220V / 1P \| 380V / 3P	32 mm / 1-1/4"	1.2 LPM	50 m	1.2 mm	125	14.8 kg	—
JKCH-60 JKCH-60	1.8 HP / 1350 W	—	32 mm / 1-1/4"	1.2 LPM	60 m	1.2 mm	125	15.8 kg	—
JKCH-30 JKCH-30	3/4 HP / 600 W	—	32 mm / 1-1/4"	1.2 LPM	30 m	1.2 mm	125	12.8 kg	—

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP Taiwan JKCH Series Multistage Submersible Pump designed for building water booster; garden sprinkler landscape; high-lift water transport. Suitable for SmartVision projects that require reliable auxiliary pump options.
