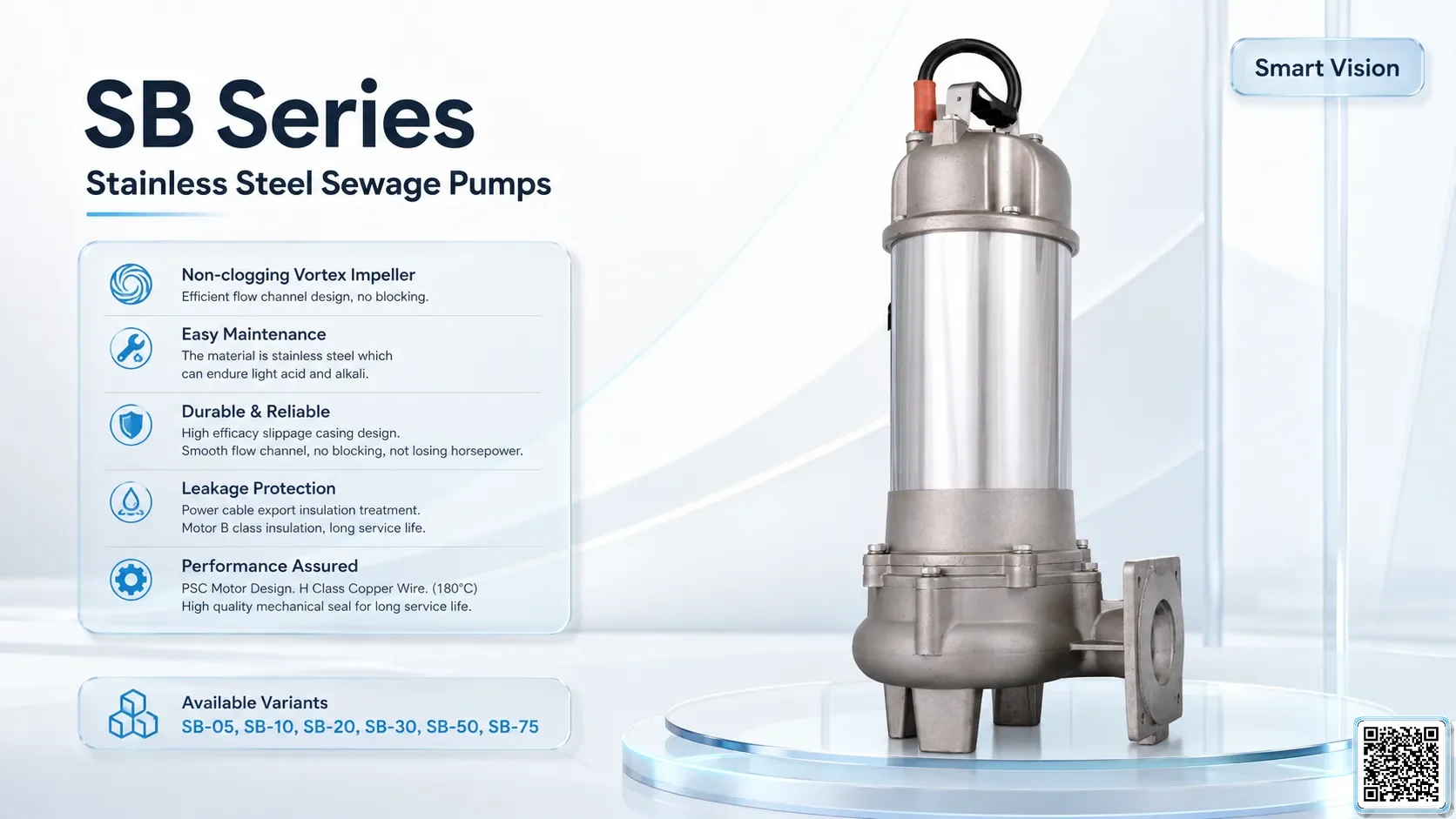

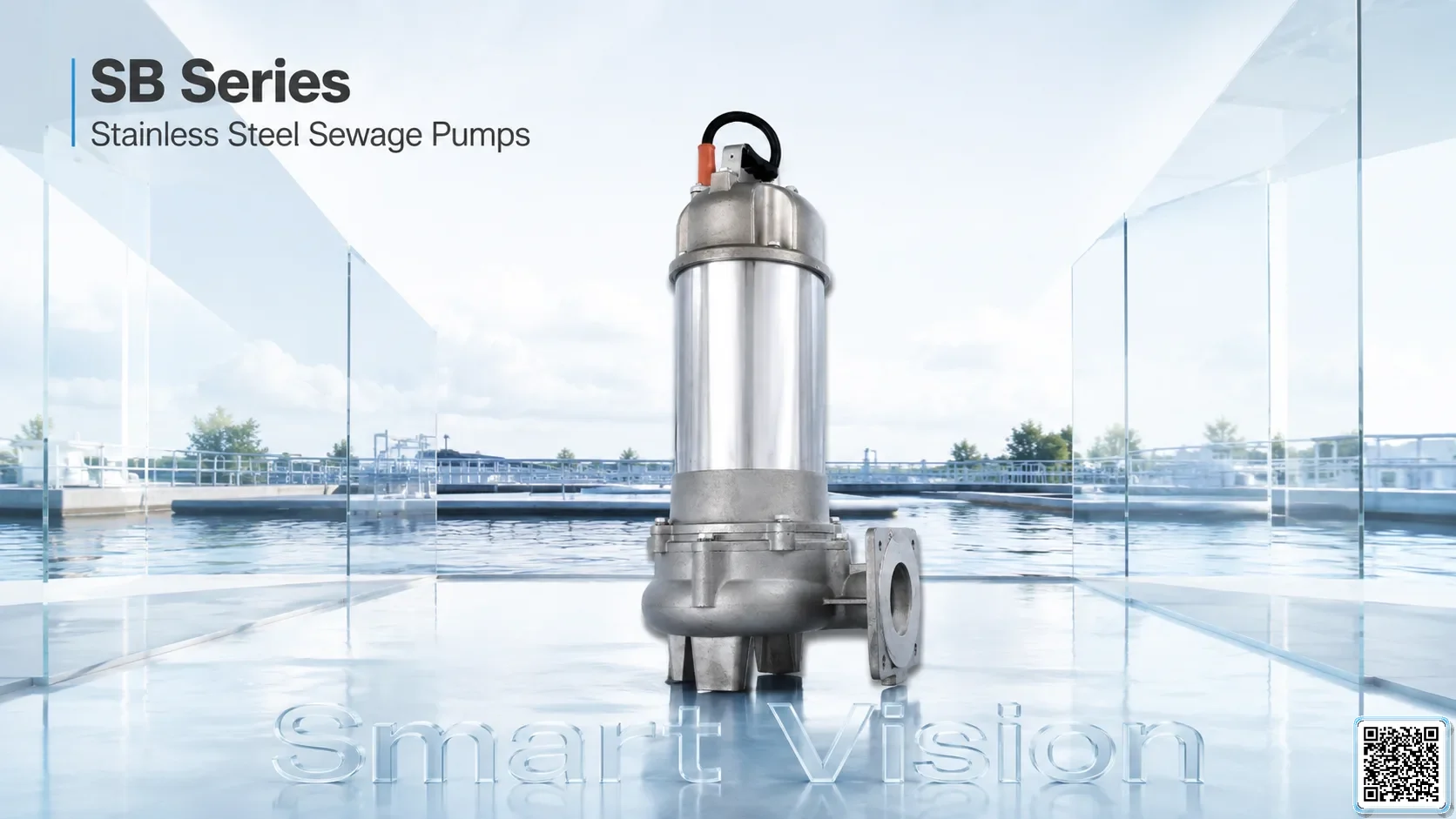

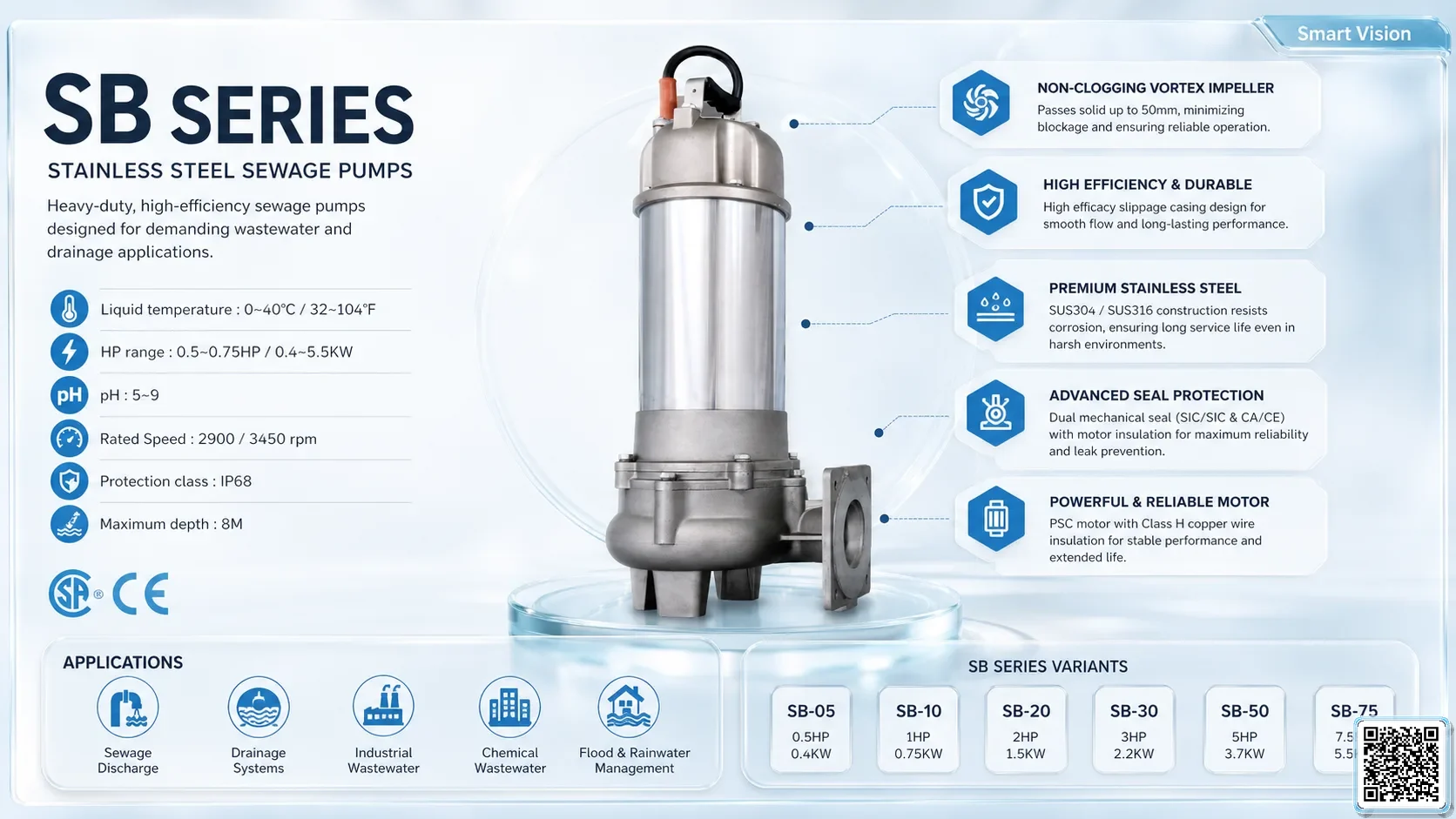

SBSeries Stainless Steel Sewage Pumps

Name: SB Series Stainless Steel Sewage Pumps
Brand: APP

APP SB Series Sewage Pump from Taiwan.

pumpsSBRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 85

Technical Specifications

source	APP catalogue
section	Industry
series	SB
family	Sewage Pump
catalogue_page	39-40
features	Non-clogging vortex impeller; stainless material for light acid/alkali.
Series	SB Series
Pump Series	SB
Pump Type	Sewage Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	5~9
Pump construction	IP68
Material	Stainless steel
Variant Dimensions	223 x 132 x 395 mm / 223 x 132 x 425 mm / 390 x 210 x 530 mm / 390 x 210 x 550 mm / 525 x 250 x 635 mm / 525 x 250 x 675 mm
Pump length / size	223 x 132 x 395 mm / 223 x 132 x 425 mm / 390 x 210 x 530 mm / 390 x 210 x 550 mm / 525 x 250 x 635 mm / 525 x 250 x 675 mm
Variant Max Flow	320 LPM / 410 LPM / 630 LPM / 800 LPM / 1100 LPM / 1200 LPM
Variant Max Head	10 m / 11 m / 16 m / 18 m / 20 m / 23 m
Variant Pass Solid	30 mm / 35 mm / 45 mm / 50 mm
Variant Weight	14 kg / 21 kg / 32 kg / 34 kg / 45 kg / 54 kg

Project Integration

SB Series Stainless Steel Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
SB-05 SB-05	1/2 HP / 0.4 kW	220V / 1P \| 380V / 3P	50 mm / 2"	320 LPM	10 m	30 mm	223	14 kg	—
SB-10 SB-10	1 HP / 0.75 kW	220V / 1P \| 380V / 3P	50 mm / 2"	410 LPM	11 m	30 mm	223	21 kg	—
SB-10A SB-10A	1 HP / 0.75 kW	220V / 1P	50 mm / 2"	410 LPM	11 m	30 mm	223	21 kg	—
SB-20 SB-20	2 HP / 1.5 kW	220V / 1P \| 380V / 3P	80 mm / 3"	630 LPM	16 m	35 mm	390	32 kg	—
SB-30T SB-30T	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	800 LPM	18 m	35 mm	390	34 kg	—
SB-30 SB-30	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	800 LPM	18 m	35 mm	390	34 kg	—
SB-50T SB-50T	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1100 LPM	20 m	45 mm	525	45 kg	—
SB-50 SB-50	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1100 LPM	20 m	45 mm	525	45 kg	—
SB-75T SB-75T	7.5 HP / 5.5 kW	380V / 3P	100 mm / 4"	1200 LPM	23 m	50 mm	525	54 kg	—
SB-75 SB-75	7.5 HP / 5.5 kW	380V / 3P	100 mm / 4"	1200 LPM	23 m	50 mm	525	54 kg	—
