ADLSeries Sewage Pumps

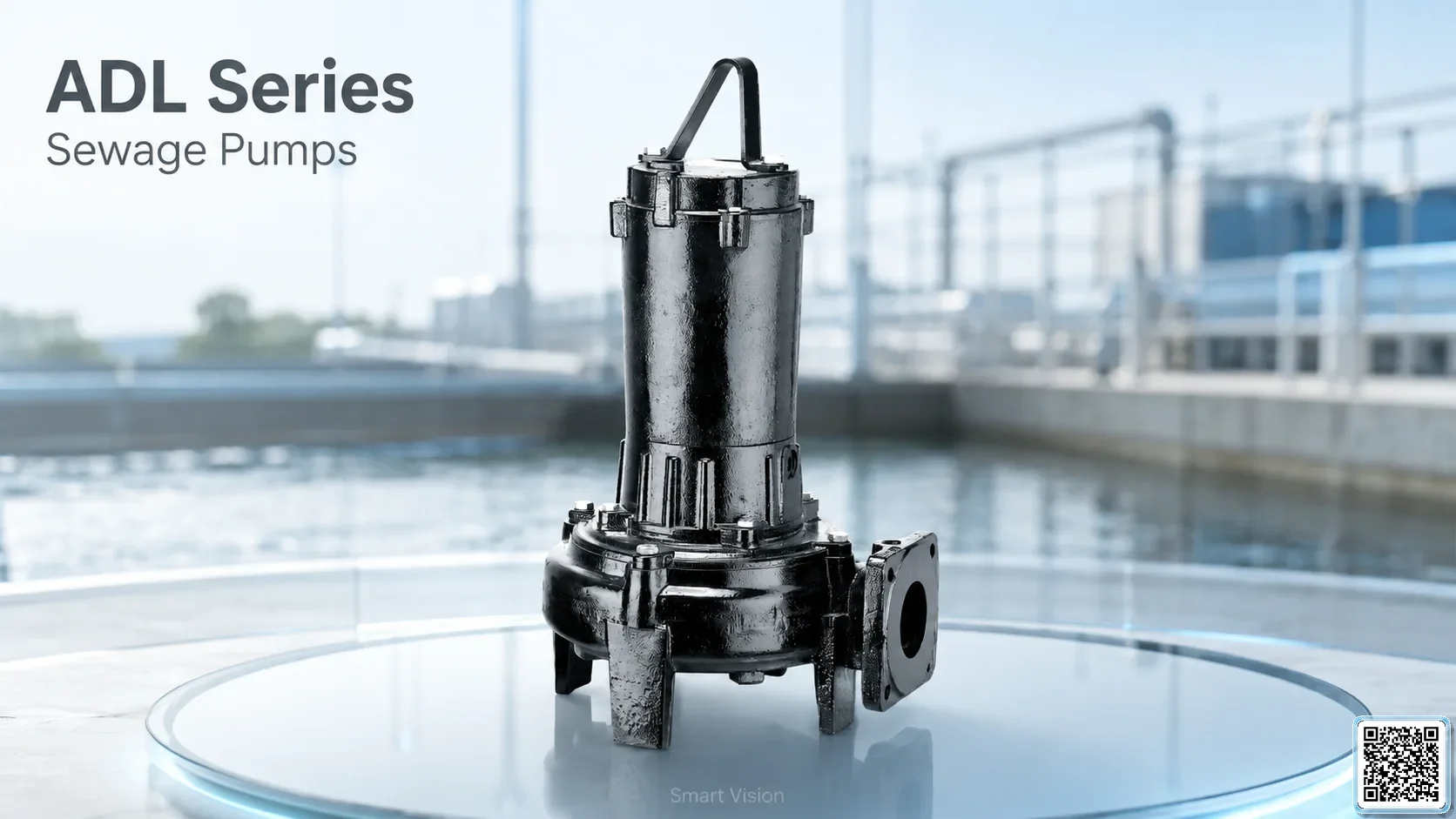

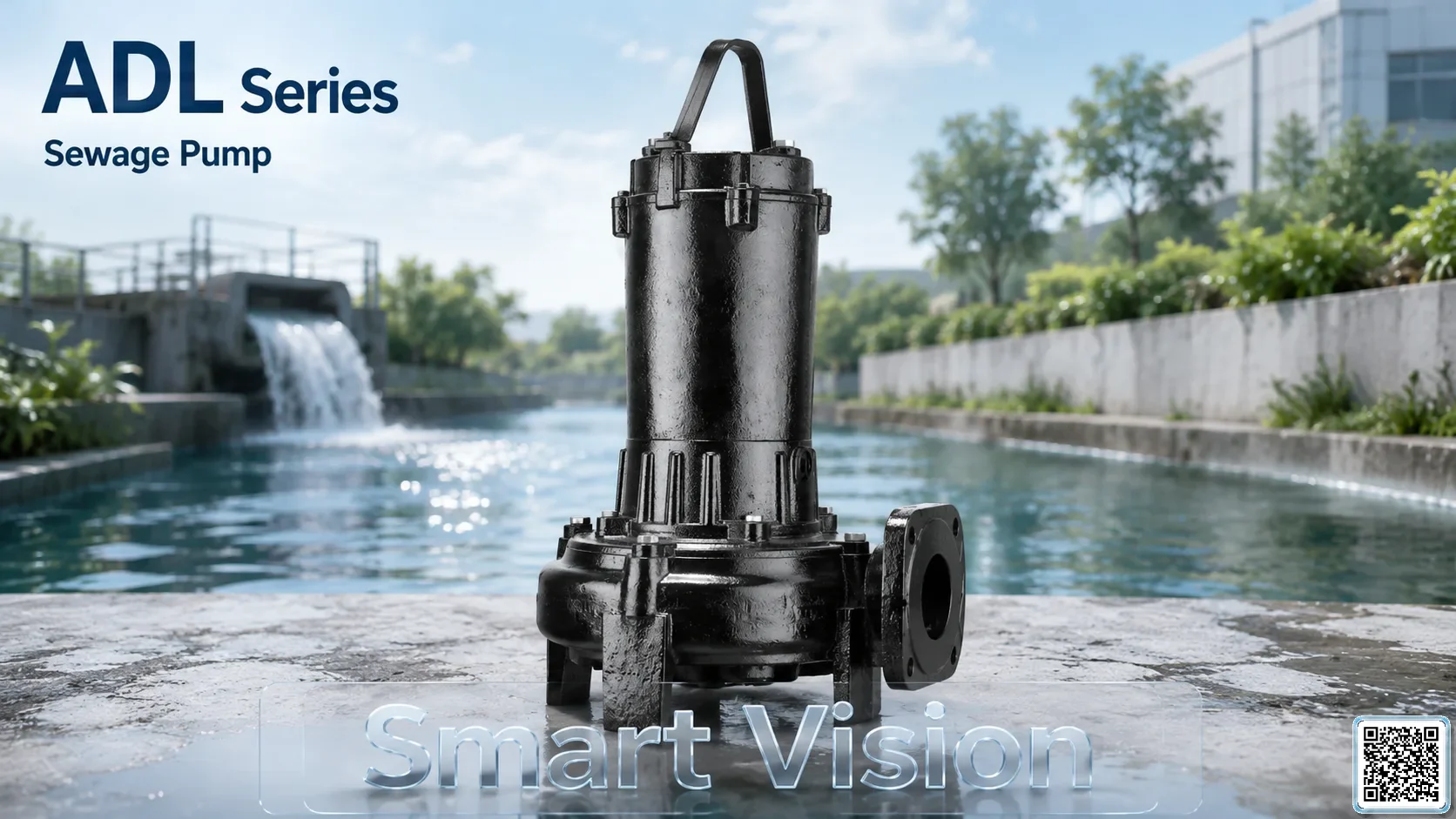

Name: ADL Series Sewage Pumps
Brand: APP

APP ADL Series Sewage Pump from Taiwan.

pumpsADLRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 89

Technical Specifications

source	APP catalogue
section	Industry
series	ADL
family	Sewage Pump
catalogue_page	01-02

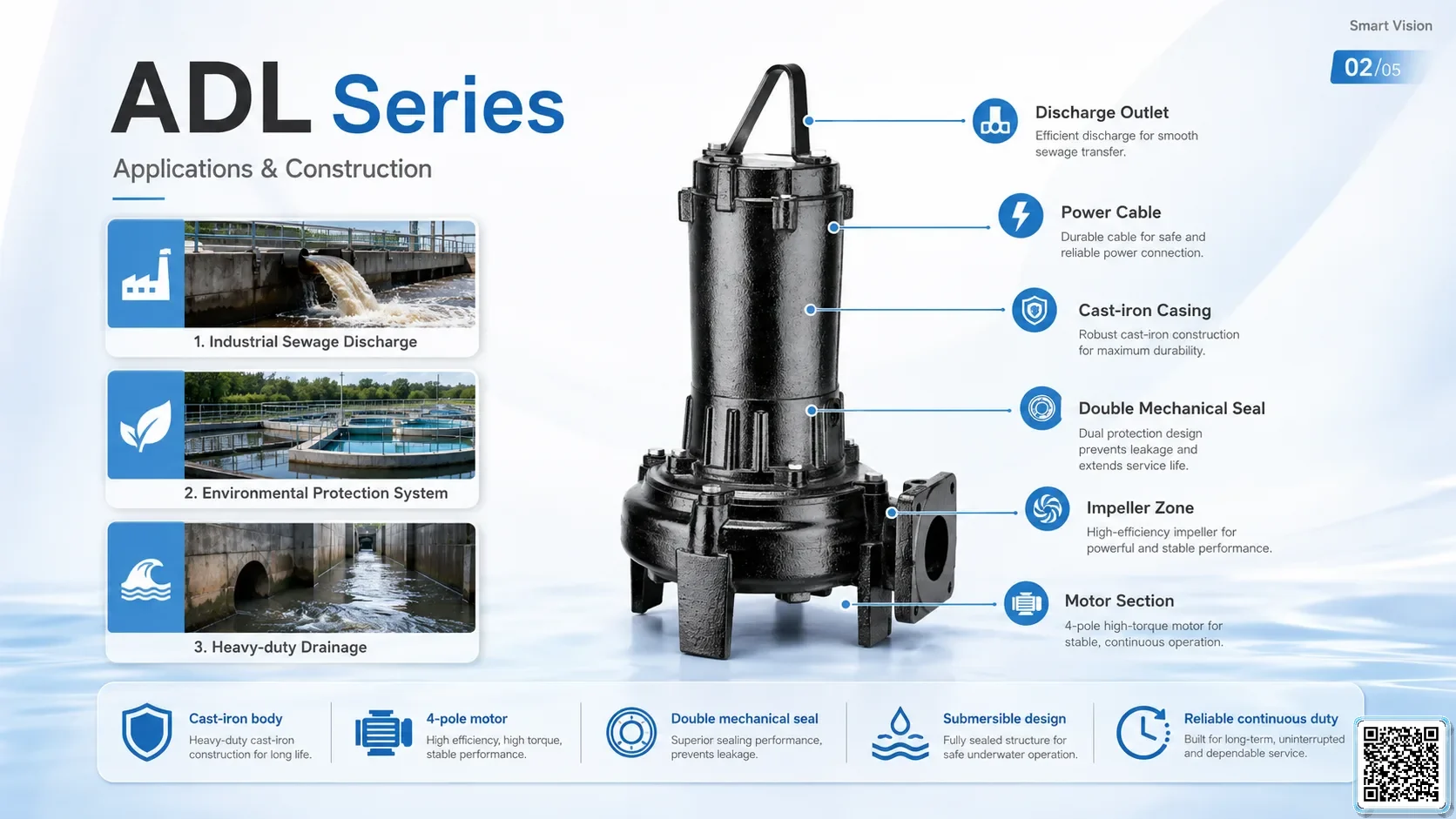

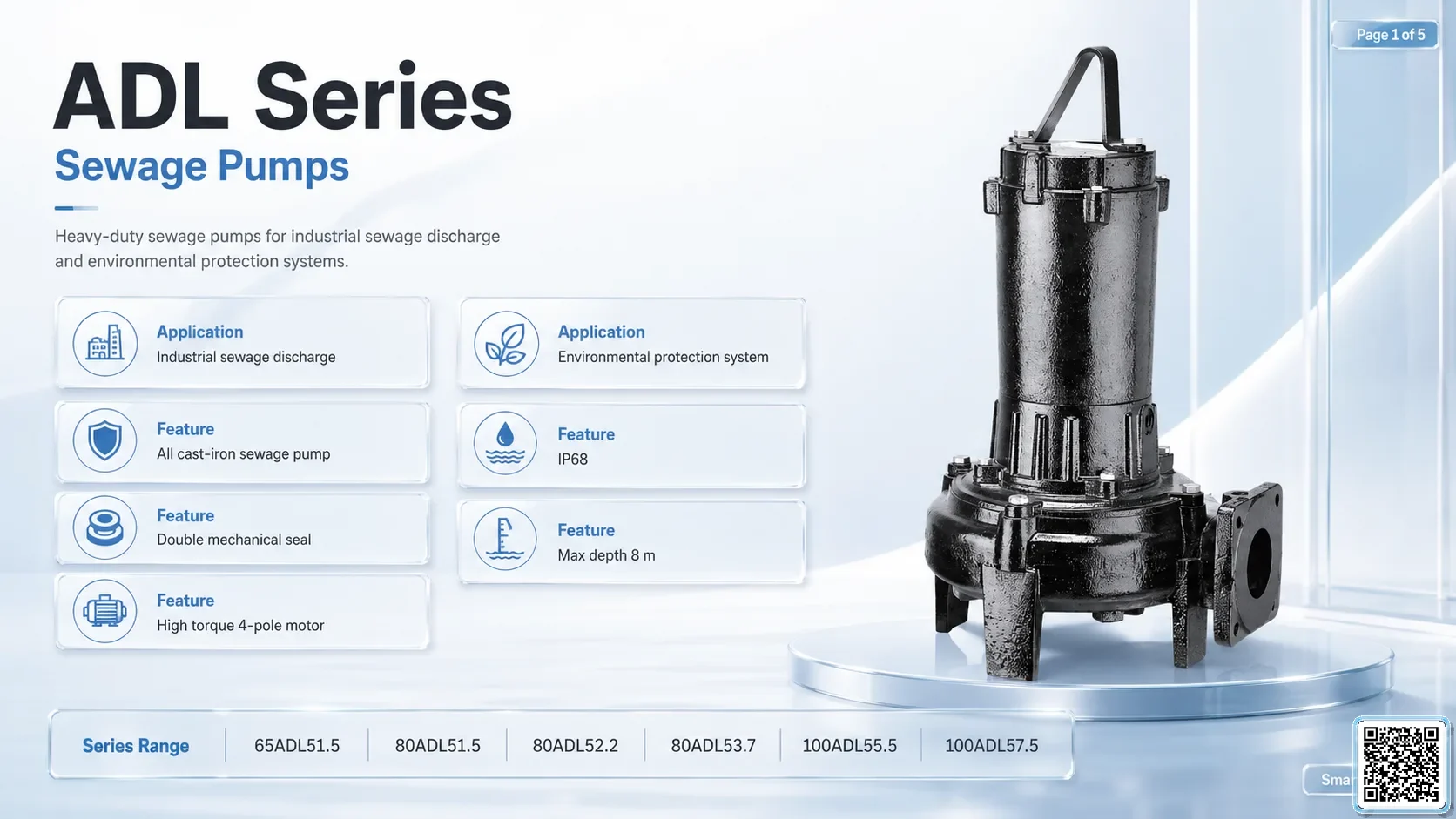

features	All cast-iron sewage pump; double mechanical seal; high torque 4-pole motor.
Series	ADL Series
Pump Series	ADL
Pump Type	Sewage Pump
Motor Type	4-pole submersible motor
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Material	Cast iron
Variant Dimensions	520 x 290 x 578 mm / 539 x 295 x 600 mm / 544 x 312 x 658 mm / 570 x 328 x 689 mm / 633 x 385 x 825 mm
Pump length / size	520 x 290 x 578 mm / 539 x 295 x 600 mm / 544 x 312 x 658 mm / 570 x 328 x 689 mm / 633 x 385 x 825 mm
Variant Max Flow	850 LPM / 1000 LPM / 1200 LPM / 1680 LPM / 2850 LPM / 3050 LPM
Variant Max Head	15 m / 13 m / 20 m / 18 m / 22 m
Variant Pass Solid	40 mm / 50 mm / 48 mm / 80 mm
Variant Weight	51 kg / 54 kg / 66 kg / 74 kg / 90 kg / 104 kg

Project Integration

ADL Series Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

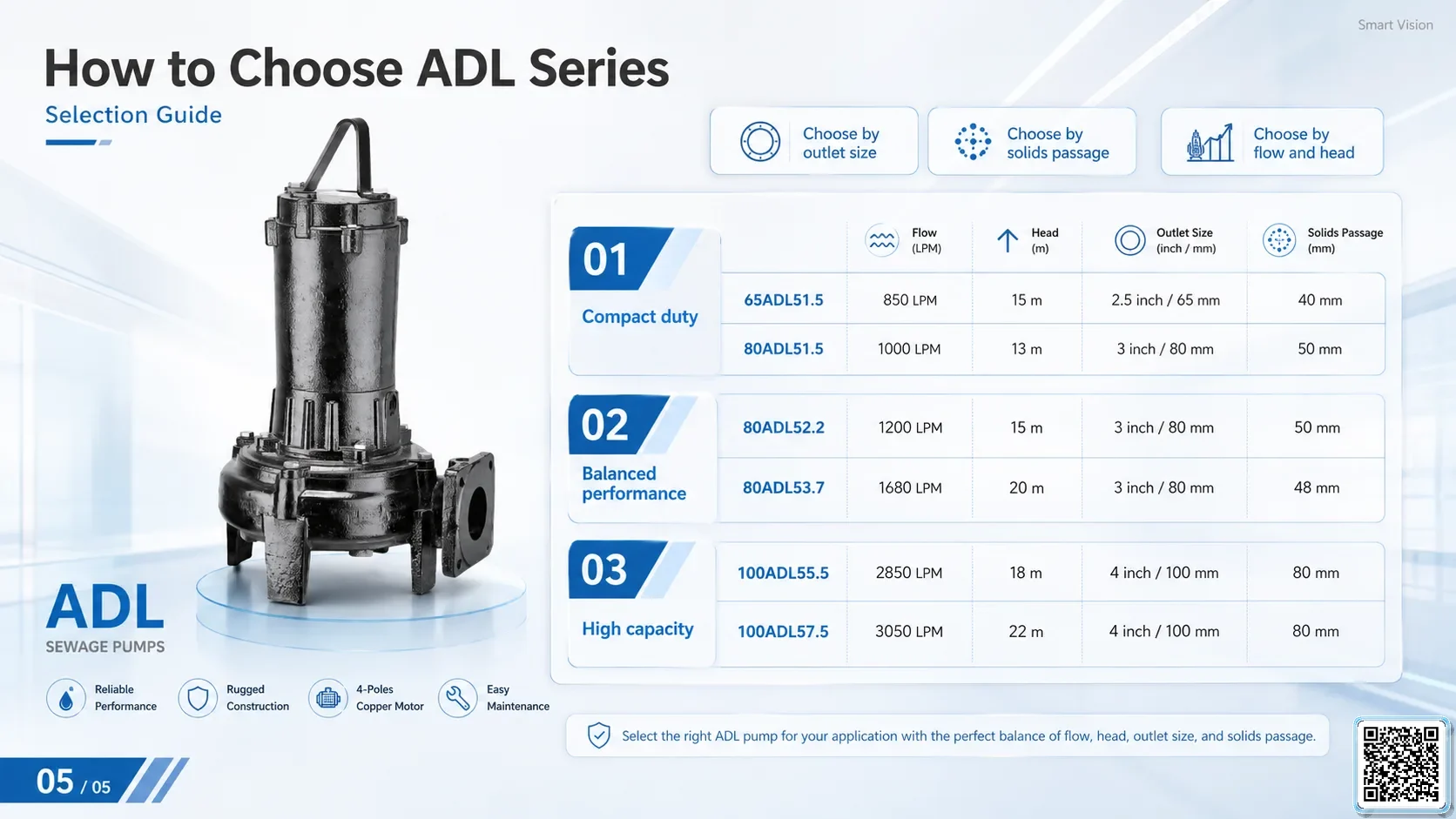

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

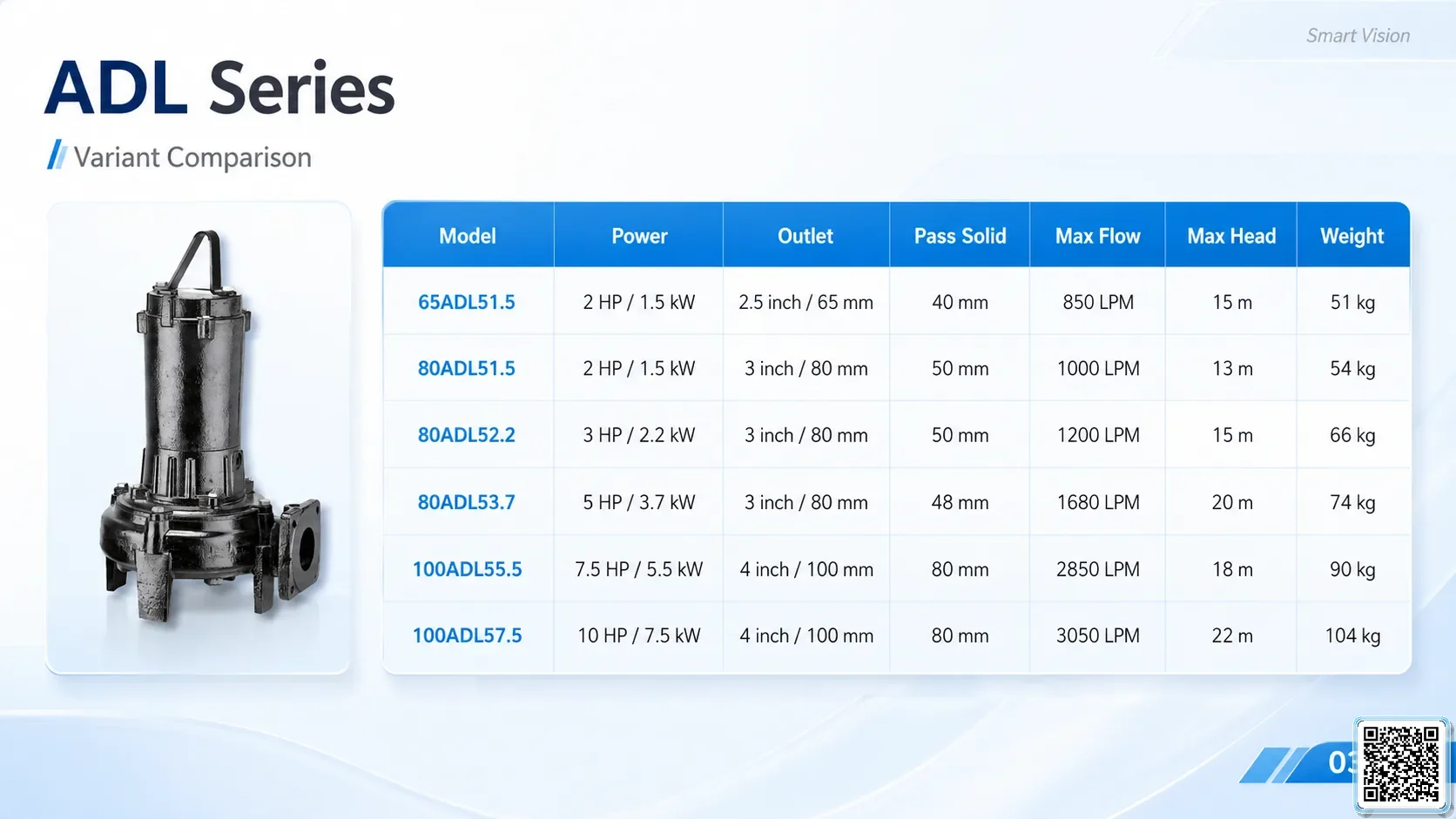

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
65ADL51.5 65ADL51.5	2 HP / 1.5 kW	—	65 mm / 2-1/2"	850 LPM	15 m	40 mm	520	51 kg	—
80ADL51.5 80ADL51.5	2 HP / 1.5 kW	—	80 mm / 3"	1000 LPM	13 m	50 mm	539	54 kg	—
80ADL52.2 80ADL52.2	3 HP / 2.2 kW	—	80 mm / 3"	1200 LPM	15 m	50 mm	544	66 kg	—
80ADL53.7 80ADL53.7	5 HP / 3.7 kW	—	80 mm / 3"	1680 LPM	20 m	48 mm	570	74 kg	—
100ADL55.5 100ADL55.5	7.5 HP / 5.5 kW	—	100 mm / 4"	2850 LPM	18 m	80 mm	633	90 kg	—
100ADL57.5 100ADL57.5	10 HP / 7.5 kW	—	100 mm / 4"	3050 LPM	22 m	80 mm	633	104 kg	—
