HMDSeries Magnet Pumps

Name: HMD Series Magnet Pumps
Brand: APP

APP HMD Series Industrial / Chemical Pump from Taiwan.

pumpsHMDRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 71

Technical Specifications

source	APP catalogue
section	Auxiliary
series	HMD
family	Industrial / Chemical Pump
catalogue_page	Auxiliary 07-08
features	Magnet pump with 50Hz/60Hz maximum head and capacity ratings.
Series	HMD Series
Pump Series	HMD
Pump Type	Industrial / Chemical Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Variant Dimensions	270 x 103 x 126 mm / 270 x 138 x 153 mm / 345 x 135 x 157 mm / 443 x 140 x 236 mm / 521 x 160 x 260 mm / 529 x 260 x 255 mm / 563 x 260 x 255 mm / 683 x 250 x 316 mm
Pump length / size	270 x 103 x 126 mm / 270 x 138 x 153 mm / 345 x 135 x 157 mm / 443 x 140 x 236 mm / 521 x 160 x 260 mm / 529 x 260 x 255 mm / 563 x 260 x 255 mm / 683 x 250 x 316 mm
Variant Max Flow	37 LPM (50Hz) / 45 LPM (60Hz) / 60 LPM (50Hz) / 70 LPM (60Hz) / 73 LPM (50Hz) / 87 LPM (60Hz) / 91 LPM (50Hz) / 110 LPM (60Hz) / 285 LPM (50Hz) / 280 LPM (60Hz) / 355 LPM (50Hz) / 360 LPM (60Hz) / 390 LPM (50Hz) / 422 LPM (60Hz) / 465 LPM (50Hz) / 545 LPM (60Hz) / 570 LPM (50Hz) / 650 LPM (60Hz)
Variant Max Head	4.6 m (50Hz) / 6.5 m (60Hz) / 7 m (50Hz) / 9.5 m (60Hz) / 7 m (50Hz) / 9.7 m (60Hz) / 8.6 m (50Hz) / 12 m (60Hz) / 12 m (50Hz) / 11.5 m (60Hz) / 18 m (50Hz) / 19 m (60Hz) / 23 m (50Hz) / 23 m (60Hz) / 23 m (50Hz) / 22 m (60Hz) / 25 m (50Hz) / 24 m (60Hz)
Variant Weight	4 kg / 6 kg / 7 kg / 8 kg / 12 kg / 22 kg / 27 kg / 29 kg / 35 kg

Project Integration

HMD Series Magnet Pumps is suitable for auxiliary applications such as pump control, condensate drainage, cooling, light chemical handling or other special-purpose systems depending on the model. Selection should check liquid type, temperature, pressure, wetted material and duty conditions.

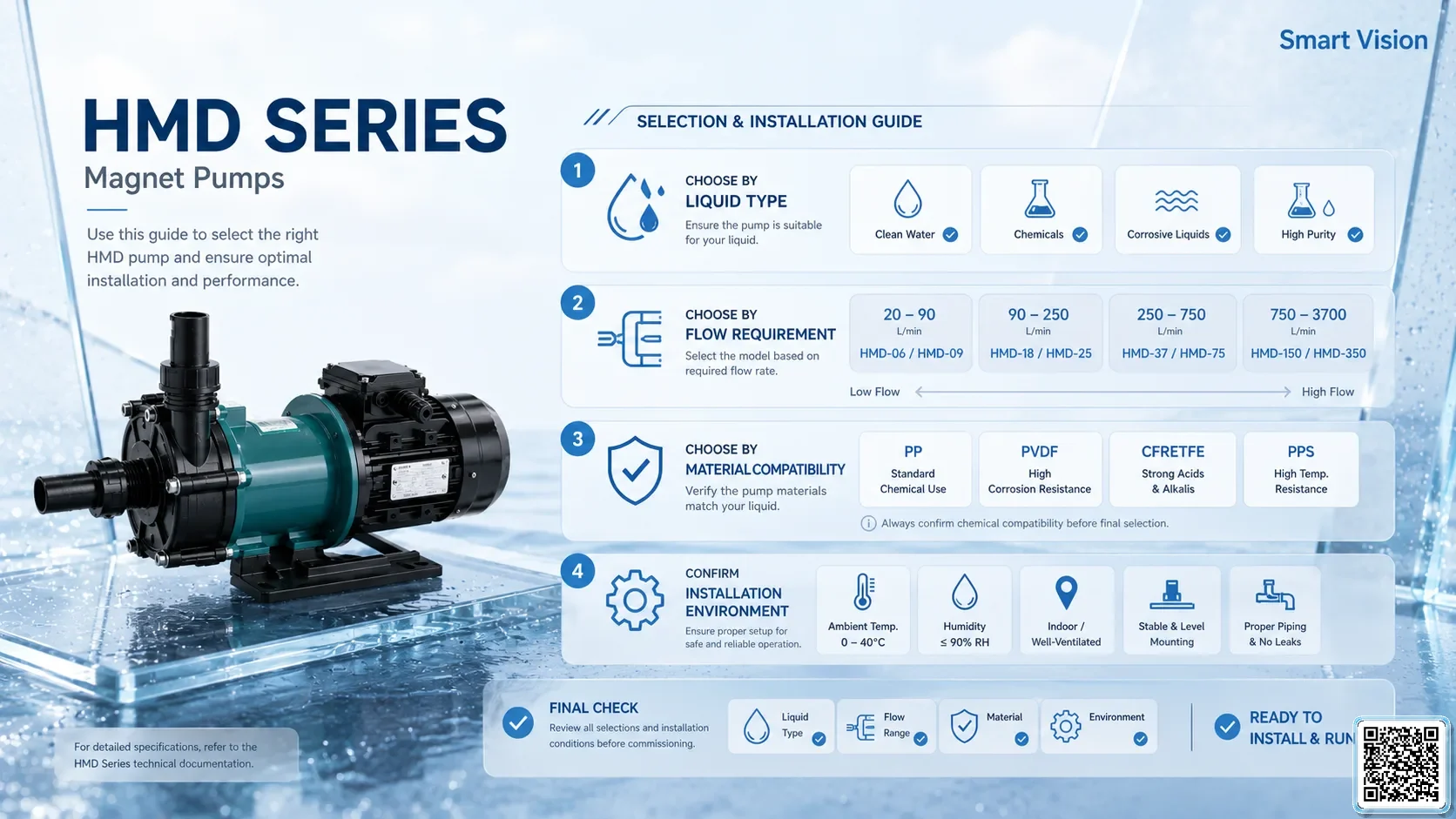

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
HMD-06 HMD-06	1/10 HP / 65 W	—	20 mm / PF 3/4"	37 LPM (50Hz) / 45 LPM (60Hz)	4.6 m (50Hz) / 6.5 m (60Hz)	—	270	4 kg	—
HMD-09 HMD-09	1/8 HP / 90 W	—	26 mm / PF 1"	60 LPM (50Hz) / 70 LPM (60Hz)	7 m (50Hz) / 9.5 m (60Hz)	—	270	6 kg	—
HMD-18 HMD-18	1/5 HP / 180 W	—	26 mm / PF 1"	73 LPM (50Hz) / 87 LPM (60Hz)	7 m (50Hz) / 9.7 m (60Hz)	—	270	7 kg	—
HMD-25 HMD-25	1/3 HP / 250 W	—	26 mm / PF 1"	91 LPM (50Hz) / 110 LPM (60Hz)	8.6 m (50Hz) / 12 m (60Hz)	—	345	8 kg	—
HMD-37 HMD-37	1/2 HP / 400 W	—	DN40 / 1-1/4"F	285 LPM (50Hz) / 280 LPM (60Hz)	12 m (50Hz) / 11.5 m (60Hz)	—	443	12 kg	—
HMD-75 HMD-75	1 HP / 750 W	—	DN40 / 1-1/4"F	355 LPM (50Hz) / 360 LPM (60Hz)	18 m (50Hz) / 19 m (60Hz)	—	521	22 kg	—
HMD-150 HMD-150	2 HP / 1500 W	—	DN50 / 2"F	390 LPM (50Hz) / 422 LPM (60Hz)	23 m (50Hz) / 23 m (60Hz)	—	529	27 kg	—
HMD-220 HMD-220	3 HP / 2200 W	—	DN50 / 2"F	465 LPM (50Hz) / 545 LPM (60Hz)	23 m (50Hz) / 22 m (60Hz)	—	563	29 kg	—
HMD-350 HMD-350	5 HP / 3700 W	—	DN50 / 2"F	570 LPM (50Hz) / 650 LPM (60Hz)	25 m (50Hz) / 24 m (60Hz)	—	683	35 kg	—
