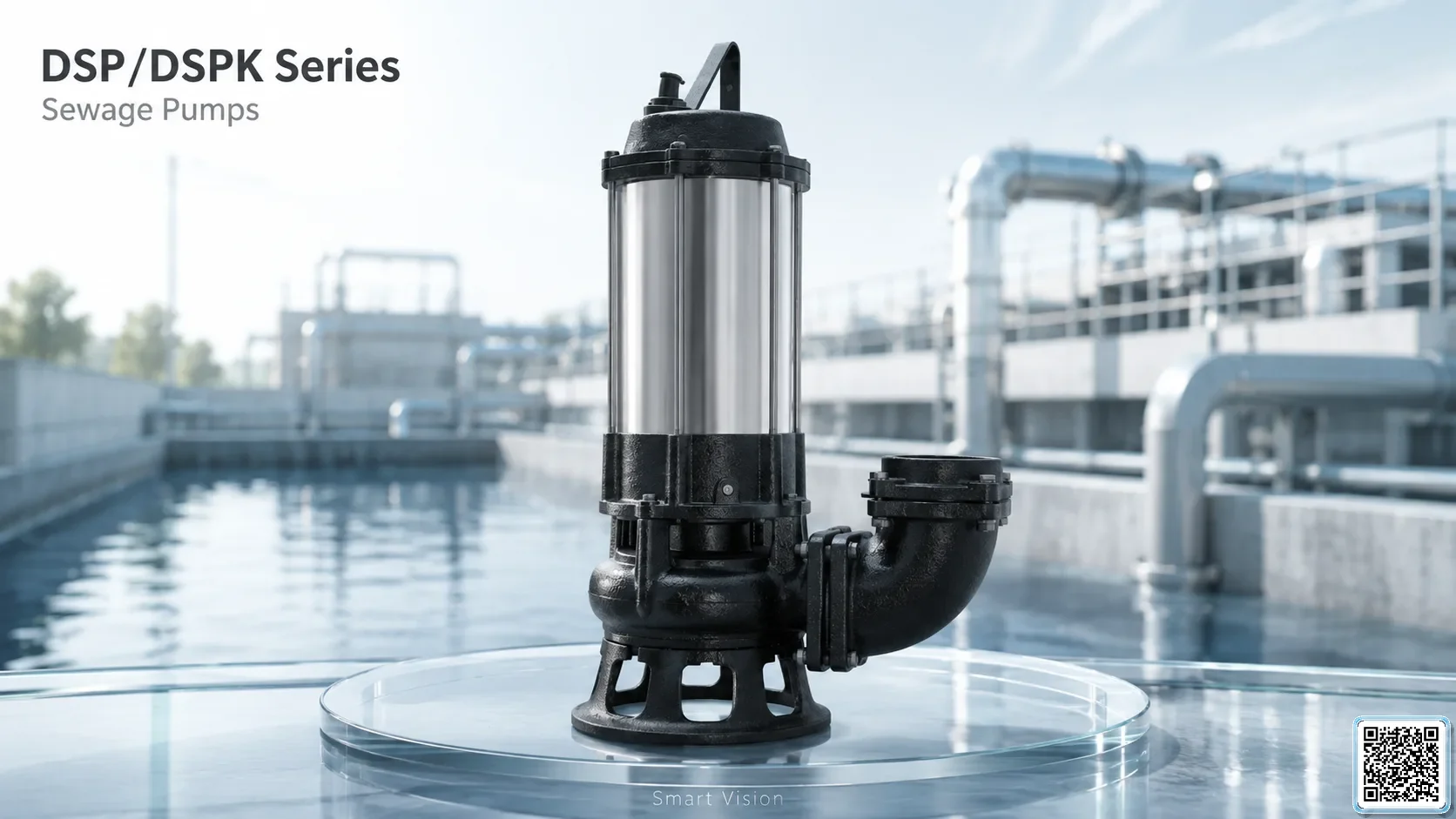

DSP/DSPKSeries Sewage Pumps

Name: DSP/DSPK Series Sewage Pumps
Brand: APP

APP DSP/DSPK Series Sewage Pump from Taiwan.

pumpsDSP/DSPKRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 82

Technical Specifications

source	APP catalogue
section	Industry
series	DSP/DSPK
family	Sewage Pump
catalogue_page	11-12
features	Separated seal and flow channel; solid single impeller; H-class insulation; cutter for K models.
Series	DSP/DSPK Series
Pump Series	DSP/DSPK
Pump Type	Sewage Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	250 x 183 x 487 mm / 400 x 240 x 545 mm / 425 x 220 x 615 mm / 485 x 300 x 735 mm / 485 x 300 x 840 mm / 585 x 340 x 875 mm
Pump length / size	250 x 183 x 487 mm / 400 x 240 x 545 mm / 425 x 220 x 615 mm / 485 x 300 x 735 mm / 485 x 300 x 840 mm / 585 x 340 x 875 mm
Variant Max Flow	400 LPM / 880 LPM / 1200 LPM / 1300 LPM / 2100 LPM / 2500 LPM / 3200 LPM
Variant Max Head	14 m / 18 m / 20 m / 22 m / 24 m / 28 m / 32 m
Variant Pass Solid	30 mm / 40 mm / 45 mm / 50 mm / 65 mm
Variant Weight	31 kg / 37 kg / 55 kg / 57 kg / 99 kg / 109 kg / 149 kg

Project Integration

DSP/DSPK Series Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

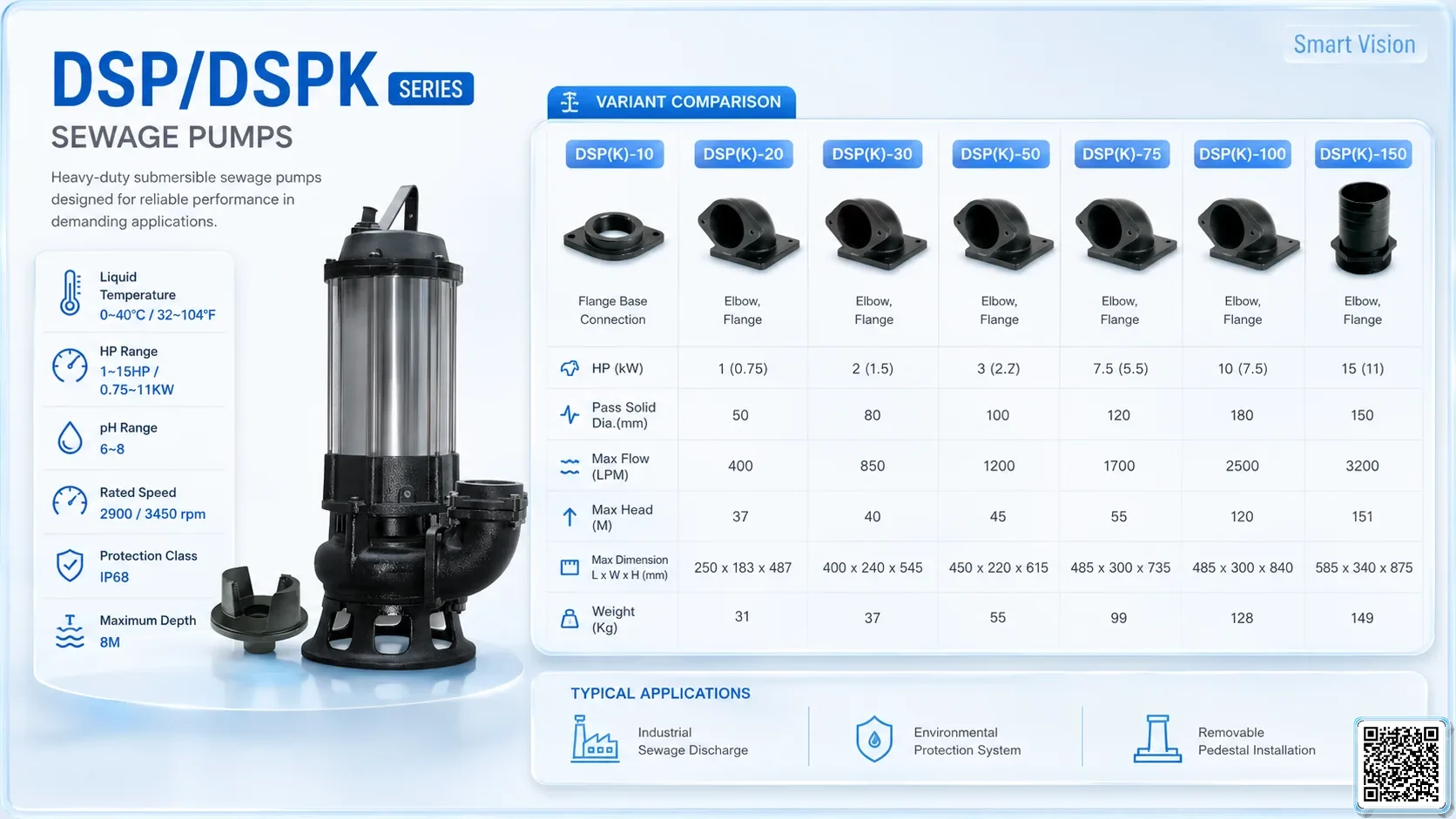

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
DSP(K)-10 DSP(K)-10	1 HP / 0.8 kW	—	50 mm / 2"	400 LPM	14 m	30 mm	250	31 kg	—
DSP(K)-20 DSP(K)-20	2 HP / 1.5 kW	380V / 3P	80 mm / 3"	880 LPM	18 m	40 mm	400	37 kg	—
DSP-20T DSP-20T	2 HP / 1.5 kW	380V / 3P	80 mm / 3"	880 LPM	18 m	40 mm	400	37 kg	—
DSPK-20T DSPK-20T	2 HP / 1.5 kW	380V / 3P	80 mm / 3"	880 LPM	18 m	40 mm	400	37 kg	—
DSPK-30T DSPK-30T	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	1200 LPM	20 m	40 mm	425	55 kg	—
DSP-30T DSP-30T	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	1200 LPM	20 m	40 mm	425	55 kg	—
DSP(K)-30 DSP(K)-30	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	1200 LPM	20 m	40 mm	425	55 kg	—
DSP(K)-50 DSP(K)-50	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1300 LPM	22 m	45 mm	425	57 kg	—
DSP-75T DSP-75T	7.5 HP / 5.5 kW	380V / 3P	100 mm / 4"	2100 LPM	24 m	50 mm	485	99 kg	—
DSPK-75T DSPK-75T	7.5 HP	380V / 3P	100 mm / 4"	2100 LPM	24 m	50 mm	485	99 kg	—
DSP(K)-75 DSP(K)-75	7.5 HP / 5.5 kW	380V / 3P	100 mm / 4"	2100 LPM	24 m	50 mm	485	99 kg	—
DSP-100T DSP-100T	10 HP	380V / 3P	150 mm / 6"	2500 LPM	28 m	65 mm	485	109 kg	—
DSPK-100T DSPK-100T	10 HP	380V / 3P	150 mm / 6"	2500 LPM	28 m	65 mm	485	109 kg	—
DSP(K)-100 DSP(K)-100	10 HP / 7.5 kW	380V / 3P	150 mm / 6"	2500 LPM	28 m	65 mm	485	109 kg	—
DSP-150T DSP-150T	15 HP / 11 kW	380V / 3P	150 mm / 6"	3200 LPM	32 m	65 mm	585	149 kg	—
DSPK-150T DSPK-150T	15 HP / 11 kW	380V / 3P	150 mm / 6"	3200 LPM	32 m	65 mm	585	149 kg	—
DSP(K)-150 DSP(K)-150	15 HP / 11 kW	380V / 3P	150 mm / 6"	3200 LPM	32 m	65 mm	585	149 kg	—
DSP-50T DSP-50T	/ 37 kW	380V / 3P	100 mm / 4"	1300 LPM	22 m	45 mm	425	57 kg	—
DSPK-50T DSPK-50T	/ 37 kW	380V / 3P	100 mm / 4"	1300 LPM	22 m	45 mm	425	57 kg	—
