DS/DSKSeries Sewage Pumps

Name: DS/DSK Series Sewage Pumps
Brand: APP

APP DS/DSK Series Sewage Pump from Taiwan.

pumpsDS/DSKRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 87

Technical Specifications

source	APP catalogue
section	Industry
series	DS/DSK
family	Sewage Pump
catalogue_page	09-10

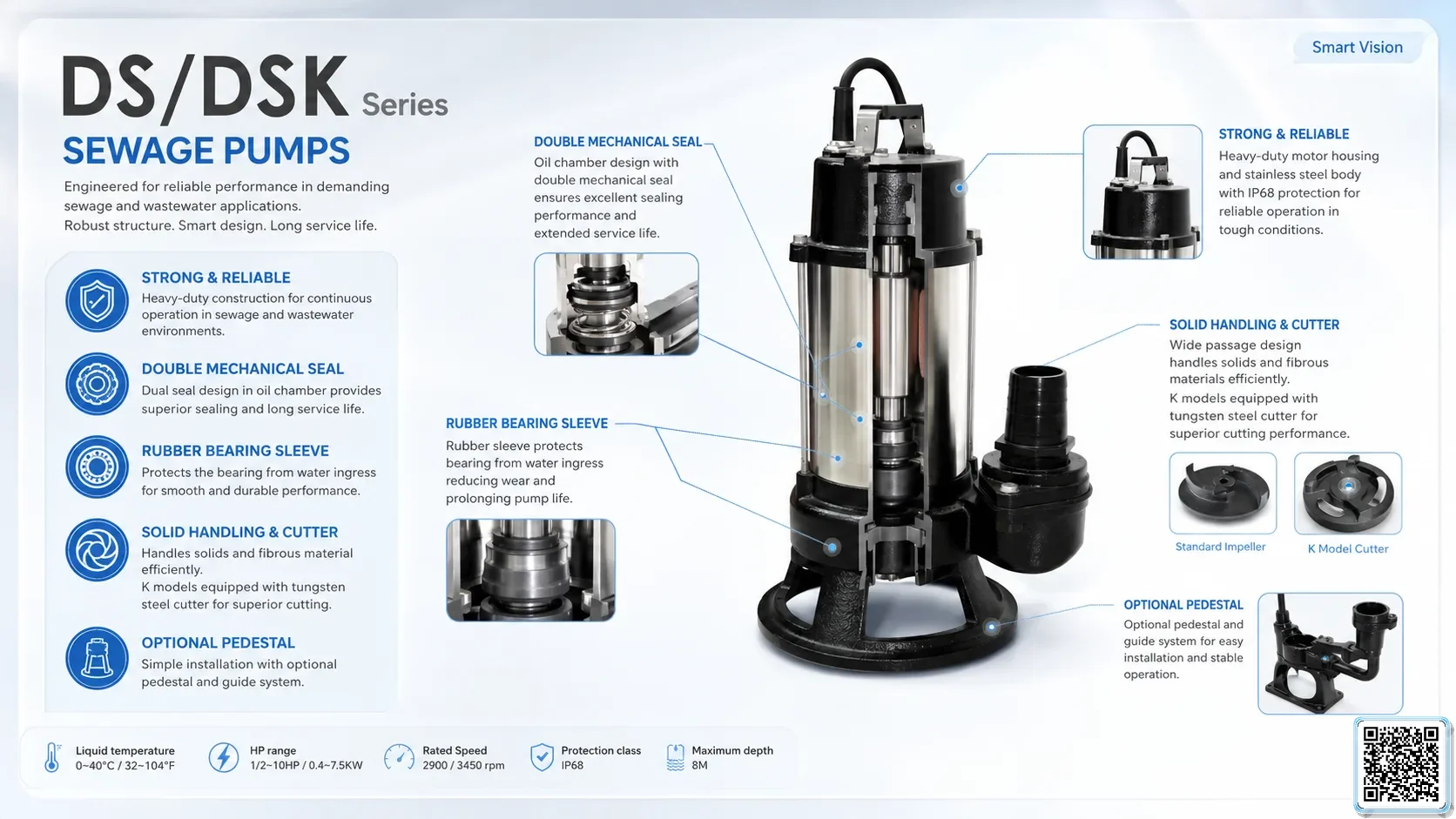

features	Double mechanical seal; rubber bearing sleeve; cutter made of tungsten steel for K models.
Series	DS/DSK Series
Pump Series	DS/DSK
Pump Type	Sewage Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	240 x 183 x 440 mm / 310 x 217 x 457 mm / 310 x 230 x 528 mm / 362 x 280 x 555 mm / 362 x 280 x 585 mm
Pump length / size	240 x 183 x 440 mm / 310 x 217 x 457 mm / 310 x 230 x 528 mm / 362 x 280 x 555 mm / 362 x 280 x 585 mm
Variant Max Flow	270 LPM / 420 LPM / 700 LPM / 860 LPM / 1300 LPM / 1400 LPM / 1500 LPM
Variant Max Head	10 m / 14 m / 17 m / 20 m / 22 m / 24 m / 27 m
Variant Pass Solid	15 mm / 20 mm / 27 mm
Variant Weight	18 kg / 28 kg / 32 kg / 42 kg / 57 kg / 64 kg / 75 kg

Project Integration

DS/DSK Series Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

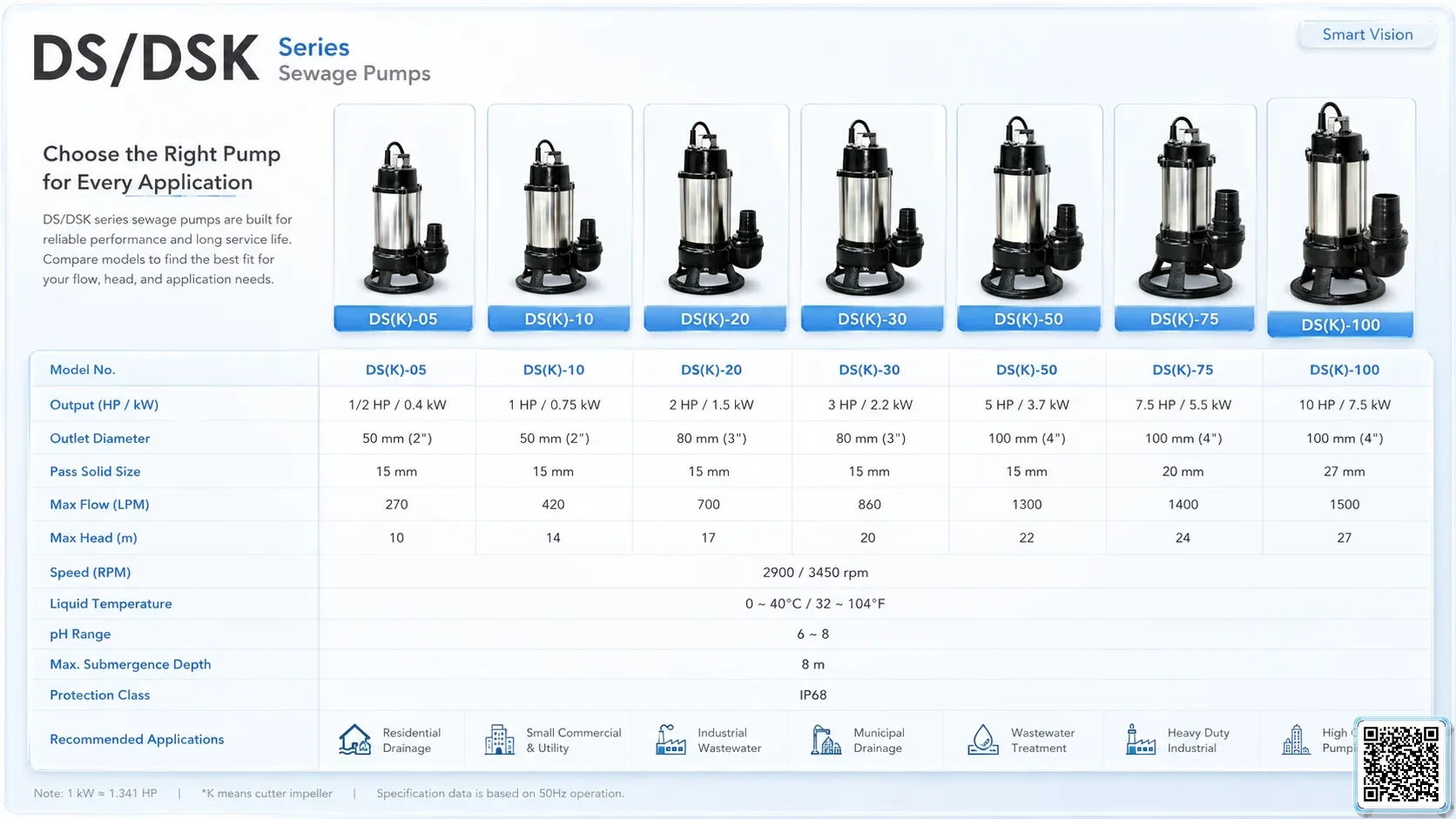

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
DS(K)-05 DS(K)-05	1/2 HP / 0.4 kW	220V / 1P	50 mm / 2"	270 LPM	10 m	15 mm	240	18 kg	—
DSK-10 DSK-10	1 HP / 0.75 kW	220V / 1P	50 mm / 2"	420 LPM	14 m	15 mm	310	28 kg	—
DS(K)-10 DS(K)-10	1 HP / 0.75 kW	220V / 1P	50 mm / 2"	420 LPM	14 m	15 mm	310	28 kg	—
DSK-20 DSK-20	2 HP / 1.5 kW	220V / 1P	80 mm / 3"	700 LPM	17 m	15 mm	310	32 kg	—
DS(K)-20 DS(K)-20	2 HP / 1.5 kW	220V / 1P \| 380V / 3P	80 mm / 3"	700 LPM	17 m	15 mm	310	32 kg	—
DSK-30T DSK-30T	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	860 LPM	20 m	15 mm	362	42 kg	—
DS(K)-30 DS(K)-30	3 HP / 2.2 kW	380V / 3P	80 mm / 3"	860 LPM	20 m	15 mm	362	42 kg	—
DSK-05 DSK-05	/ 04 kW	220V / 1P	50 mm / 2"	270 LPM	10 m	15 mm	240	18 kg	—
DSK-50T DSK-50T	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1300 LPM	22 m	15 mm	362	57 kg	—
DS(K)-50 DS(K)-50	5 HP / 3.7 kW	380V / 3P	100 mm / 4"	1300 LPM	22 m	15 mm	362	57 kg	—
DS(K)-75 DS(K)-75	7.5 HP / 5.5 kW	—	100 mm / 4"	1400 LPM	24 m	20 mm	362	64 kg	—
DS(K)-100 DS(K)-100	10 HP / 7.5 kW	—	100 mm / 4"	1500 LPM	27 m	27 mm	362	75 kg	—
