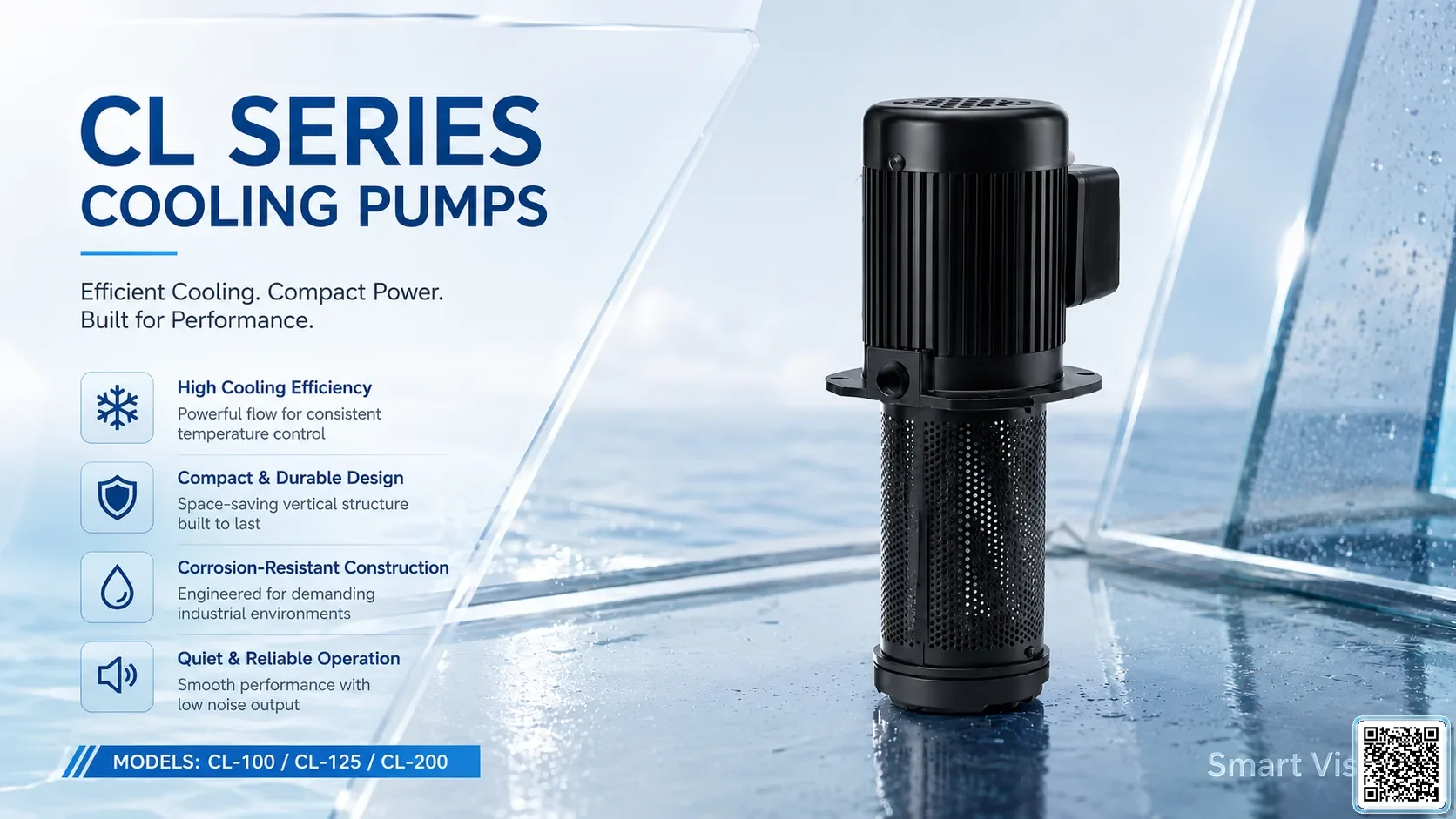

CLSeries Cooling Pumps

Name: CL Series Cooling Pumps
Brand: APP

APP CL Series Cooling / Air Pump from Taiwan.

pumpsCLRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 67

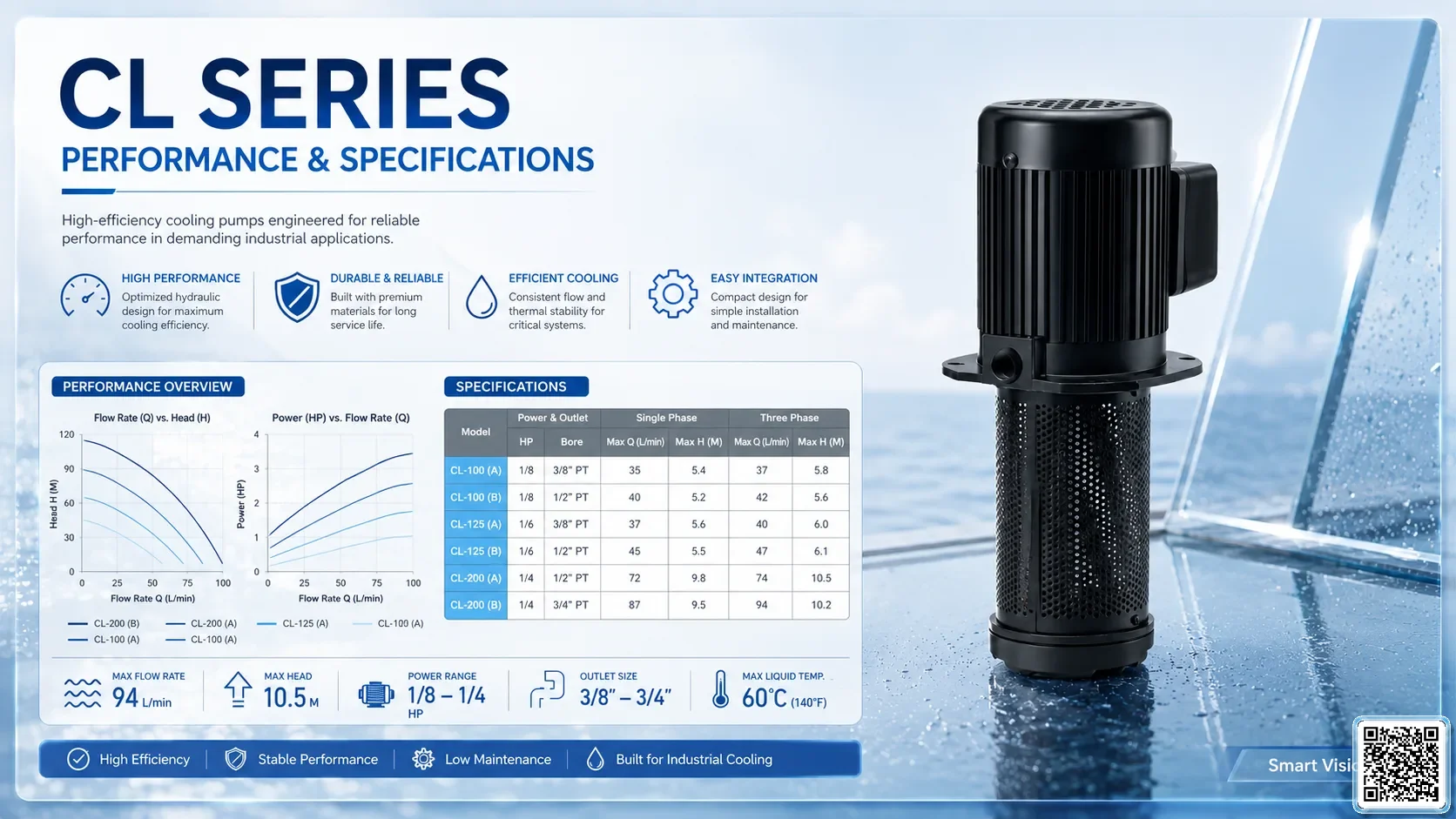

Technical Specifications

source	APP catalogue
section	Auxiliary
series	CL
family	Cooling / Air Pump
catalogue_page	Auxiliary 05-06
features	Cooling pumps with optional combined filter dimensions.
Series	CL Series
Pump Series	CL
Pump Type	Cooling / Air Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Variant Dimensions	160 x 124 x 145 mm / 191 x 160 x 186 mm / 196 x 170 x 205 mm / 196 x 170 x 220 mm
Pump length / size	160 x 124 x 145 mm / 191 x 160 x 186 mm / 196 x 170 x 205 mm / 196 x 170 x 220 mm
Variant Max Flow	35 LPM (1Ø) / 37 LPM (3Ø) / 40 LPM (1Ø) / 42 LPM (3Ø) / 37 LPM (1Ø) / 40 LPM (3Ø) / 45 LPM (1Ø) / 47 LPM (3Ø) / 72 LPM (1Ø) / 74 LPM (3Ø) / 87 LPM (1Ø) / 94 LPM (3Ø) / 130 LPM (1Ø) / 140 LPM (3Ø) / 130 LPM (1Ø) / 205 LPM (3Ø)
Variant Max Head	5.4 m (1Ø) / 6 m (3Ø) / 5.2 m (1Ø) / 5.7 m (3Ø) / 5.6 m (1Ø) / 5.6 m (3Ø) / 5.5 m (1Ø) / 5.5 m (3Ø) / 9.8 m (1Ø) / 10.4 m (3Ø) / 9.5 m (1Ø) / 10.2 m (3Ø) / 13 m (1Ø) / 15 m (3Ø) / 13 m (1Ø) / 19 m (3Ø)
Variant Weight	3.3 kg / 3.7 kg / 6.4 kg / 7.5 kg / 8.7 kg

Project Integration

CL Series Cooling Pumps is suitable for auxiliary applications such as pump control, condensate drainage, cooling, light chemical handling or other special-purpose systems depending on the model. Selection should check liquid type, temperature, pressure, wetted material and duty conditions.

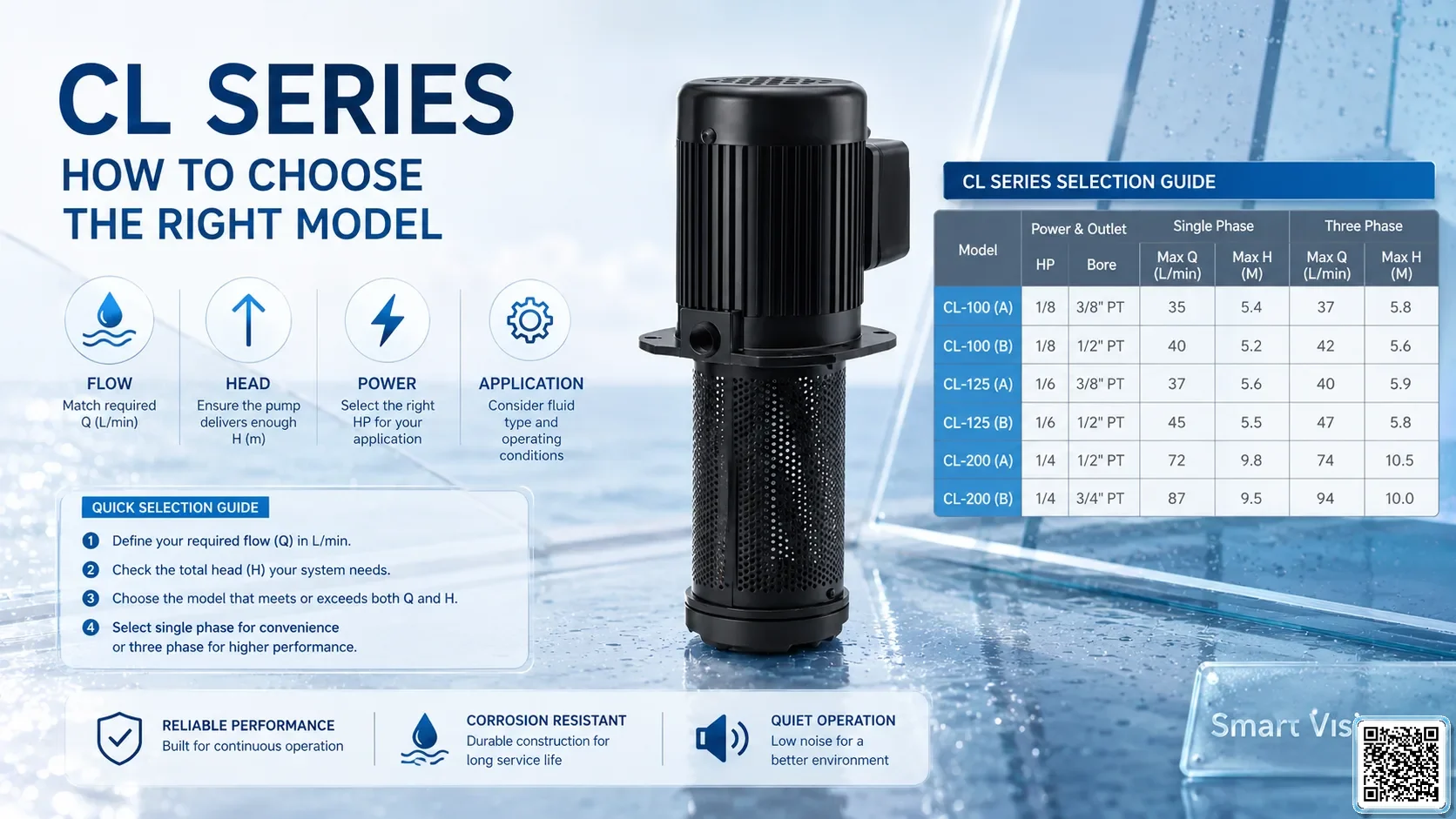

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

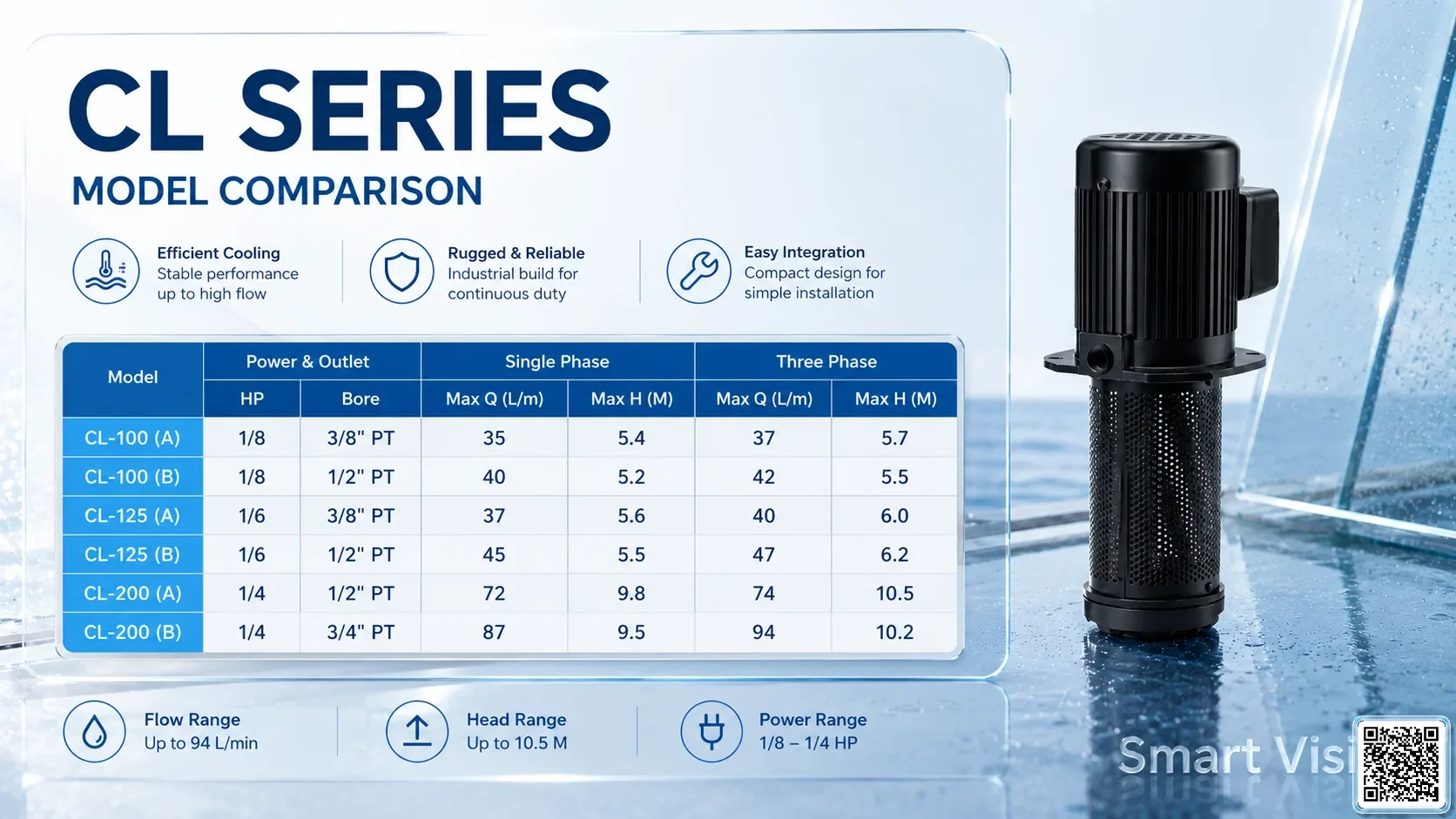

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
CL-100(A) CL-100(A)	1/8 HP	220V / 1P \| 380V / 3P	10 mm / PT 3/8"	35 LPM (1Ø) / 37 LPM (3Ø)	5.4 m (1Ø) / 6 m (3Ø)	—	160	3.3 kg	—
CL-125(A) CL-125(A)	1/6 HP	220V / 1P \| 380V / 3P	10 mm / PT 3/8"	37 LPM (1Ø) / 40 LPM (3Ø)	5.6 m (1Ø) / 5.6 m (3Ø)	—	160	3.7 kg	—
CL-100(B) CL-100(B)	1/8 HP	220V / 1P \| 380V / 3P	13 mm / PT 1/2"	40 LPM (1Ø) / 42 LPM (3Ø)	5.2 m (1Ø) / 5.7 m (3Ø)	—	160	3.3 kg	—
CL-125(B) CL-125(B)	1/6 HP	220V / 1P \| 380V / 3P	13 mm / PT 1/2"	45 LPM (1Ø) / 47 LPM (3Ø)	5.5 m (1Ø) / 5.5 m (3Ø)	—	160	3.7 kg	—
CL-200(A) CL-200(A)	1/4 HP	220V / 1P \| 380V / 3P	13 mm / PT 1/2"	72 LPM (1Ø) / 74 LPM (3Ø)	9.8 m (1Ø) / 10.4 m (3Ø)	—	191	6.4 kg	—
CL-200(B) CL-200(B)	1/4 HP	220V / 1P \| 380V / 3P	20 mm / PT 3/4"	87 LPM (1Ø) / 94 LPM (3Ø)	9.5 m (1Ø) / 10.2 m (3Ø)	—	191	6.4 kg	—
CL-375(T) CL-375(T)	1/2 HP	220V / 1P \| 380V / 3P	25 mm / PT 1"	130 LPM (1Ø) / 140 LPM (3Ø)	13 m (1Ø) / 15 m (3Ø)	—	196	7.5 kg	—
CL-750(T) CL-750(T)	1 HP	220V / 1P \| 380V / 3P	25 mm / PT 1"	130 LPM (1Ø) / 205 LPM (3Ø)	13 m (1Ø) / 19 m (3Ø)	—	196	8.7 kg	—
