SV-NZ-PHXPhoenix Tail Nozzle
Phoenix Tail Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 11 |
| Nozzle Type | SV-NZ-PHX Phoenix Tail Nozzle |
| Material | SS304 |

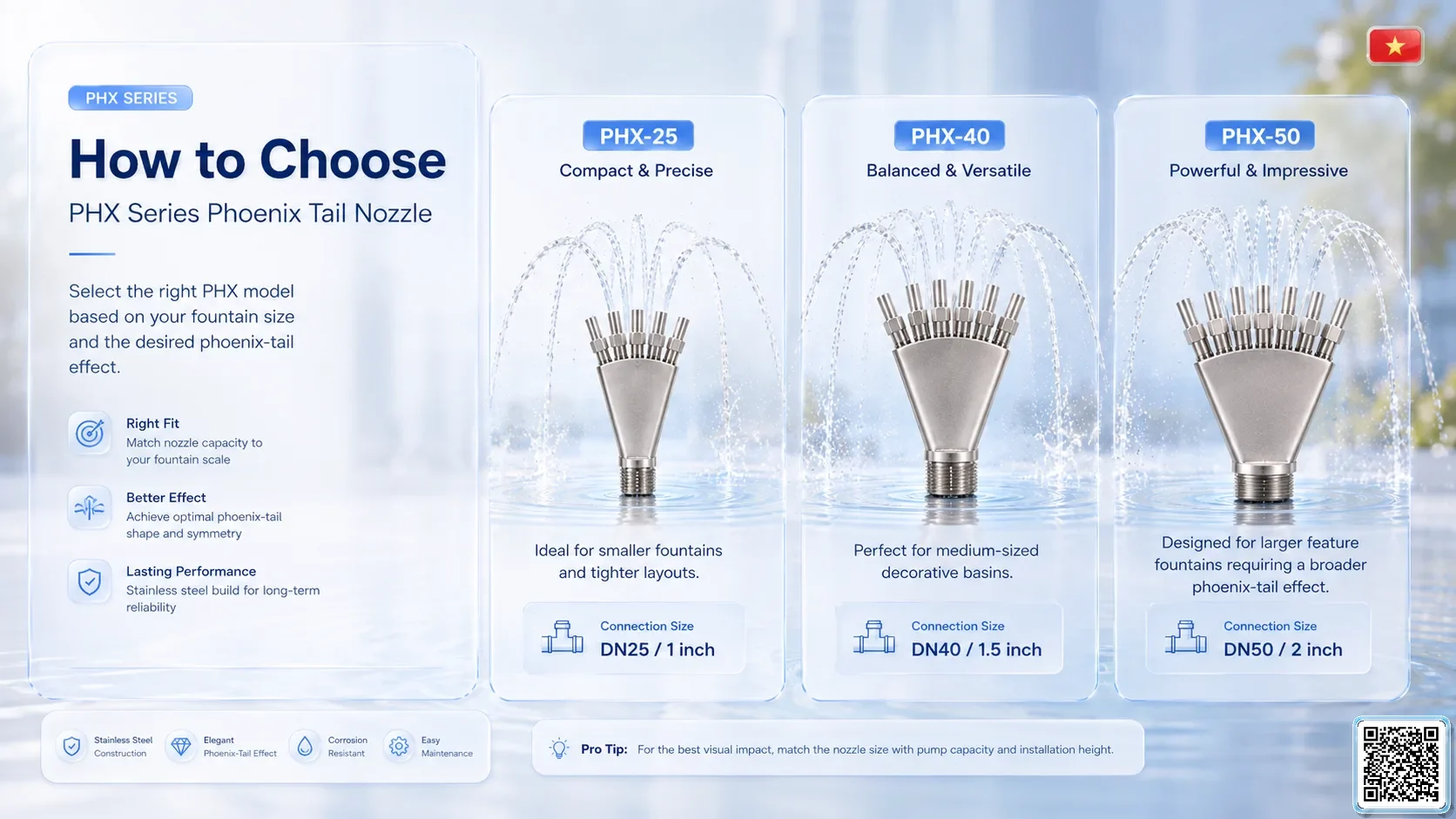

| Available Sizes | DN25 / 1 inch / DN40 / 1.5 inch / DN50 / 2 inch |
| Variant Models | SV-NZ-PHX-25 / SV-NZ-PHX-40 / SV-NZ-PHX-50 |
| Spray Height | Refer to parameter table |
| Flow Rate | Refer to parameter table |
| Pressure Head | Refer to parameter table |
| Spray Diameter | Phoenix tail fan pattern |
Project Integration
Professional phoenix-tail nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectpeacock / phoenix-tail row water spray.
- Best fordecorative linear fountains, landscape edges, stage backgrounds and plaza scenes.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationrow layout, pump balancing and color-zone lighting.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-PHX-25 SV-NZ-PHX-25 | DN25 / 1 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Phoenix tail fan pattern | |
| SV-NZ-PHX-40 SV-NZ-PHX-40 | DN40 / 1.5 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Phoenix tail fan pattern | |
| SV-NZ-PHX-50 SV-NZ-PHX-50 | DN50 / 2 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Phoenix tail fan pattern |
Applications & Key Features
Overview
Equipped with a row of nozzles spraying like a peacock tail.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Peacock tail row water spray; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
