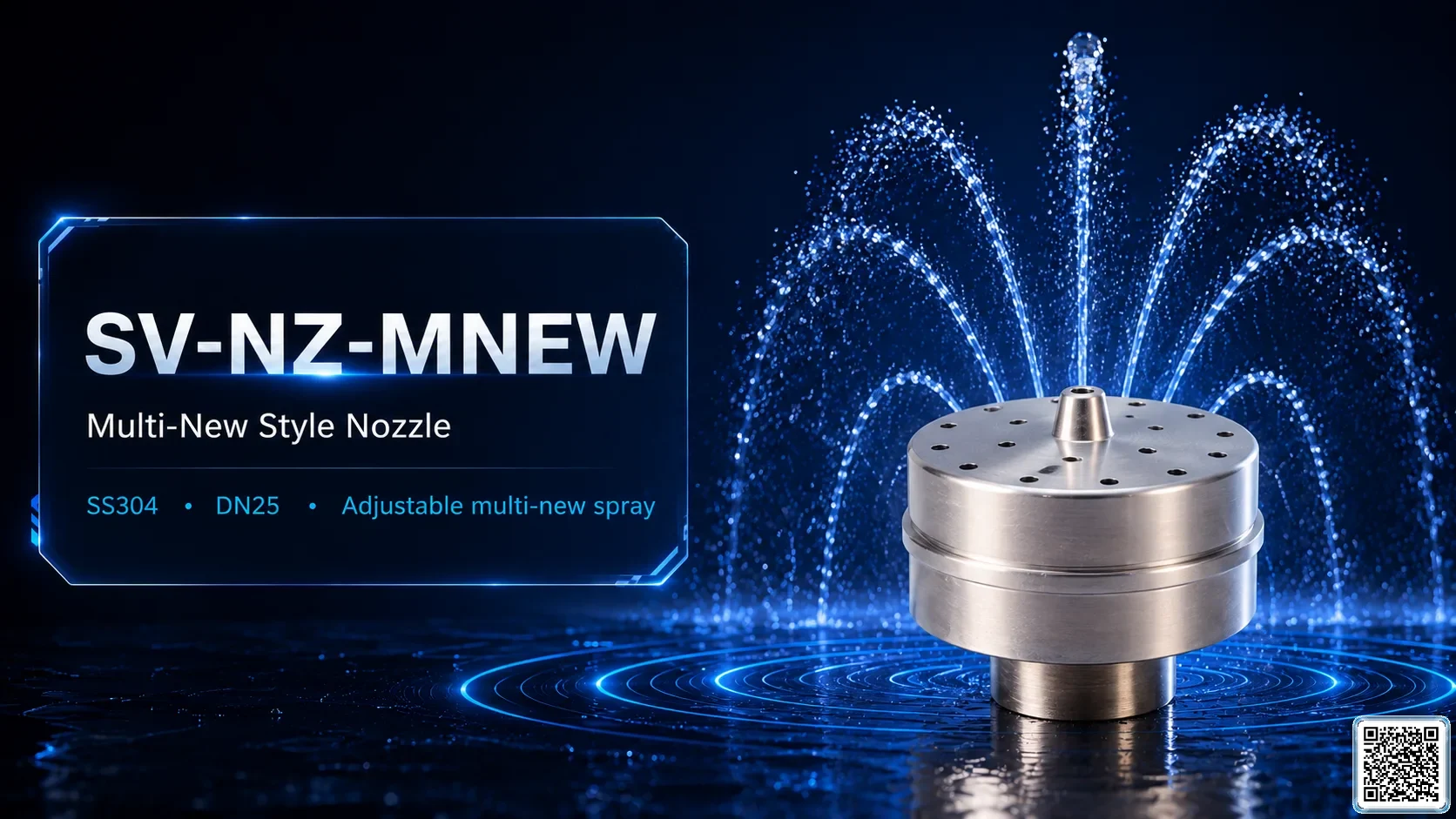

SV-NZ-MNEWMulti-New Style Nozzle
Multi-New Style Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.

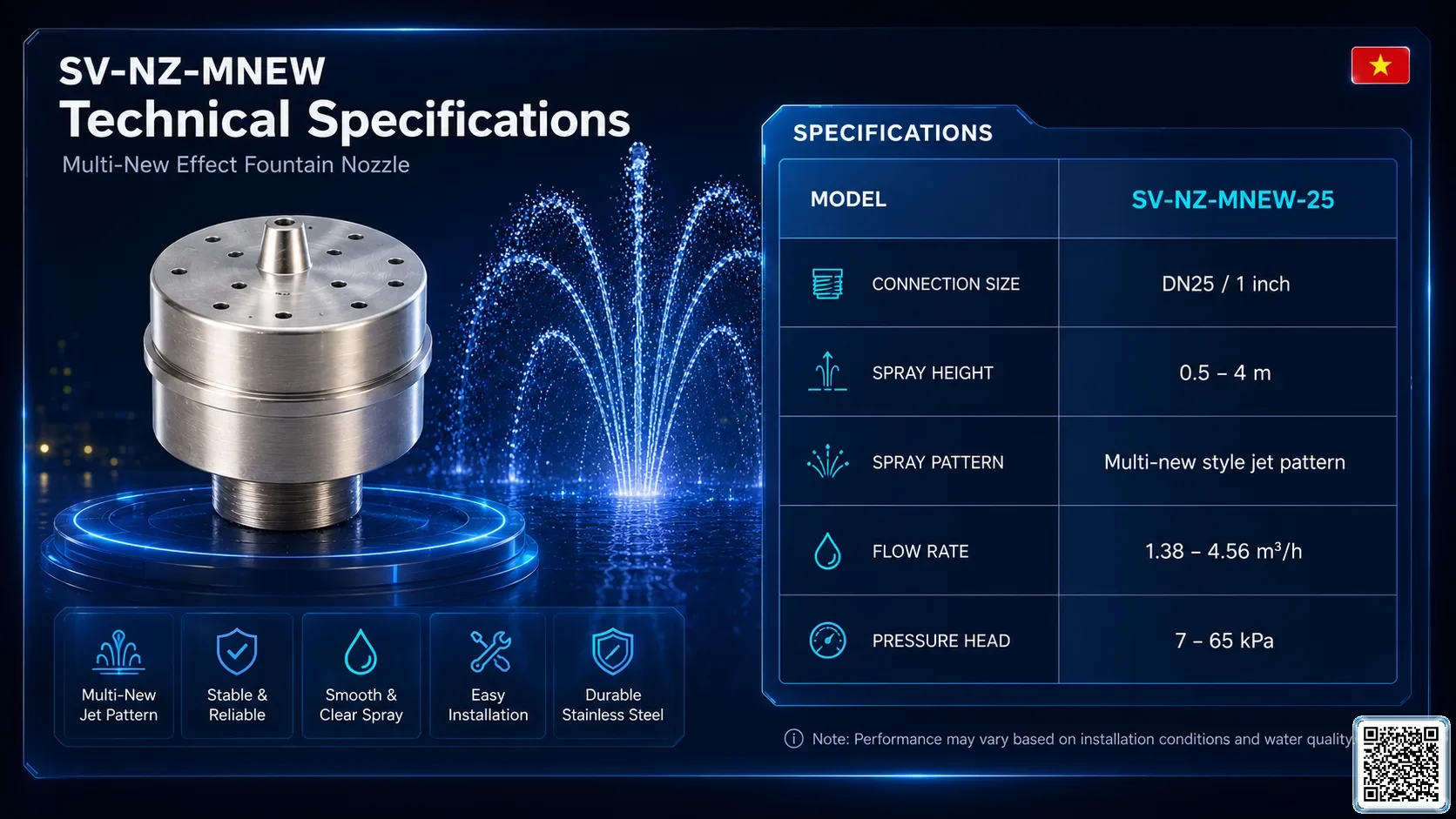

Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 10 |
| Nozzle Type | SV-NZ-MNEW Multi-New Style Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch |
| Variant Models | SV-NZ-MNEW-25 |
| Spray Height | 0.5–4 m |
| Flow Rate | 1.38–4.56 m³/h |
| Pressure Head | 7–65 kPa |
| Spray Diameter | Multi-new style jet pattern |
| Dimension A | 72 mm |
| Dimension B | 77.2 mm |
| Dimension C | 4.5 mm |
| Dimension D | 4 mm |
Project Integration
Professional multi-new style nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectstepless adjustable multi-jet height.
- Best forflexible effect tuning, retrofit projects, demo pools and musical fountain variation.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationheight adjustment, pump balancing and scene-based lighting control.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

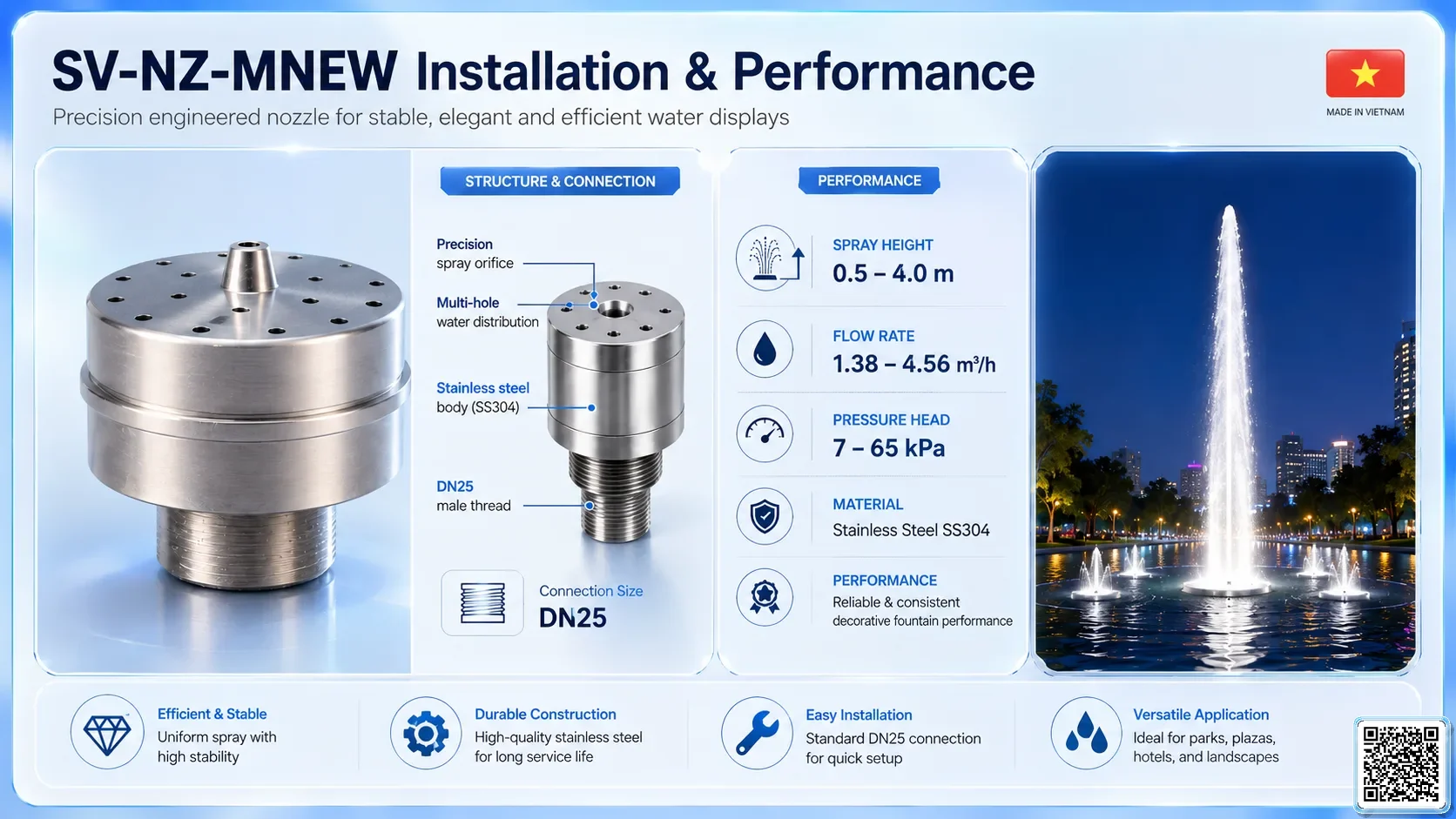

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-MNEW-25 SV-NZ-MNEW-25 | DN25 / 1 inch | 0.5–4 m | 1.38–4.56 m³/h | 7–65 kPa | Multi-new style jet pattern | 72 mm / 77.2 mm / 4.5 mm / 4 mm |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.5 | 1.38 | 7 |
| 0.75 | 1.73 | 10 |
| 1 | 2.1 | 14 |
| 1.5 | 2.67 | 21 |
| 2 | 3.14 | 30 |
| 2.5 | 3.55 | 39 |
| 3 | 4 | 48 |
| 3.5 | 4.25 | 57 |
| 4 | 4.56 | 65 |
Applications & Key Features
Overview
Built-in throttle allows smooth stepless jet height adjustment.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Stepless adjustable multi-jet height; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
