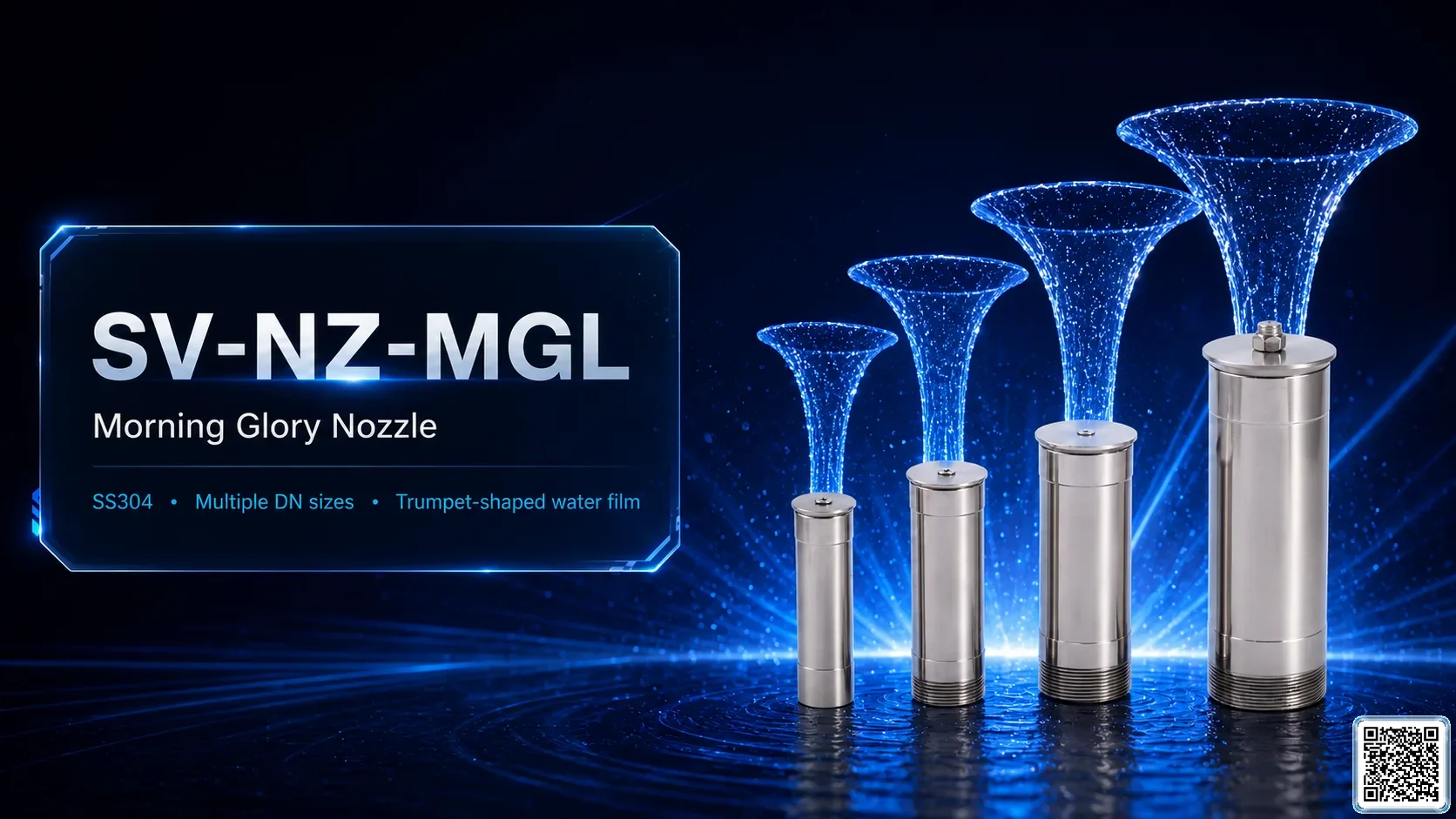

SV-NZ-MGLMorning Glory Nozzle
Morning Glory Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 15 |
| Nozzle Type | SV-NZ-MGL Morning Glory Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch / DN40 / 1.5 inch / DN50 / 2 inch |
| Variant Models | SV-NZ-MGL-25 / SV-NZ-MGL-40 / SV-NZ-MGL-50 |
| Spray Height | 0.25 m / 0.4 m / 0.5 m |
| Flow Rate | 3 m³/h / 4 m³/h / 7 m³/h |
| Pressure Head | 5-8 kPa / 6-10 kPa |
| Spray Diameter | 0.6 / 1.0 / 1.5 |
| Dimension A | 146 mm / 150 mm / 155 mm |
| Dimension B | 38 mm / 49 mm / 63 mm |
| Dimension C | 35 mm / 46 mm / 58 mm |

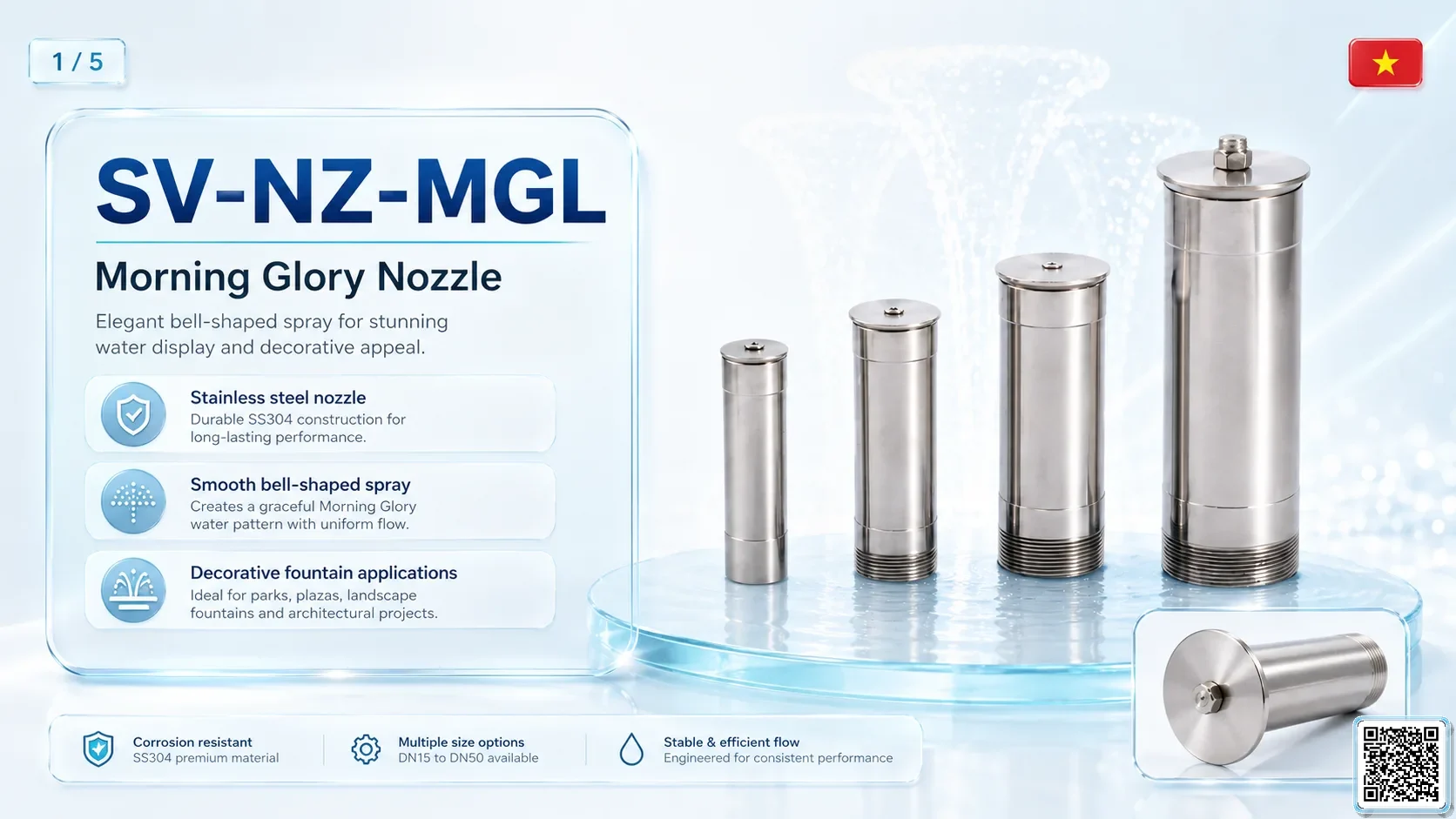

Project Integration
Professional morning-glory nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effecttrumpet-shaped clear water film.
- Best forelegant pool centers, resort landscapes, quiet decorative fountains and indoor/outdoor basins.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationstable water level, pump tuning and subtle lighting.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

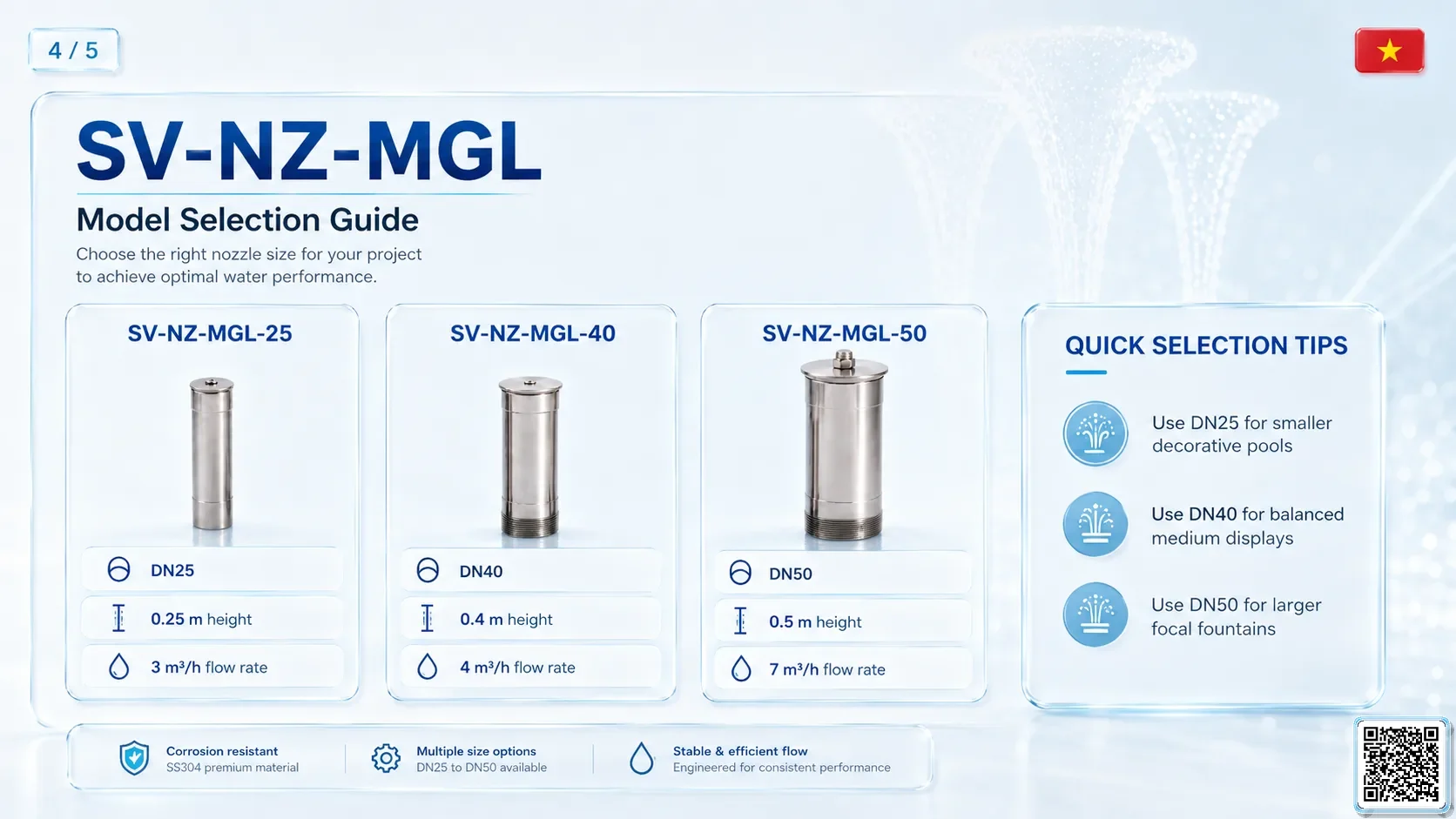

Technical Specifications by Model / Size

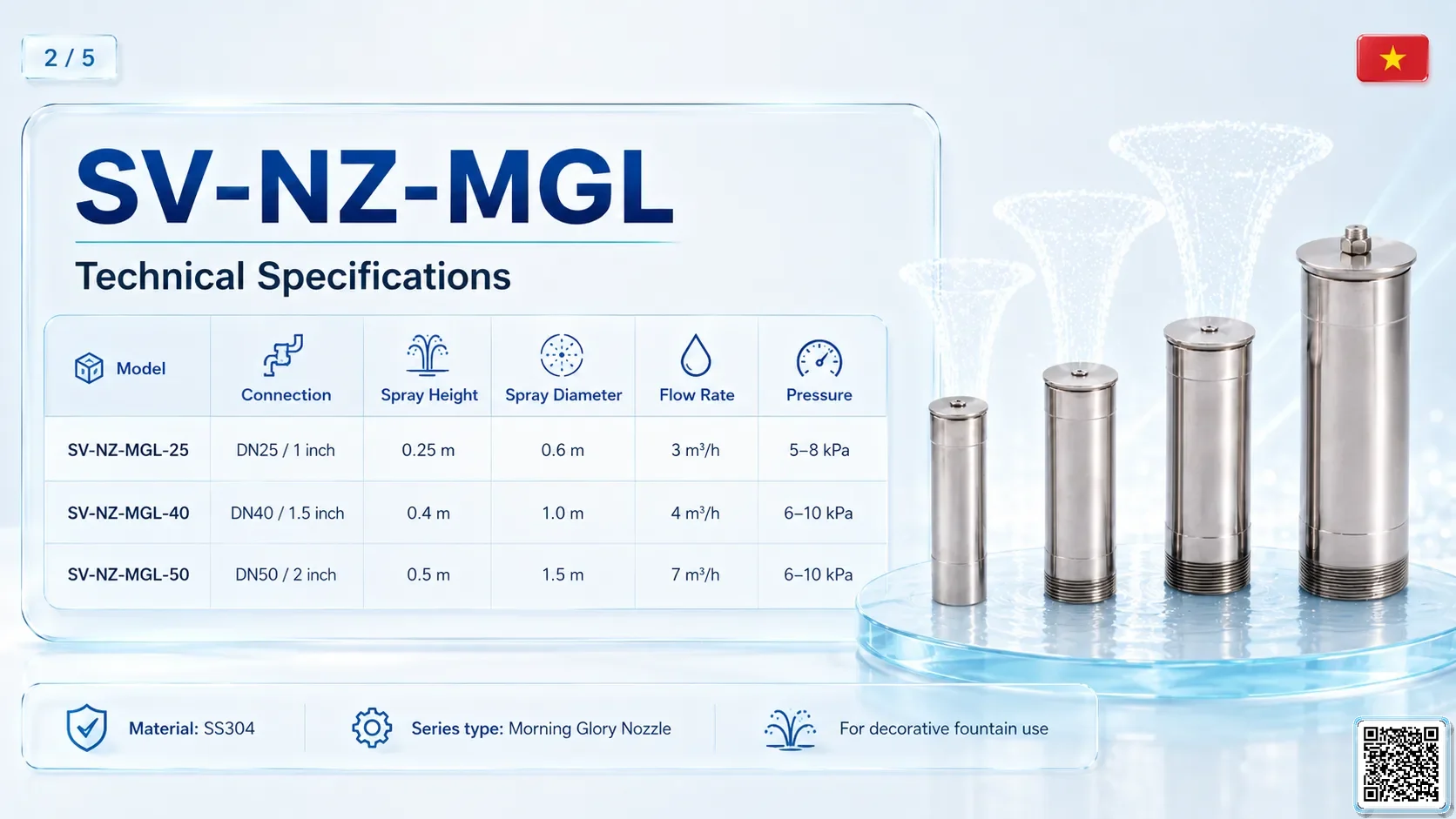

| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-MGL-25 SV-NZ-MGL-25 | DN25 / 1 inch | 0.25 m | 3 m³/h | 5-8 kPa | 0.6 | 146 mm / 38 mm / 35 mm |
| SV-NZ-MGL-40 SV-NZ-MGL-40 | DN40 / 1.5 inch | 0.4 m | 4 m³/h | 6-10 kPa | 1.0 | 150 mm / 49 mm / 46 mm |
| SV-NZ-MGL-50 SV-NZ-MGL-50 | DN50 / 2 inch | 0.5 m | 7 m³/h | 6-10 kPa | 1.5 | 155 mm / 63 mm / 58 mm |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.25 | 3 | 5-8 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.4 | 4 | 6-10 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.5 | 7 | 6-10 |
Applications & Key Features
Overview
Uniform low-noise water film forming a trumpet shape in calm wind.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Trumpet-shaped clear water film; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
