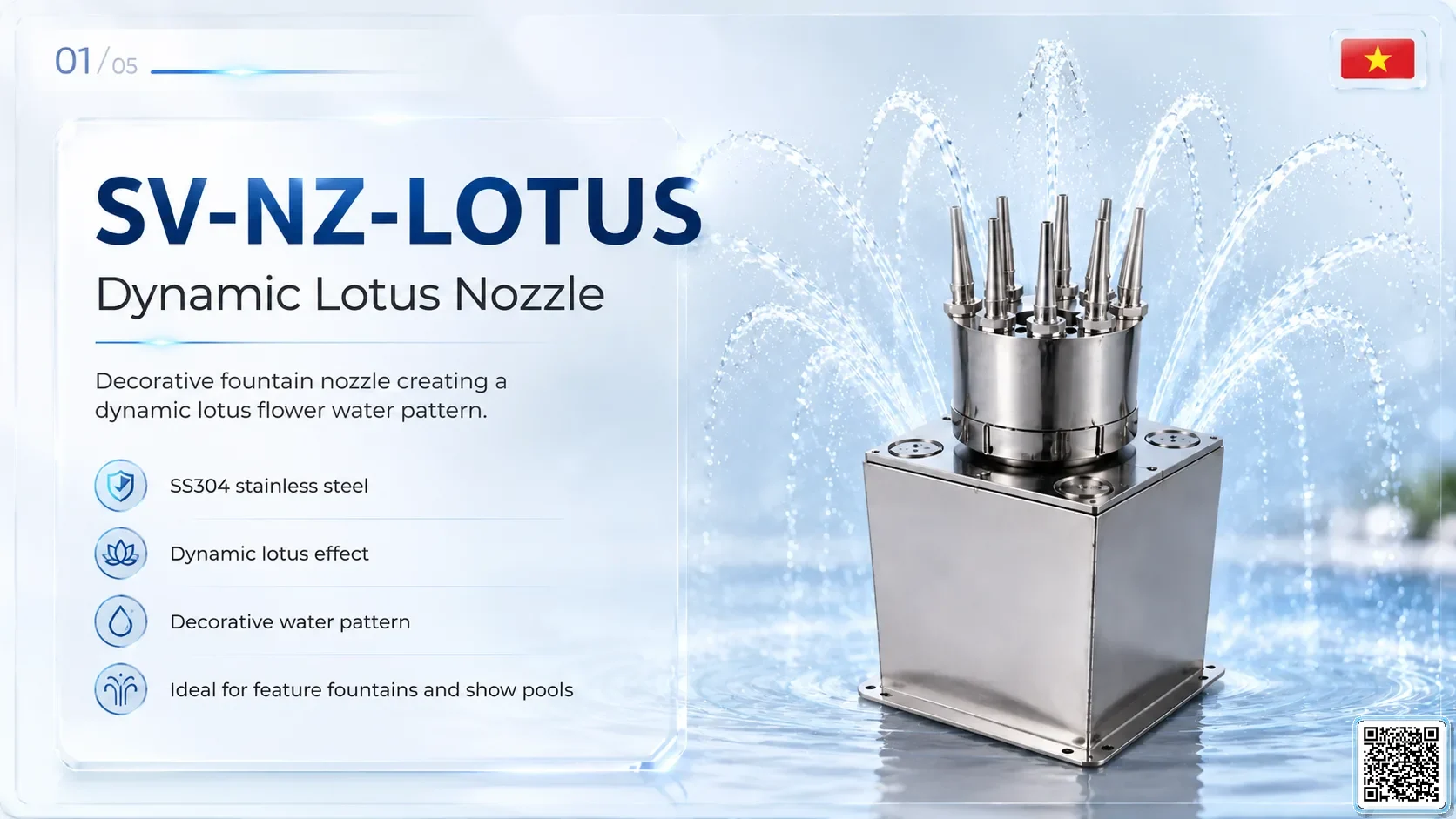

SV-NZ-LOTUSDynamic Lotus Nozzle
Dynamic Lotus Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.

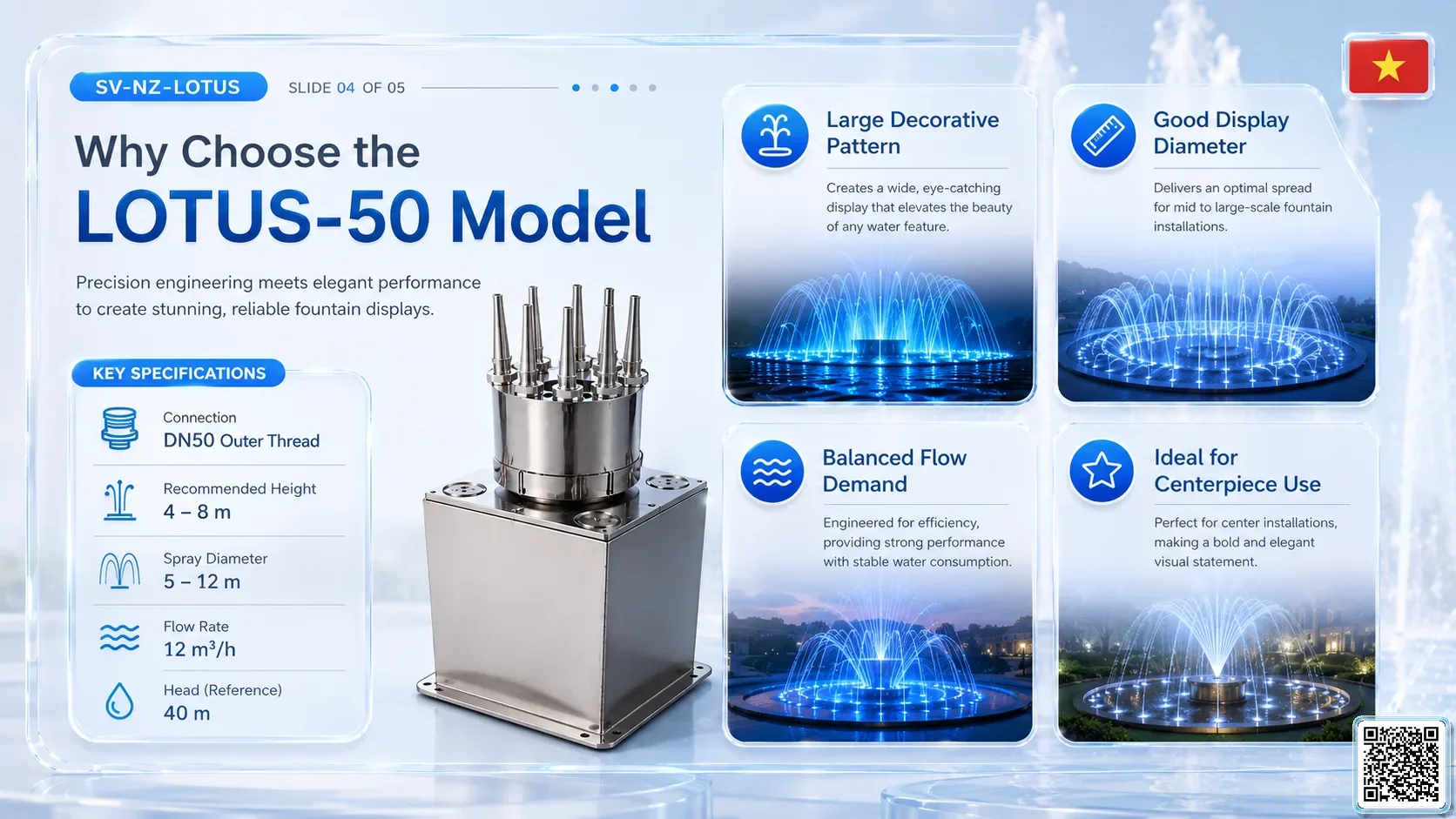

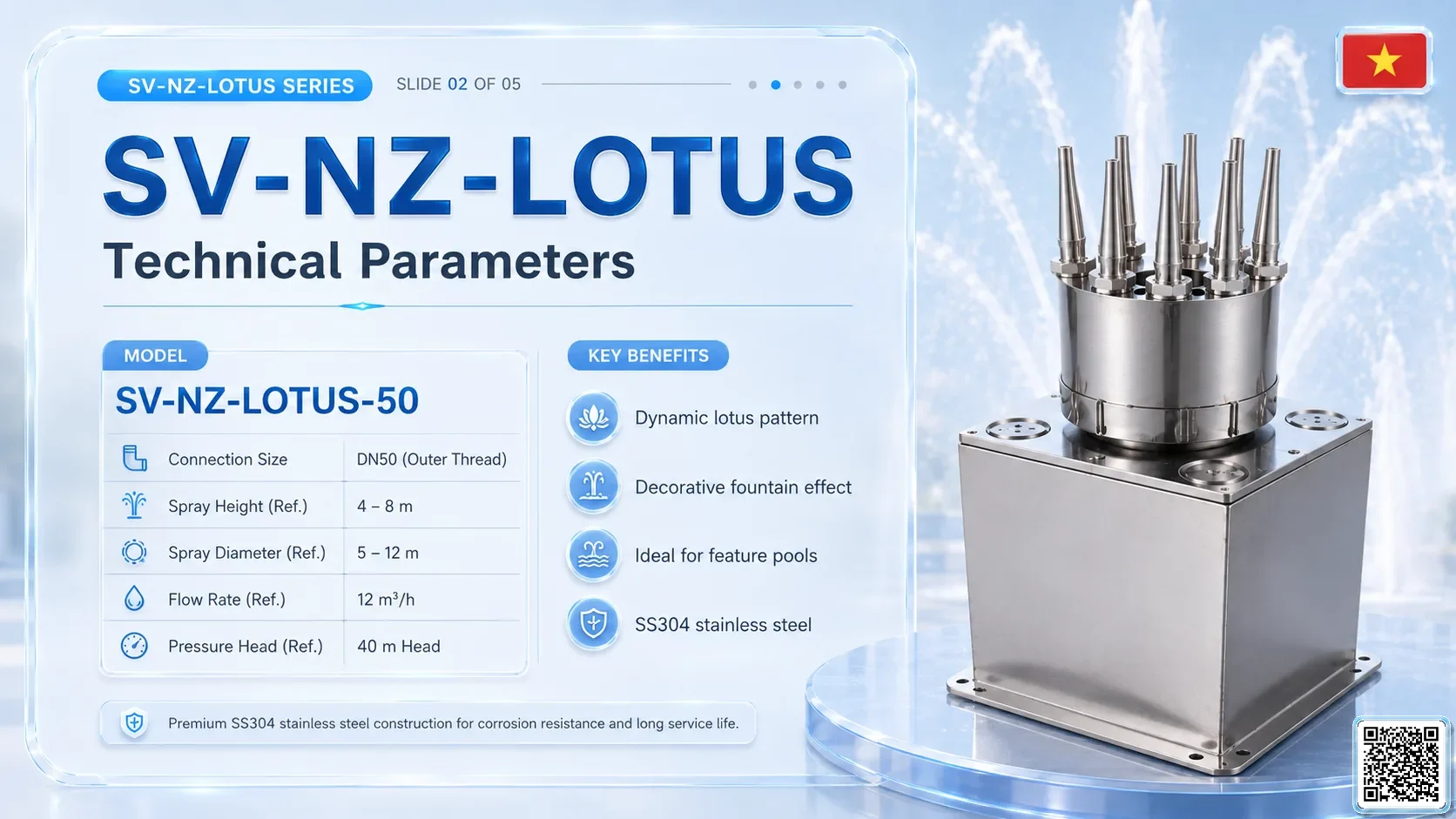

Technical Specifications
| Installation Type | Dynamic lotus nozzle mounting plate |
|---|---|
| Catalogue Page | 28 |
| Nozzle Type | SV-NZ-LOTUS Dynamic Lotus Nozzle |
| Material | SS304 |
| Available Sizes | DN50 outer thread |
| Variant Models | SV-NZ-LOTUS-50 |
| Spray Height | 4-8 m reference |
| Flow Rate | 12 m³/h reference |
| Pressure Head | 40 m head reference |
| Spray Diameter | 5-12 m reference |
| Dimension A | 600 mm |
| Dimension B | 600 mm |
| Dimension C | 1000 mm |
Project Integration
Professional dynamic lotus nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectdynamic lotus water pattern.
- Best forthemed landscape fountains, lotus compositions, resort pools and cultural plazas.

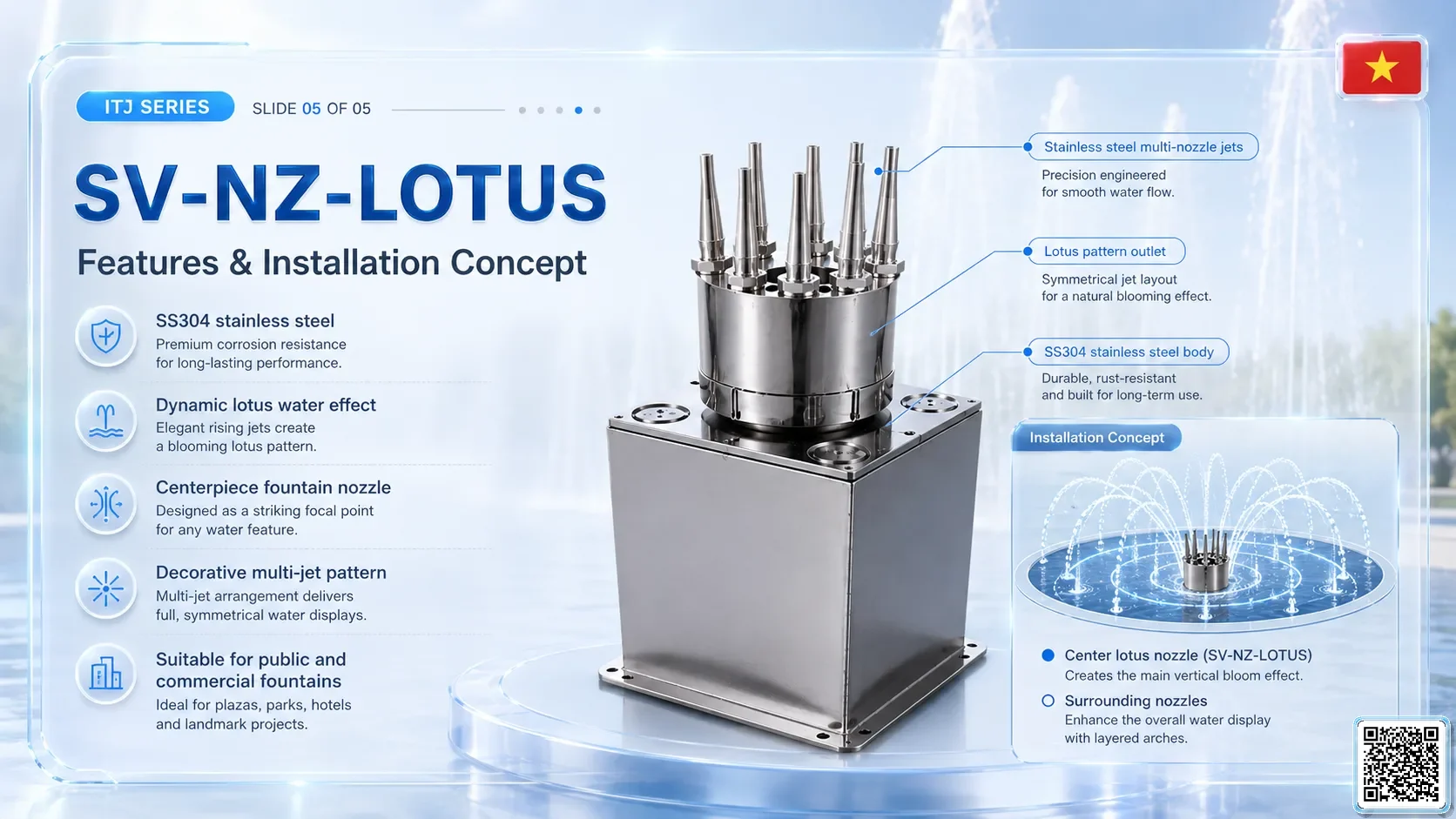

- InstallationDynamic lotus nozzle mounting plate
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationmechanical movement, pump/valve control and RGB/DMX lotus color scenes.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-LOTUS-50 SV-NZ-LOTUS-50 | DN50 outer thread | 4-8 m reference | 12 m³/h reference | 40 m head reference | 5-12 m reference | 600 mm / 600 mm / 1000 mm |
Applications & Key Features
Overview
Dynamic lotus nozzle for large choreographed fountain patterns.

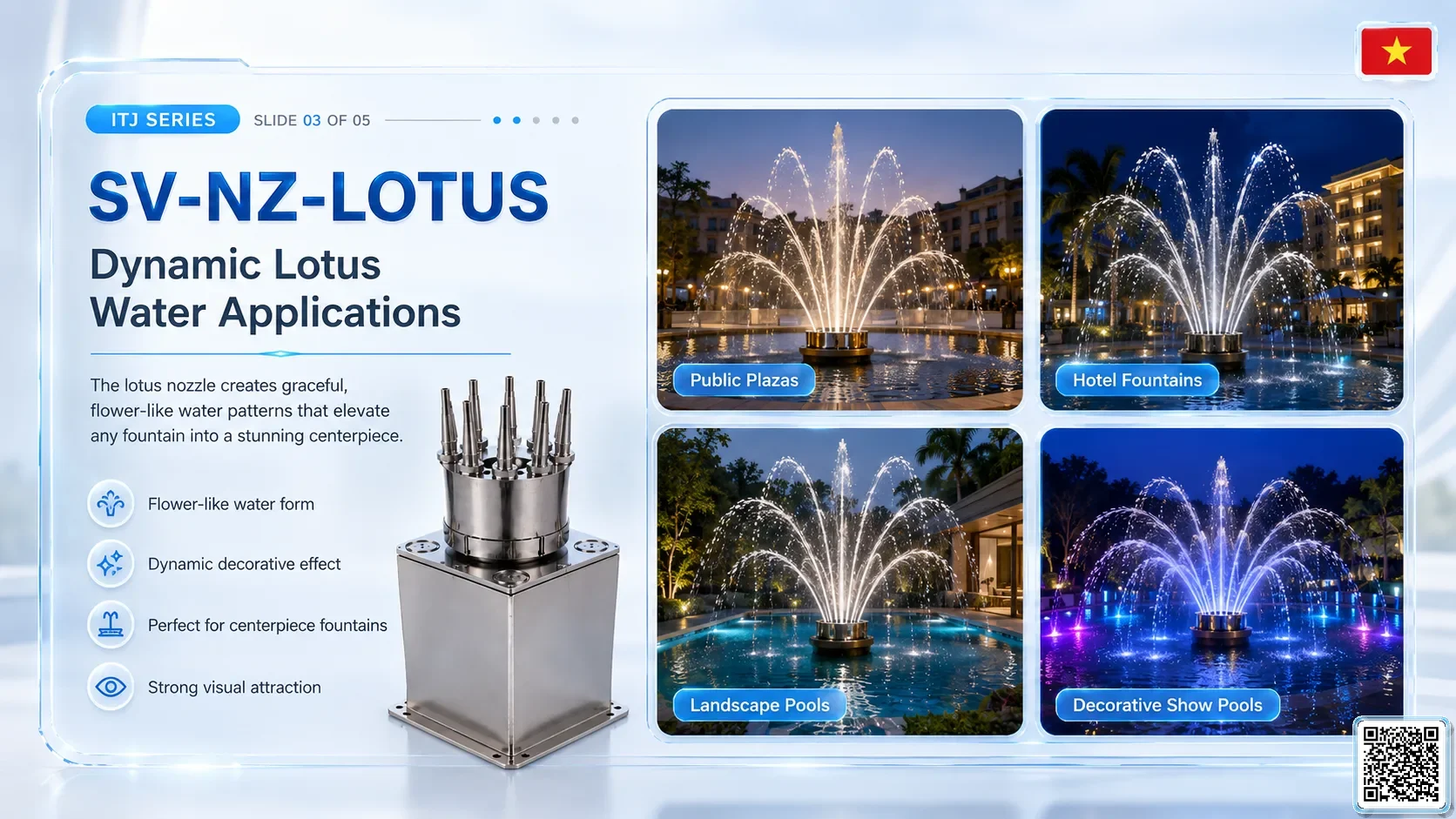

Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Dynamic lotus water pattern; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
