SV-NZ-HIGHHigh Jet Nozzle
High Jet Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 13 |
| Nozzle Type | SV-NZ-HIGH High Jet Nozzle |
| Material | SS304 |
| Available Sizes | DN80 / 3 inch / DN100 / 4 inch / DN150 / 6 inch |
| Variant Models | SV-NZ-HIGH-80 / SV-NZ-HIGH-100 / SV-NZ-HIGH-150 |
| Spray Height | High jet / main spray |
| Flow Rate | Refer to parameter table |
| Pressure Head | Refer to parameter table |
| Spray Diameter | High concentrated jet |
Project Integration
Professional high-jet nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectconcentrated high water jet.
- Best forlandmark vertical jets, lake fountains, large plazas and show peaks.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationhigh-head pump sizing, wind/safety clearance and long-throw lighting.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

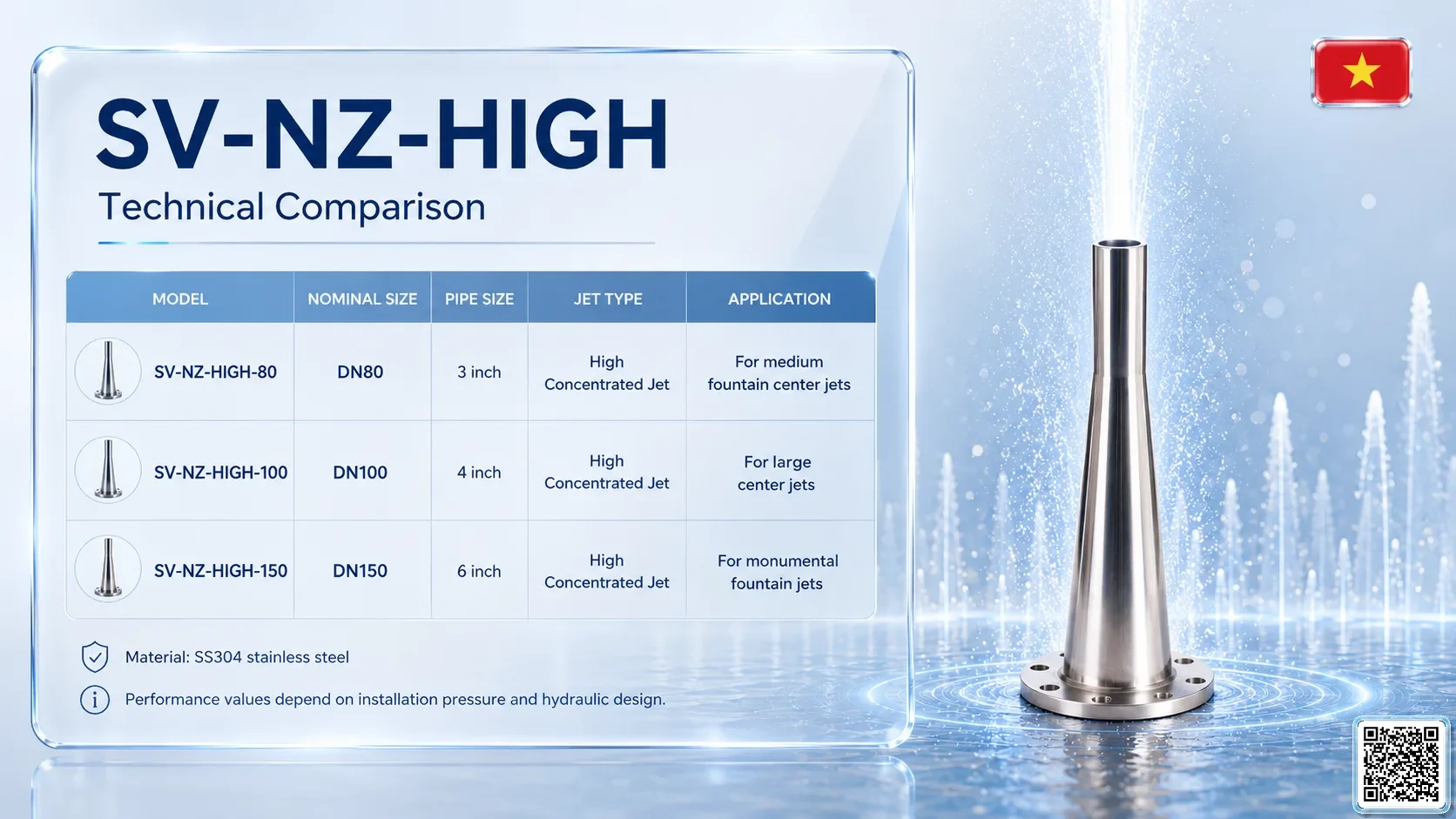

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-HIGH-80 SV-NZ-HIGH-80 | DN80 / 3 inch | High jet / main spray | Refer to parameter table | Refer to parameter table | High concentrated jet | |
| SV-NZ-HIGH-100 SV-NZ-HIGH-100 | DN100 / 4 inch | High jet / main spray | Refer to parameter table | Refer to parameter table | High concentrated jet | |
| SV-NZ-HIGH-150 SV-NZ-HIGH-150 | DN150 / 6 inch | High jet / main spray | Refer to parameter table | Refer to parameter table | High concentrated jet |
Applications & Key Features
Overview
Concentrated jet for main fountain spray or single high spray.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Concentrated high water jet; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
