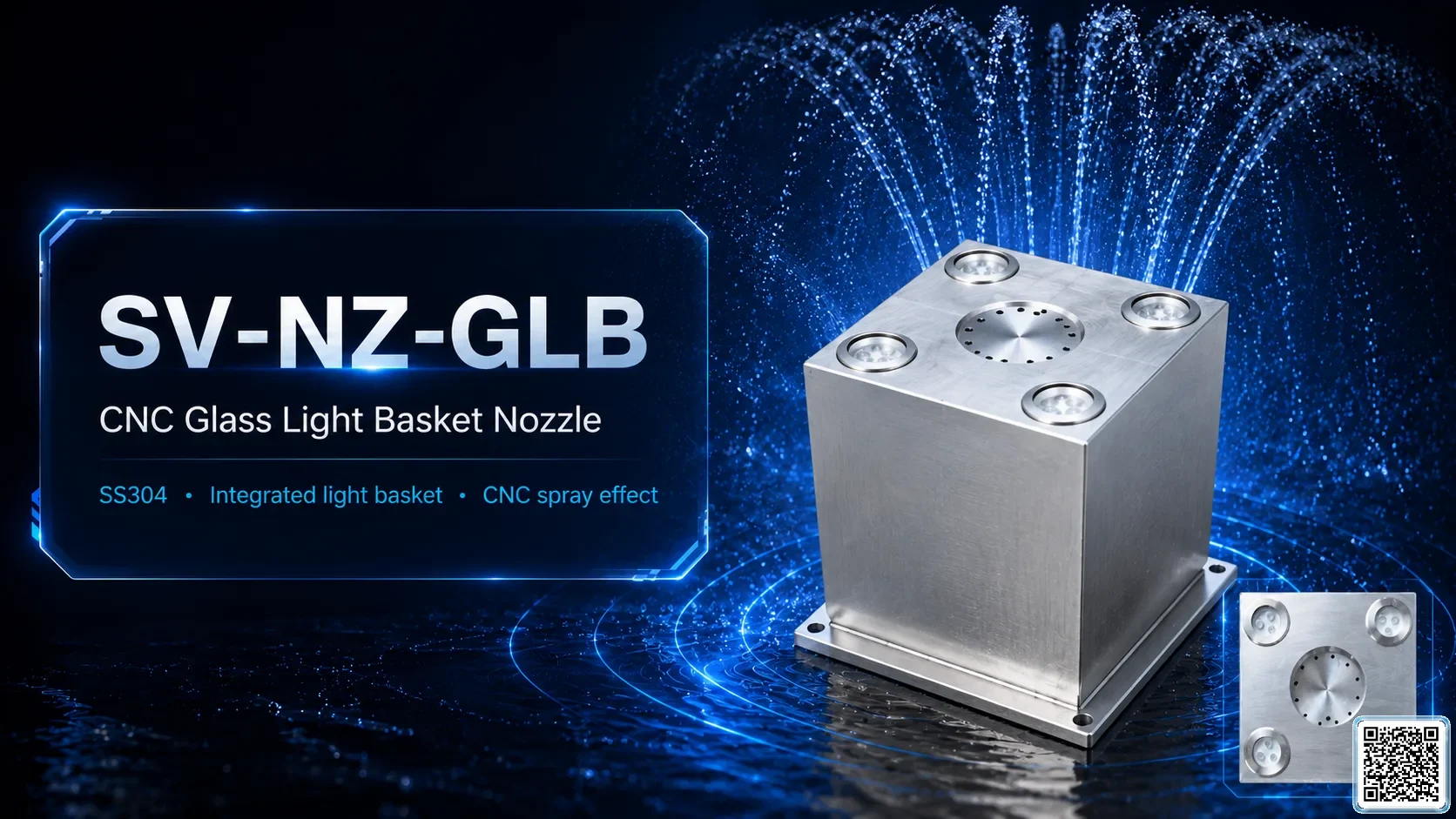

SV-NZ-GLBCNC Glass Light Basket Nozzle
CNC Glass Light Basket Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Integrated CNC glass light basket |
|---|---|
| Catalogue Page | 27 |
| Nozzle Type | SV-NZ-GLB CNC Glass Light Basket Nozzle |
| Material | SS304 |

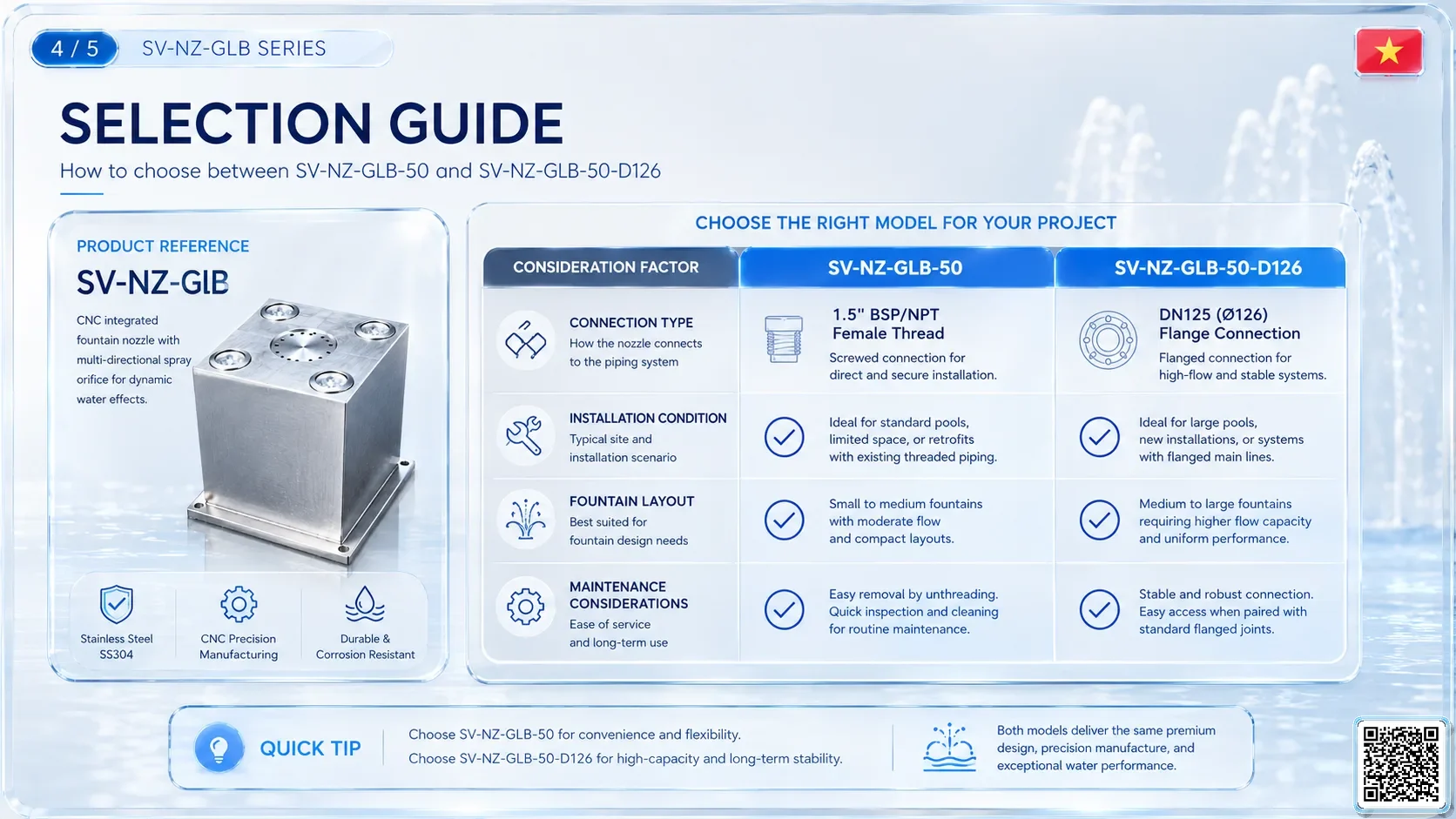

| Available Sizes | DN50 outer thread / DN50 internal thread |
| Variant Models | SV-NZ-GLB-50 / SV-NZ-GLB-50-D126 |
| Spray Height | 1.5-5 m reference |
| Flow Rate | 3 m³/h reference |
| Pressure Head | 25 m head reference |
| Spray Diameter | 1.5-5 m reference |
Project Integration
Professional CNC glass light basket nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectCNC basket water effect with integrated light.
- Best forpremium night shows, glass-light water baskets, plazas and photo-oriented water features.
- InstallationIntegrated CNC glass light basket
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationintegrated lighting, CNC movement, pump control and SmartVision DMX scenes.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

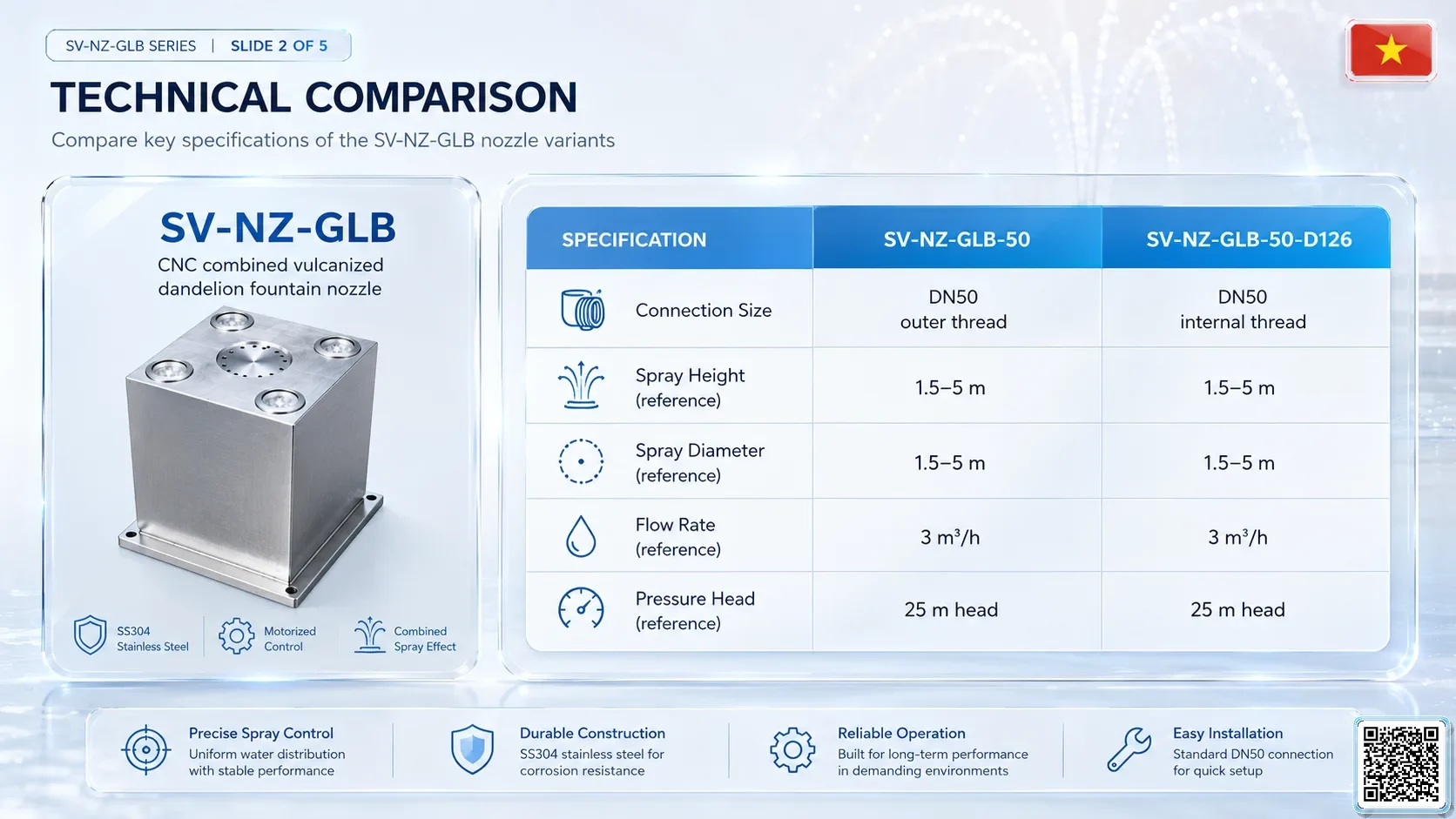

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-GLB-50 SV-NZ-GLB-50 | DN50 outer thread | 1.5-5 m reference | 3 m³/h reference | 25 m head reference | 1.5-5 m reference | |
| SV-NZ-GLB-50-D126 SV-NZ-GLB-50-D126 | DN50 internal thread | 1.5-5 m reference | 3 m³/h reference | 25 m head reference | 1.5-5 m reference |
Applications & Key Features
Overview
Numerical-control flower basket water effect with integrated light.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
CNC basket water effect with integrated light; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
