SV-NZ-DUPDirect Up Nozzle
Direct Up Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 16 |
| Nozzle Type | SV-NZ-DUP Direct Up Nozzle |
| Material | SS304 |
| Available Sizes | DN15 / 1/2 inch / DN20 / 3/4 inch / DN25 / 1 inch / DN40 / 1.5 inch |
| Variant Models | SV-NZ-DUP-15 / SV-NZ-DUP-20 / SV-NZ-DUP-25 / SV-NZ-DUP-40 |
| Spray Height | 6.9 m / 7.5 m / 10 m / 13 m |
| Flow Rate | 29 m³/h / 38 m³/h / 47 m³/h / 58 m³/h |
| Pressure Head | 100 kPa / 180 kPa / 240 kPa / 330 kPa |
| Spray Diameter | 2.9 / 3.1 / 3.3 / 4.0 |
Project Integration
Professional direct-up nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectstrong grouped direct-up jets.
- Best fordense jet arrays, dry-deck scenes, musical rhythm rows and plaza fountains.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationsolenoid-valve sequencing, pump grouping and RGB/DMX beat lighting.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

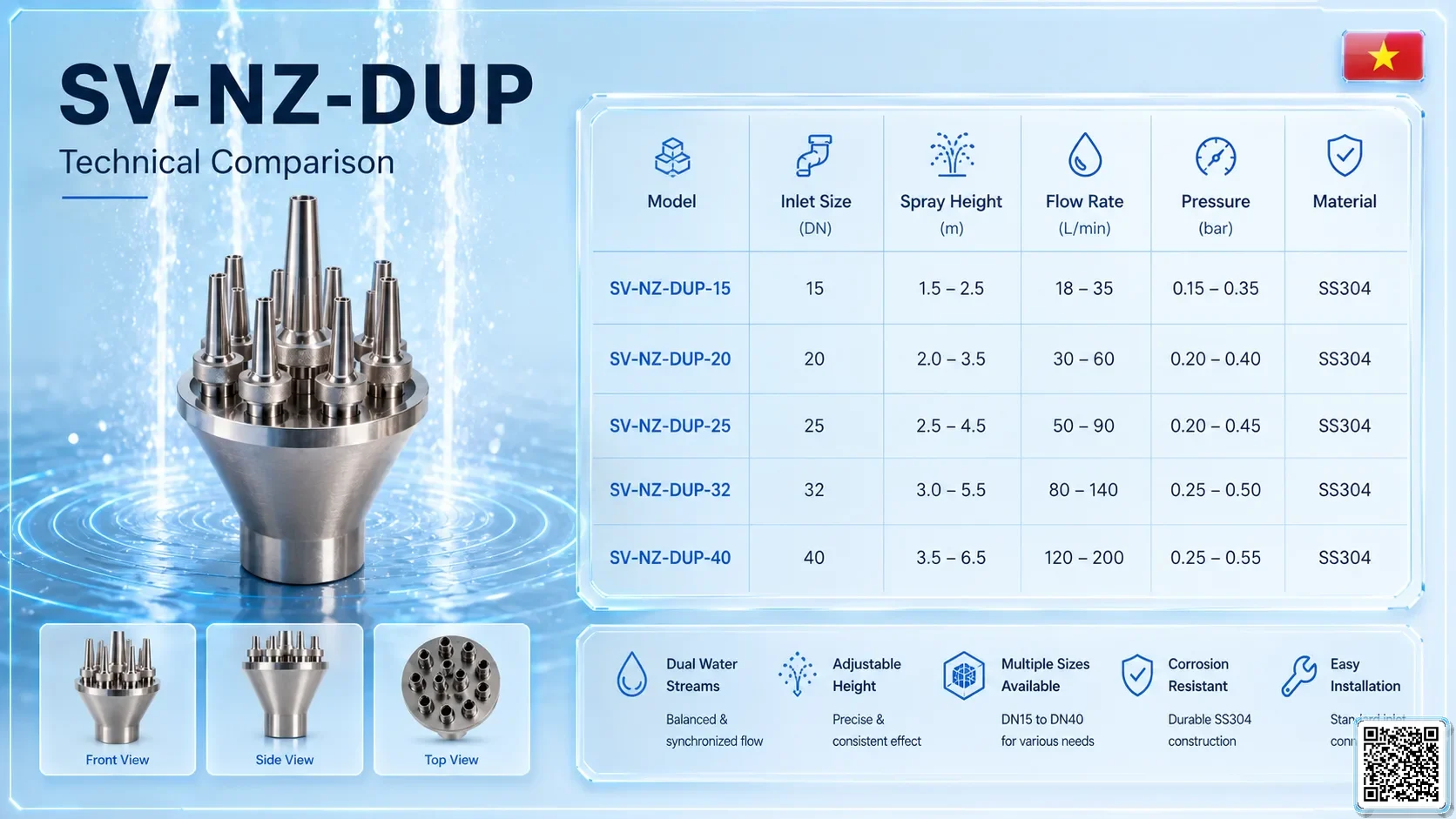

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-DUP-15 SV-NZ-DUP-15 | DN15 / 1/2 inch | 6.9 m | 29 m³/h | 100 kPa | 2.9 | |
| SV-NZ-DUP-20 SV-NZ-DUP-20 | DN20 / 3/4 inch | 7.5 m | 38 m³/h | 180 kPa | 3.1 | |
| SV-NZ-DUP-25 SV-NZ-DUP-25 | DN25 / 1 inch | 10 m | 47 m³/h | 240 kPa | 3.3 | |
| SV-NZ-DUP-40 SV-NZ-DUP-40 | DN40 / 1.5 inch | 13 m | 58 m³/h | 330 kPa | 4.0 |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 6.9 | 29 | 100 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 7.5 | 38 | 180 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 10 | 47 | 240 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 13 | 58 | 330 |
Applications & Key Features
Overview
Multiple direct jets in one chamber for strong hierarchical effects.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Strong direct-up grouped jets; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
