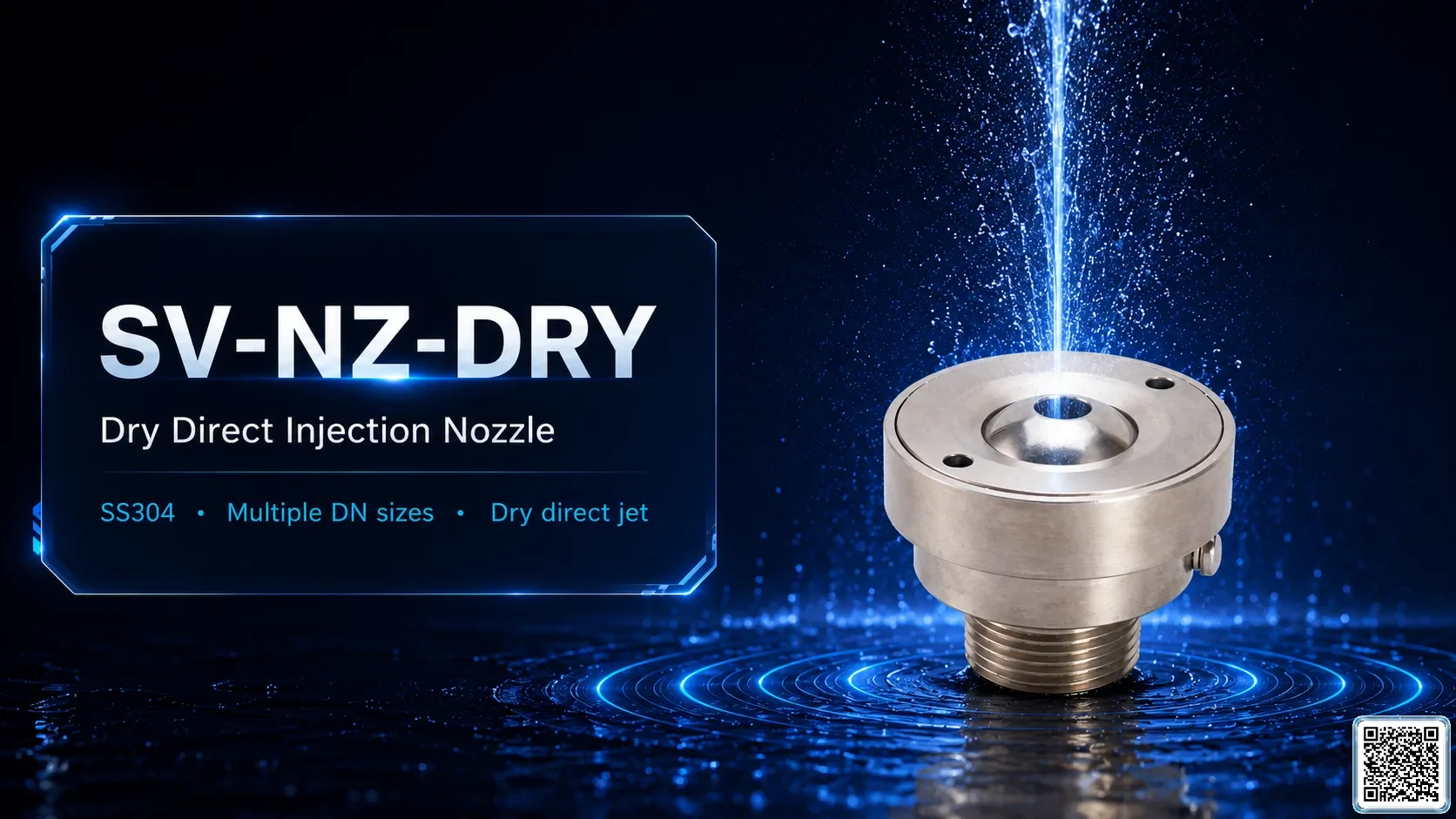

SV-NZ-DRYDry Direct Injection Nozzle
Dry Direct Injection Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Dry deck / threaded mounting |
|---|---|
| Catalogue Page | 17 |
| Nozzle Type | SV-NZ-DRY Dry Direct Injection Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch |
| Variant Models | SV-NZ-DRY-25 |
| Spray Height | Dry direct jet |
| Flow Rate | 2.5 m³/h |
| Pressure Head | 35 kPa |
| Spray Diameter | 2 m |
| Dimension A | 55 mm |
| Dimension B | 64 mm |
| Dimension C | 10 mm |
Project Integration
Professional dry-deck direct-injection nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectdry-deck direct jet for walkable plaza fountains.
- Best forinteractive dry fountains, commercial plazas, parks and children-friendly public spaces.
- InstallationDry deck / threaded mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationdrainage, anti-slip deck design, solenoid-valve sequencing and safe lighting layout.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-DRY-25 SV-NZ-DRY-25 | DN25 / 1 inch | Dry direct jet | 2.5 m³/h | 35 kPa | 2 m | 55 mm / 64 mm / 10 mm |
Applications & Key Features
Overview
Direct injection nozzle mostly used in dry squares.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Dry-deck direct injection jet; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
