SV-NZ-DANDandelion Nozzle
Dandelion Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 20 |
| Nozzle Type | SV-NZ-DAN Dandelion Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch / DN40 / 1.5 inch / DN50 / 2 inch / DN80 / 3 inch |
| Variant Models | SV-NZ-DAN-25 / SV-NZ-DAN-40 / SV-NZ-DAN-50 / SV-NZ-DAN-80 |
| Spray Height | Dandelion sphere effect |
| Flow Rate | 8-15 m³/h / 30-35 m³/h / 45-55 m³/h / 60 m³/h |
| Pressure Head | 80-100 kPa / 100-150 kPa |
| Spray Diameter | 61 m / 72 m / 95 m / 141 m |
| Dimension A | 120 mm / 127 mm / 150 mm |
| Dimension B | 220 mm / 245 mm / 296 mm / 719 mm |
| Dimension C | 396 mm / 595 mm / 610 mm / 942 mm |
Project Integration
Professional dandelion nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectspherical dandelion spray.
- Best forround pools, landmark ornaments, hotels, parks and photo-friendly fountain features.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationmulti-hole balancing, pump head control and 360-degree lighting.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

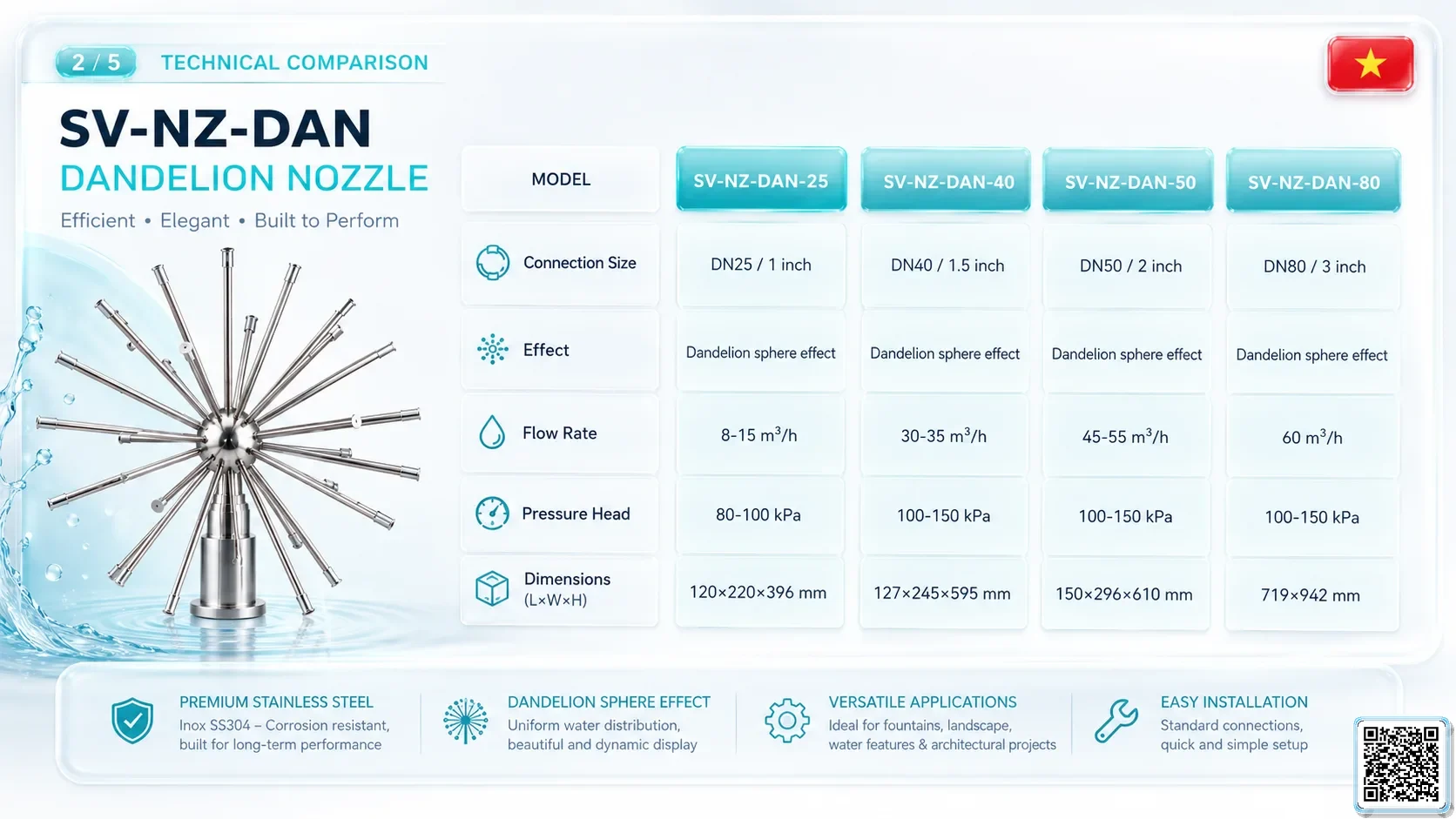

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-DAN-25 SV-NZ-DAN-25 | DN25 / 1 inch | Dandelion sphere effect | 8-15 m³/h | 80-100 kPa | 61 m | 120 mm / 220 mm / 396 mm |
| SV-NZ-DAN-40 SV-NZ-DAN-40 | DN40 / 1.5 inch | Dandelion sphere effect | 30-35 m³/h | 100-150 kPa | 72 m | 127 mm / 245 mm / 595 mm |
| SV-NZ-DAN-50 SV-NZ-DAN-50 | DN50 / 2 inch | Dandelion sphere effect | 45-55 m³/h | 100-150 kPa | 95 m | 150 mm / 296 mm / 610 mm |
| SV-NZ-DAN-80 SV-NZ-DAN-80 | DN80 / 3 inch | Dandelion sphere effect | 60 m³/h | 100-150 kPa | 141 m | 719 mm / 942 mm |
Applications & Key Features
Overview
Forms a silver dandelion-like spherical spray; requires good filtration.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Spherical dandelion spray; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
