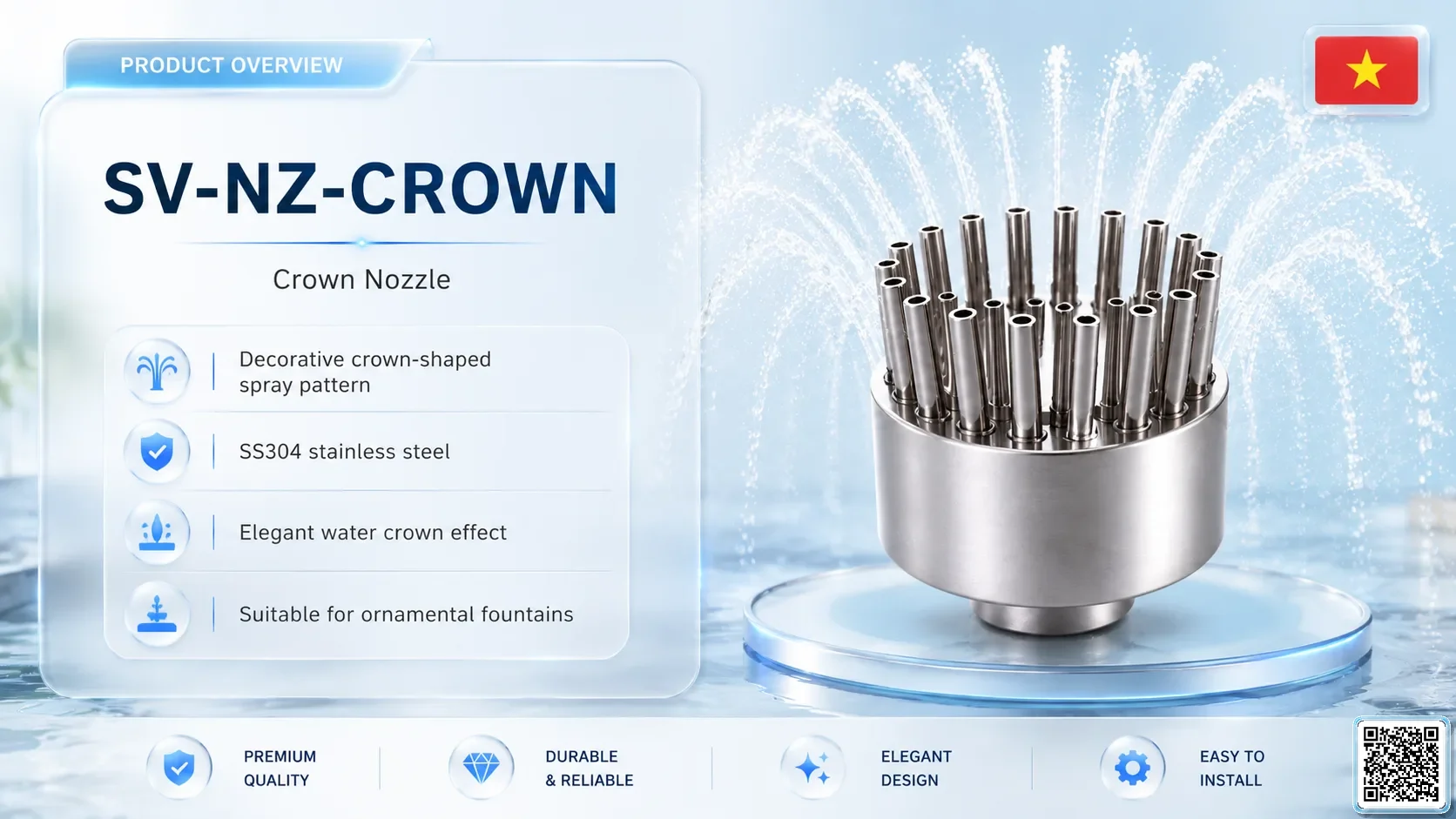

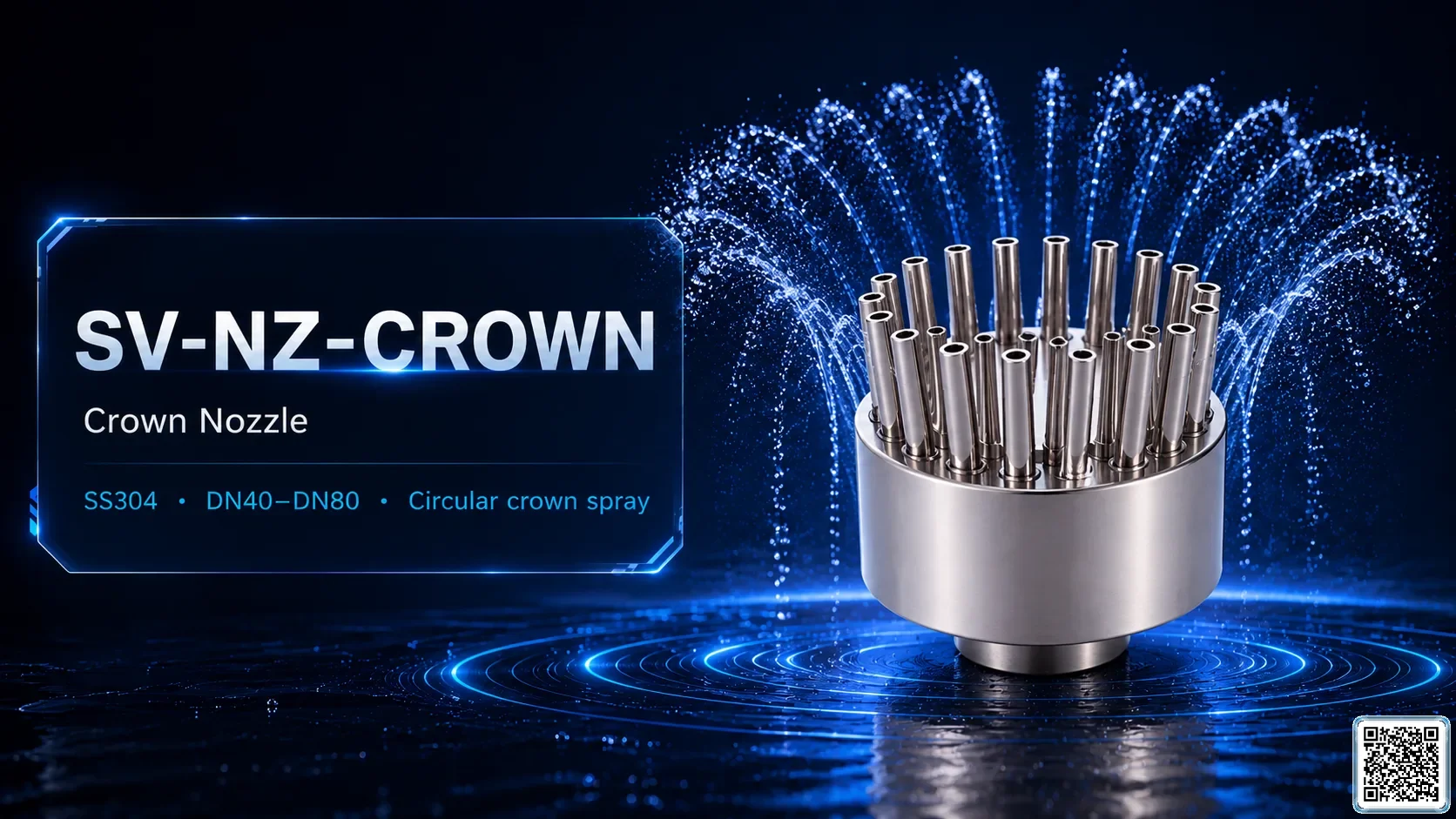

SV-NZ-CROWNCrown Nozzle
Crown Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 11 |
| Nozzle Type | SV-NZ-CROWN Crown Nozzle |
| Material | SS304 |
| Available Sizes | DN40 / 1.5 inch / DN80 / 3 inch |
| Variant Models | SV-NZ-CROWN-40 / SV-NZ-CROWN-80 |
| Spray Height | Refer to parameter table |
| Flow Rate | Refer to parameter table |
| Pressure Head | Refer to parameter table |
| Spray Diameter | Crown pattern |
Project Integration
Professional crown nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectcrown-shaped outward parabolic jets.
- Best forcircular pools, centerpieces, resort entrances and ceremonial water features.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationmulti-jet balancing, pump zoning and crown lighting scenes.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

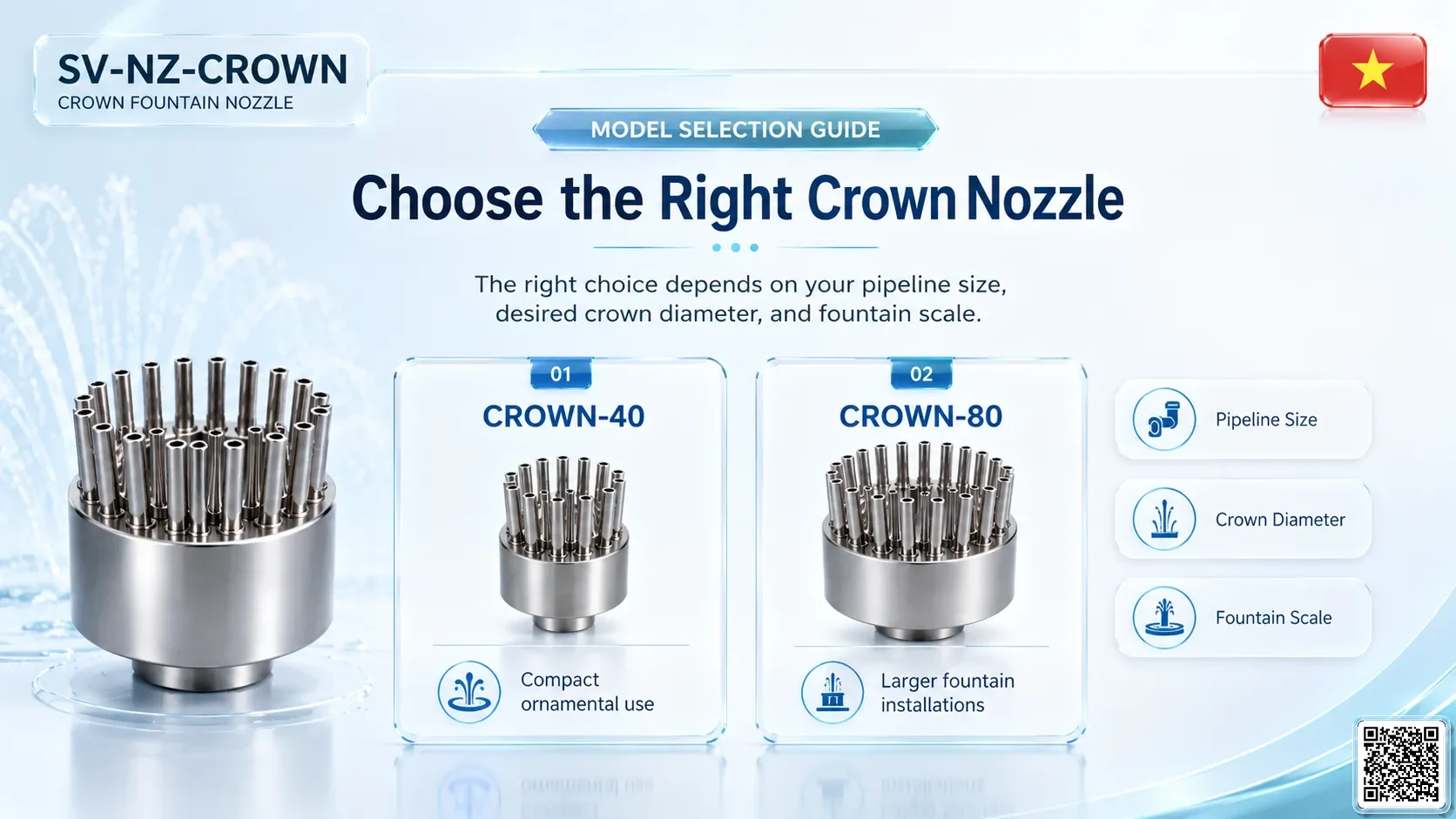

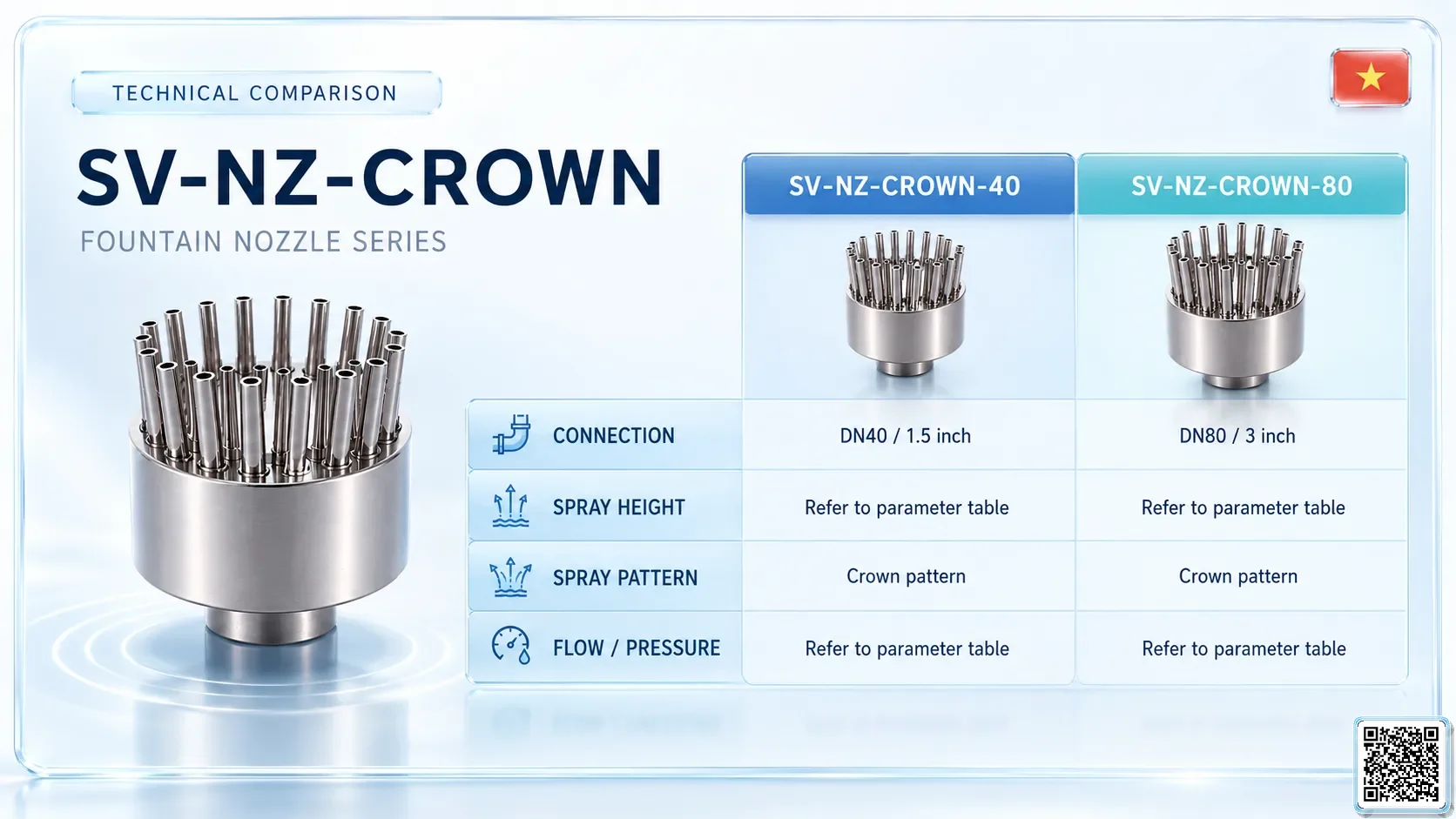

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-CROWN-40 SV-NZ-CROWN-40 | DN40 / 1.5 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Crown pattern | |
| SV-NZ-CROWN-80 SV-NZ-CROWN-80 | DN80 / 3 inch | Refer to parameter table | Refer to parameter table | Refer to parameter table | Crown pattern |
Applications & Key Features

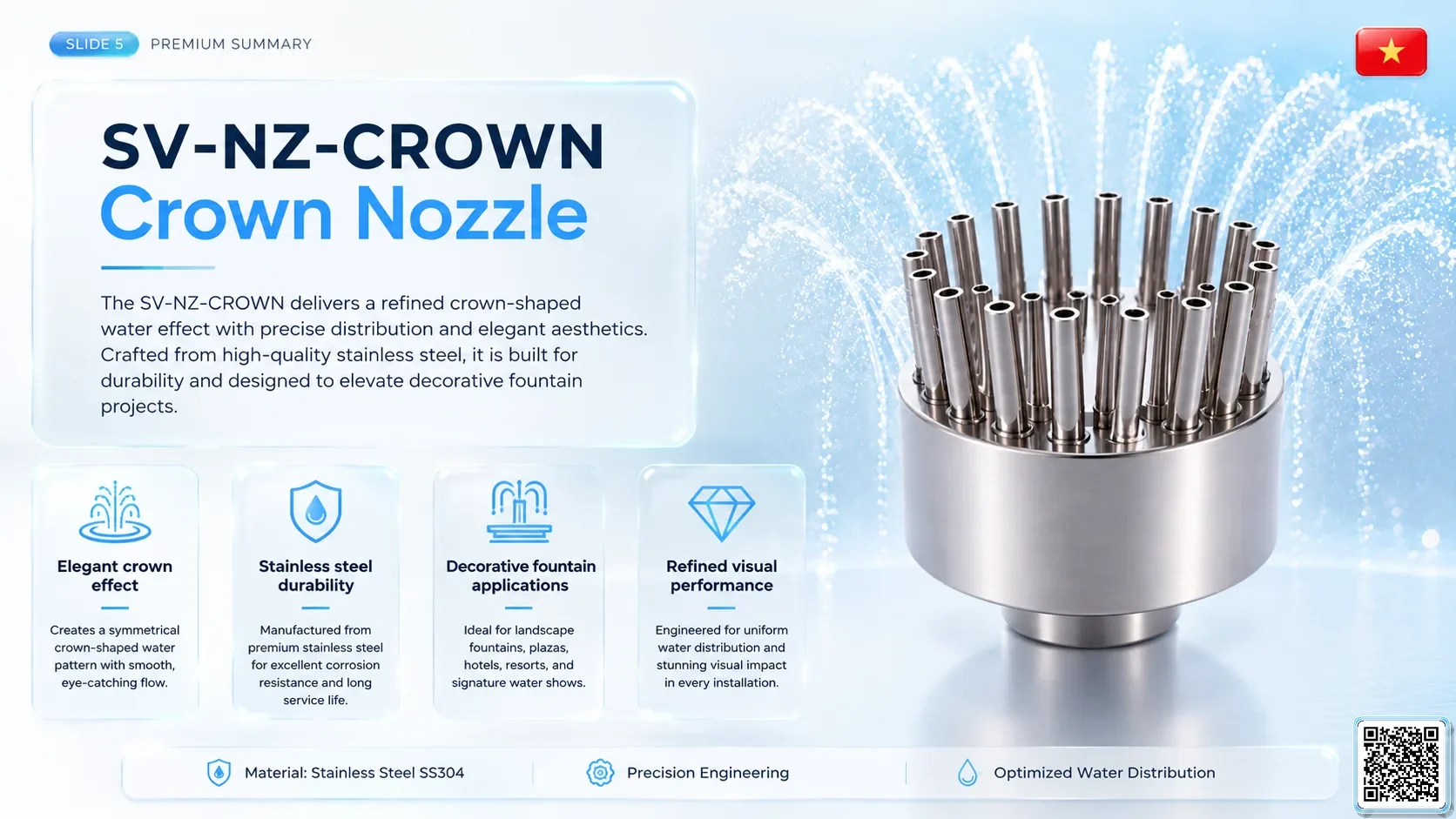

Overview
Forms a circle of outward parabolic water columns resembling a crown.

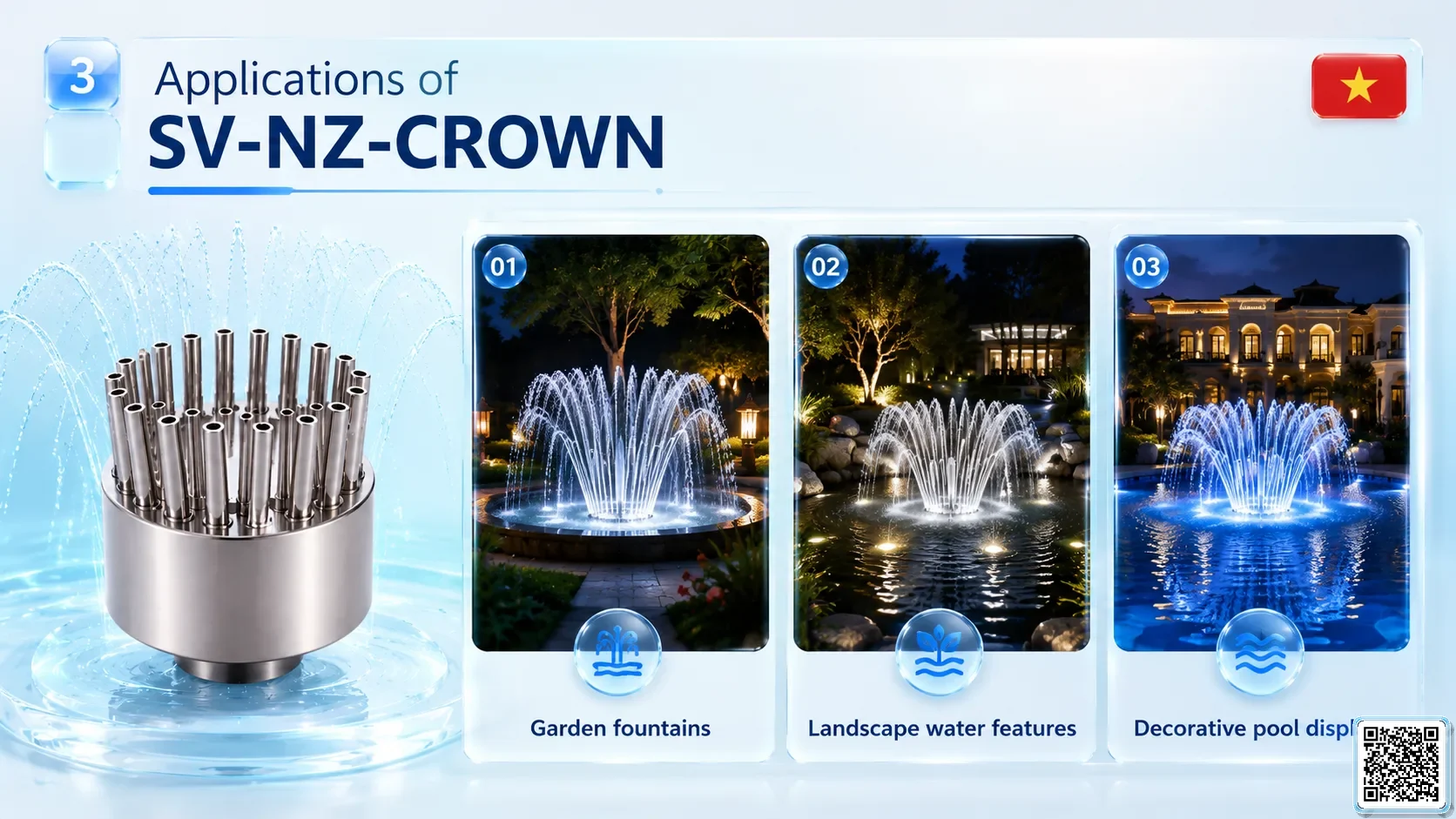

Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Crown-shaped outward parabolic jets; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
