SV-NZ-CNC3Three-Axis CNC Nozzle
Three-Axis CNC Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.

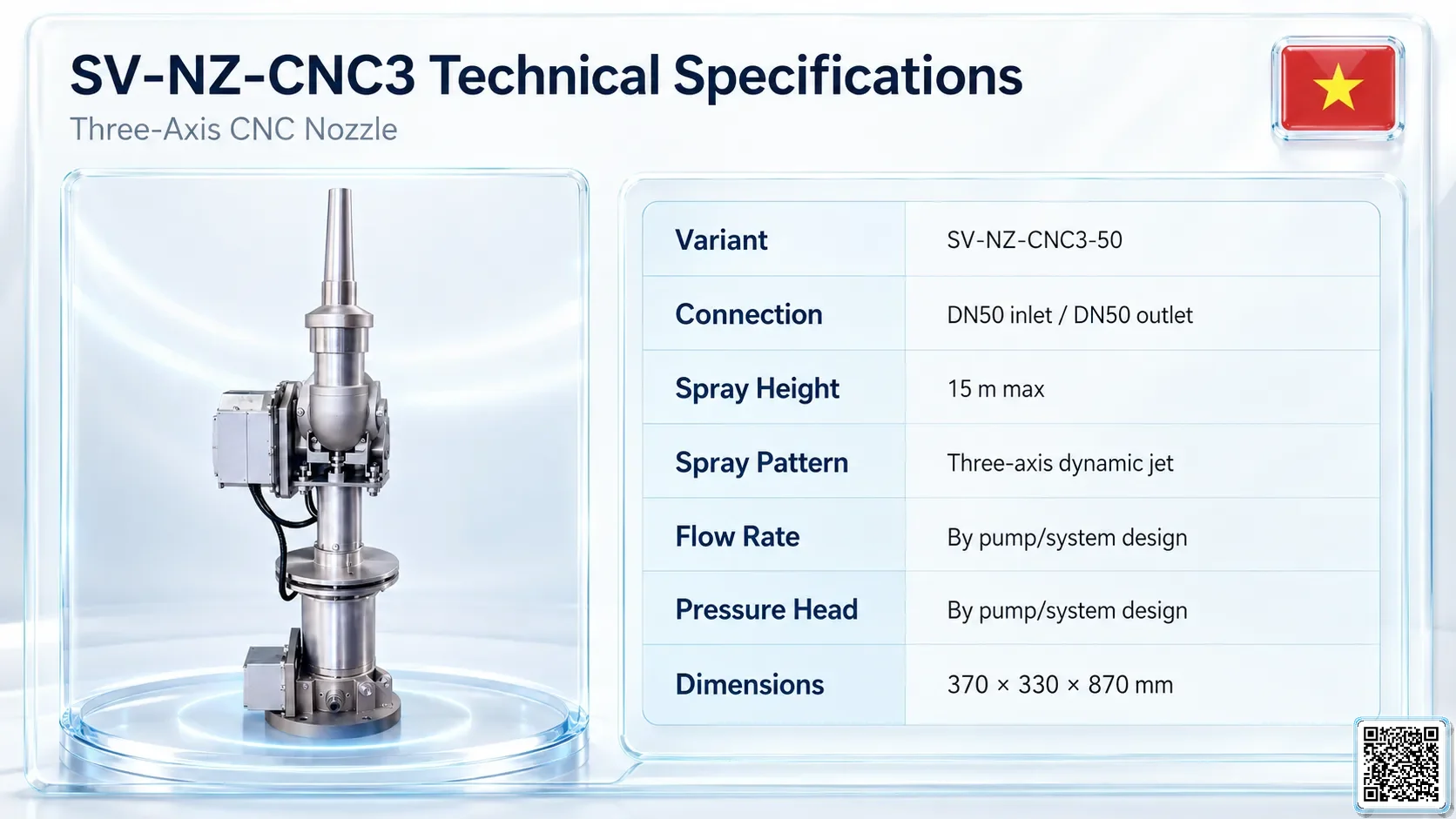

Technical Specifications
| Installation Type | Three-axis mechanism + mounting flange |
|---|---|
| Catalogue Page | 25 |
| Nozzle Type | SV-NZ-CNC3 Three-Axis CNC Nozzle |
| Material | SS304 |
| Available Sizes | DN50 inlet / DN50 outlet |
| Variant Models | SV-NZ-CNC3-50 |
| Spray Height | 15 m max |
| Flow Rate | By pump/system design |
| Pressure Head | By pump/system design |
| Spray Diameter | Three-axis dynamic jet |
| Dimension A | 370 mm |
| Dimension B | 330 mm |
| Dimension C | 870 mm |
| Dimension D | 220 mm |
Project Integration

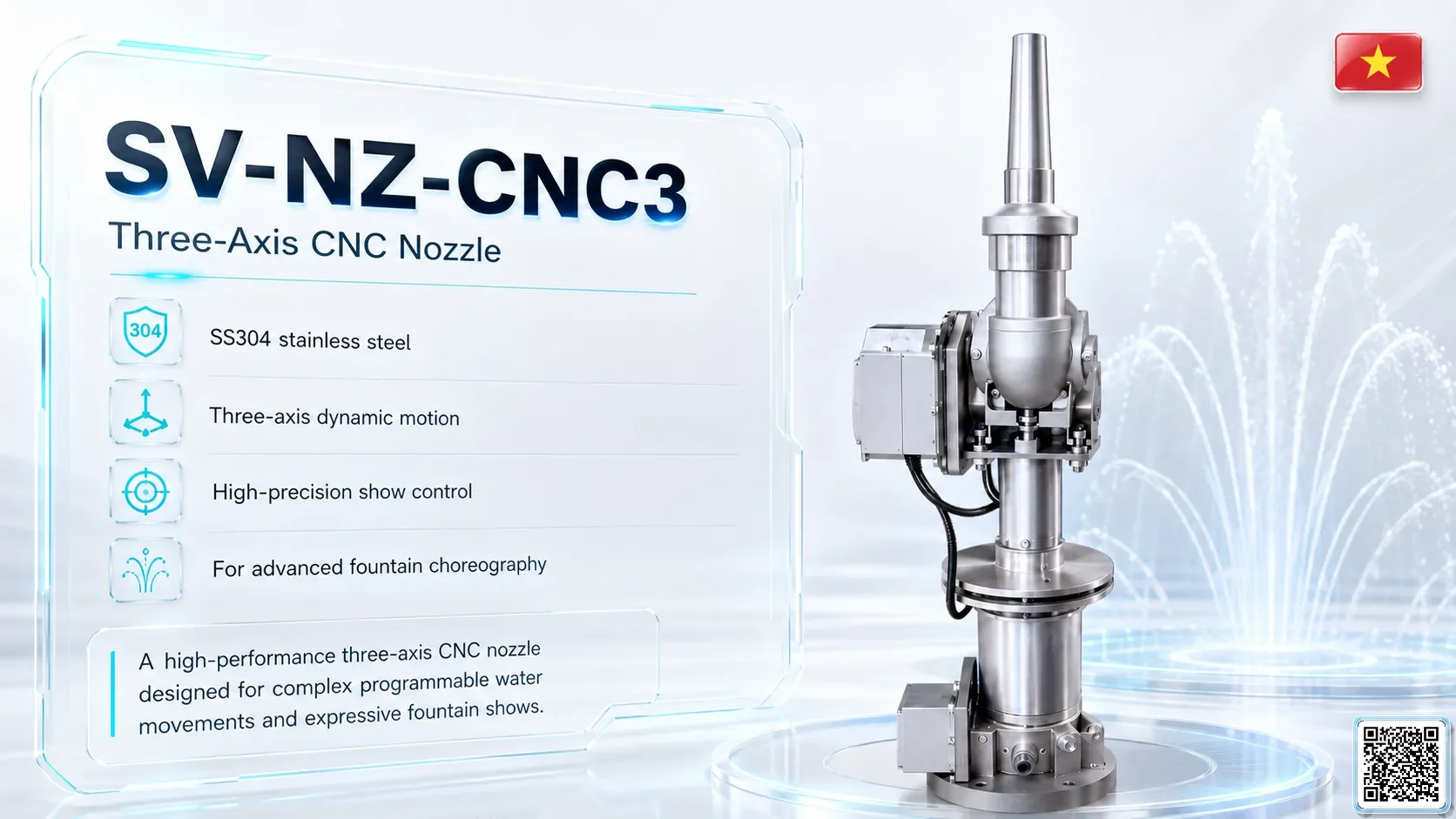

Professional three-axis CNC nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectmulti-axis programmable dynamic jet.
- Best forpremium landmark shows, complex water choreography, city squares and large public water-show projects.
- InstallationThree-axis mechanism + mounting flange
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationmulti-axis control, pump/valve synchronization, safety envelope planning and SmartVision timeline programming.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

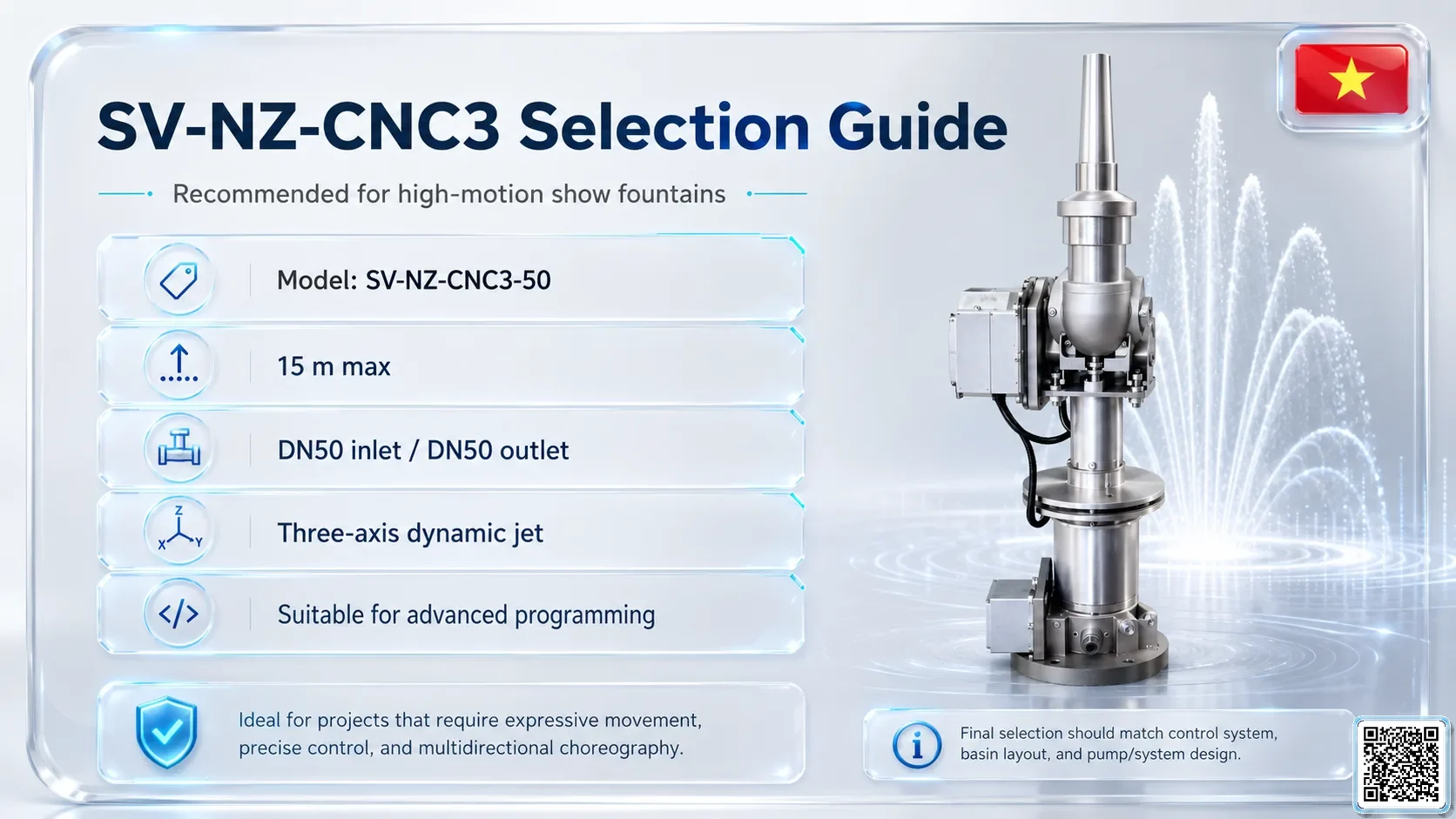

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-CNC3-50 SV-NZ-CNC3-50 | DN50 inlet / DN50 outlet | 15 m max | By pump/system design | By pump/system design | Three-axis dynamic jet | 370 mm / 330 mm / 870 mm / 220 mm |
Applications & Key Features
Overview
Multi-axis CNC nozzle for complex dynamic water patterns.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features

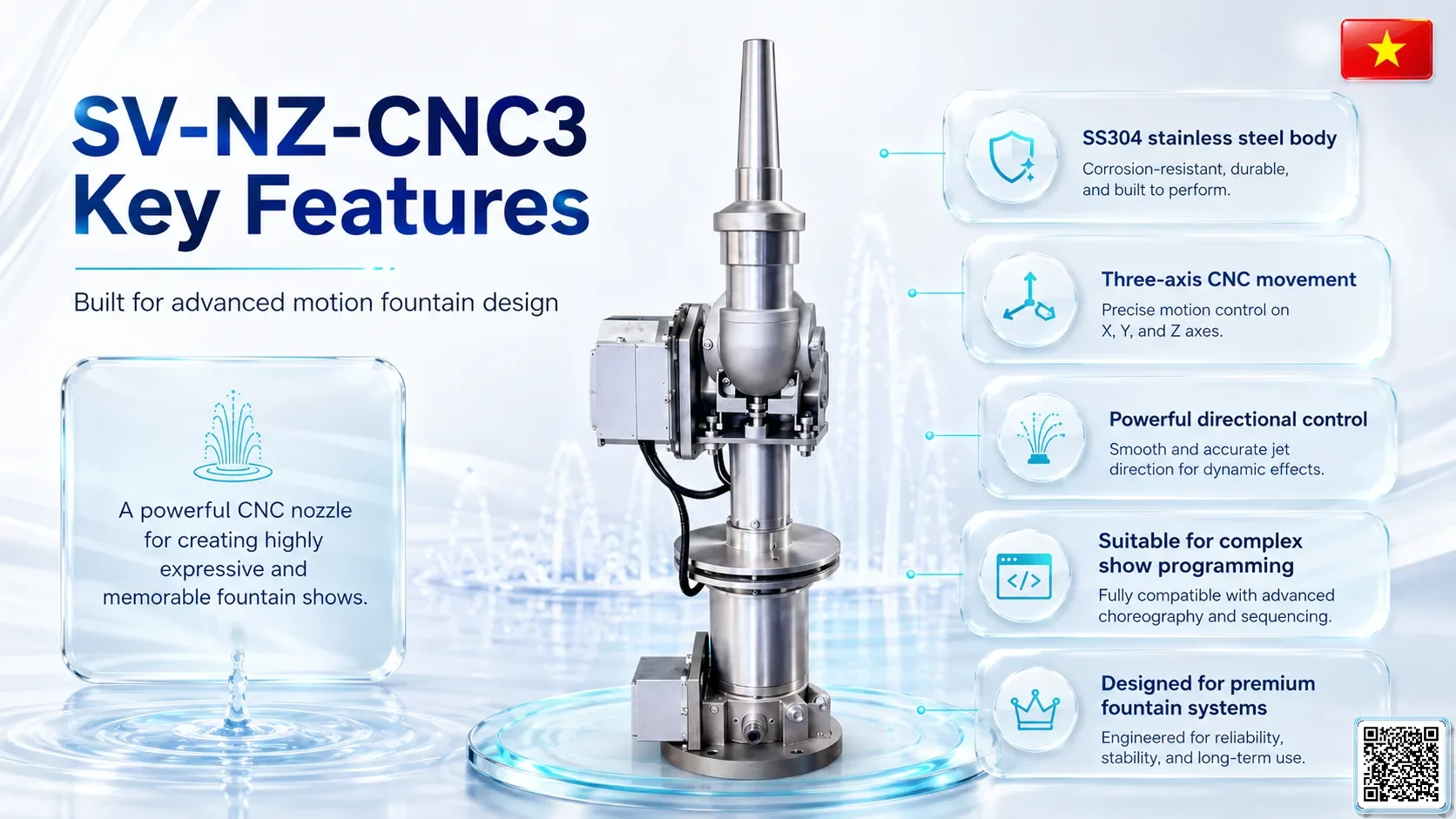

Multi-axis programmable dynamic jet; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
