SV-NZ-CNC2Two-Dimensional CNC Nozzle
Two-Dimensional CNC Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Two-dimensional CNC mounting base |
|---|---|
| Catalogue Page | 25 |
| Nozzle Type | SV-NZ-CNC2 Two-Dimensional CNC Nozzle |
| Material | SS304 |
| Available Sizes | DN50 inlet / DN50 outlet |

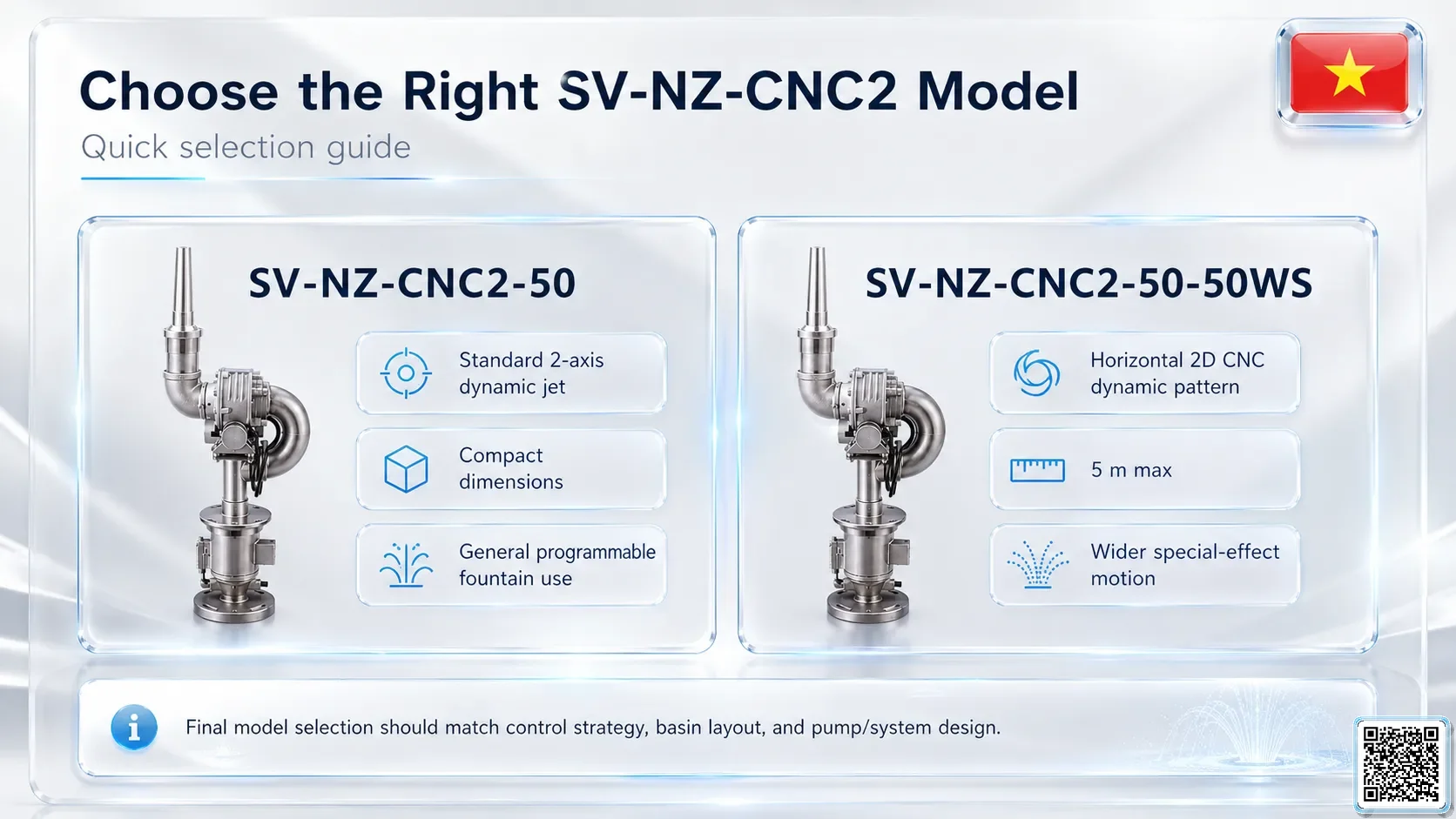

| Variant Models | SV-NZ-CNC2-50 / SV-NZ-CNC2-50-50WS |
| Spray Height | By CNC parameter table / 5 m max |
| Flow Rate | By pump/system design |
| Pressure Head | By pump/system design |
| Spray Diameter | Two-axis dynamic jet / Horizontal 2D CNC dynamic pattern |
| Dimension A | 370 mm / 800 mm |
| Dimension B | 350 mm / 400 mm |
| Dimension C | 650 mm / 660 mm |
| Dimension D | 240 mm |
Project Integration
Professional two-dimensional CNC nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectprogrammable two-axis moving jet.
- Best for3D-feel musical fountain shows, interactive plazas, landmark water shows and complex trajectories.
- InstallationTwo-dimensional CNC mounting base
- ConstructionSS304 stainless steel / project-grade metal body
- IntegrationDMX/PLC control, two-axis motor calibration, pump/valve coordination and show timeline programming.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size

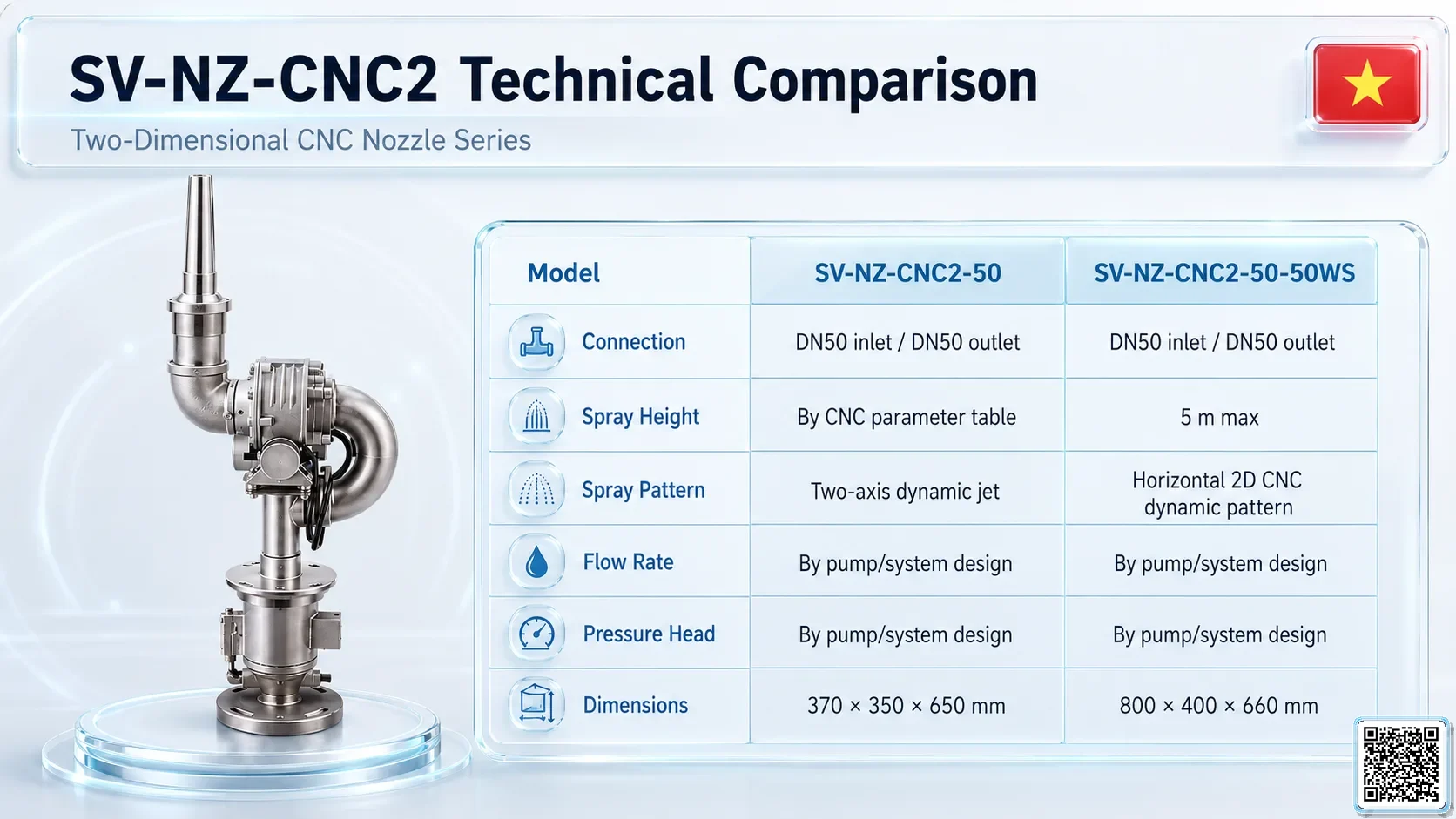

| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-CNC2-50 SV-NZ-CNC2-50 | DN50 inlet / DN50 outlet | By CNC parameter table | By pump/system design | By pump/system design | Two-axis dynamic jet | 370 mm / 350 mm / 650 mm / 240 mm |
| SV-NZ-CNC2-50-50WS SV-NZ-CNC2-50-50WS | DN50 inlet / DN50 outlet | 5 m max | By pump/system design | By pump/system design | Horizontal 2D CNC dynamic pattern | 800 mm / 400 mm / 660 mm |
Applications & Key Features
Overview

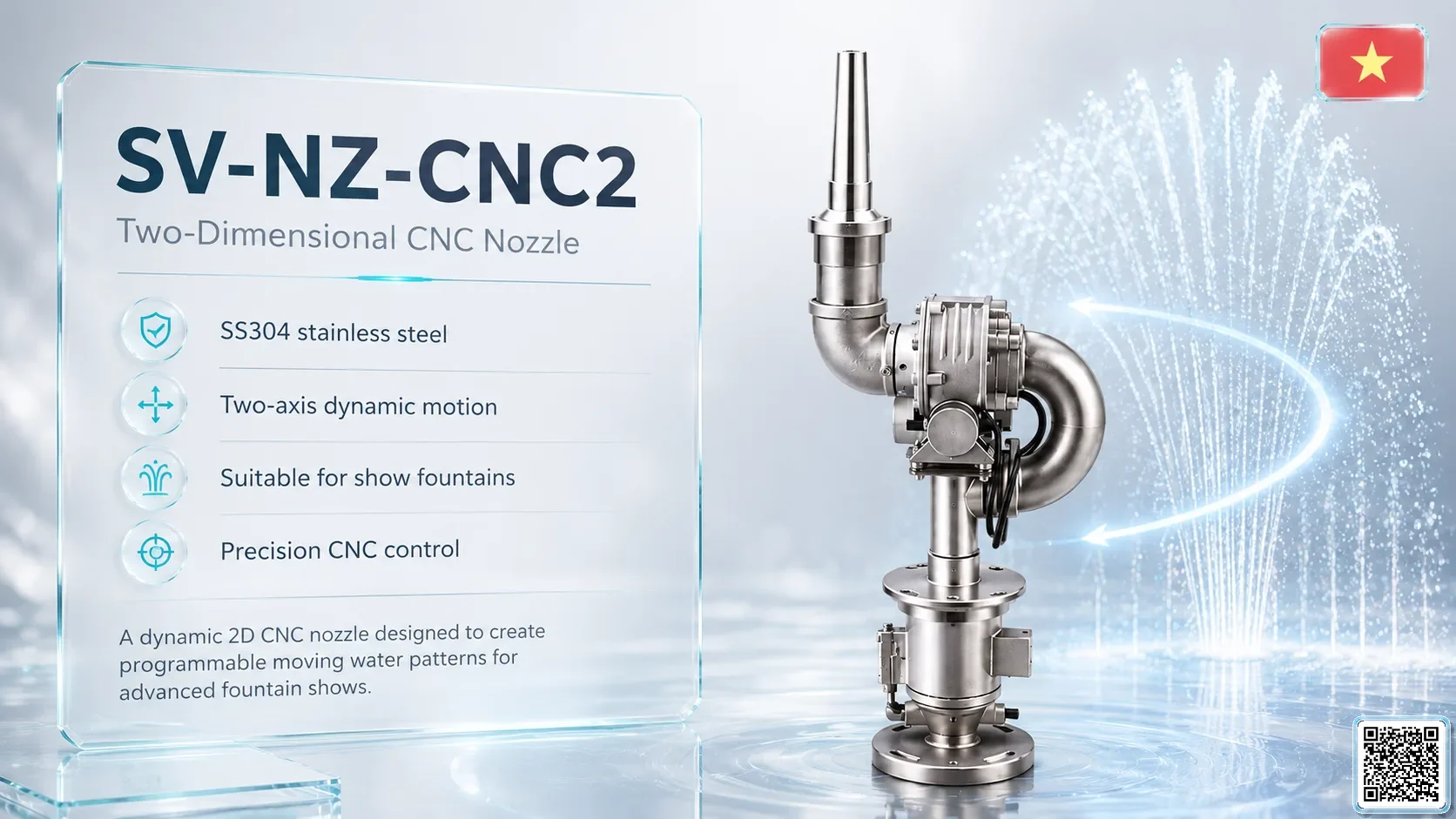

Two-axis CNC nozzle with reducer, sensors and stepper motors.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Programmable two-axis moving jet; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
