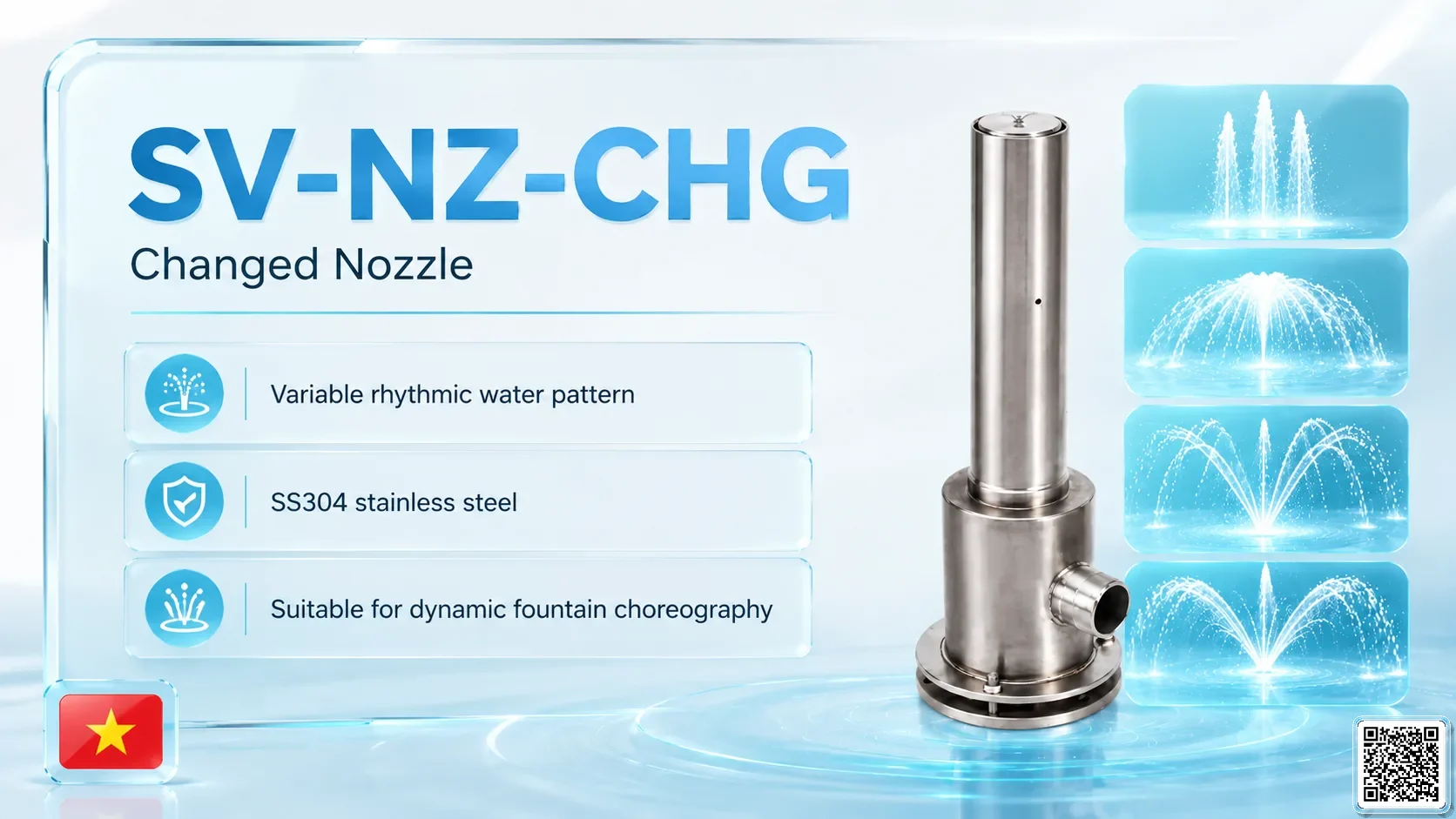

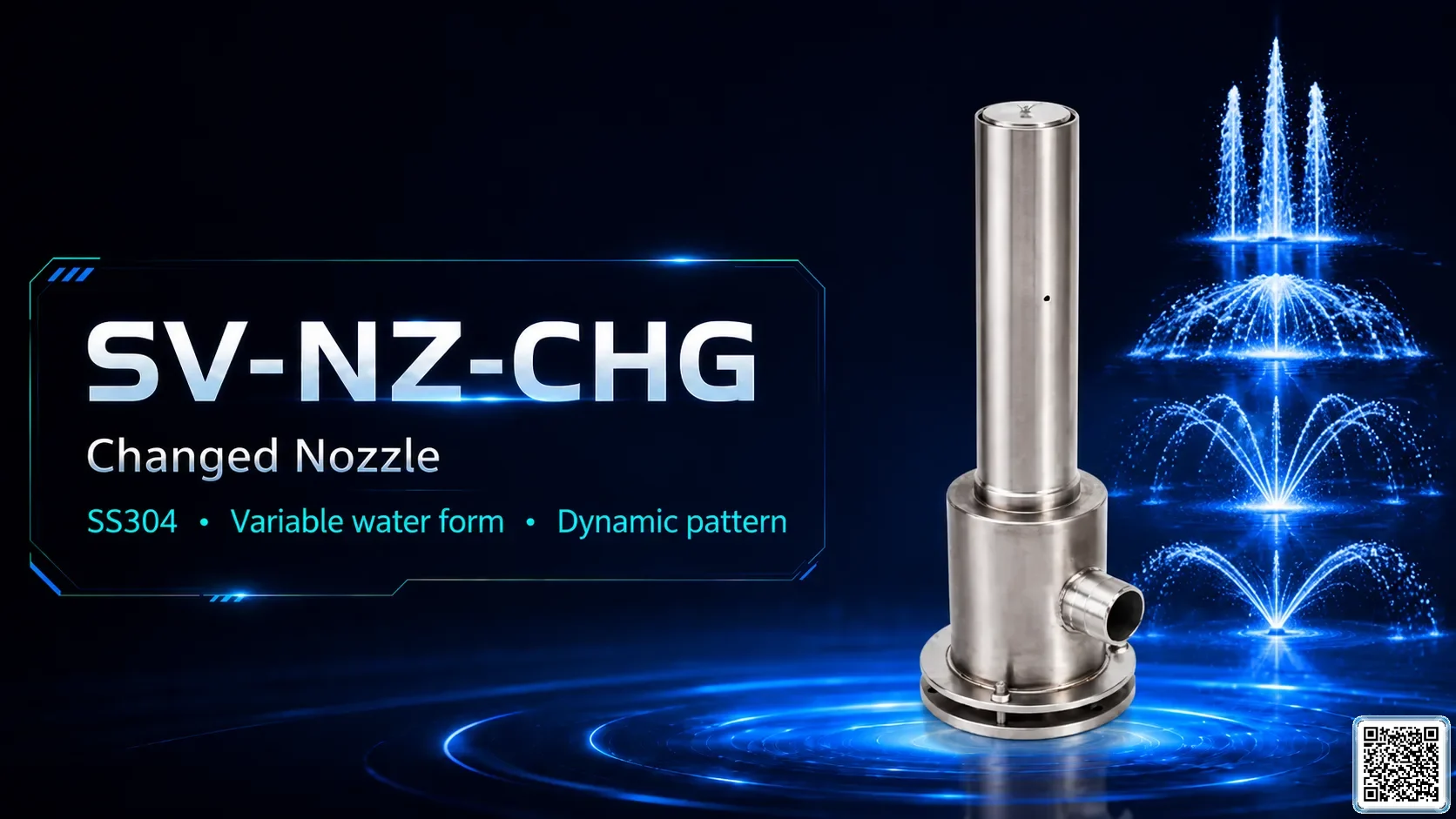

SV-NZ-CHGChanged Nozzle
Changed Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 20 |
| Nozzle Type | SV-NZ-CHG Changed Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch / DN40 / 1.5 inch |
| Variant Models | SV-NZ-CHG-25 / SV-NZ-CHG-40 / SV-NZ-CHG-40-2640 |
| Spray Height | Variable by drive/control |
| Flow Rate | Refer to parameter table |
| Pressure Head | Refer to parameter table |
| Spray Diameter | Variable rhythmic water pattern |
Project Integration
Professional changed nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectvariable rhythmic water height and width.
- Best fordynamic musical scenes, plaza shows and visual transitions.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationpump/valve control, scene programming and RGB/DMX lighting synchronization.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.

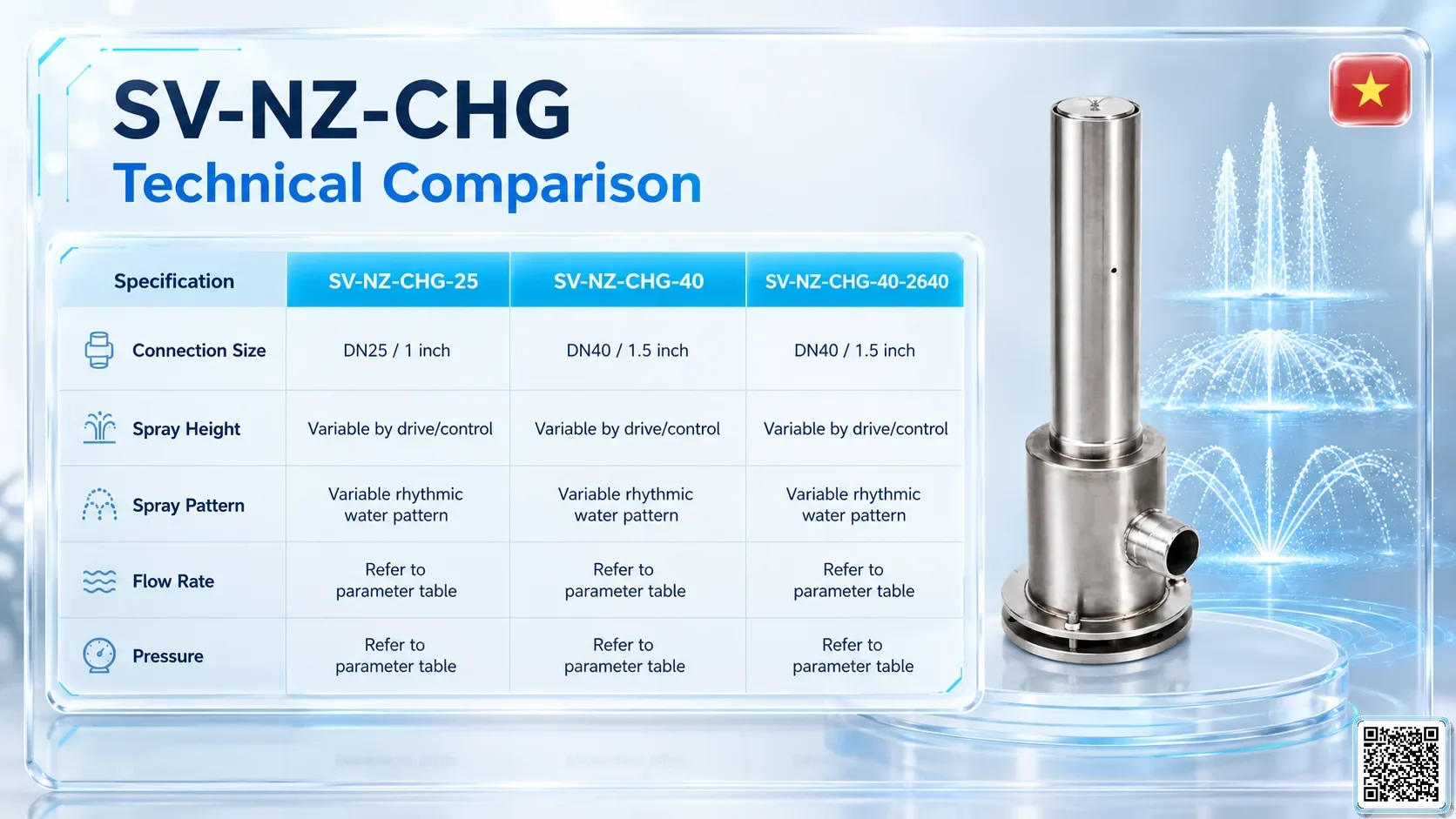

Technical Specifications by Model / Size
| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-CHG-25 SV-NZ-CHG-25 | DN25 / 1 inch | Variable by drive/control | Refer to parameter table | Refer to parameter table | Variable rhythmic water pattern | |
| SV-NZ-CHG-40 SV-NZ-CHG-40 | DN40 / 1.5 inch | Variable by drive/control | Refer to parameter table | Refer to parameter table | Variable rhythmic water pattern | |
| SV-NZ-CHG-40-2640 SV-NZ-CHG-40-2640 | DN40 / 1.5 inch | Variable by drive/control | Refer to parameter table | Refer to parameter table | Variable rhythmic water pattern |
Applications & Key Features
Overview
Variable nozzle for rhythmic height and width changes.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Variable rhythmic water height and width; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
