SV-NZ-BWCSeagull Bird Wing Fountain Module

Name: SV-NZ-BWC Seagull Bird Wing Fountain Module
Brand: Smart Vision
SKU: SV-NZ-BWC
Price: 1000 USD
Availability: InStock

Motor-driven seagull bird-wing fountain module using two symmetrical rows of DN25 jet nozzles to create a dynamic wing-shaped water effect.

nozzlesSV-NZ-BWCRequest quotation

Choose nozzle configuration

Size / Connection Connection Spray height Flow rate Pressure / Head Dimensions A/B/C/D Quantity

Add to Project BOM

👁 567

Seagull Bird Wing Fountain Module in Hong Ngu project

View more product videos ↓

Technical Specifications

Series	SV-NZ-BWC
Installation Type	Integrated stainless-steel frame; submerged or pool-equipment installation
Height	Approx. 600 mm
Housing Material	Stainless steel frame and manifolds; nozzle/valve material project-specific
Material	Stainless steel frame and manifolds; nozzle/valve material project-specific
Nozzle Type	SV-NZ-BWC Seagull Bird Wing Fountain Module
Available Sizes	20 × DN25 jet outlets; DN50 water inlet
Variant Models	SV-NZ-BWC-20
Spray Height	Project-specific; depends on pump flow, head, nozzle setting and waving angle
Flow Rate	Project-specific; total flow depends on 20 DN25 nozzles and valve adjustment
Pressure Head	Project-specific; pump selection required

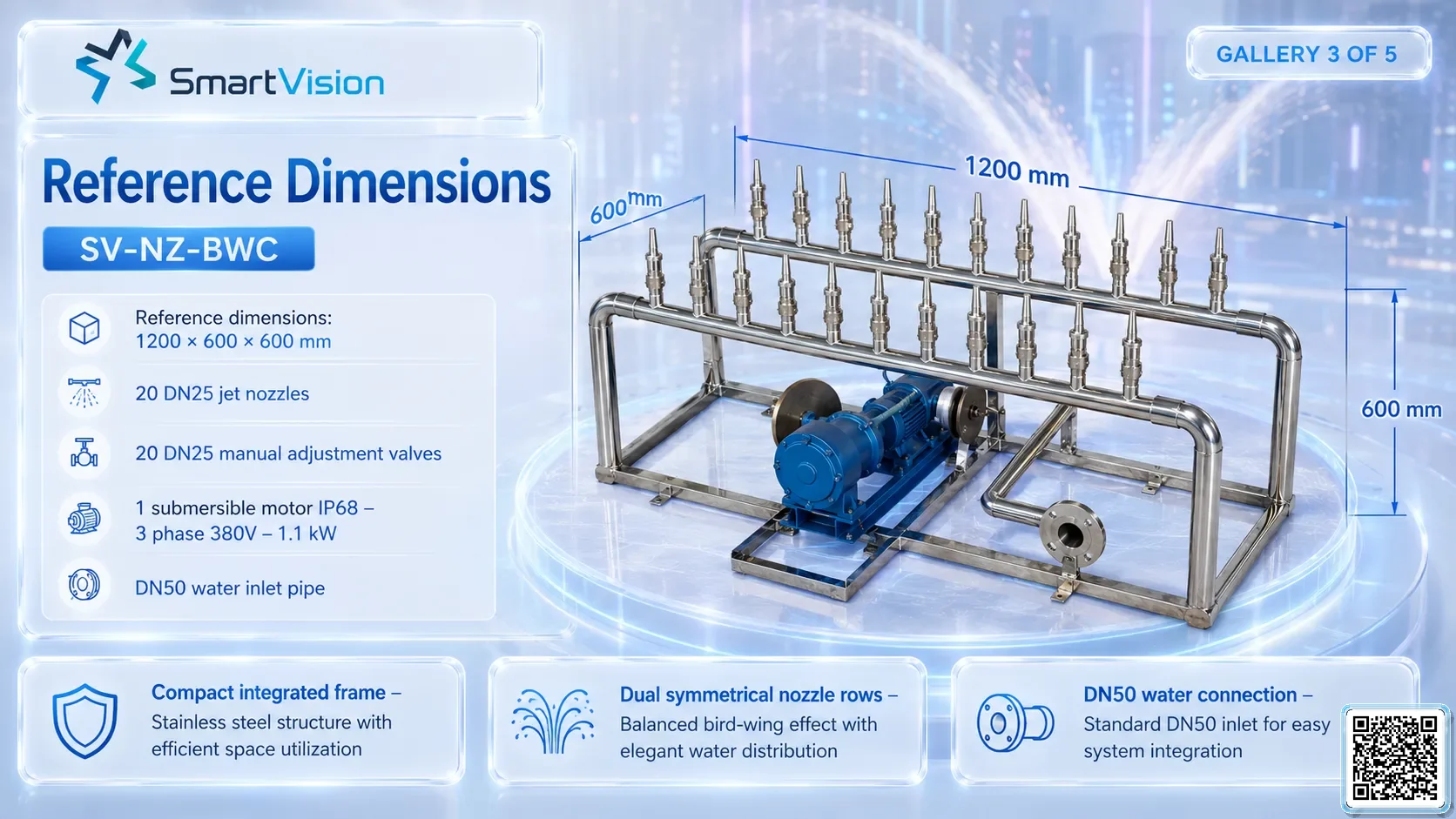

Dimension A	1200 mm
Dimension B	600 mm
Dimension C	600 mm
Dimension D	Reference dimensions; confirm by fabrication drawing

Project Integration

Integrates with the water-supply pump and a 3-phase 380V motor control panel or VFD. Waving cycles can be programmed through PLC/DMX/Art-Net using contactor or VFD control. Overload, phase-loss, overcurrent and mechanical limit protection should be provided.

PRODUCT CONFIGURATIONS

Technical Specifications by Model / Size

Total nozzle sizes: 1

Variant	Connection	Spray height	Flow rate	Pressure / Head	Diameter	A / B / C / D
SV-NZ-BWC-20 SV-NZ-BWC-20	20 × DN25 jet outlets; DN50 water inlet	Project-specific; depends on pump flow, head, nozzle setting and waving angle	Project-specific; total flow depends on 20 DN25 nozzles and valve adjustment	Project-specific; pump selection required		1200 mm / 600 mm / 600 mm / Reference dimensions; confirm by fabrication drawing

PRODUCT VIDEO

Product Videos & Live Demonstrations

Watch real operation, testing and project applications of Smart Vision equipment.

Product video

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

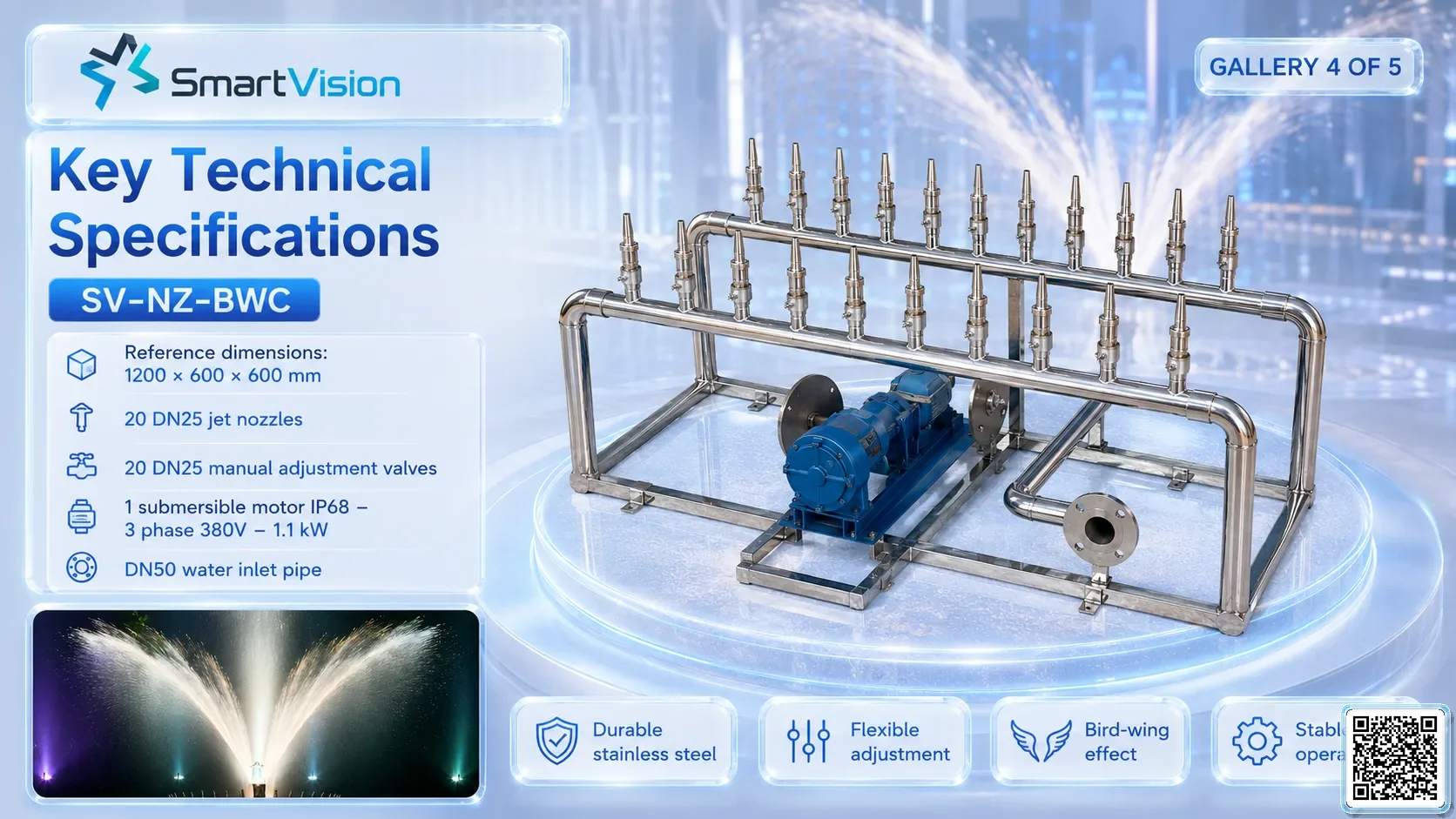

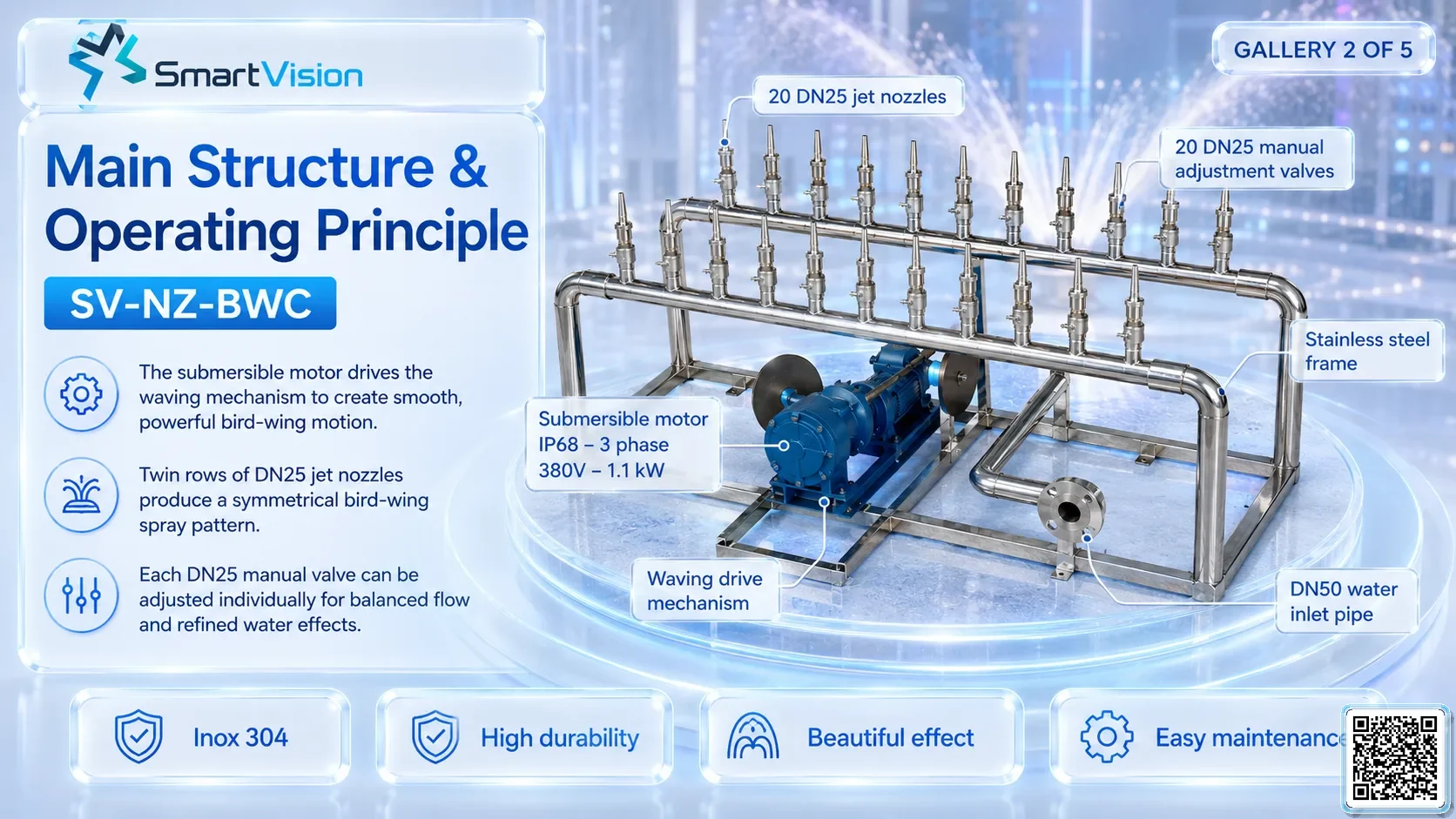

Integrated stainless-steel module with 20 DN25 jet nozzles, 20 manual balancing valves, an IP68 submersible motor and a waving drive mechanism for musical-fountain shows.

Applications

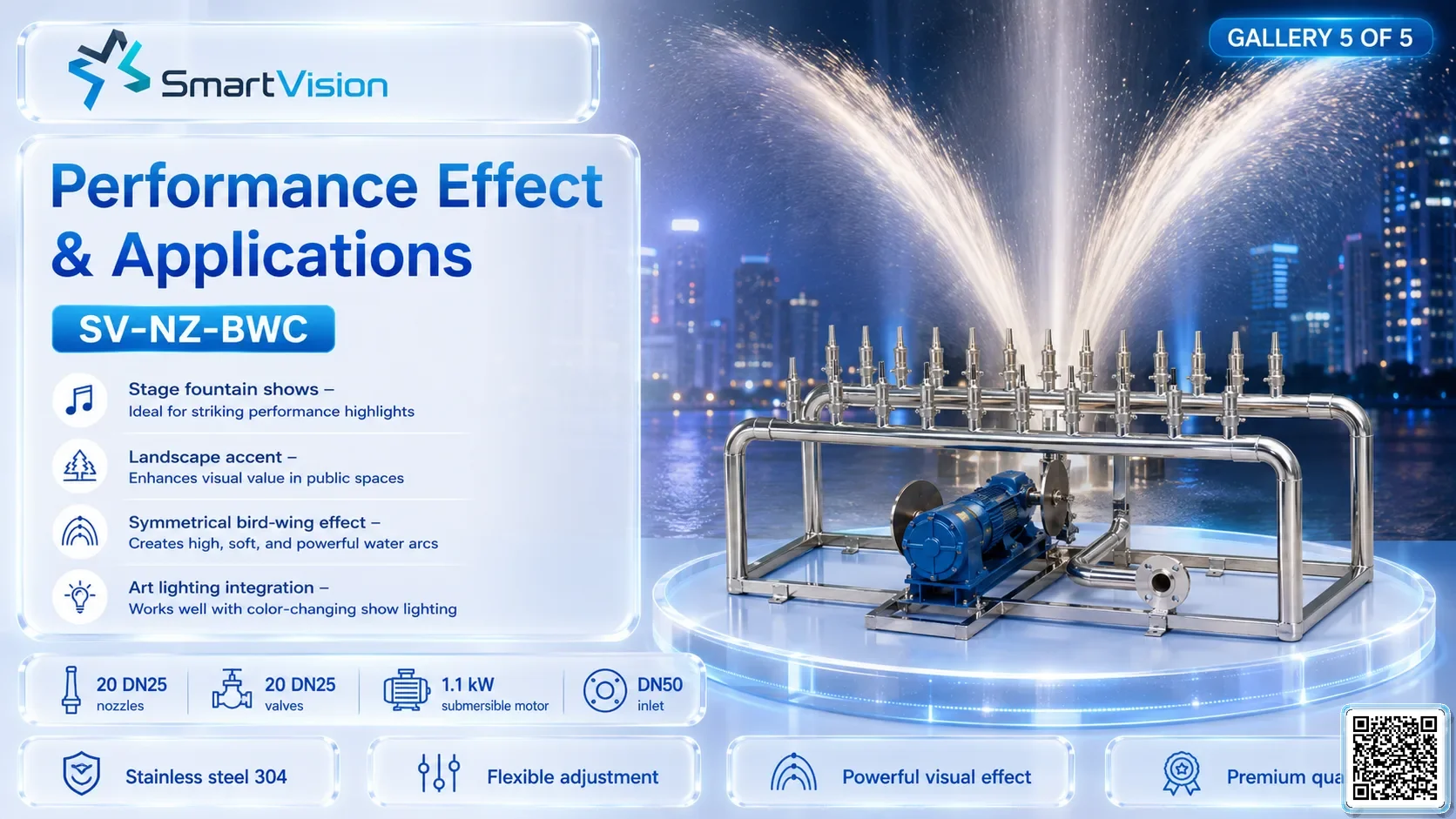

Stage fountains, landscape pools, plazas, parks and water shows requiring a symmetrical moving bird-wing effect.

Key features

20 DN25 jet nozzles; 20 DN25 manual balancing valves; IP68 3-phase 380V 1.1 kW submersible motor; DN50 inlet; stainless-steel frame; moving bird-wing effect.
