SV-NZ-BCUPBubbling Cup Nozzle
Bubbling Cup Nozzle series with selectable DN sizes, hydraulic parameters and project quotation options.
Catalogue, Technical Images & Drawings
Catalogue / CAD files are ready
Preview images are being updated, but the technical document files can be downloaded now.
Technical Specifications
| Installation Type | Threaded / fixed mounting |
|---|---|
| Catalogue Page | 12 |
| Nozzle Type | SV-NZ-BCUP Bubbling Cup Nozzle |
| Material | SS304 |
| Available Sizes | DN25 / 1 inch / DN40 / 1.5 inch |
| Variant Models | SV-NZ-BCUP-25 / SV-NZ-BCUP-40 |
| Spray Height | 0.2-0.4 m / 0.3-0.6 m |
| Flow Rate | 3.5 m³/h / 10 m³/h |
| Pressure Head | 50-100 kPa |
| Spray Diameter | 0.3-0.5 / 0.4-0.8 |
Project Integration
Professional bubbling cup nozzle for SmartVision musical fountain and architectural water-show projects.
Suitable for CAD layout, nozzle spacing and site coordination.
Designed for long-term fountain and outdoor water-feature use.
- Water effectcup bubbling water column without suction tube.
- Best forcompact bubbling points, shallow basins, hotel pools and landscape features.
- InstallationThreaded / fixed mounting
- ConstructionSS304 stainless steel / project-grade metal body
- Integrationsimple threaded installation, pump zoning and maintenance-friendly layout.
- Compatible with underwater lights, dry-deck/ring lights, DMX color zones and SmartVision show-control workflow.
- Ready for BOQ, hydraulic calculation, zoning, installation drawings and project quotation.
✅ SmartVision can support nozzle selection, pump/head calculation, control-cabinet planning, cable routing and complete proposal package.
Technical Specifications by Model / Size

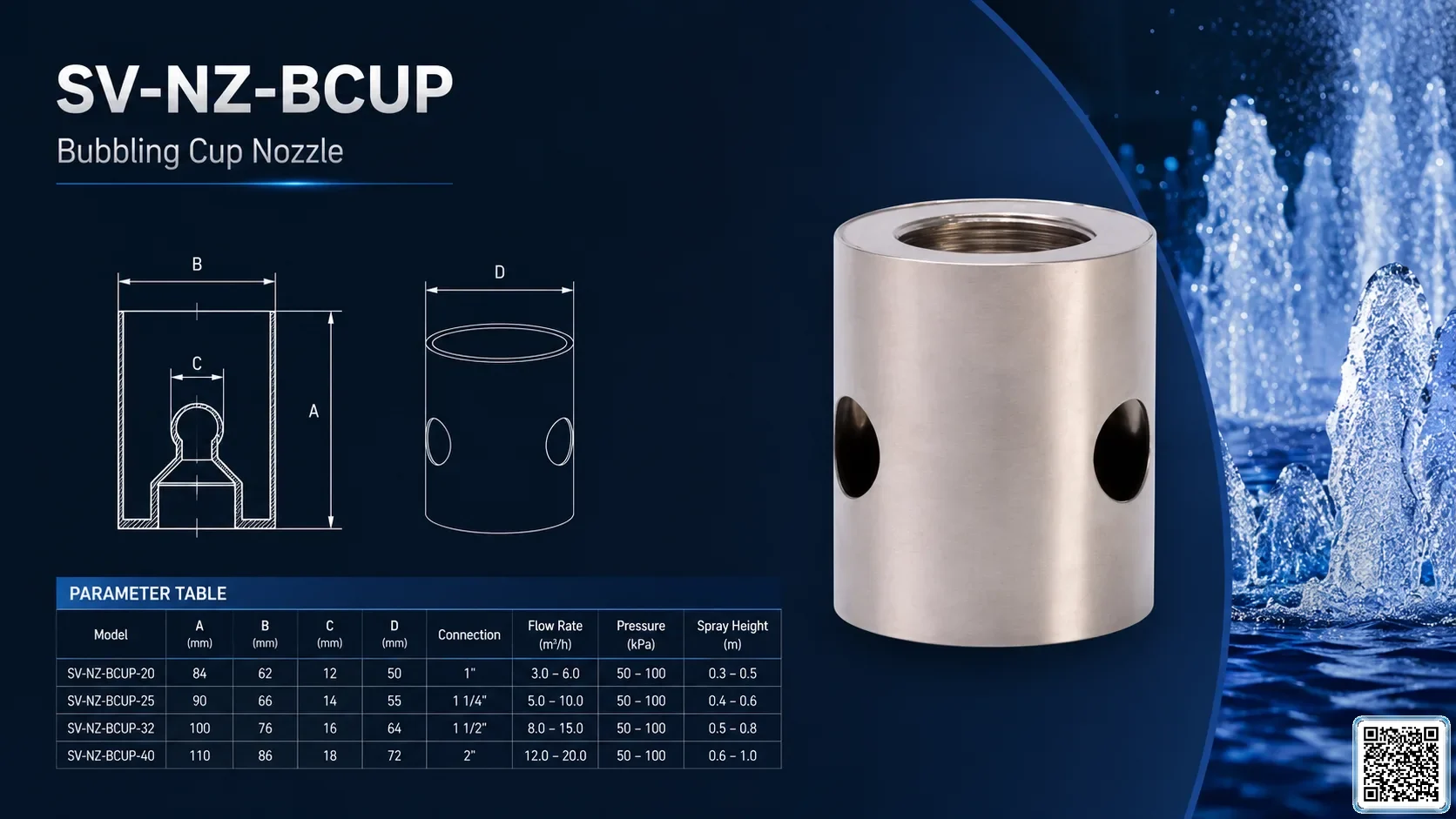

| Variant | Connection | Spray height | Flow rate | Pressure / Head | Diameter | A / B / C / D |
|---|---|---|---|---|---|---|
| SV-NZ-BCUP-25 SV-NZ-BCUP-25 | DN25 / 1 inch | 0.2-0.4 m | 3.5 m³/h | 50-100 kPa | 0.3-0.5 | |
| SV-NZ-BCUP-40 SV-NZ-BCUP-40 | DN40 / 1.5 inch | 0.3-0.6 m | 10 m³/h | 50-100 kPa | 0.4-0.8 |
Flow / Pressure by Spray Height
Reference data from supplier catalogue. Use final pump selection after project hydraulic calculation.
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.2-0.4 | 3.5 | 50-100 |
| Spray height (m) | Flow rate (m³/h) | Pressure (kPa) |
|---|---|---|
| 0.3-0.6 | 10 | 50-100 |
Applications & Key Features
Overview
Produces a rough straight water column without suction tube.
Applications
Musical fountains, landscape fountains, pools, plazas, resorts, parks and water-show projects.
Key features
Cup bubbling water column without suction tube; SS304 stainless steel; project-ready layout; SmartVision BOM support; catalogue-based parameters.
