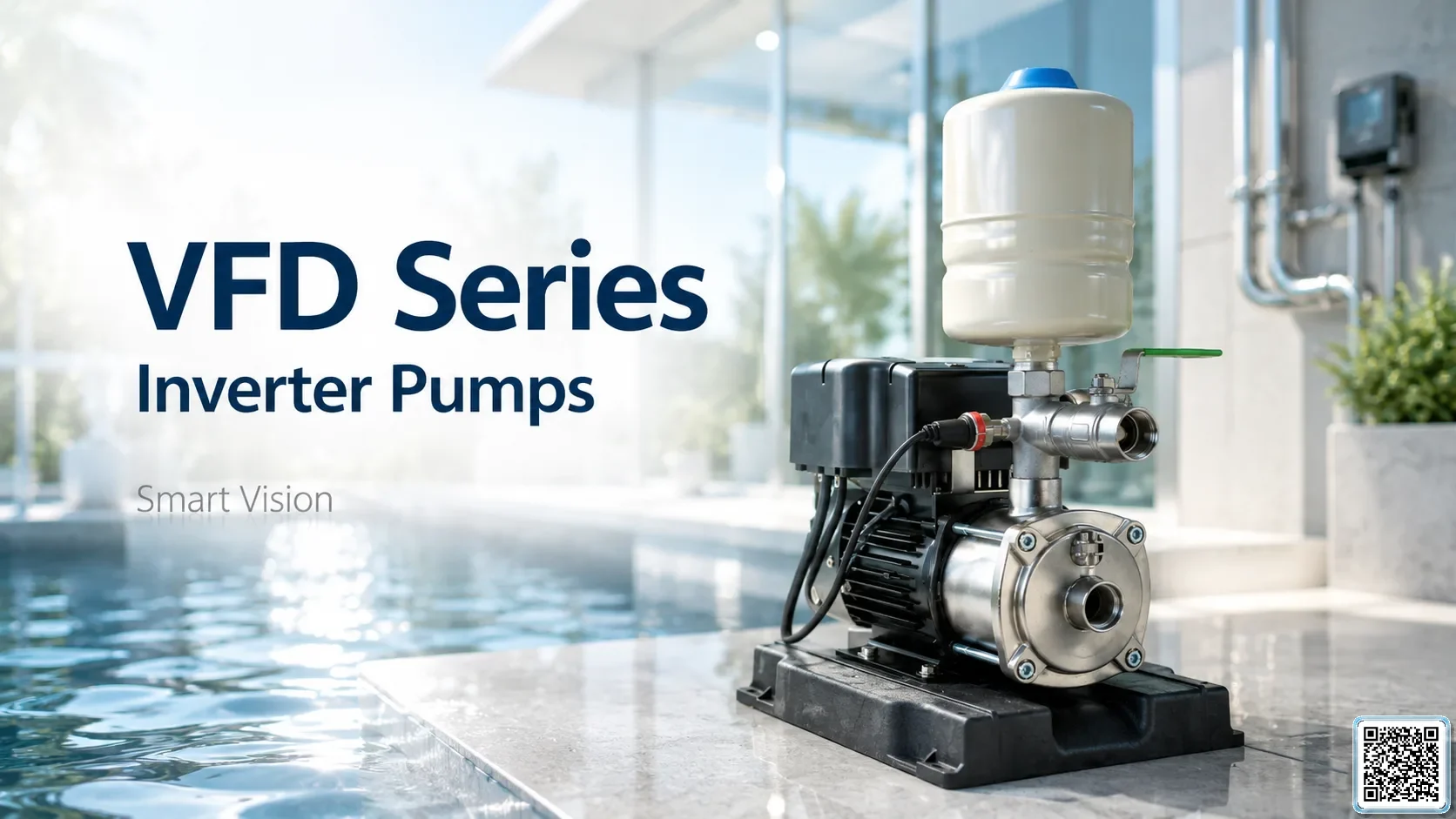

VFD Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

VFDSeries Inverter Pumps

Name: VFD Series Inverter Pumps
Brand: APP

APP VFD Series BLDC / Inverter Pump from Taiwan.

pumpsVFDRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 74

Technical Specifications

source	APP catalogue
section	Domestic
series	VFD
family	BLDC / Inverter Pump
catalogue_page	Domestic 53-54
features	Soft start/stop; AIP; plug-and-play adjustable pressure; modular VFD system.
Series	VFD Series
Pump Series	VFD
Pump Type	BLDC / Inverter Pump
Motor Type	VFD inverter motor
Max Diving Depth	Maximum suction 1 m
Water Temperature	0~90℃ / 32~194℉
pH Range	6~8
Pump construction	IP55
Material	SUS304 wetted parts
Variant Dimensions	400 x 272 x 510 mm / 400 x 272 x 525 mm
Pump length / size	400 x 272 x 510 mm / 400 x 272 x 525 mm
Variant Max Flow	85 LPM @ 1.0 kg/cm² / 140 LPM @ 1.0 kg/cm² / 80 LPM @ 1.0 kg/cm² / 130 LPM @ 1.0 kg/cm² / 135 LPM @ 1.0 kg/cm²
Variant Max Head	40 m / 42 m / 55 m / 68 m
Variant Weight	14 kg / 15.5 kg / 16.5 kg / 21 kg

Project Integration

VFD Series Inverter Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
VFD-34 VFD-34	1 HP / 750 W	—	25 mm / 1"	80 LPM @ 1.0 kg/cm²	55 m	—	400	15.5 kg	—
VFD-35 VFD-35	1 1/2 HP / 1125 W	—	25 mm / 1"	85 LPM @ 1.0 kg/cm²	68 m	—	400	16.5 kg	—
VFD-54 VFD-54	1 1/2 HP / 1125 W	—	25 mm / 1"	130 LPM @ 1.0 kg/cm²	55 m	—	400	16.5 kg	—
VFD-53 VFD-53	1 HP / 750 W	—	25 mm / 1"	140 LPM @ 1.0 kg/cm²	42 m	—	400	15.5 kg	—
VFD-55 VFD-55	2 HP / 1500 W	—	25 mm / 1"	135 LPM @ 1.0 kg/cm²	68 m	—	400	21 kg	—
VFD-33 VFD-33	3/4 HP / 550 W	—	25 mm / 1"	85 LPM @ 1.0 kg/cm²	40 m	—	400	14 kg	—
