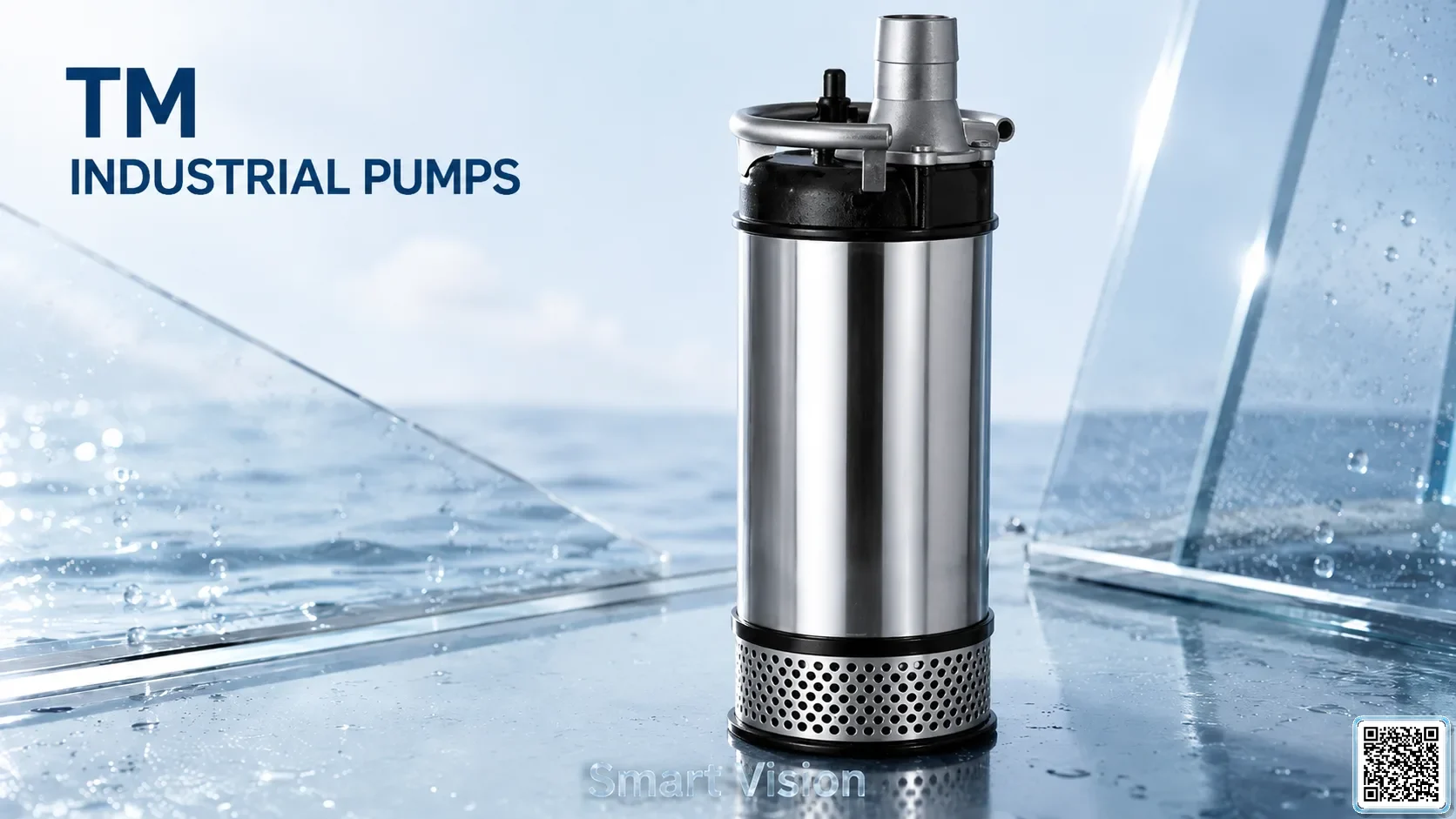

TM Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

TMSeries Industrial Pumps

Name: TM Series Industrial Pumps
Brand: APP

APP TM Series Industrial / Chemical Pump from Taiwan.

pumpsTMRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 56

Technical Specifications

source	APP catalogue
section	Auxiliary
series	TM
family	Industrial / Chemical Pump
catalogue_page	Auxiliary 09-10
features	Industrial pump range with H/M/L hydraulic options.
Series	TM Series
Pump Series	TM
Pump Type	Industrial / Chemical Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Variant Dimensions	228 x 228 x 602 mm / 274 x 271 x 704 mm / 274 x 271 x 693 mm / 274 x 271 x 730 mm / 274 x 271 x 723 mm
Pump length / size	228 x 228 x 602 mm / 274 x 271 x 704 mm / 274 x 271 x 693 mm / 274 x 271 x 730 mm / 274 x 271 x 723 mm
Variant Max Flow	Rated 250 LPM / Max 450 LPM / Rated 500 LPM / Max 650 LPM / Rated 300 LPM / Max 500 LPM / Rated 600 LPM / Max 800 LPM / Rated 200 LPM / Max 500 LPM / Rated 500 LPM / Max 900 LPM / Rated 1000 LPM / Max 1500 LPM / Rated 600 LPM / Max 1200 LPM / Rated 1000 LPM / Max 1700 LPM
Variant Max Head	Rated 15 m / Max 22 m / Rated 8 m / Max 16 m / Rated 20 m / Max 27 m / Rated 10 m / Max 20 m / Rated 30 m / Max 36 m / Rated 20 m / Max 30 m / Rated 10 m / Max 18 m / Rated 25 m / Max 32 m
Variant Pass Solid	8 mm / 10 mm / 15 mm
Variant Weight	39 kg / 41 kg / 73 kg / 82 kg

Project Integration

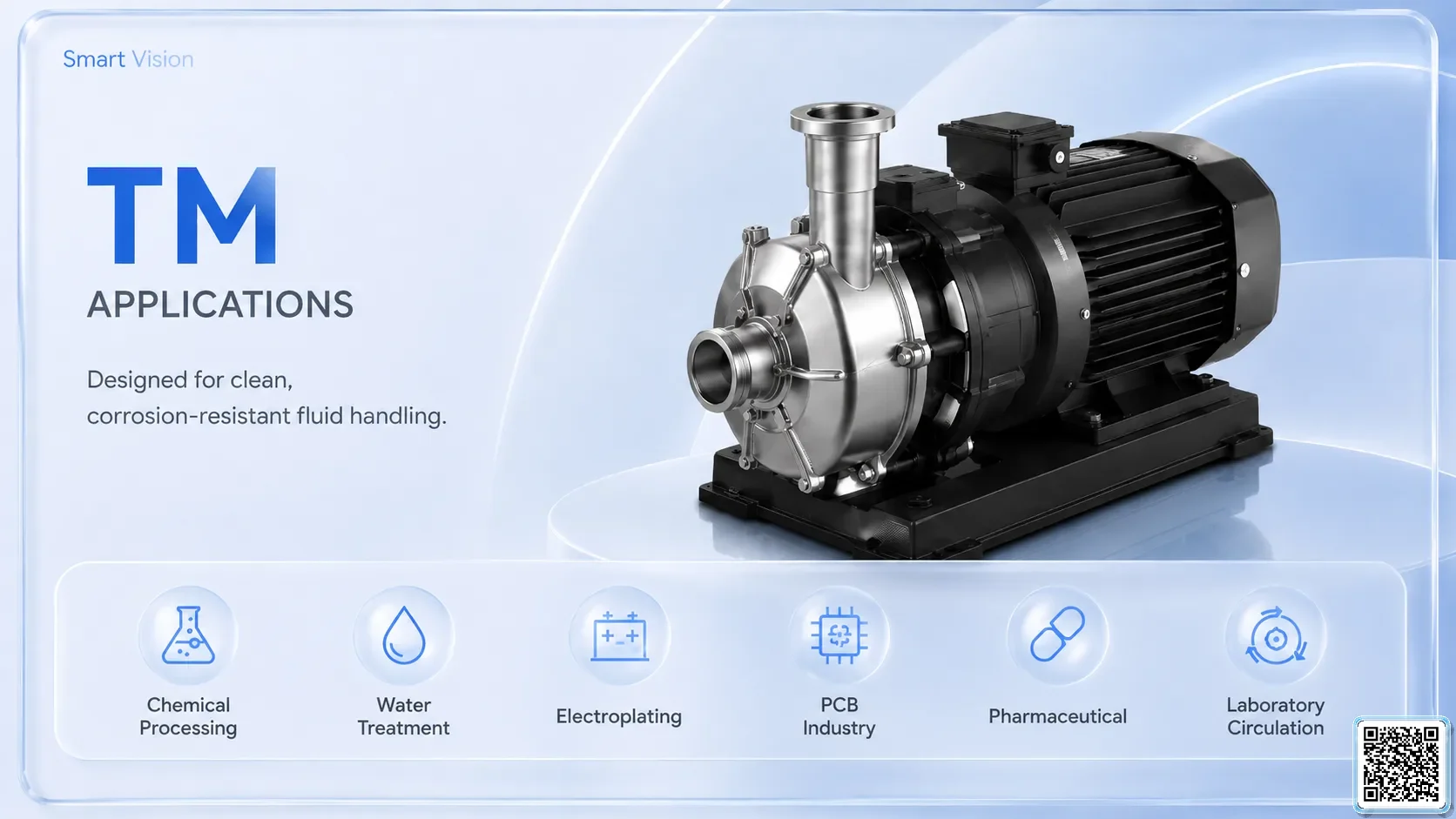

TM Series Industrial Pumps is suitable for auxiliary applications such as pump control, condensate drainage, cooling, light chemical handling or other special-purpose systems depending on the model. Selection should check liquid type, temperature, pressure, wetted material and duty conditions.

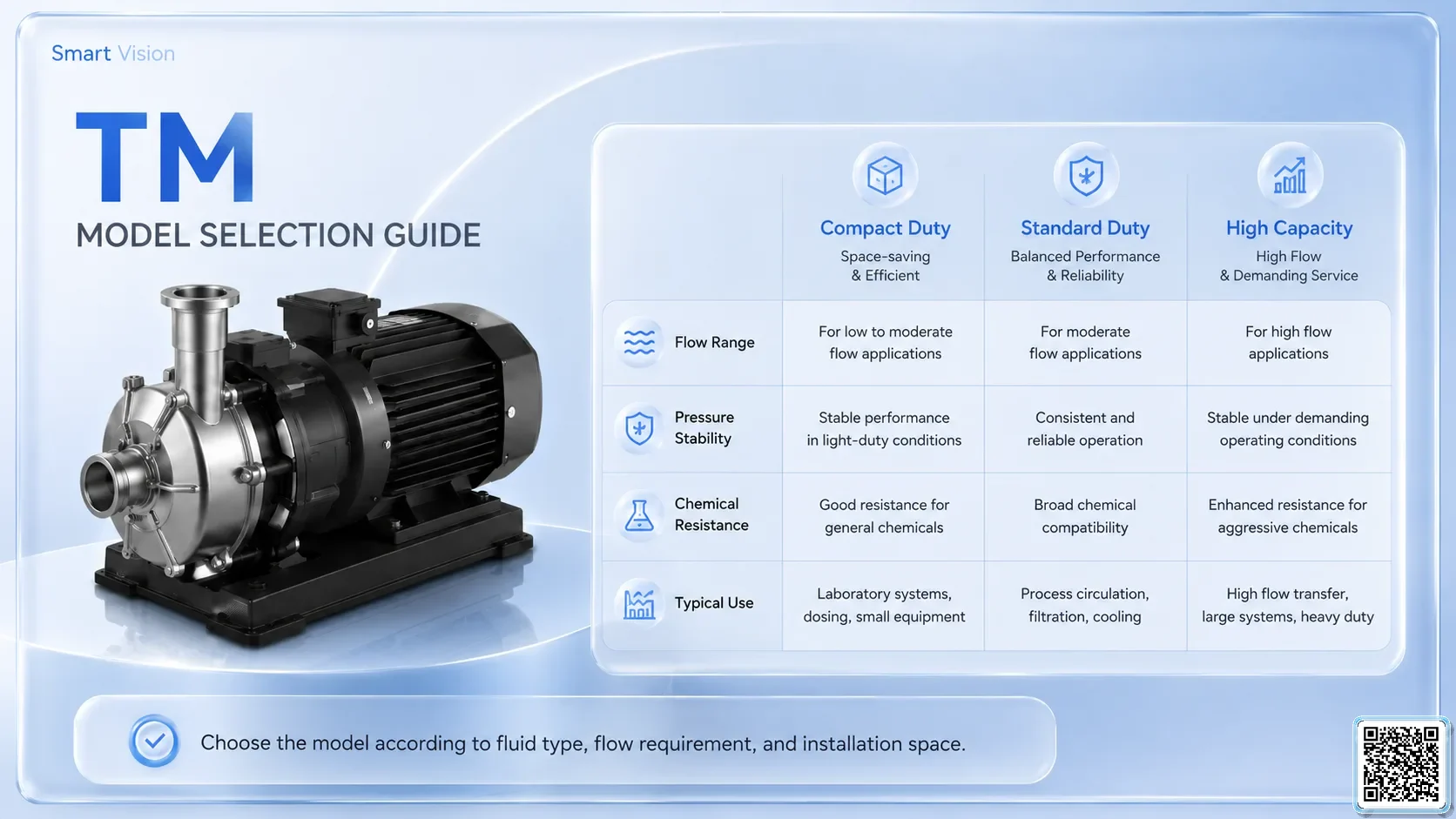

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
TM-15H TM-15H	2 HP / 1.5 kW	—	50 mm / 2"	Rated 250 LPM / Max 450 LPM	Rated 15 m / Max 22 m	8 mm	228	39 kg	—
TM-15L TM-15L	2 HP / 1.5 kW	380V / 3P	80 mm / 3"	Rated 500 LPM / Max 650 LPM	Rated 8 m / Max 16 m	8 mm	228	39 kg	—
TM-22H TM-22H	3 HP / 2.2 kW	—	50 mm / 2"	Rated 300 LPM / Max 500 LPM	Rated 20 m / Max 27 m	10 mm	228	41 kg	—
TM-22L TM-22L	3 HP / 2.2 kW	—	80 mm / 3"	Rated 600 LPM / Max 800 LPM	Rated 10 m / Max 20 m	10 mm	228	41 kg	—
TM-37H TM-37H	5 HP / 3.7 kW	—	50 mm / 2"	Rated 200 LPM / Max 500 LPM	Rated 30 m / Max 36 m	10 mm	274	73 kg	—
TM-37M TM-37M	5 HP / 3.7 kW	—	80 mm / 3"	Rated 500 LPM / Max 900 LPM	Rated 20 m / Max 30 m	10 mm	274	73 kg	—
TM-37L TM-37L	5 HP / 3.7 kW	—	100 mm / 4"	Rated 1000 LPM / Max 1500 LPM	Rated 10 m / Max 18 m	15 mm	274	73 kg	—
TM-55H TM-55H	7.5 HP / 5.5 kW	—	80 mm / 3"	Rated 600 LPM / Max 1200 LPM	Rated 25 m / Max 32 m	10 mm	274	82 kg	—
TM-55L TM-55L	7.5 HP / 5.5 kW	—	100 mm / 4"	Rated 1000 LPM / Max 1700 LPM	Rated 15 m / Max 22 m	15 mm	274	82 kg	—
