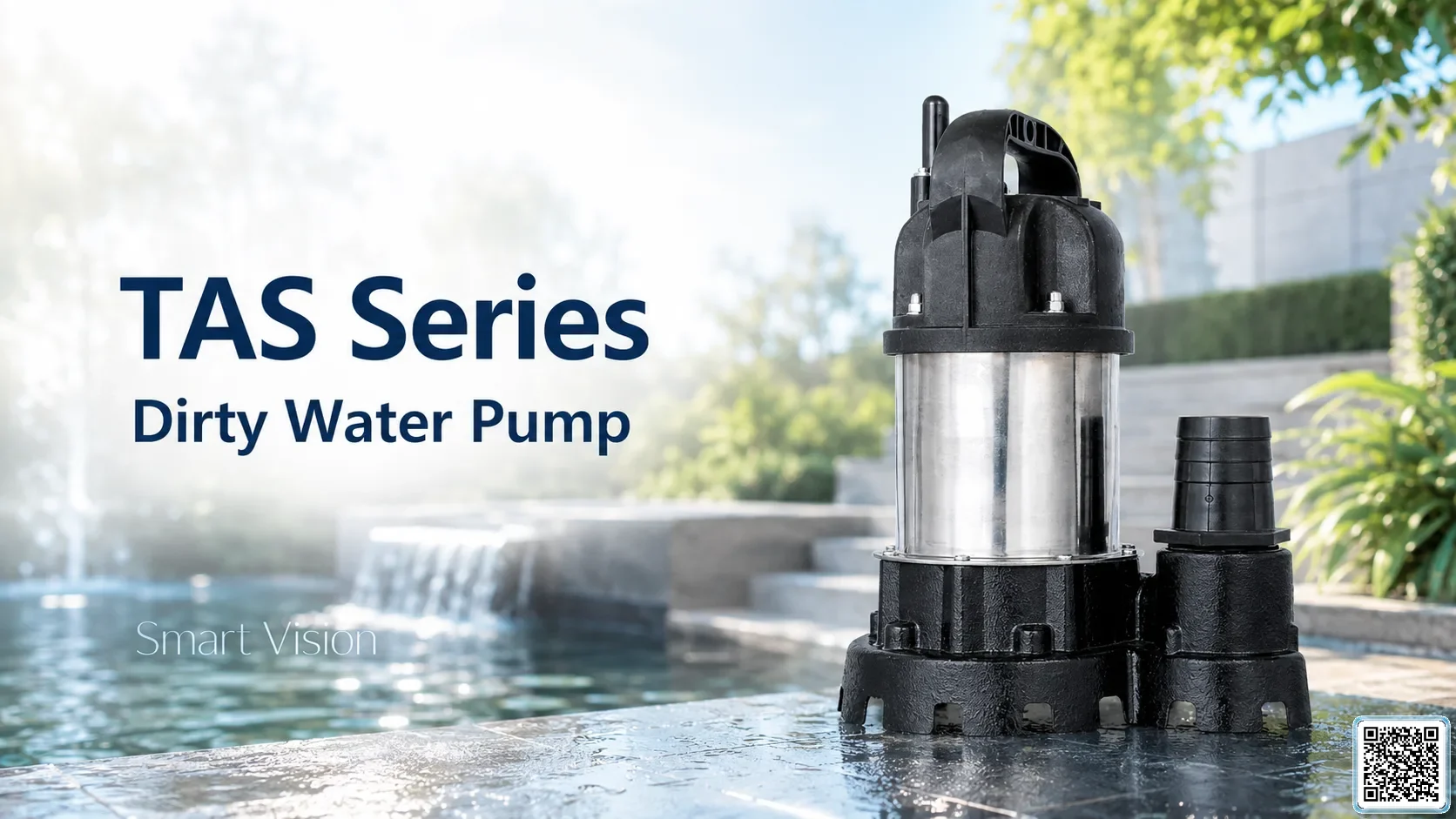

TASSeries Dirty Water Pump
APP TAS Series Dirty Water Pump from Taiwan.

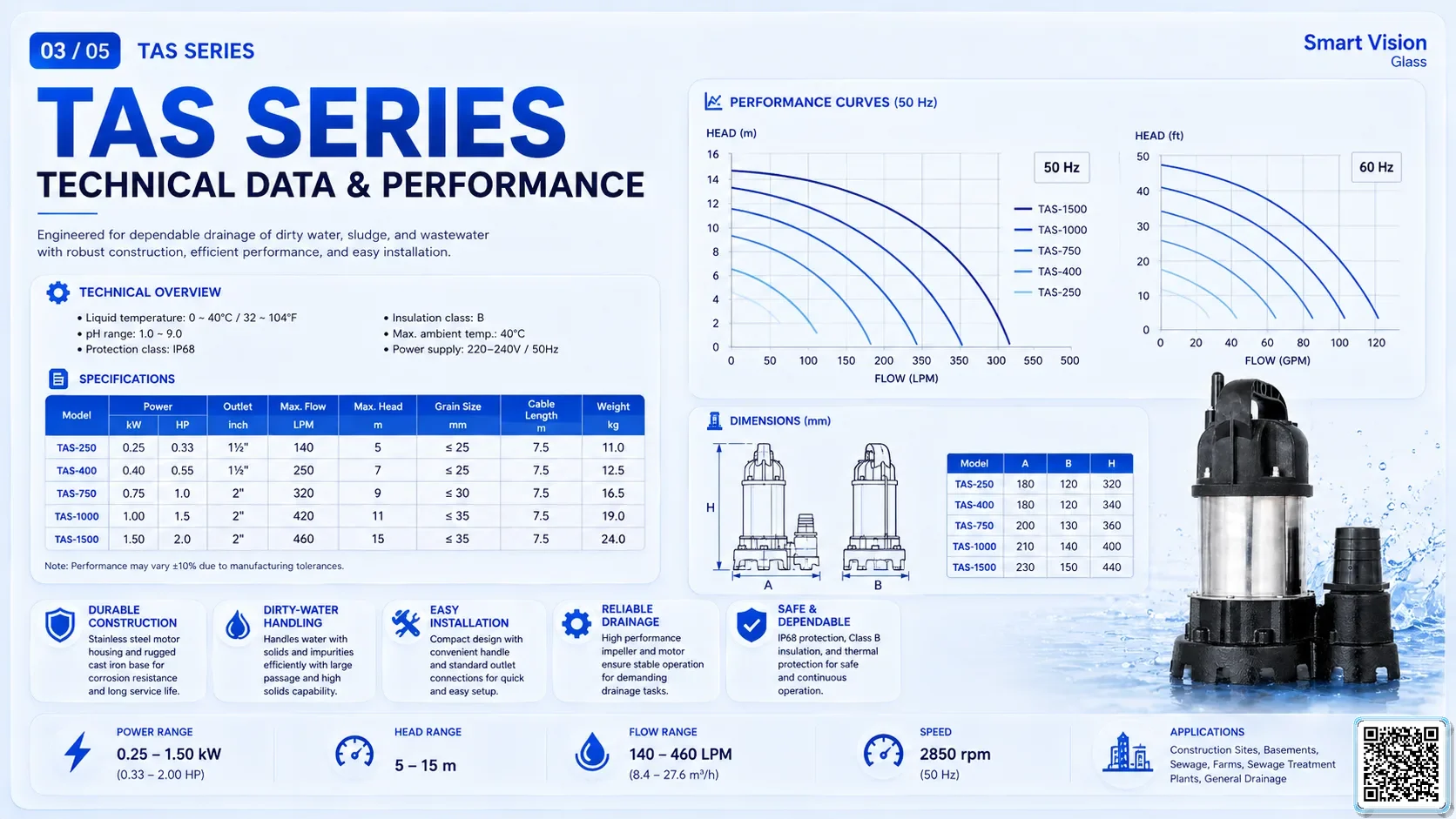

Technical Specifications
| source | APP catalogue |
|---|---|
| section | Domestic |
| series | TAS |
| family | Dirty Water Pump |
| catalogue_page | Domestic 49-50 |
| features | Non-clogging vortex impeller; multi-purpose dirty water pump; low-level drainage. |
| Series | TAS Series |
| Pump Series | TAS |
| Pump Type | Dirty Water Pump |
| Max Diving Depth | 8 m |
| Water Temperature | 0~40℃ / 32~104℉ |
| pH Range | 6~8 |
| Pump construction | IP68 |
| Variant Dimensions | 225 x 145 x 282 mm / 250 x 162 x 300 mm / 250 x 162 x 325 mm |
| Pump length / size | 225 x 145 x 282 mm / 250 x 162 x 300 mm / 250 x 162 x 325 mm |
| Variant Max Flow | 270 LPM / 320 LPM / 340 LPM |
| Variant Max Head | 7.5 m / 10 m / 11 m |
| Variant Pass Solid | 14 mm |
| Variant Weight | 8 kg / 9 kg / 10 kg |
Project Integration
TAS Series Dirty Water Pump is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.
- Select the model by project flow and working head
- Check power, voltage/frequency, outlet size, material and installation dimensions
- Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
- Support configuration comparison and quotation by actual project quantity

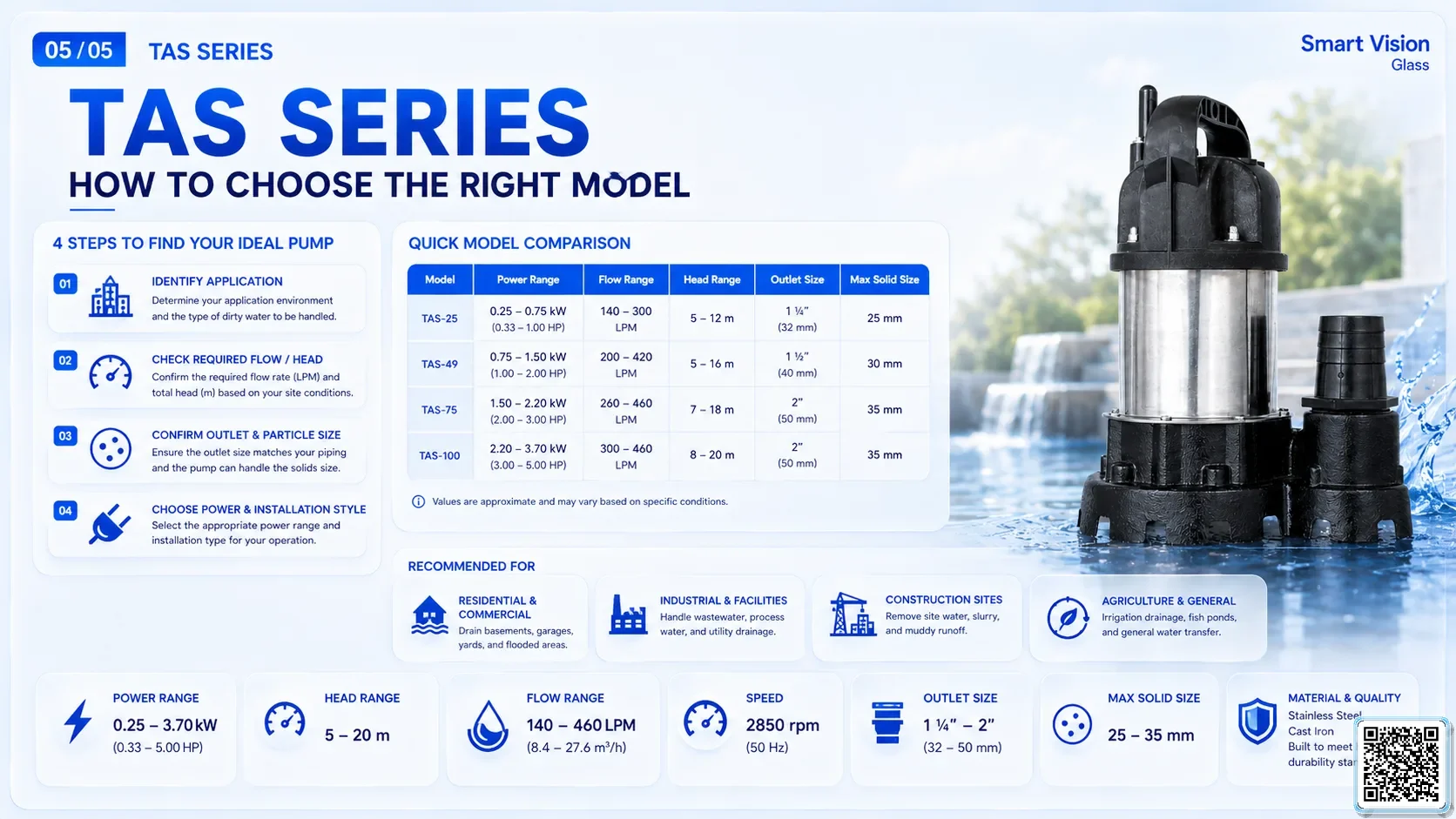

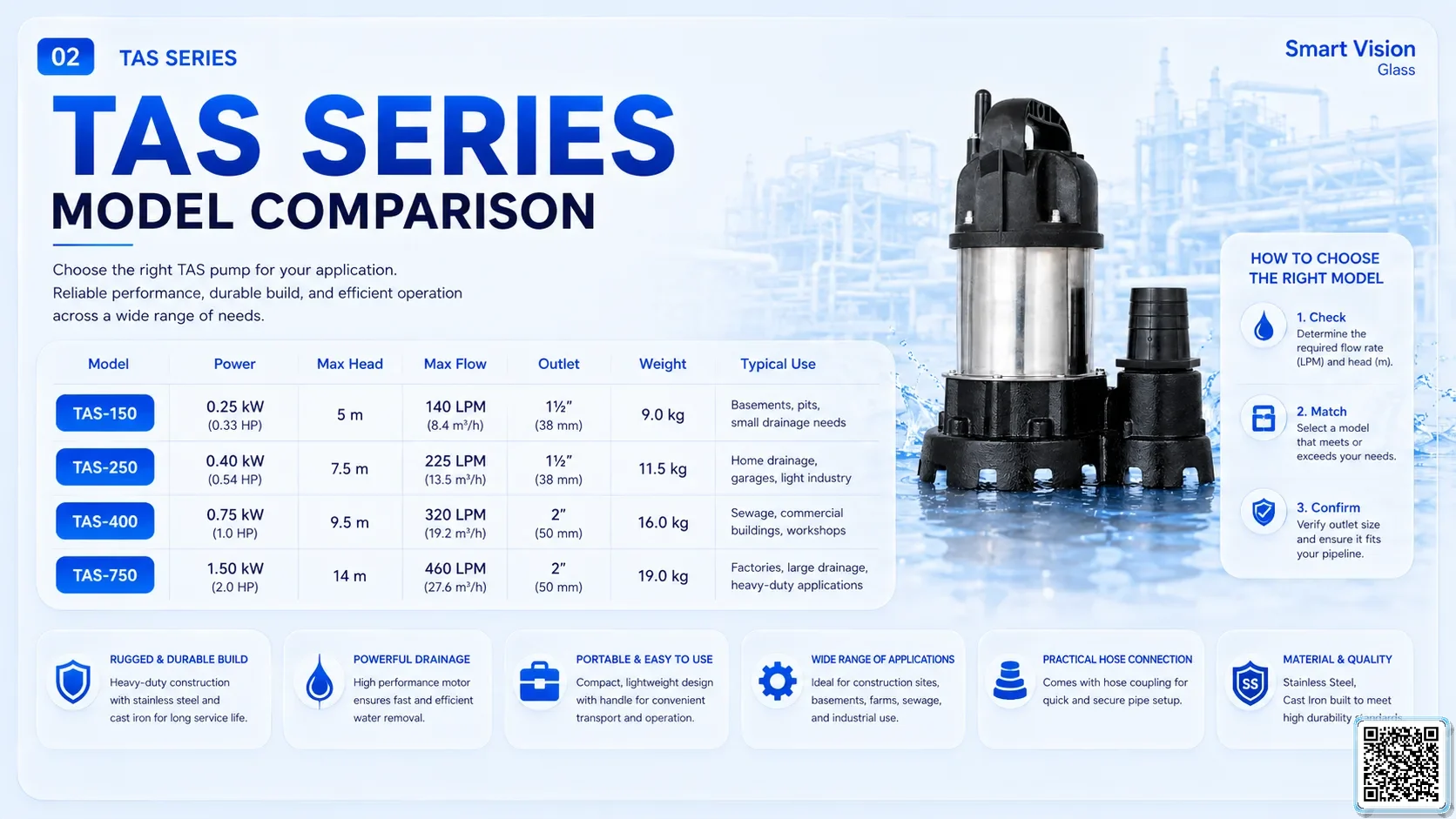

Pump Selection Table by Model
Applications & Key Features
Overview
APP TAS Series is a dirty water pump for Water discharge; water system; flood drain; grey water transfer applications.
Applications
Water discharge; water system; flood drain; grey water transfer
Key features
Non-clogging vortex impeller; multi-purpose dirty water pump; low-level drainage.
