SWO Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

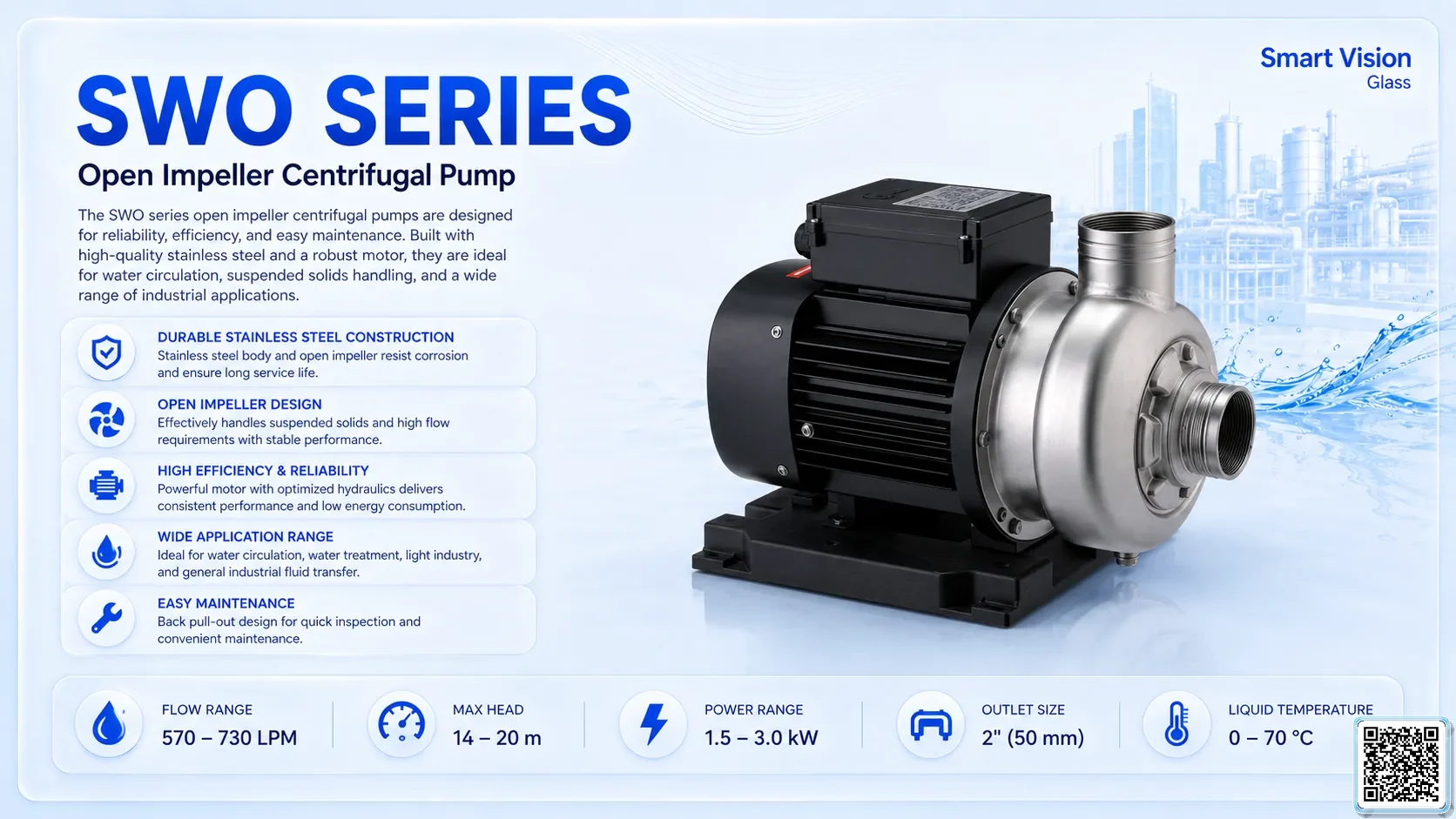

SWOSeries Open Impeller Centrifugal Pump

Name: SWO Series Open Impeller Centrifugal Pump
Brand: APP

APP SWO Series Multistage / Centrifugal Pump from Taiwan.

pumpsSWORequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 82

Technical Specifications

Series	SWO Series
Pump Series	SWO
Pump Type	Open Impeller Centrifugal Pump
Flow / head	12~20 m
Outlet	25 mm / 1"; 50 mm / 2"
Water Temperature	0~70℃ / 32~158℉
pH Range	6~8
Pump construction	IP55
Material	Stainless steel

Project Integration

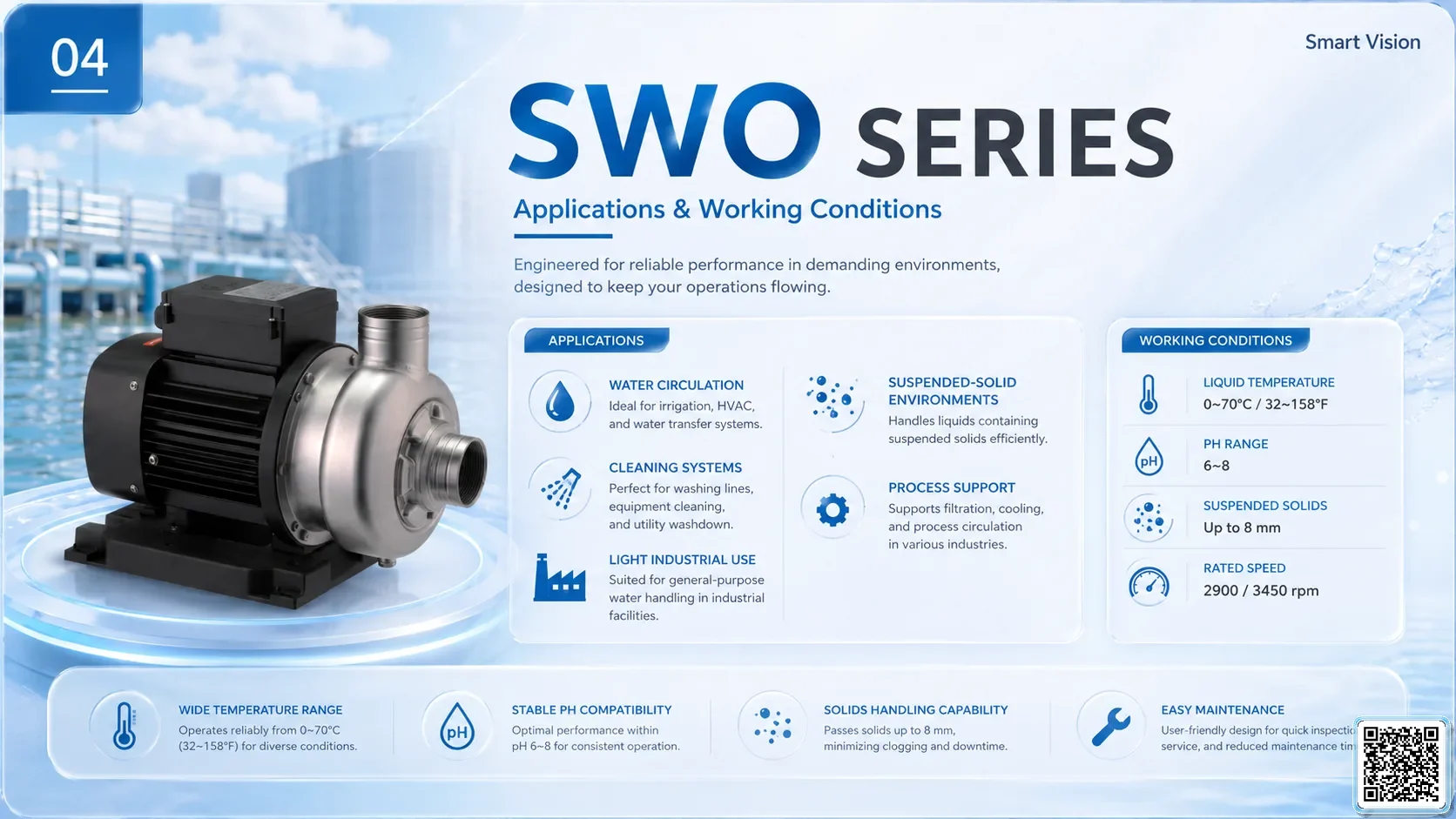

SWO Series Open Impeller Centrifugal Pump is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

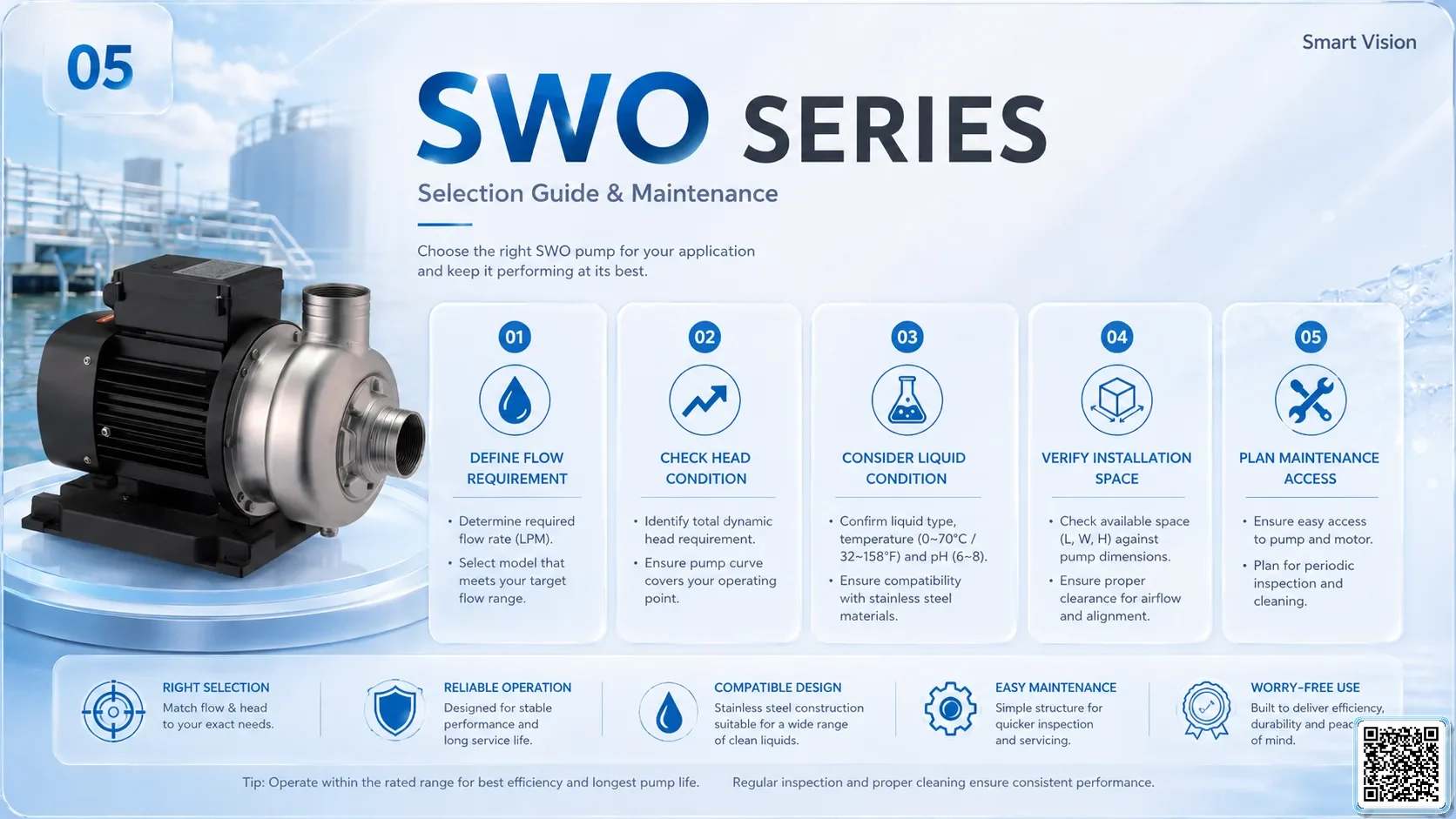

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

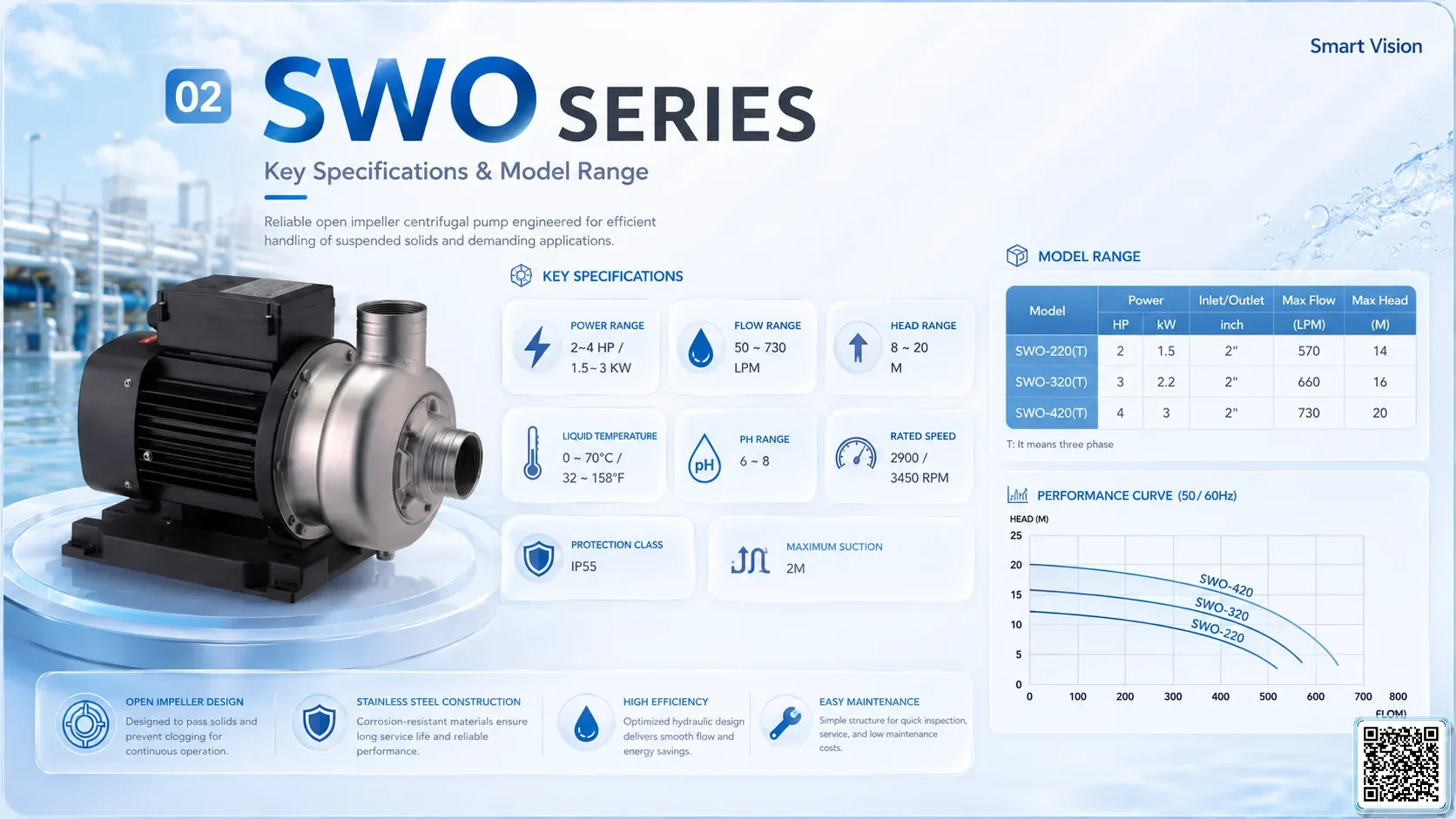

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
SWO-60(T) SWO-60(T)	1/2 HP / 0.4 kW	220V / 1P \| 380V / 3P	25 mm / 1"	100 LPM	12 m	—	Not specified in catalogue	—	—
SWO-120(T) SWO-120(T)	1.5 HP / 1.1 kW	220V / 1P \| 380V / 3P	50 mm / 2"	440 LPM	12 m	—	Not specified in catalogue	—	—
SWO-220(T) SWO-220(T)	2 HP / 1.5 kW	220V / 1P \| 380V / 3P	50 mm / 2"	570 LPM	14 m	—	Not specified in catalogue	20 kg	—
SWO-320(T) SWO-320(T)	3 HP / 2.2 kW	220V / 1P \| 380V / 3P	50 mm / 2"	660 LPM	16 m	—	Not specified in catalogue	23 kg	—
SWO-420(T) SWO-420(T)	4 HP / 3 kW	380V / 3P	50 mm / 2"	730 LPM	20 m	—	Not specified in catalogue	26 kg	—
SWO-420T SWO-420T	4 HP / 3 kW	380V / 3P	50 mm / 2"	730 LPM	20 m	—	Not specified in catalogue	—	—
