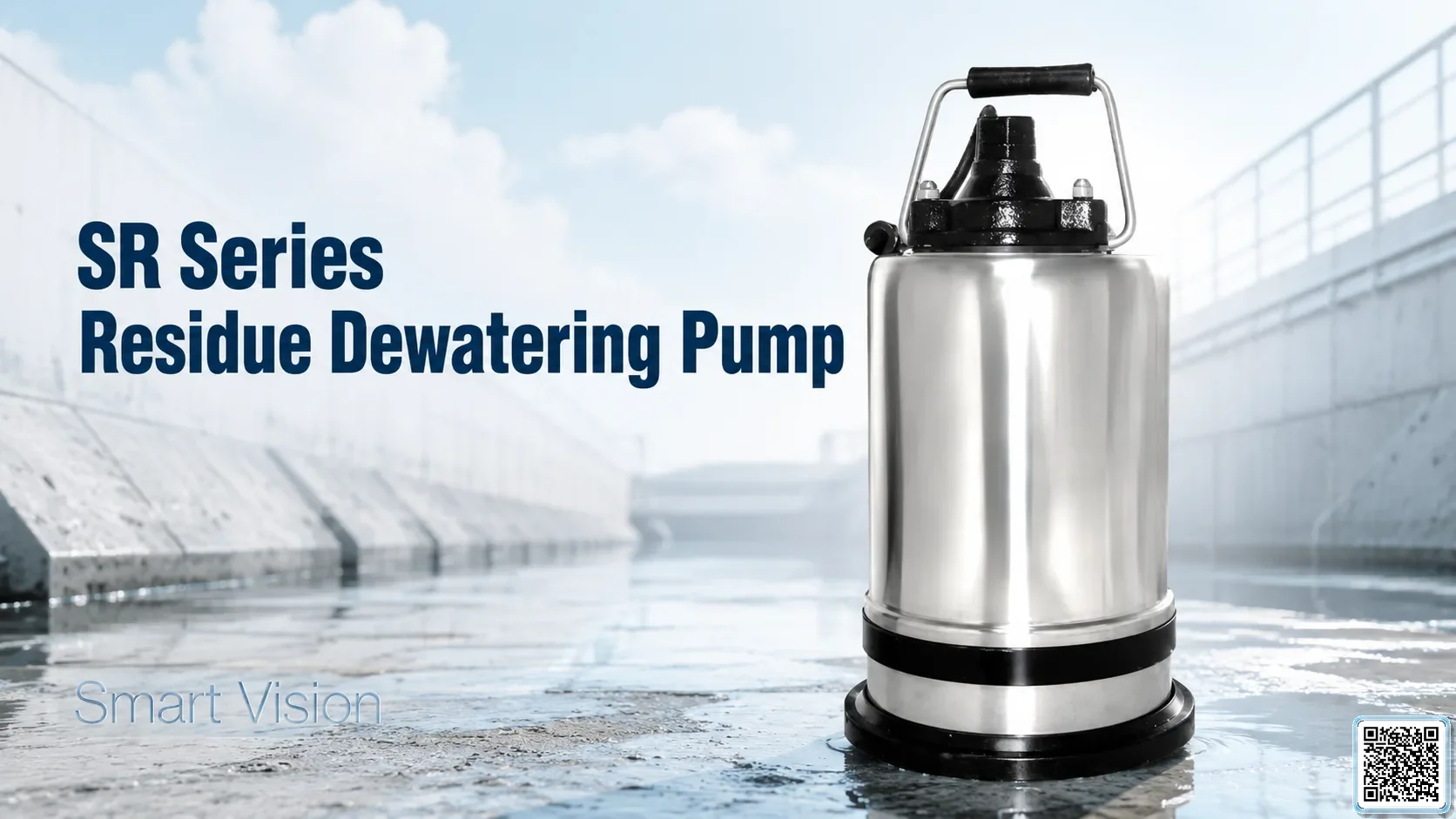

SRSeries Residue Dewatering Pump

Name: SR Series Residue Dewatering Pump
Brand: APP

APP SR Series Skimmer / Dewatering Pump from Taiwan.

pumpsSRRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 82

Technical Specifications

source	APP catalogue
section	Industry
series	SR
family	Skimmer / Dewatering Pump
catalogue_page	47-48
features	Ultra-low residual water down to 1 mm.
Series	SR Series
Pump Series	SR
Pump Type	Skimmer / Dewatering Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	181 x 181 x 340 mm
Pump length / size	181 x 181 x 340 mm
Variant Max Flow	170 LPM / 200 LPM
Variant Max Head	11 m / 10 m
Variant Pass Solid	7 mm
Variant Weight	16 kg

Project Integration

SR Series Residue Dewatering Pump is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

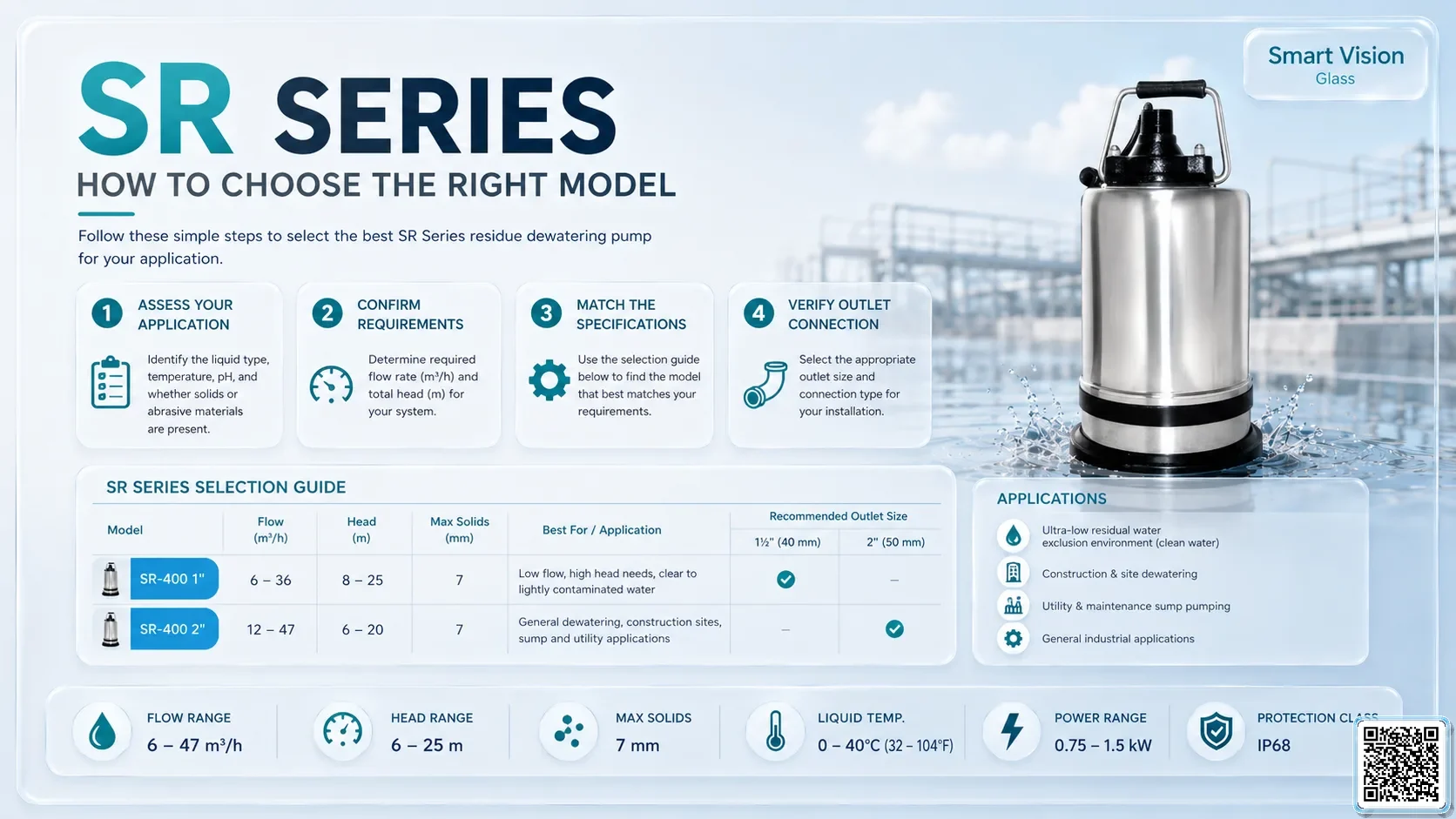

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

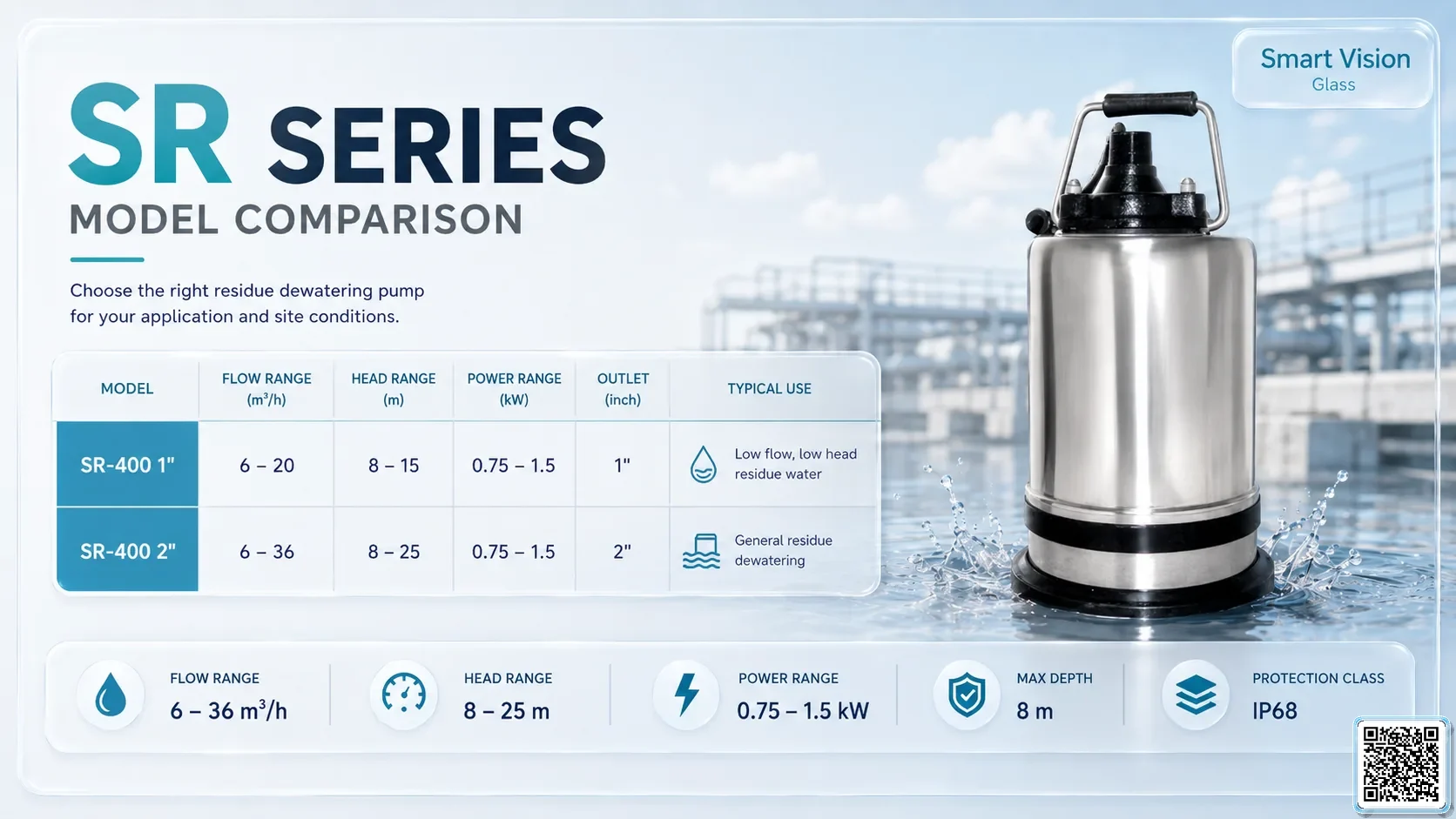

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
SR-400 1 inch SR-400 1 inch	1/2 HP / 400 W	—	25 mm / 1"	170 LPM	11 m	7 mm	181	16 kg	—
SR-400 2 inch SR-400 2 inch	1/2 HP / 400 W	—	50 mm / 2"	200 LPM	10 m	7 mm	181	16 kg	—
