SG Main / Hero image SmartVision water show equipment
● FOUNTAIN PUMP / VFD

SGSeries Sewage Pumps

APP SG Series Sewage Pump from Taiwan.

pumpsSGRequest quotation
Choose pump configuration
Add to Project Builder
👁 75

Technical Specifications

sourceAPP catalogue
sectionIndustry
seriesSG
familySewage Pump
catalogue_page43-44
featuresPIN cable water resistance; steel water parts; detachable for cleaning.
SeriesSG Series
Pump SeriesSG
Pump TypeSewage Pump
Max Diving Depth8 m
Water Temperature0~40℃ / 32~104℉
pH Range6~8
Pump constructionIP68
Variant Dimensions207 x 162 x 391 mm / 267 x 175 x 432 mm
Pump length / size207 x 162 x 391 mm / 267 x 175 x 432 mm
Variant Max Flow360 LPM / 430 LPM
Variant Max Head8 m / 11 m
Variant Weight11 kg / 18 kg

Project Integration

SG Series Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

  • Select the model by project flow and working head
  • Check power, voltage/frequency, outlet size, material and installation dimensions
  • Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
  • Support configuration comparison and quotation by actual project quantity

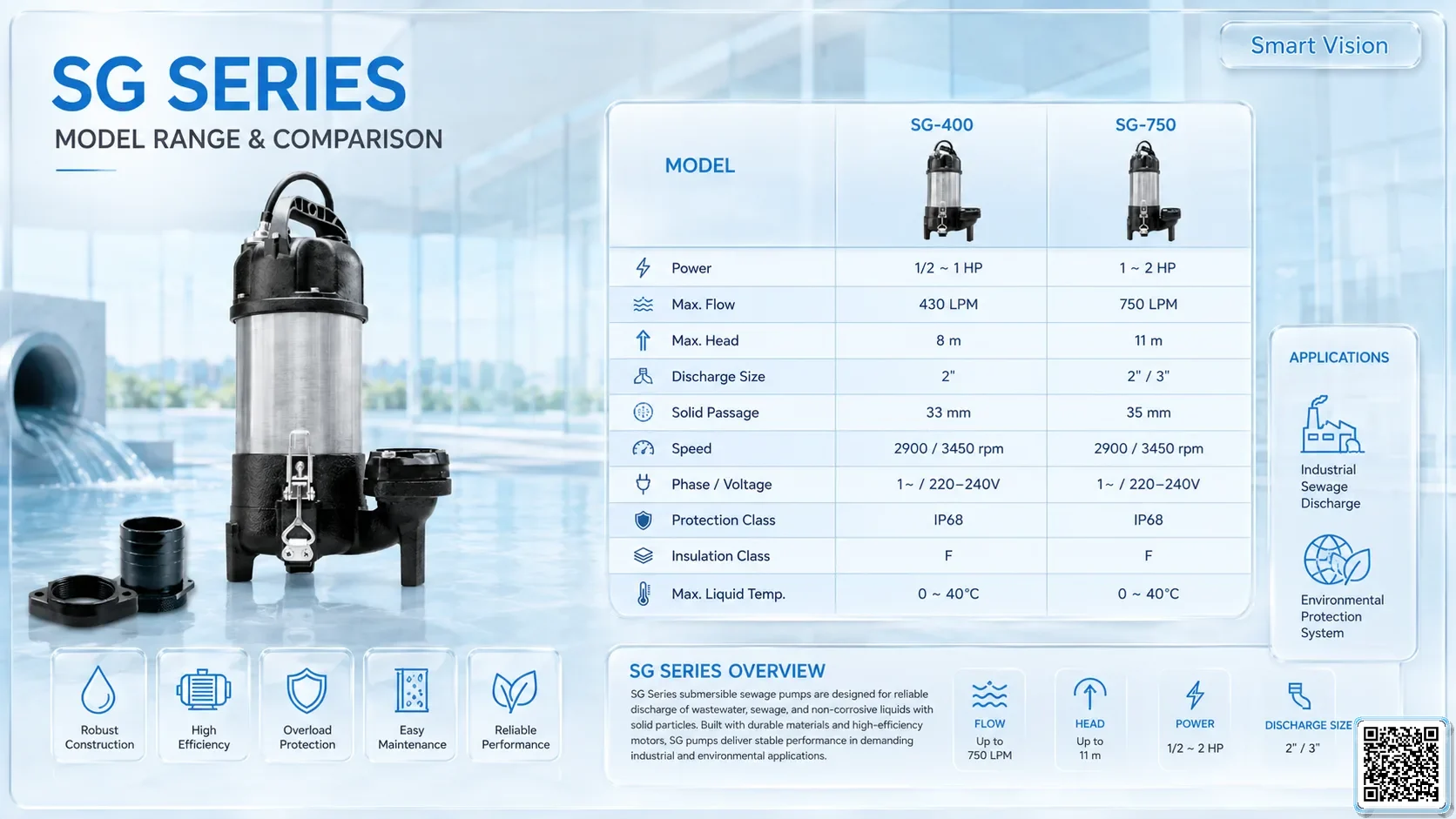

PUMP MODELS

Pump Selection Table by Model

ModelMotor Power (HP/kW/W)Voltage / PhaseOutlet (inch/mm)Max Flow (LPM)Max Head (m)Pass Solid (mm)Dimension (L×W×H mm)Weight (kg)Accessories
SG-400
SG-400		1/2 HP / 400 W—50 mm / 2"360 LPM8 m—20711 kg—
SG-750
SG-750		1 HP / 750 W—50 mm / 2"430 LPM11 m—26718 kg—
APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP SG Series is a sewage pump for Industrial sewage discharge; environmental protection system applications.

Applications

Industrial sewage discharge; environmental protection system

Key features

PIN cable water resistance; steel water parts; detachable for cleaning.
