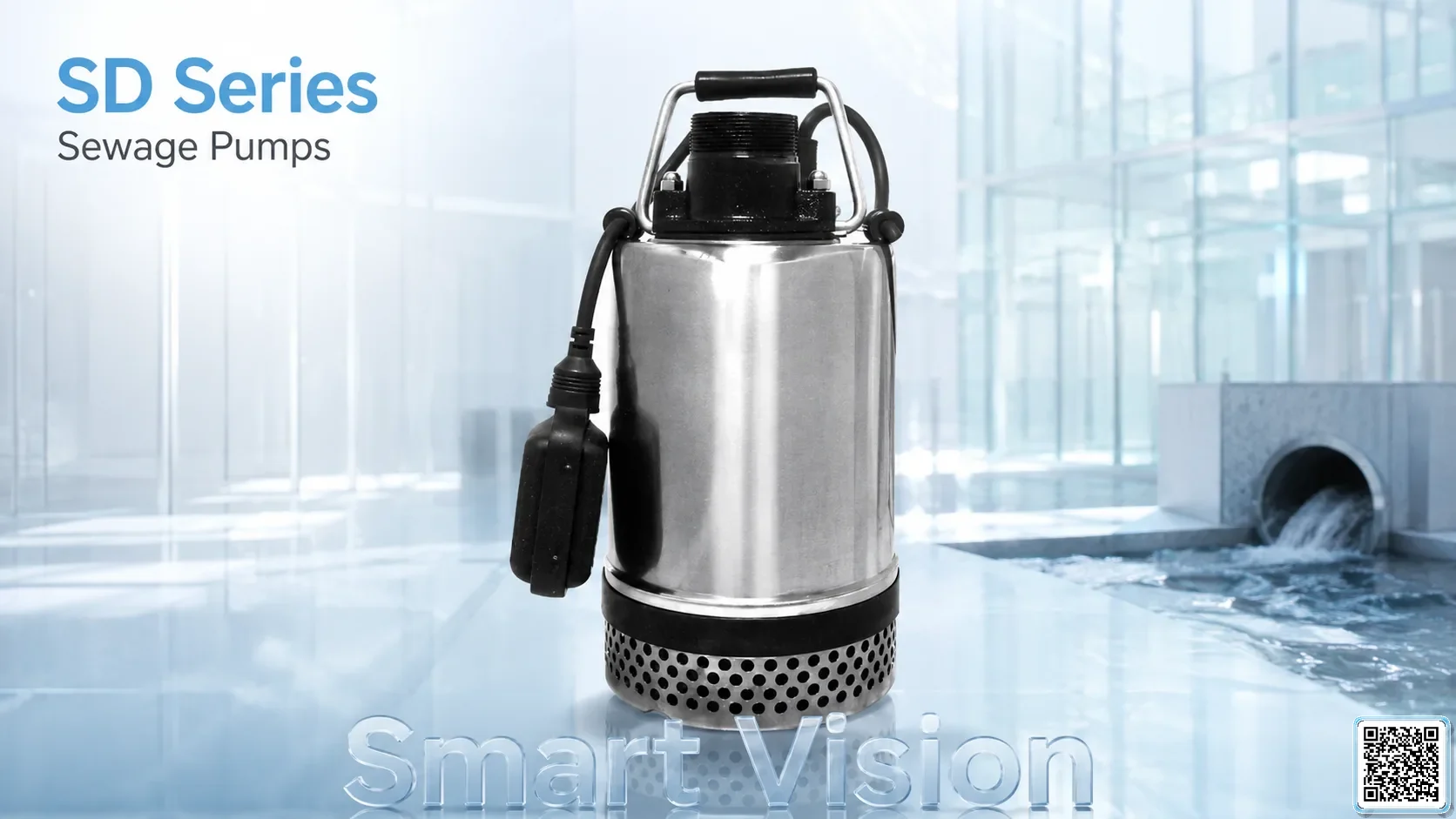

SDSeries Sewage Pumps

Name: SD Series Sewage Pumps
Brand: APP

APP SD Series Sewage Pump from Taiwan.

pumpsSDRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 65

Technical Specifications

source	APP catalogue
section	Industry
series	SD
family	Sewage Pump
catalogue_page	41-42
features	Cooling motor design; top discharge for low water environment.
Series	SD Series
Pump Series	SD
Pump Type	Sewage Pump
Max Diving Depth	8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP68
Variant Dimensions	181 x 181 x 340 mm / 181 x 181 x 343 mm
Pump length / size	181 x 181 x 340 mm / 181 x 181 x 343 mm
Variant Max Flow	220 LPM / 240 LPM / 300 LPM
Variant Max Head	9 m / 11 m / 15 m
Variant Pass Solid	7 mm
Variant Weight	12 kg / 15 kg

Project Integration

SD Series Sewage Pumps is suitable for drainage, dirty water, sewage, sump pits, basements, construction sites or solids-handling applications depending on the pump family. Selection should check allowable solid size, flow, head, outlet size, protection class and real operating conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
SD-250 SD-250	1/3 HP / 250 W	—	50 mm / 2"	220 LPM	9 m	7 mm	181	12 kg	—
SD-400 SD-400	1/2 HP / 400 W	—	50 mm / 2"	240 LPM	11 m	7 mm	181	12 kg	—
SD-750 SD-750	1 HP / 750 W	—	50 mm / 2"	300 LPM	15 m	7 mm	181	15 kg	—
