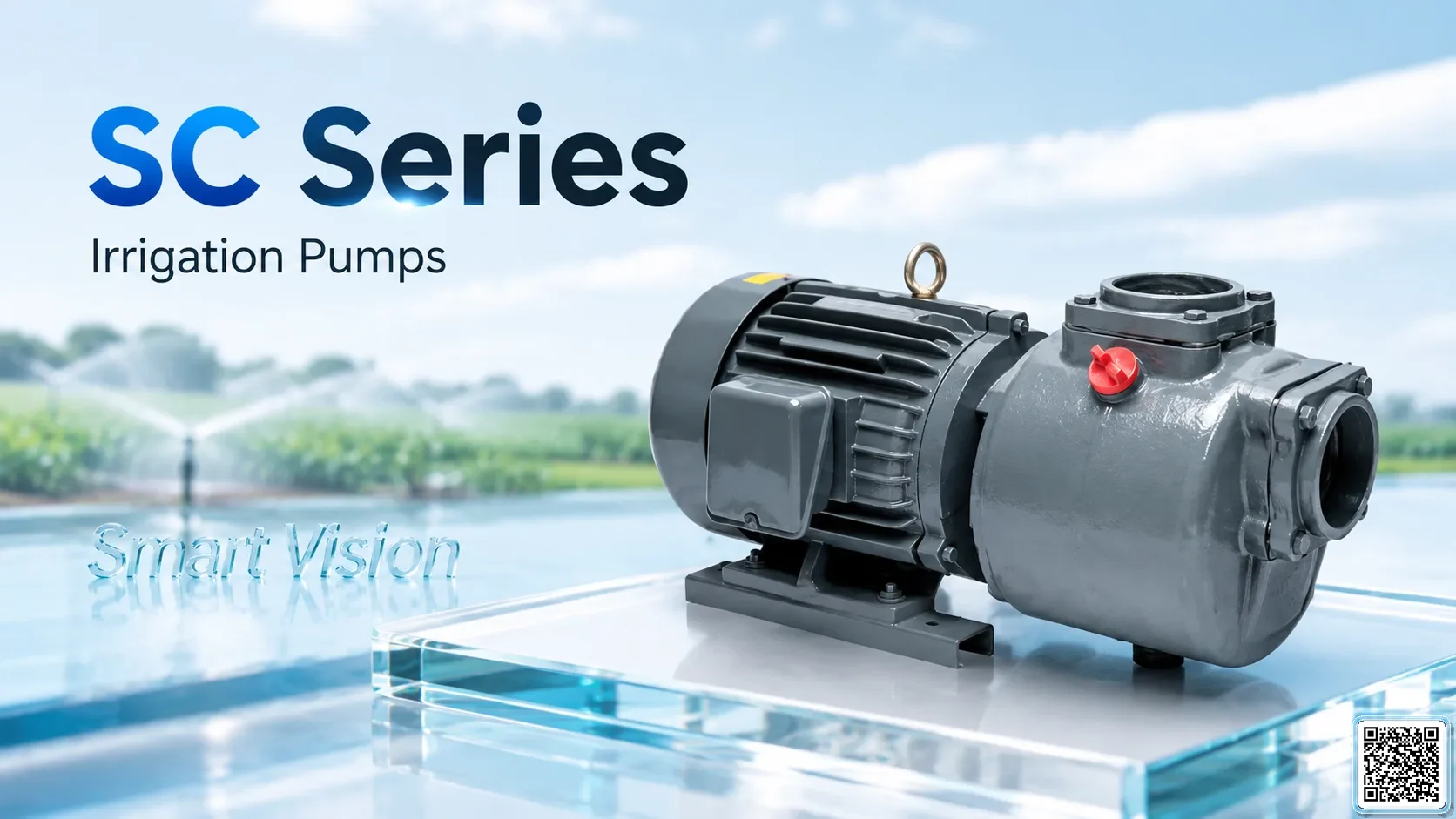

SC Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

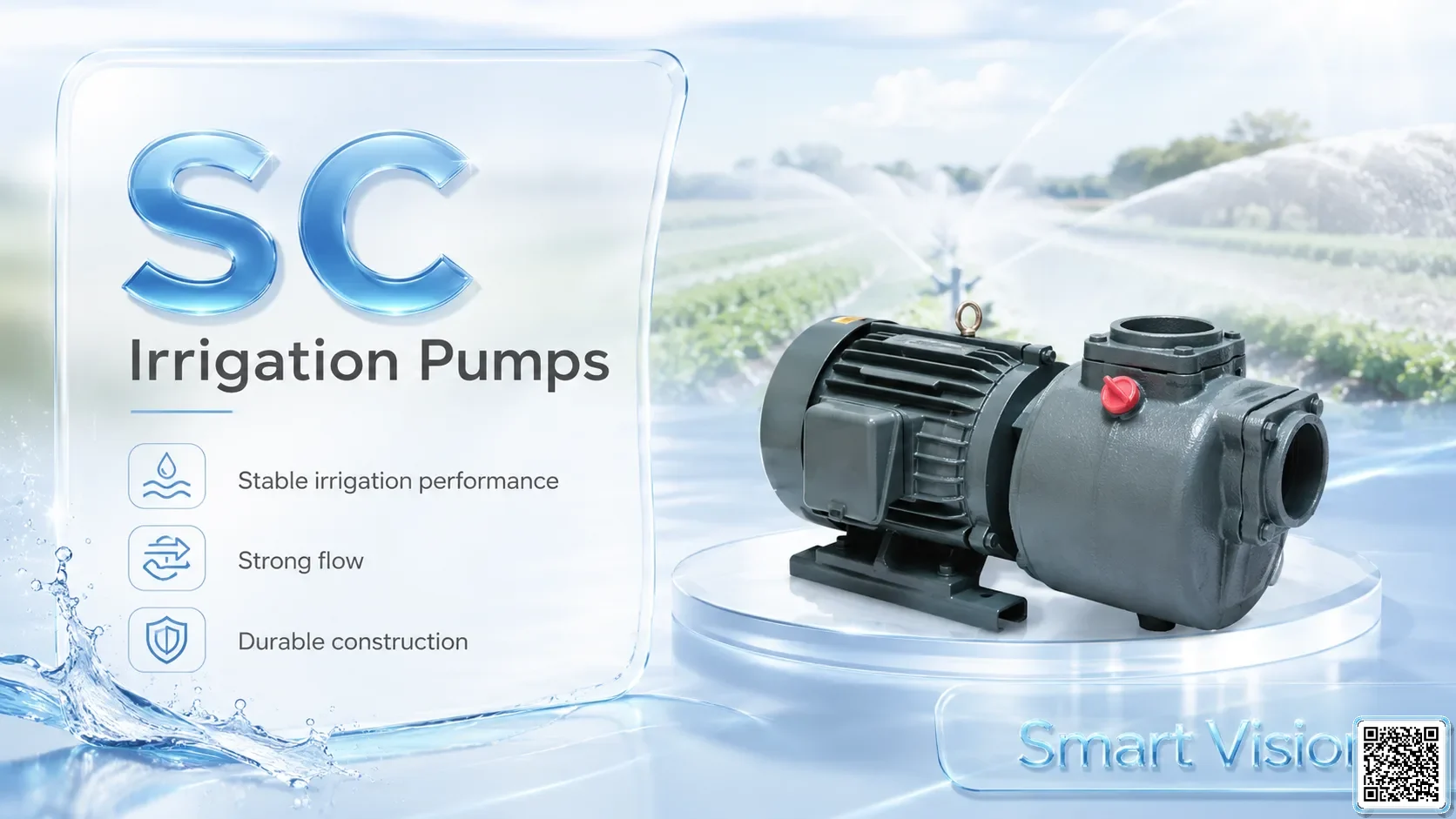

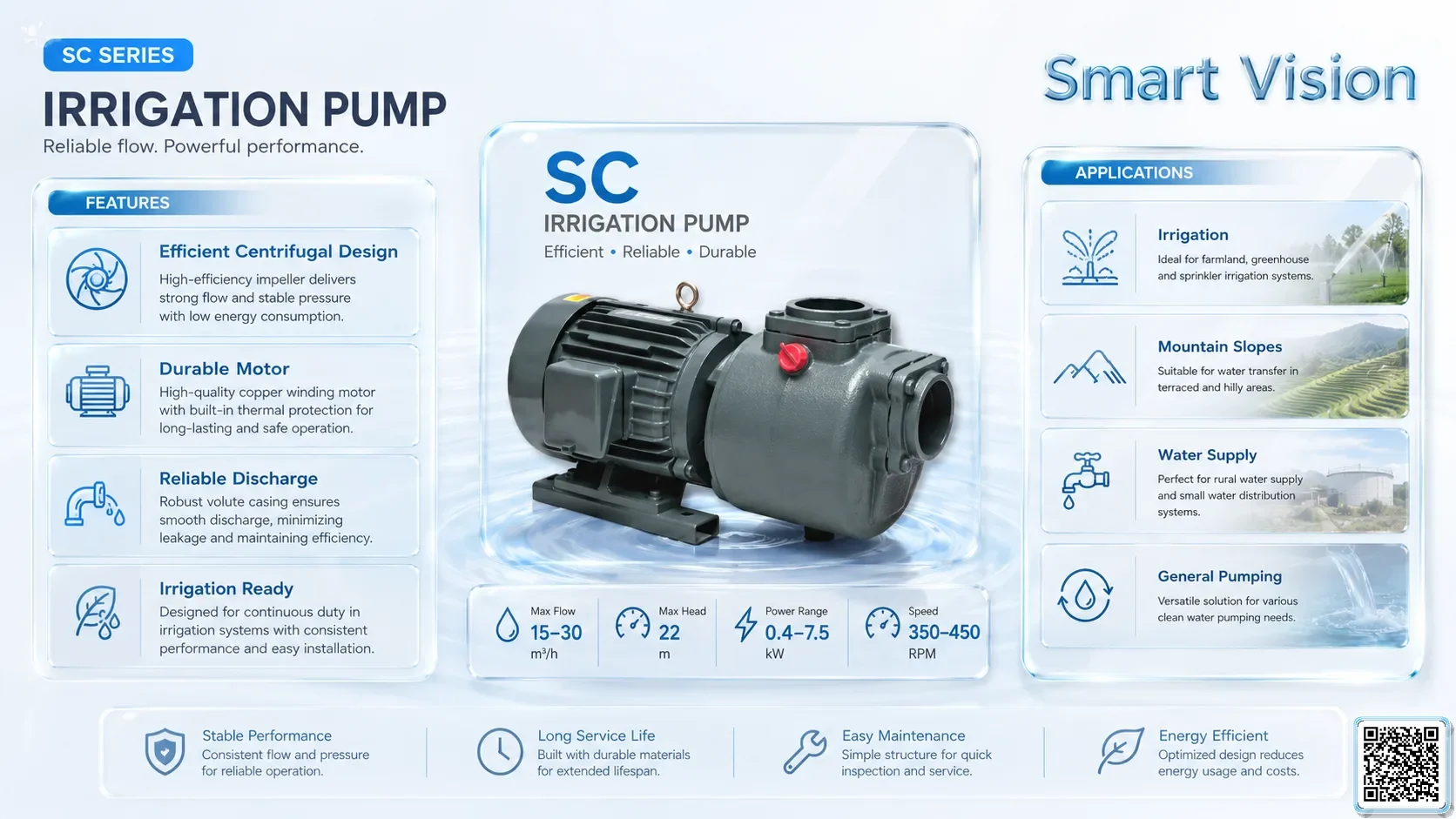

SCSeries Irrigation Pumps

Name: SC Series Irrigation Pumps
Brand: APP

APP SC Series Irrigation Pump from Taiwan.

pumpsSCRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 60

Technical Specifications

source	APP catalogue
section	Auxiliary
series	SC
family	Irrigation Pump
catalogue_page	Auxiliary 07-08
features	Cast iron water machine with stainless water leaf.
Series	SC Series
Pump Series	SC
Pump Type	Irrigation Pump
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Variant Max Flow	360 LPM / 720 LPM / 750 LPM
Variant Max Head	48 m / 38 m / 55 m
Variant Weight	45 kg / 65 kg / 72 kg

Project Integration

SC Series Irrigation Pumps is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

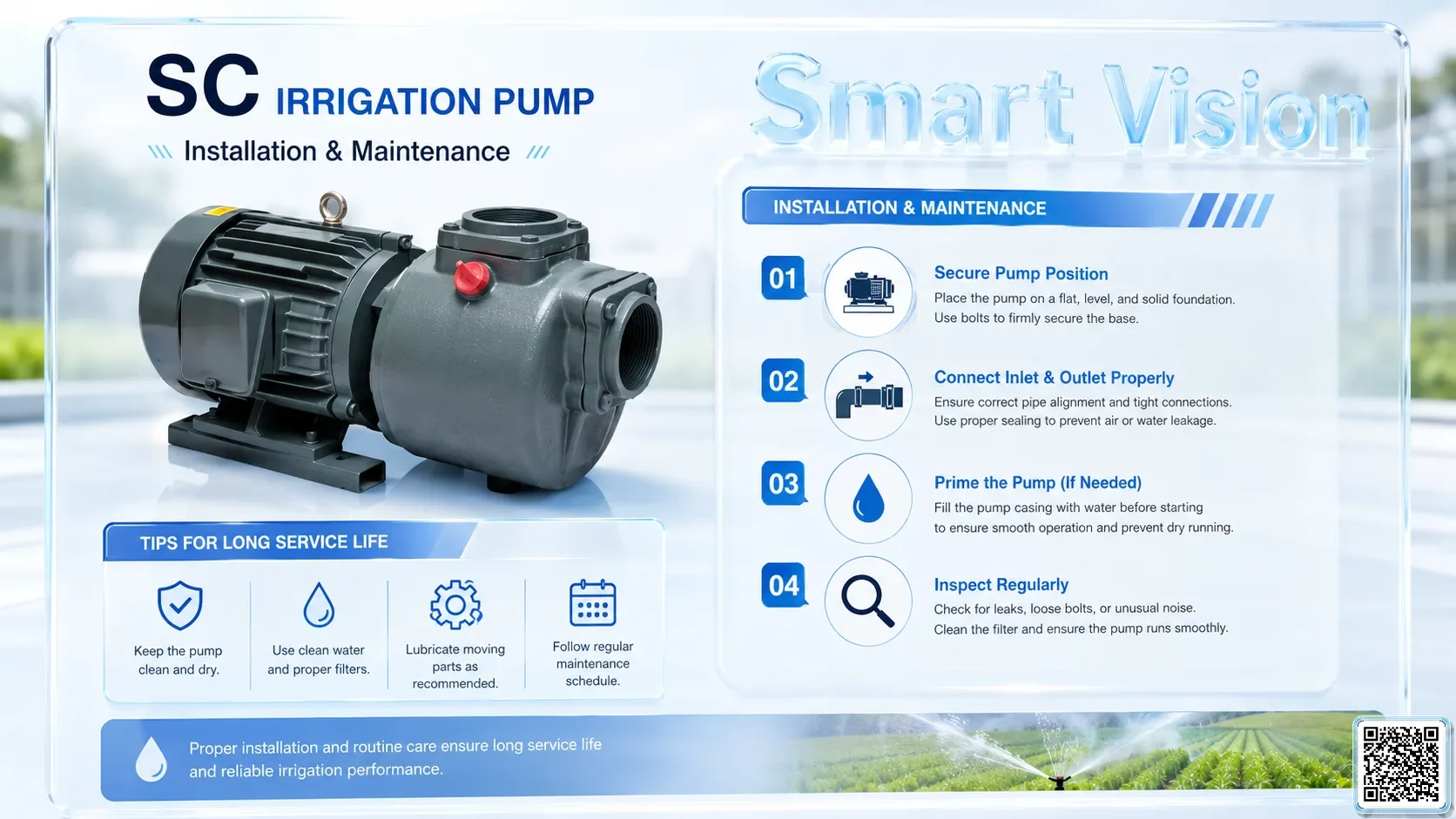

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

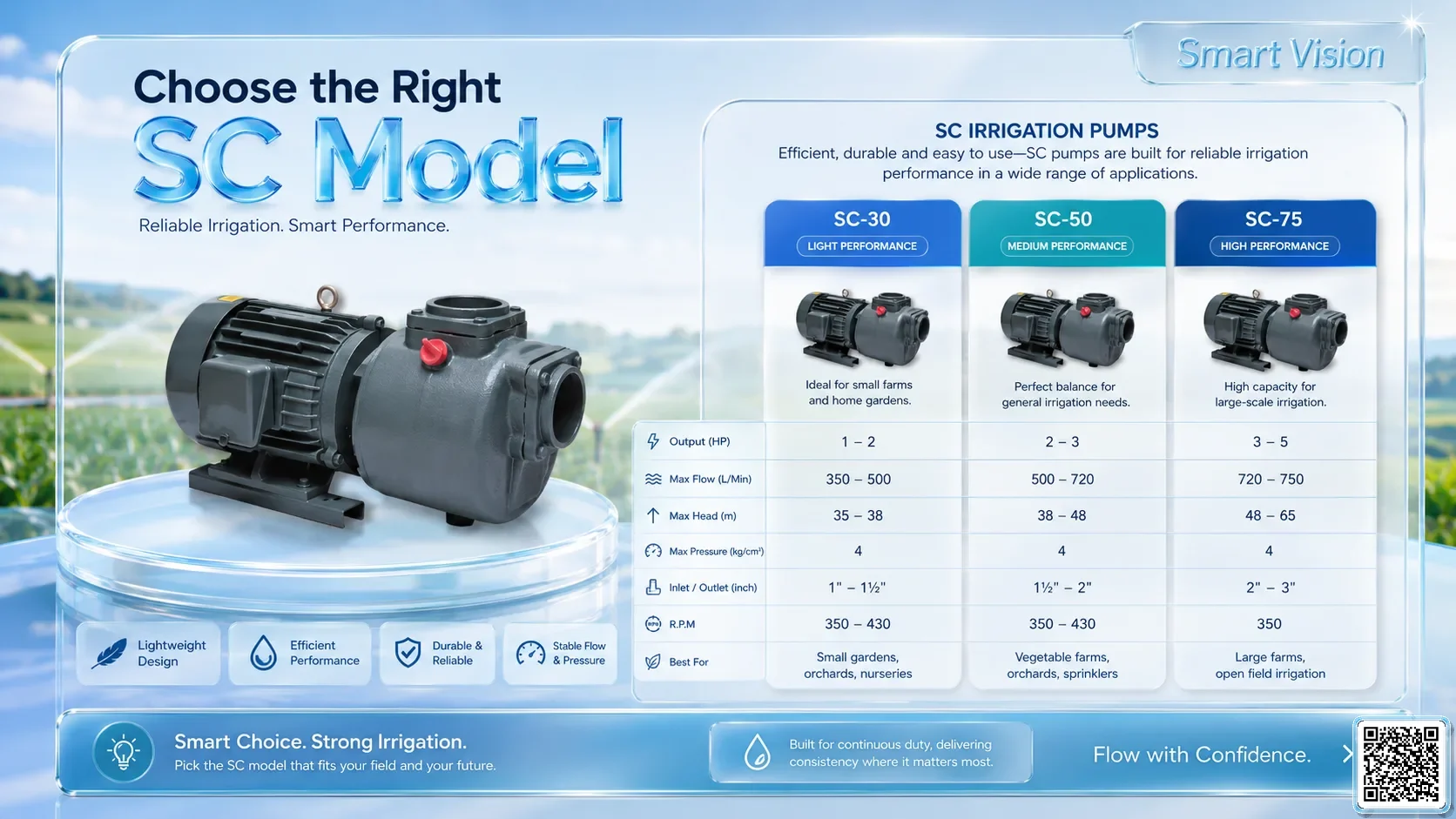

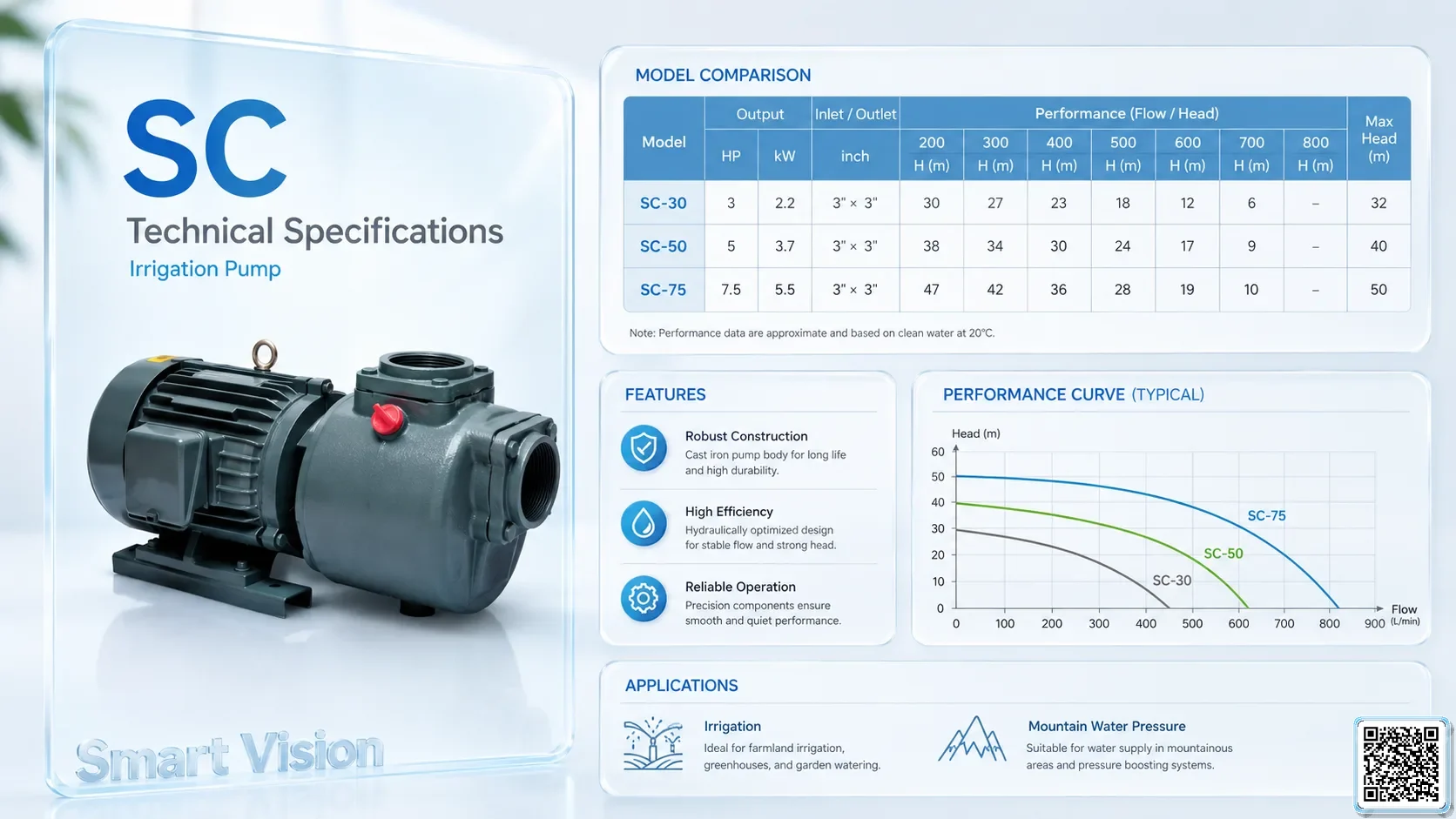

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
SC-30 SC-30	3 HP / 2.2 kW	—	50 mm / 2"	360 LPM	48 m	—	Not specified in catalogue	45 kg	—
SC-50 SC-50	5 HP / 3.7 kW	220V / 1P \| 380V / 3P	80 mm / 3"	720 LPM	38 m	—	Not specified in catalogue	65 kg	—
SC-75 SC-75	7.5 HP / 5.5 kW	380V / 3P	80 mm / 3"	750 LPM	55 m	—	Not specified in catalogue	72 kg	—
