MVHSeries Hi-head Clean Water Pump

Name: MVH Series Hi-head Clean Water Pump
Brand: APP

APP MVH Series pump for submersible sprinkling system; garden fountain; high-lift water transport.

pumpsMVHRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 77

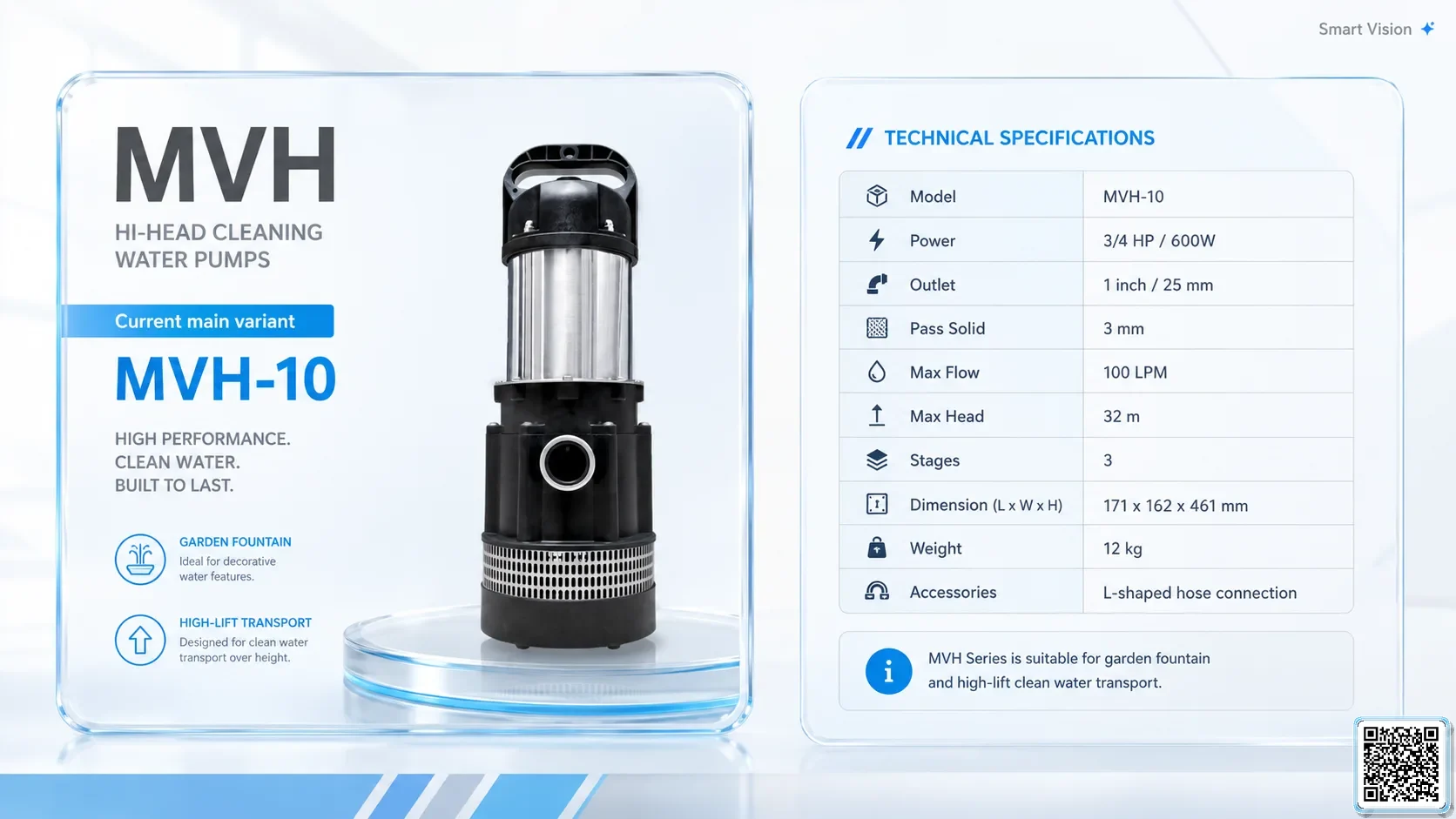

Technical Specifications

Series	MVH Series
Pump Series	MVH
Pump Type	Hi-head Cleaning Water Pump
Motor Type	Submersible motor
Cooling Type	Water cooled
Flow / head	32 m
Outlet	25 mm / 1"
Max Diving Depth	8 m
Water Temperature	0~40°C / 32~104°F
pH Range	6~8
Max Particle Size	3 mm
Pump construction	IP68
Connection Size	25 mm / 1"

Project Integration

MVH Series Hi-head Clean Water Pump is suitable for landscape ponds, fish ponds, garden waterfalls, water circulation and small-to-medium fountain applications. Model selection should be based on required flow, working head, outlet size and actual installation conditions.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

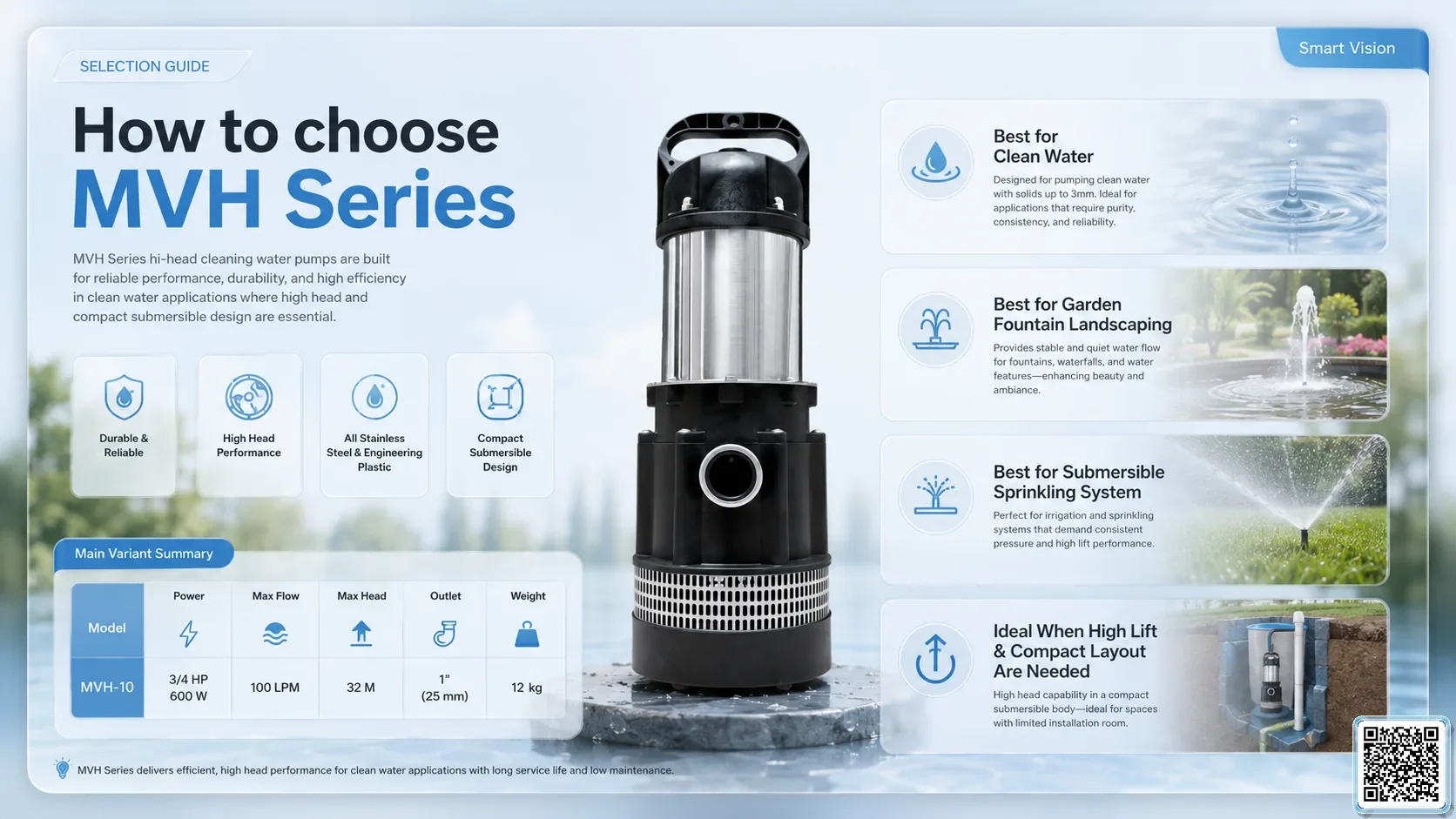

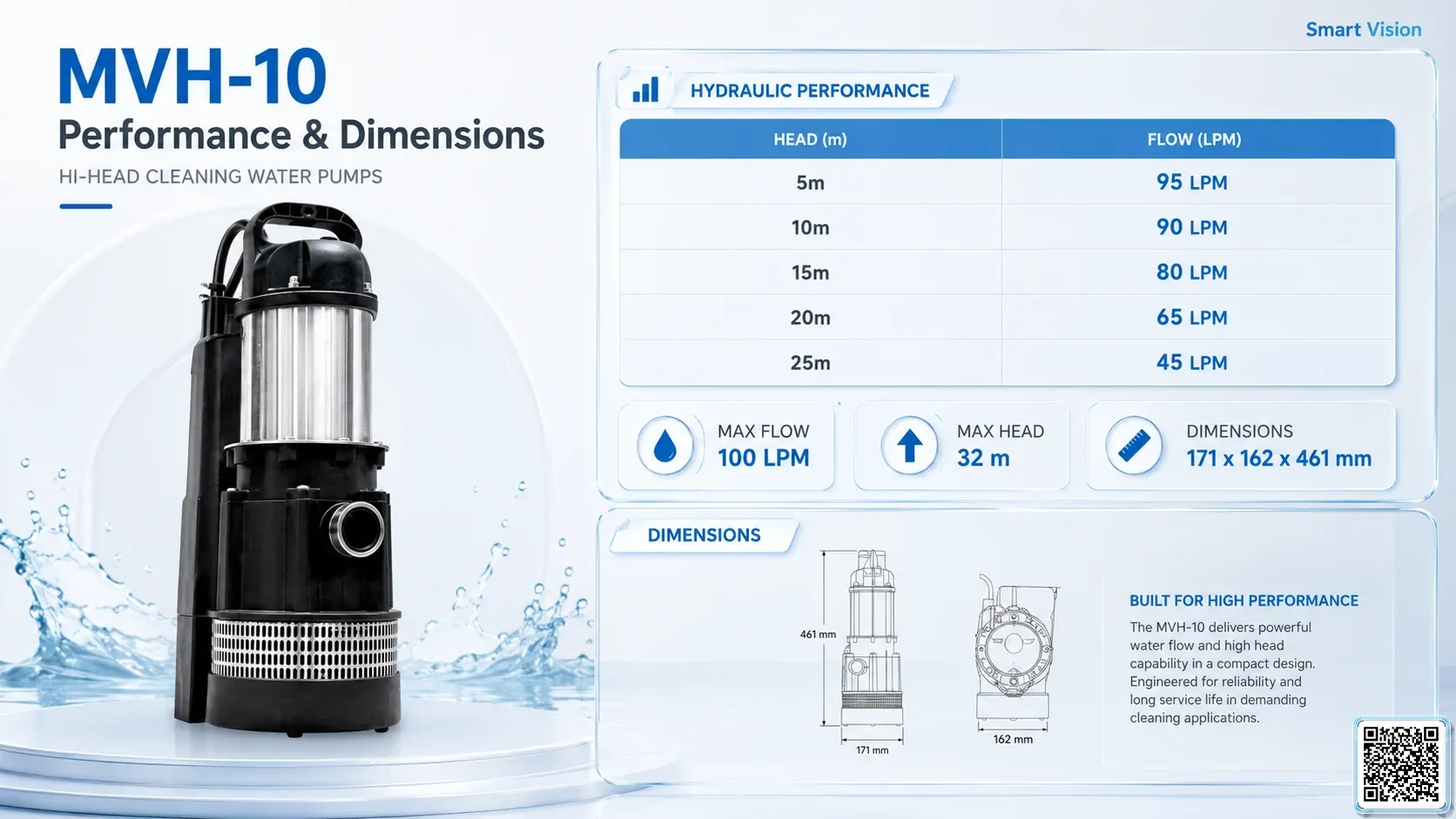

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
MVH-10 MVH-10	3/4 HP / 600 W	—	25 mm / 1"	3 LPM	32 m	3 mm	171	12 kg	L-shaped hose connection

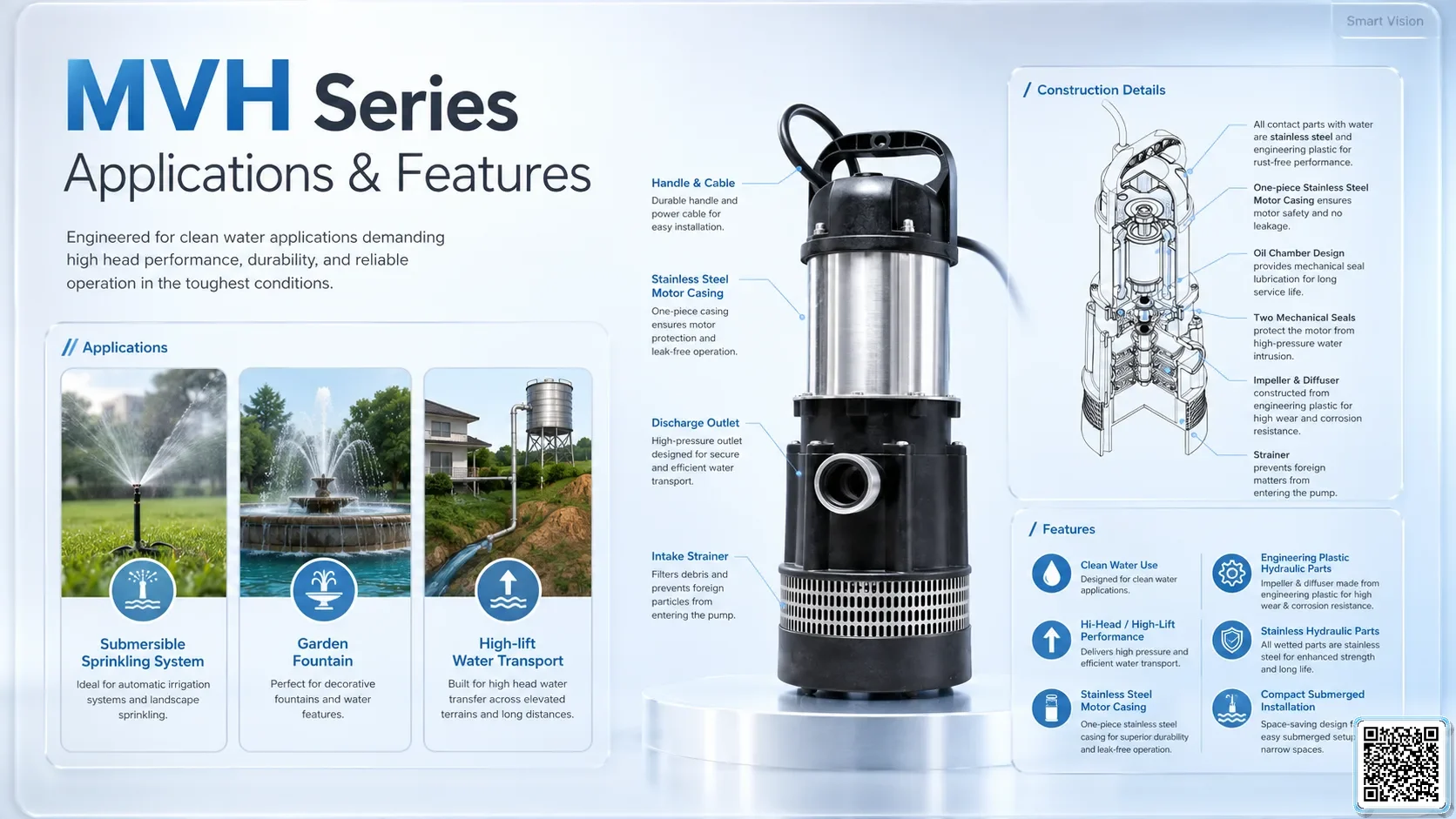

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP Taiwan MVH Series Hi-head Clean Water Pump designed for submersible sprinkling system; garden fountain; high-lift water transport. Suitable for SmartVision projects that require reliable auxiliary pump options.
