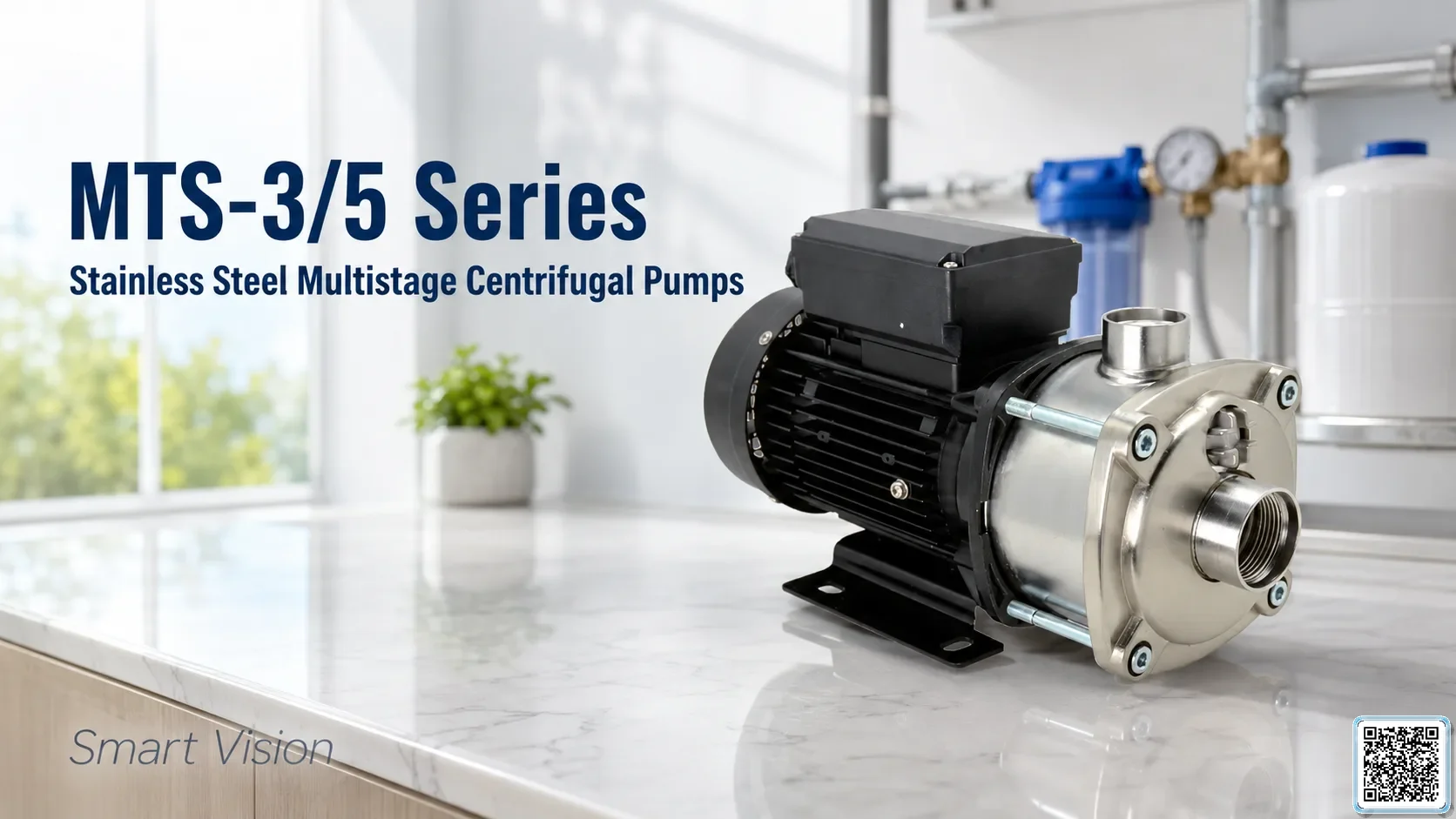

MTS-3/5Series Stainless Steel Multistage Centrifugal Pumps

Name: MTS-3/5 Series Stainless Steel Multistage Centrifugal Pumps
Brand: APP

APP MTS-3/5 Series Multistage / Centrifugal Pump from Taiwan.

pumpsMTS-3/5Request quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 75

Technical Specifications

source	APP catalogue
section	Domestic
series	MTS-3/5
family	Multistage / Centrifugal Pump
catalogue_page	Domestic 39-40
features	Stainless steel casing/impeller/diffuser; low noise; outdoor IP55.
Series	MTS-3/5 Series
Pump Series	MTS-3/5
Pump Type	Multistage / Centrifugal Pump
Max Diving Depth	Maximum suction 1 m
Water Temperature	0~90℃ / 32~194℉
pH Range	6~8
Pump construction	IP55
Material	Stainless steel wetted parts
Variant Dimensions	318 x 158 x 187 mm / 347 x 158 x 187 mm / 362 x 158 x 200 mm / 380 x 158 x 200 mm / 326 x 158 x 200 mm / 344 x 158 x 200 mm / 410 x 178 x 230 mm
Pump length / size	318 x 158 x 187 mm / 347 x 158 x 187 mm / 362 x 158 x 200 mm / 380 x 158 x 200 mm / 326 x 158 x 200 mm / 344 x 158 x 200 mm / 410 x 178 x 230 mm
Variant Max Flow	85 LPM (50Hz) / 90 LPM (60Hz) / 140 LPM (50Hz) / 145 LPM (60Hz) / 140 LPM (50Hz)
Variant Max Head	20 m (50Hz) / 28 m (60Hz) / 27 m (50Hz) / 40 m (60Hz) / 36 m (50Hz) / 55 m (60Hz) / 44 m (50Hz) / 68 m (60Hz) / 53 m (50Hz) / 82 m (60Hz) / 19 m (50Hz) / 28 m (60Hz) / 29 m (50Hz) / 42 m (60Hz) / 38 m (50Hz) / 55 m (60Hz) / 47 m (50Hz) / 68 m (60Hz) / 56 m (50Hz)
Variant Weight	7.4 kg (50Hz) / 8 kg (60Hz) / 7.5 kg (50Hz) / 10 kg (60Hz) / 10 kg (50Hz) / 11.5 kg (60Hz) / 10.5 kg (50Hz) / 12.5 kg (60Hz) / 12 kg (50Hz) / 14 kg (60Hz) / 8 kg (50Hz) / 10.5 kg (60Hz) / 11.5 kg (50Hz) / 12.5 kg (60Hz) / 12.5 kg (50Hz) / 17 kg (60Hz) / 15 kg (50Hz)

Project Integration

MTS-3/5 Series Stainless Steel Multistage Centrifugal Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
MTS-32(T) MTS-32(T)	1/3 HP / 250 W (50Hz) / 1/2 HP / 400 W (60Hz)	220V / 1P \| 380V / 3P	25 mm / 1"	85 LPM (50Hz) / 90 LPM (60Hz)	20 m (50Hz) / 28 m (60Hz)	—	318	7.4 kg (50Hz) / 8 kg (60Hz)	—
MTS-33 MTS-33	1/2 HP / 400 W (50Hz) / 3/4 HP / 550 W (60Hz)	220V / 1P	25 mm / 1"	85 LPM (50Hz) / 90 LPM (60Hz)	27 m (50Hz) / 40 m (60Hz)	—	347	7.5 kg (50Hz) / 10 kg (60Hz)	—
MTS-33(T) MTS-33(T)	1/2 HP / 400 W (50Hz) / 3/4 HP / 550 W (60Hz)	220V / 1P	25 mm / 1"	85 LPM (50Hz) / 90 LPM (60Hz)	27 m (50Hz) / 40 m (60Hz)	—	347	7.5 kg (50Hz) / 10 kg (60Hz)	—
MTS-35(T) MTS-35(T)	1 HP / 750 W (50Hz) / 1 1/2 HP / 1125 W (60Hz)	220V / 1P \| 380V / 3P	25 mm / 1"	85 LPM (50Hz) / 90 LPM (60Hz)	44 m (50Hz) / 68 m (60Hz)	—	380	10.5 kg (50Hz) / 12.5 kg (60Hz)	—
MTS-35E MTS-35E	1 HP / 750 W (50Hz) / 1 1/2 HP / 1125 W (60Hz)	220V / 1P	25 mm / 1"	85 LPM (50Hz) / 90 LPM (60Hz)	44 m (50Hz) / 68 m (60Hz)	—	380	10.5 kg (50Hz) / 12.5 kg (60Hz)	—
MTS-36(T) MTS-36(T)	1 1/2 HP / 1125 W (50Hz) / 2 HP / 1500 W (60Hz)	220V / 1P \| 380V / 3P	25 mm / 1"	85 LPM (50Hz) / 90 LPM (60Hz)	53 m (50Hz) / 82 m (60Hz)	—	380	12 kg (50Hz) / 14 kg (60Hz)	—
MTS-33E MTS-33E	1/2 HP / 400 W (50Hz) / 3/4 HP / 550 W (60Hz)	220V / 1P	25 mm / 1"	85 LPM (50Hz) / 90 LPM (60Hz)	27 m (50Hz) / 40 m (60Hz)	—	347	7.5 kg (50Hz) / 10 kg (60Hz)	—
MTS-52(T) MTS-52(T)	1/2 HP / 400 W (50Hz) / 3/4 HP / 550 W (60Hz)	220V / 1P \| 380V / 3P	25 mm / 1"	140 LPM (50Hz) / 145 LPM (60Hz)	19 m (50Hz) / 28 m (60Hz)	—	326	8 kg (50Hz) / 10.5 kg (60Hz)	—
MTS-54(T) MTS-54(T)	1 HP / 750 W (50Hz) / 1 1/2 HP / 1125 W (60Hz)	220V / 1P \| 380V / 3P	25 mm / 1"	140 LPM (50Hz) / 145 LPM (60Hz)	38 m (50Hz) / 55 m (60Hz)	—	344	11.5 kg (50Hz) / 12.5 kg (60Hz)	—
MTS-54E MTS-54E	1 HP / 750 W (50Hz) / 1 1/2 HP / 1125 W (60Hz)	220V / 1P	25 mm / 1"	140 LPM (50Hz) / 145 LPM (60Hz)	38 m (50Hz) / 55 m (60Hz)	—	344	11.5 kg (50Hz) / 12.5 kg (60Hz)	—
MTS-55(T) MTS-55(T)	1 1/2 HP / 1125 W (50Hz) / 2 HP / 1500 W (60Hz)	220V / 1P \| 380V / 3P	25 mm / 1"	140 LPM (50Hz) / 145 LPM (60Hz)	47 m (50Hz) / 68 m (60Hz)	—	410	12.5 kg (50Hz) / 17 kg (60Hz)	—
MTS-56(T) MTS-56(T)	2 HP / 1500 W (50Hz)	220V / 1P \| 380V / 3P	25 mm / 1"	140 LPM (50Hz)	56 m (50Hz)	—	410	15 kg (50Hz)	—
MTS-34(T) MTS-34(T)	3/4 HP / 550 W (50Hz) / 1 HP / 750 W (60Hz)	220V / 1P \| 380V / 3P	25 mm / 1"	85 LPM (50Hz) / 90 LPM (60Hz)	36 m (50Hz) / 55 m (60Hz)	—	362	10 kg (50Hz) / 11.5 kg (60Hz)	—
MTS-53(T) MTS-53(T)	3/4 HP / 550 W (50Hz) / 1 HP / 750 W (60Hz)	220V / 1P	25 mm / 1"	140 LPM (50Hz) / 145 LPM (60Hz)	29 m (50Hz) / 42 m (60Hz)	—	326	10 kg (50Hz) / 11.5 kg (60Hz)	—

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP MTS-3/5 Series is a multistage / centrifugal pump for Home booster; constant pressure; gardening; air conditioner recirculation; filtration applications.
