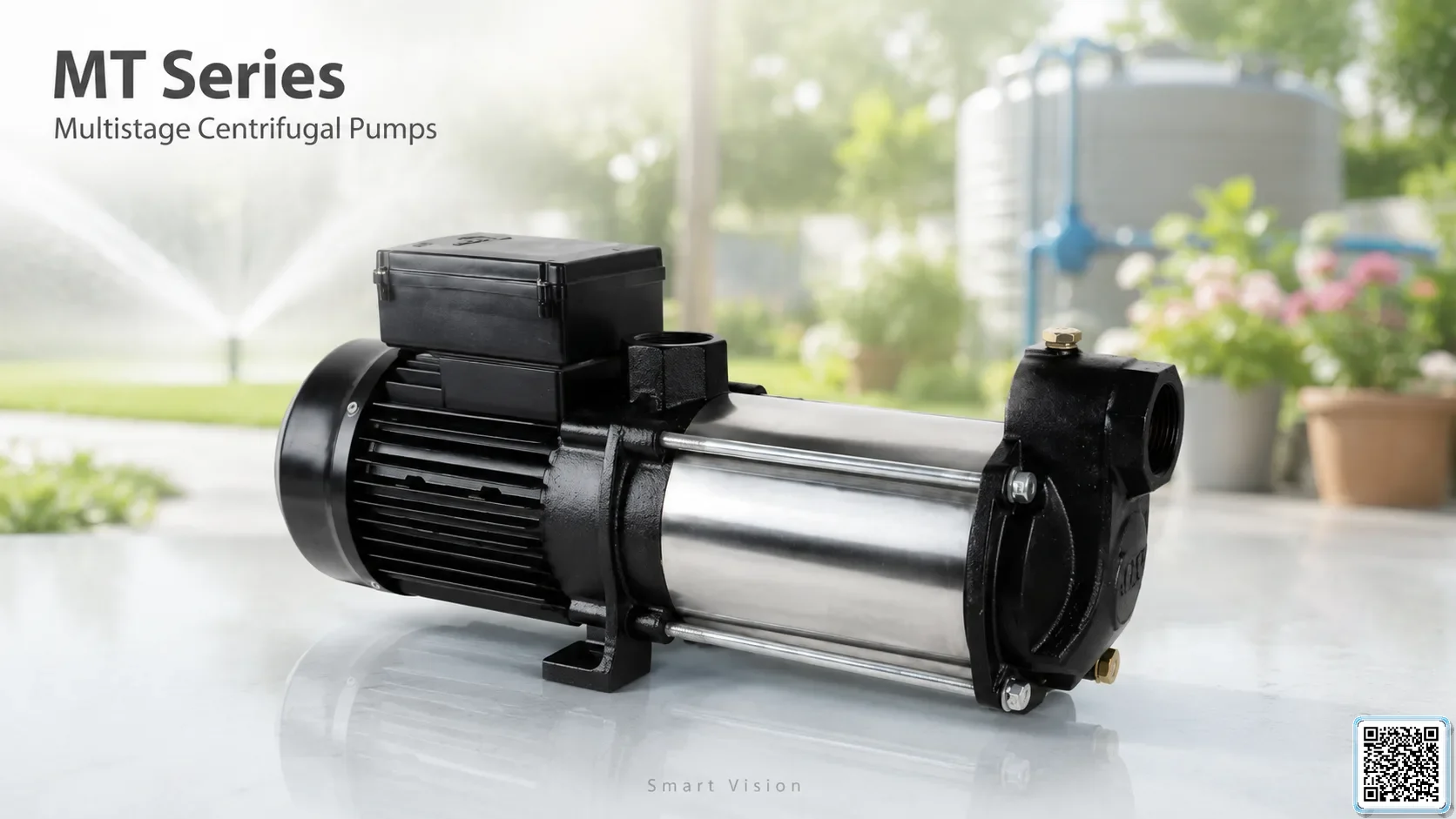

MT Main / Hero image SmartVision water show equipment

● FOUNTAIN PUMP / VFD

MTSeries Multistage Centrifugal Pumps

Name: MT Series Multistage Centrifugal Pumps
Brand: APP

APP MT Series Multistage / Centrifugal Pump from Taiwan.

pumpsMTRequest quotation

Choose pump configuration

Variant Voltage / Phase Motor Voltage Motor Power Flow / Head Outlet Length Weight Control cabinet Quantity

Add to Project Builder

👁 71

Technical Specifications

source	APP catalogue
section	Industry / Domestic
series	MT
family	Multistage / Centrifugal Pump
catalogue_page	33-34 / 37-38 Domestic

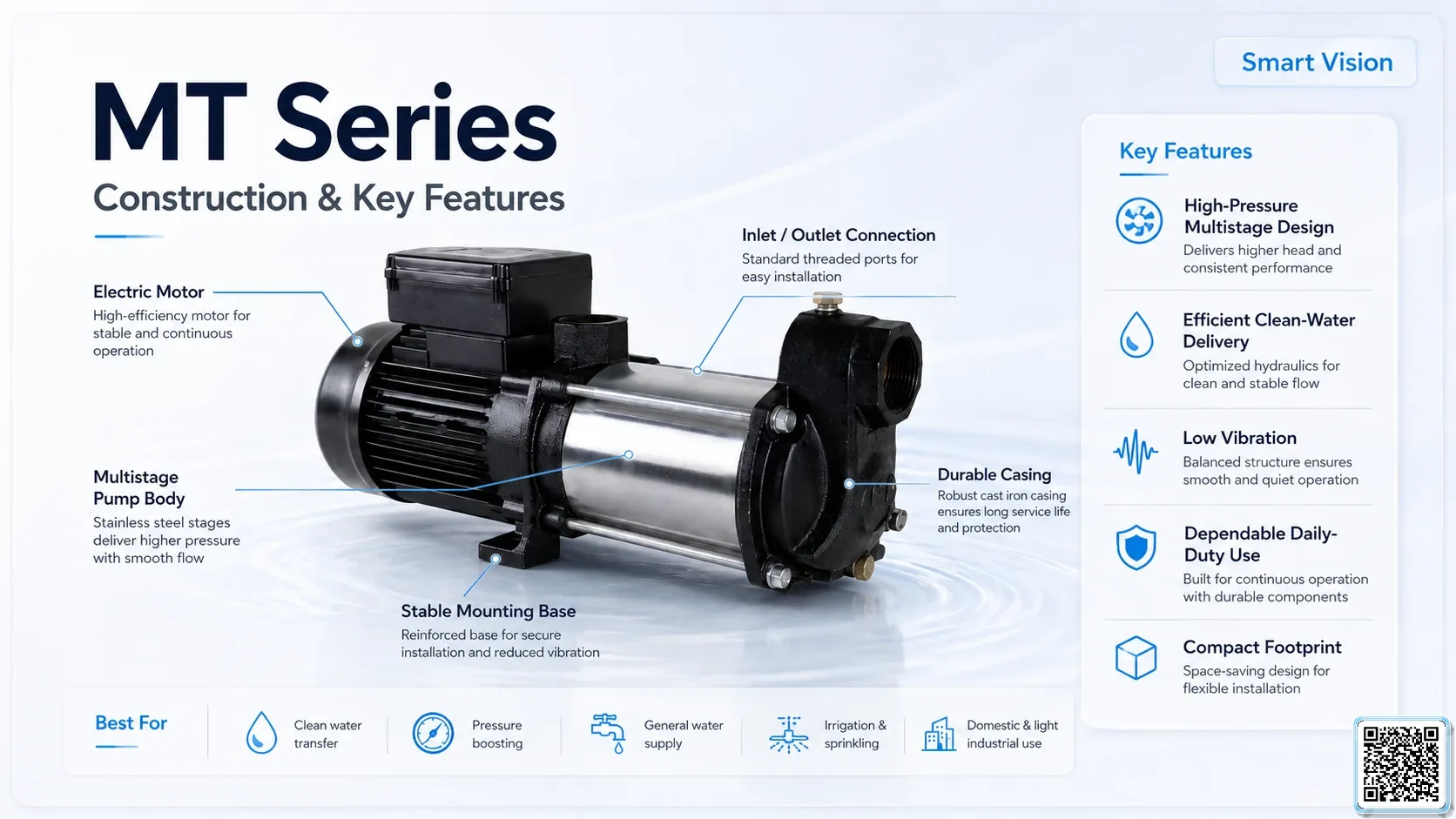

features	Multi-stage stainless steel and industrial plastic impeller; outdoor IP55.
Series	MT Series
Pump Series	MT
Pump Type	Multistage / Centrifugal Pump
Max Diving Depth	Maximum suction 8 m
Water Temperature	0~40℃ / 32~104℉
pH Range	6~8
Pump construction	IP55
Variant Dimensions	384 x 170 x 210 mm / 408 x 170 x 210 mm / 470 x 170 x 210 mm / 495 x 170 x 210 mm / 474 x 152 x 225 mm / 513 x 152 x 225 mm / 552 x 152 x 225 mm
Pump length / size	384 x 170 x 210 mm / 408 x 170 x 210 mm / 470 x 170 x 210 mm / 495 x 170 x 210 mm / 474 x 152 x 225 mm / 513 x 152 x 225 mm / 552 x 152 x 225 mm
Variant Max Flow	130 LPM / 320 LPM / 340 LPM
Variant Max Head	37 m / 50 m / 60 m / 75 m / 31 m / 40 m / 47 m
Variant Pass Solid	2 mm
Variant Weight	14 kg / 14.7 kg / 16 kg / 20 kg / 21 kg / 22 kg / 25 kg

Project Integration

MT Series Multistage Centrifugal Pumps is suitable for pressure boosting, water supply, hot/cold water circulation, filtration and domestic or light MEP applications. Selection should check required pressure, simultaneous water demand, voltage/frequency and installation accessories.

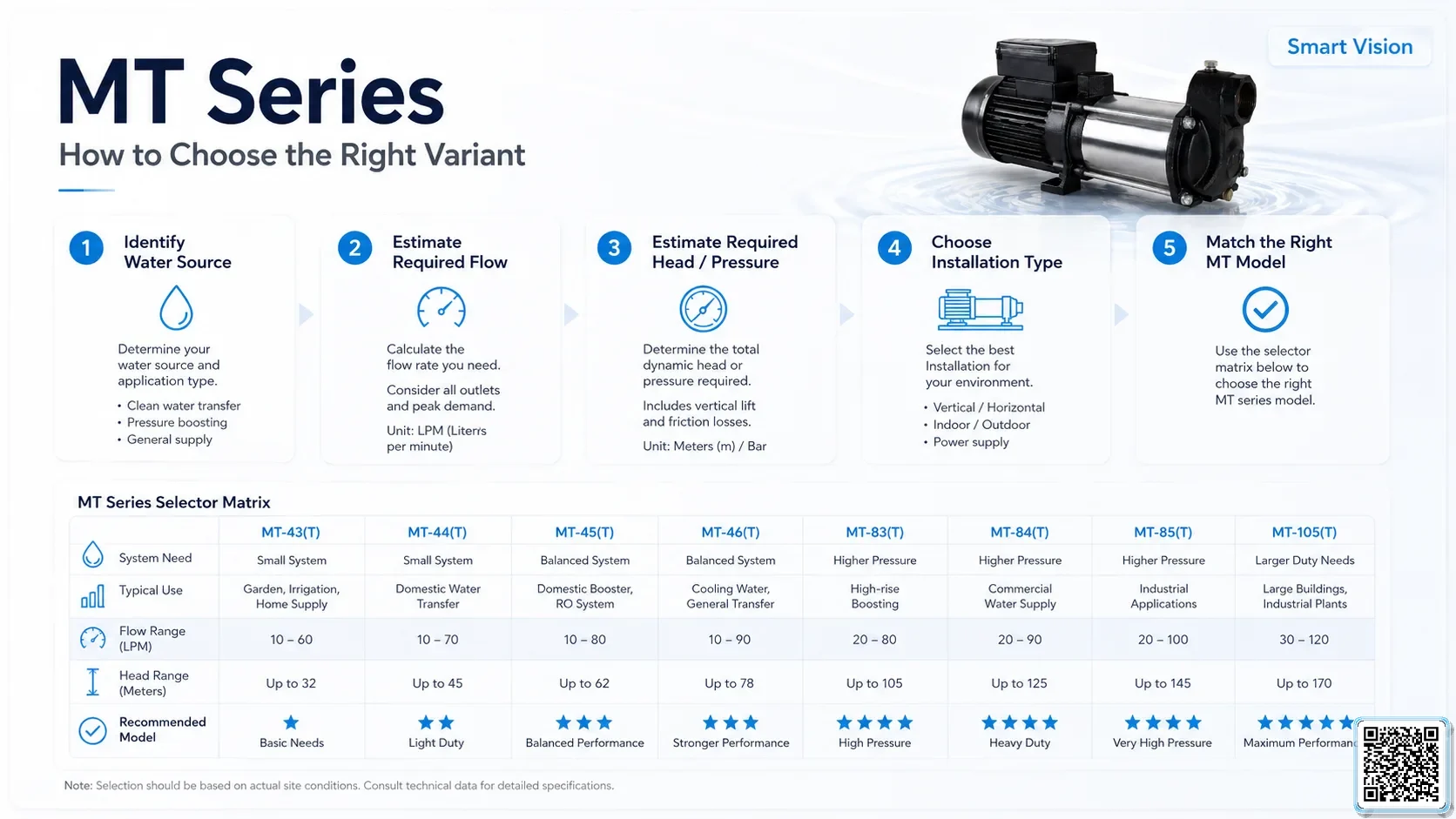

Select the model by project flow and working head
Check power, voltage/frequency, outlet size, material and installation dimensions
Add to BOM/RFQ together with accessories, piping, valves, electrical cabinet or VFD when required
Support configuration comparison and quotation by actual project quantity

PUMP MODELS

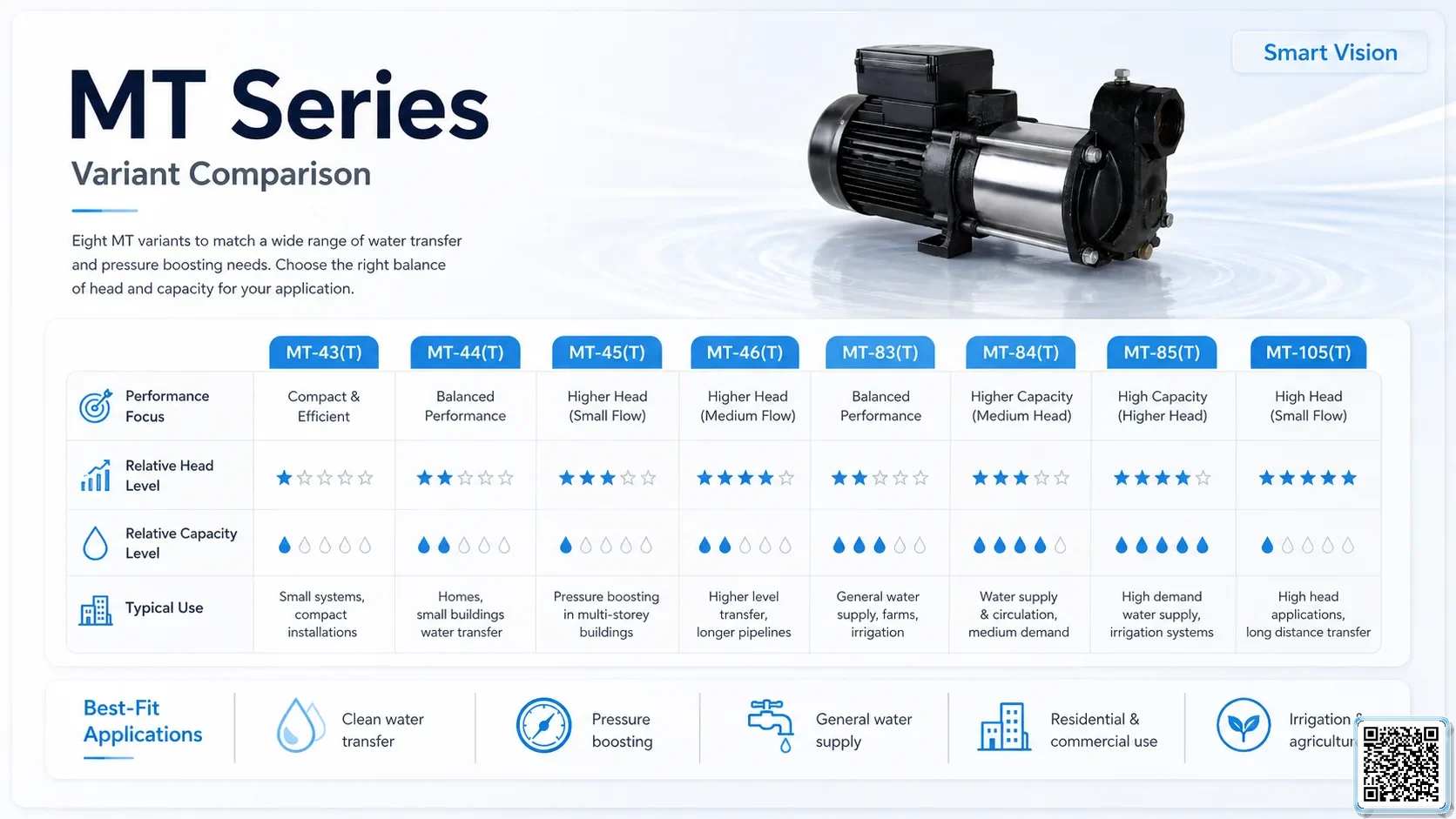

Pump Selection Table by Model

Model	Motor Power (HP/kW/W)	Voltage / Phase	Outlet (inch/mm)	Max Flow (LPM)	Max Head (m)	Pass Solid (mm)	Dimension (L×W×H mm)	Weight (kg)	Accessories
MT-43(T) MT-43(T)	1 HP / 0.75 kW	220V / 1P	25 mm / 1"	130 LPM	37 m	2 mm	384	14 kg	—
MT-43E MT-43E	1 HP / 0.75 kW	220V / 1P	25 mm / 1"	130 LPM	37 m	2 mm	384	14 kg	—
MT-43 MT-43	1 HP / 0.75 kW	220V / 1P	25 mm / 1"	130 LPM	37 m	2 mm	384	14 kg	—
MT-44 MT-44	1.33 HP	220V / 1P	25 mm / 1"	130 LPM	50 m	2 mm	408	14.7 kg	—
MT-44(T) MT-44(T)	1.5 HP / 1.1 kW	220V / 1P	25 mm / 1"	130 LPM	50 m	2 mm	408	14.7 kg	—
MT-83 MT-83	1.5 HP	220V / 1P	32 mm / 1-1/4"	320 LPM	31 m	2 mm	474	20 kg	—
MT-83(T) MT-83(T)	1.5 HP / 1.1 kW	220V / 1P	32 mm / 1-1/4"	320 LPM	31 m	2 mm	474	20 kg	—
MT-45(T) MT-45(T)	2 HP / 1.5 kW	220V / 1P \| 380V / 3P	25 mm / 1"	130 LPM	60 m	2 mm	470	16 kg	—
MT-46(T) MT-46(T)	2 HP / 1.5 kW	220V / 1P \| 380V / 3P	25 mm / 1"	130 LPM	75 m	2 mm	495	20 kg	—
MT-84(T) MT-84(T)	2 HP / 1.5 kW	220V / 1P \| 380V / 3P	32 mm / 1-1/4"	320 LPM	40 m	2 mm	513	21 kg	—
MT-85(T) MT-85(T)	3 HP / 2.2 kW	380V / 3P	32 mm / 1-1/4"	320 LPM	47 m	2 mm	552	22 kg	—
MT-105T MT-105T	3 HP / 2.2 kW	380V / 3P	50 mm / 2"	340 LPM	50 m	2 mm	552	25 kg	—
MT-105(T) MT-105(T)	3 HP / 2.2 kW	380V / 3P	50 mm / 2"	340 LPM	50 m	2 mm	552	25 kg	—
MT-85T MT-85T	/ 32 kW	380V / 3P	32 mm / 1-1/4"	320 LPM	47 m	2 mm	552	22 kg	—

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

APP MT Series is a multistage / centrifugal pump for Gardening; sprinkling; irrigation system; domestic pump; booster; RO; cooling water system applications.
